Bently Nevada 31000-28-05-00-028-01-02 Proximity Probe Housing for 3300 XL 8 mm Probe

Technical Specifications Breakdown

Key parameters for the 31000-28-05-00-028-01-02 are listed below for quick reference:

Real-World Applications for Reliable Monitoring

In a refinery, the Type 4X and IP66 ratings protect against washdowns and corrosive atmospheres. For a power plant, the wide temperature range (-51°C to +105°C) ensures operation in both freezing outdoor environments and hot turbine enclosures. The 3/4-14 NPT mounting thread simplifies installation into existing machine casings or standoff adapters.

Installation and Setup Guidance

Mount the housing using the 3/4-14 NPT fitting. Tighten the retaining nut to 29.4 N·m (260 in·lb) as recommended. Ensure the O-ring (Neoprene) is seated properly to maintain the IP66 seal. The probe cable length of 0.5 metre (20 in) requires careful routing to avoid strain. For hazardous areas, the CENELEC EN50014 rating for electrostatic dissipation must be observed; use conductive grounding paths as specified.

Maintenance and Reliability

Periodically inspect the housing for cracks, corrosion, or damaged seals. The glass-reinforced PPS material offers high impact strength (certified to withstand 4 Joule impacts at extreme temperatures). Verify that the retaining chain and outer sleeve (AISI 303 stainless steel) remain secure. No internal disassembly is required for routine checks. Always confirm the O-ring integrity after any cover removal.

Robust Protection for Critical Vibration Monitoring

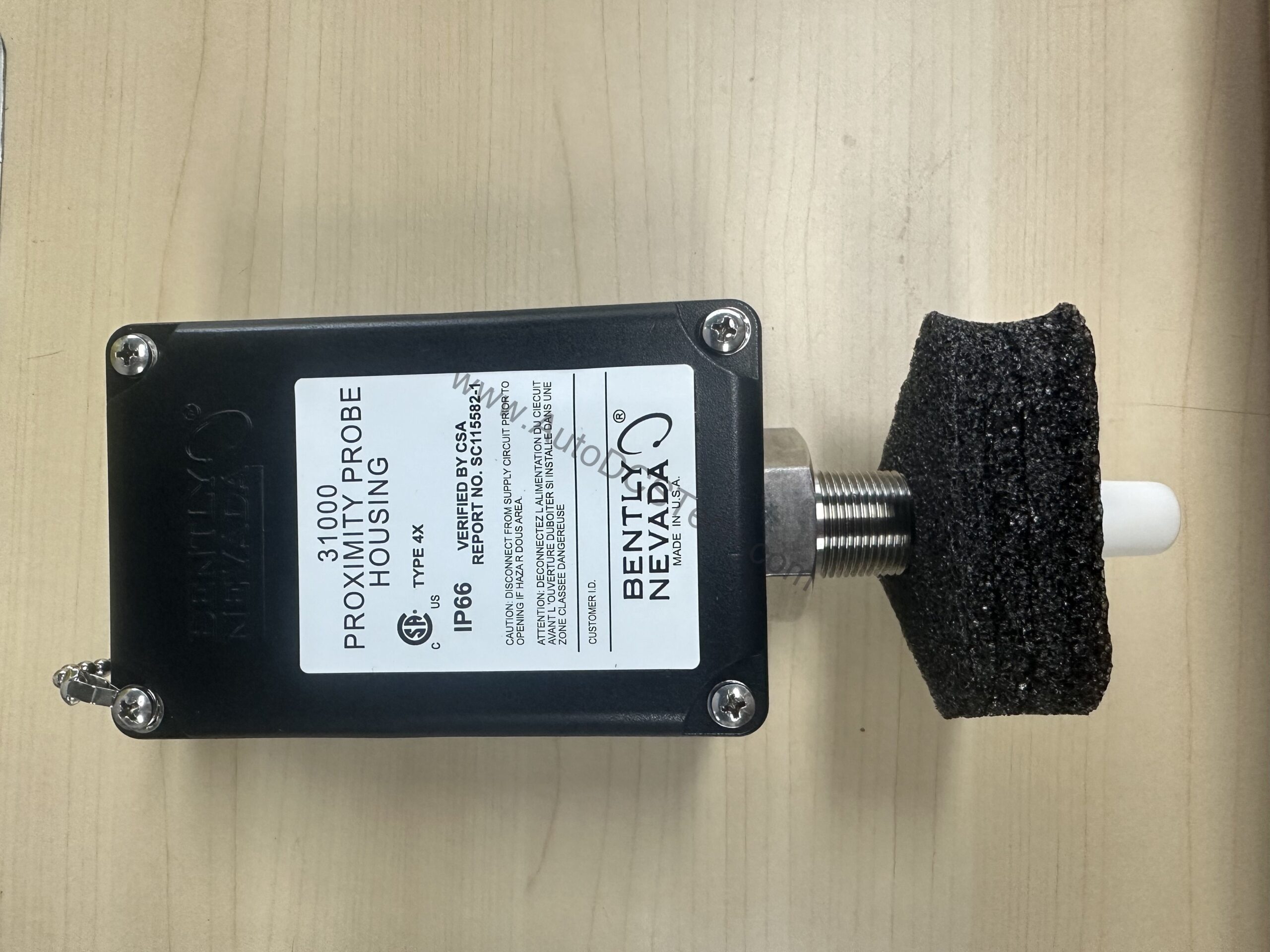

For maintenance engineers working with rotating machinery, the Bently Nevada 31000-28-05-00-028-01-02 provides a durable, sealed enclosure for the 3300 XL 8 mm proximity probe. This housing is built to withstand the toughest conditions, ensuring reliable vibration data collection in applications like steam turbines, compressors, and pumps. Its robust design minimizes downtime and simplifies field service.

Selection Guide and Purchasing Advice

When ordering the 31000-28-05-00-028-01-02, verify that the probe option (3300 XL 8 mm) matches your transducer. The 0.5 metre cable length suits installations near the probe tip. For longer cable runs, select a different cable length option. Contact AutoDCSTech for current lifecycle status and availability before placing an order. Our team can help confirm compatibility with your existing Bently Nevada system.

Troubleshooting and Common Issues

If signal loss occurs, check the probe cable for damage at the housing entry point. Intermittent readings may indicate a loose retaining nut or degraded O-ring. In high-vibration environments, verify that the mounting thread (3/4-14 NPT) is properly engaged. For electrostatic discharge concerns, ensure the housing grounding liner is installed and connected. If the housing is exposed to chemicals, inspect the Neoprene O-ring for swelling or hardening.
