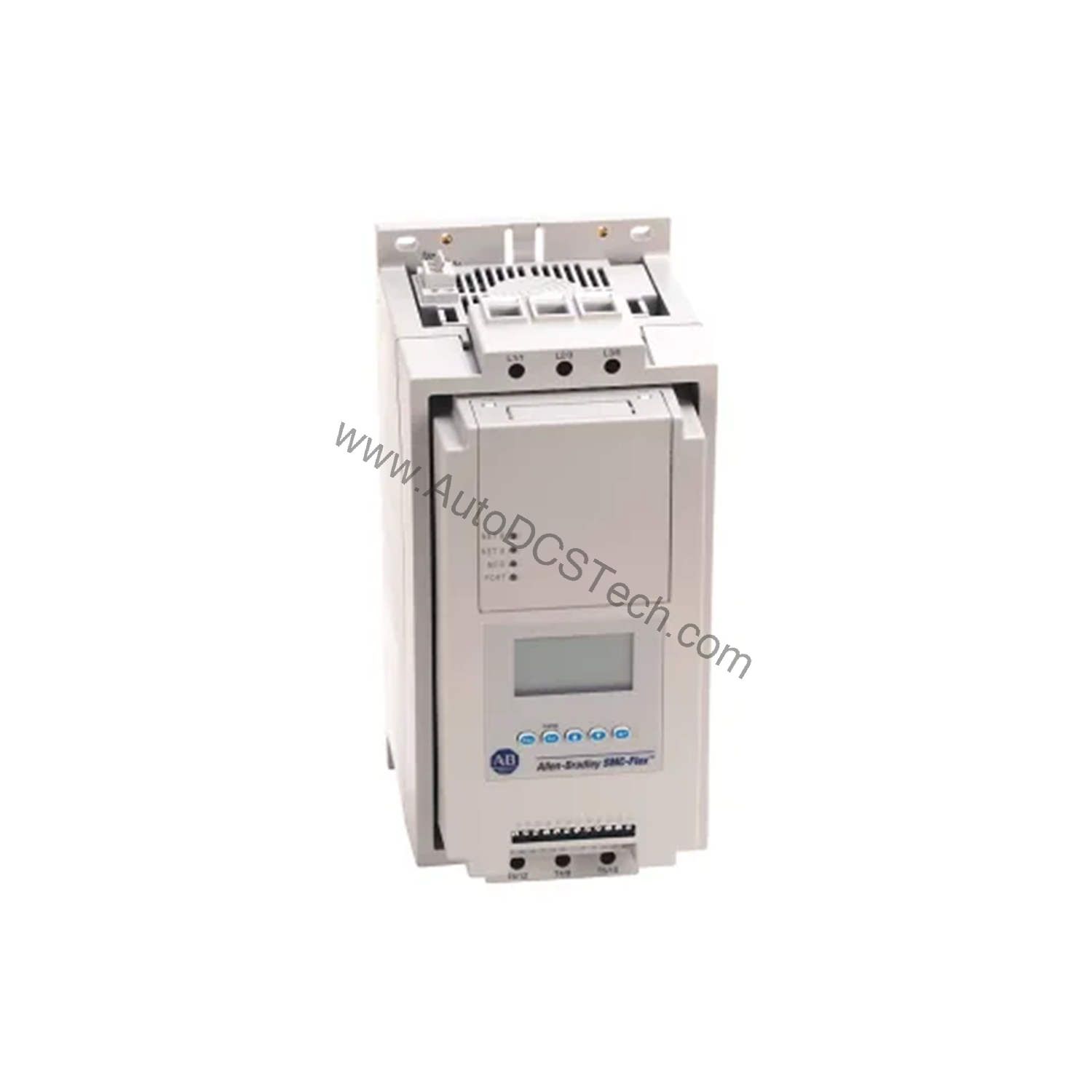

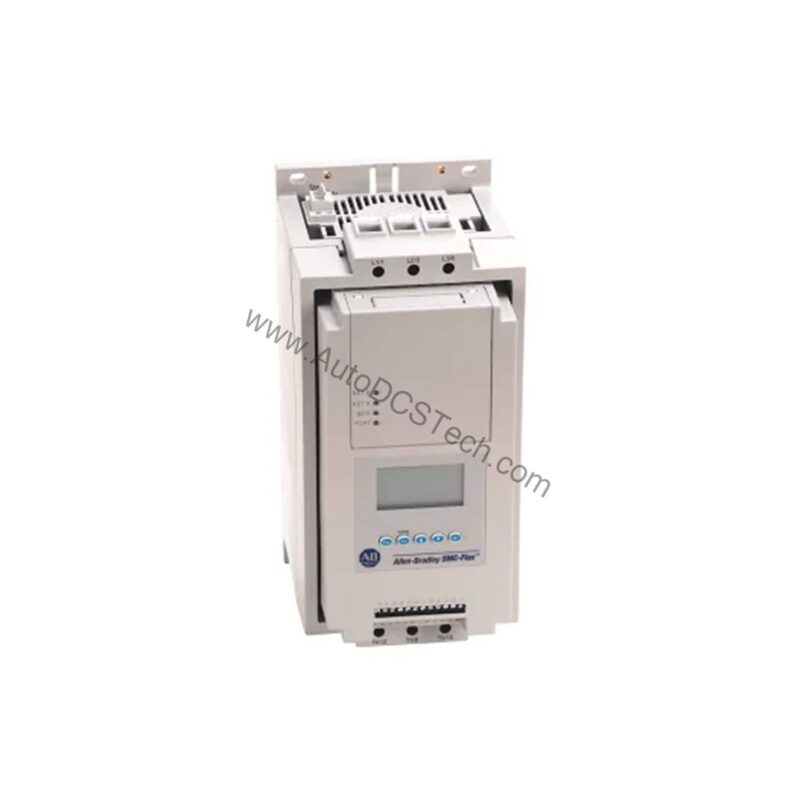

Allen-Bradley 150-F108NBRB SMC Flex Smart Motor Controller 108A

Optimize Motor Control with the Allen-Bradley 150-F108NBRB SMC Flex

Industrial motor control demands precision, reliability, and robust protection. The Allen-Bradley SMC Flex Smart Motor Controller, model 150-F108NBRB, delivers advanced soft starting and stopping capabilities tailored for demanding applications. Rated at 108 A with a power range of 20-75 Hp at 460V AC, this controller is engineered to reduce mechanical stress and electrical disturbances during motor startup.

Technical Specifications Breakdown

Key parameters for the 150-F108NBRB are listed below for quick reference:

Industry Applications and ROI

The pump control option minimizes water hammer and pressure surges, extending system life. By integrating overload protection and adjustable trip classes (10, 15, 20, and 30), the 150-F108NBRB lowers downtime and maintenance costs, delivering a strong return on investment through improved operational efficiency.

Installation and Setup Guidance

Mount the open-type enclosure in a clean, dry location with adequate ventilation. Ensure the line/load side power terminals (one M10 x 1.5 diam hole per power pole) are torqued to manufacturer specifications. Connect the control circuit with the provided clamp yoke connection (M3 screw clamp). Configure the controller using the onboard display for parameters such as trip class and pump control settings. Verify that the supply voltage matches the rated operational voltage range (200...480V AC) before energizing.

Maintenance and Reliability

Periodically inspect the heatsink and hockey puck thyristor modules for dust accumulation. Operate within the specified temperature range (-5 to 50 °C) and humidity levels (5...95% noncondensing). The controller includes status indication (stopped, starting, stopping, at speed, alarm, fault) for proactive monitoring. Regular checks of the RC snubber network and metal oxide varistors (220 J) ensure transient protection remains effective.

Compatibility and Integration

The 150-F108NBRB integrates with standard short-circuit protection devices (fuse, circuit breaker, high capacity time delay class CC/J/L). It supports both line-connected and delta-connected motor configurations. The auxiliary contacts (19/20, 29/30, 31/32, 33/34) provide flexible control wiring. For advanced braking needs, the optional SMB smart motor braking control offers adjustable braking current from 0 to 400% of motor full-load current.

Selection Guide and Purchasing Advice

When selecting a motor controller, match the current rating (108 A for line-connected, 47 A for delta-connected) to your motor's full-load current. The 150-F108NBRB is available from AutoDCSTech, a trusted supplier of industrial automation parts. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
