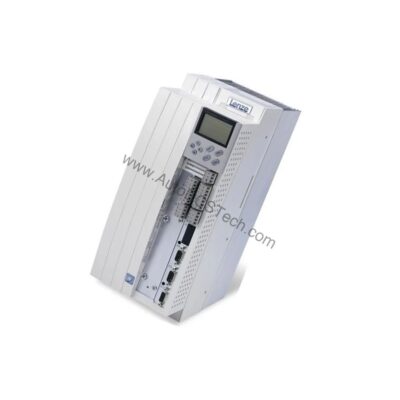

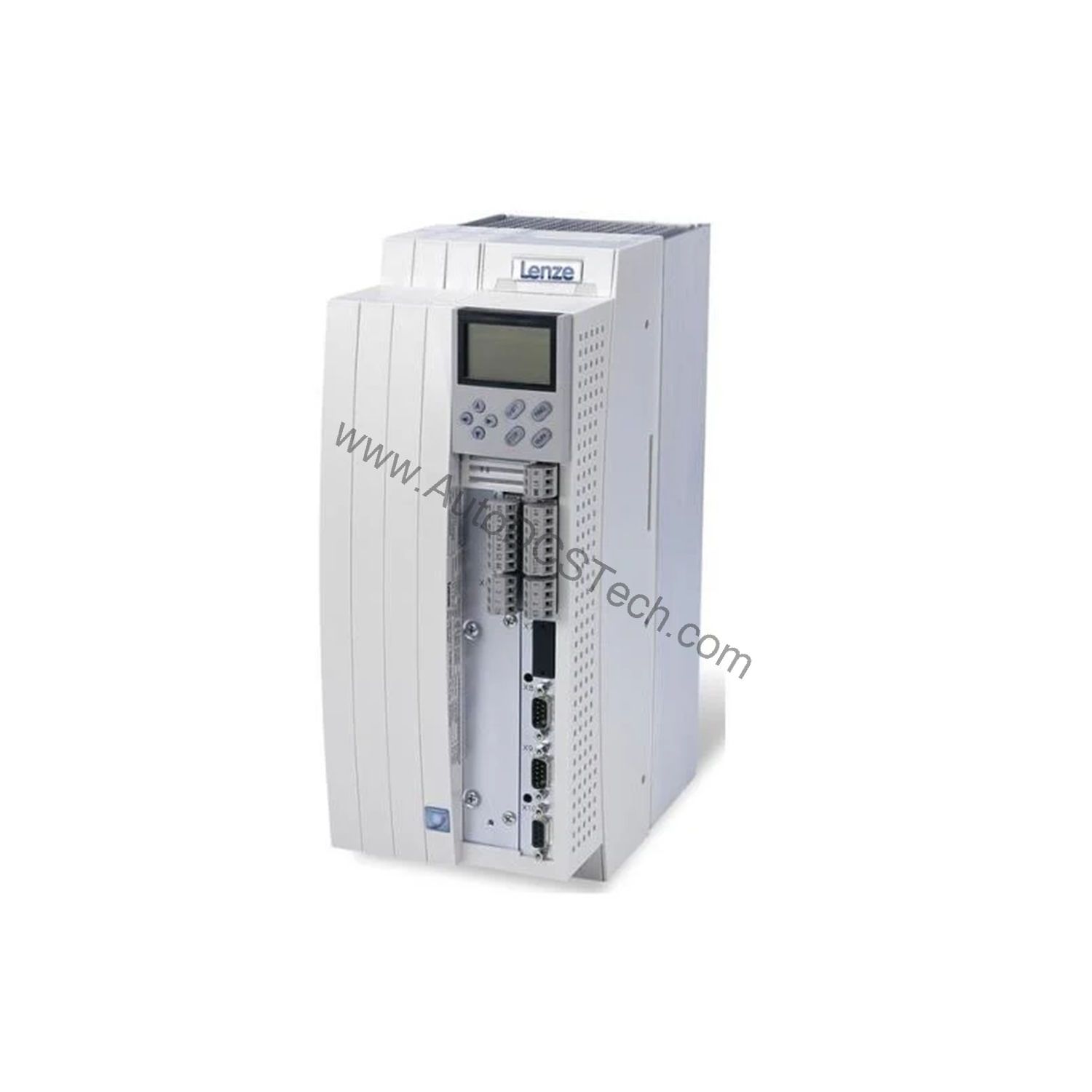

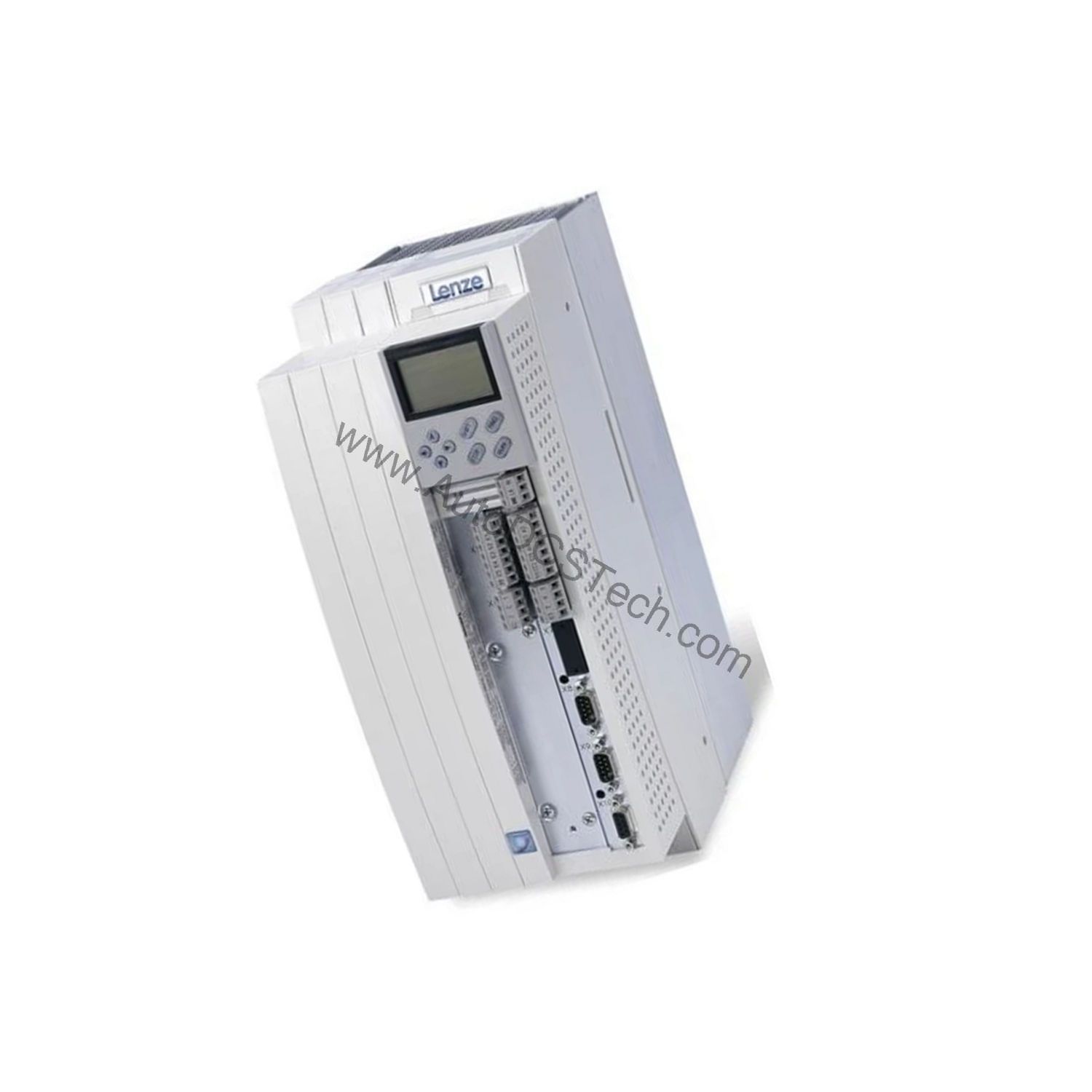

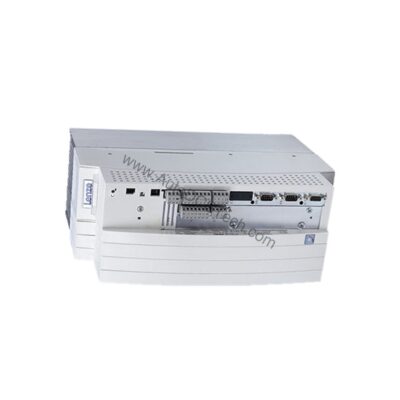

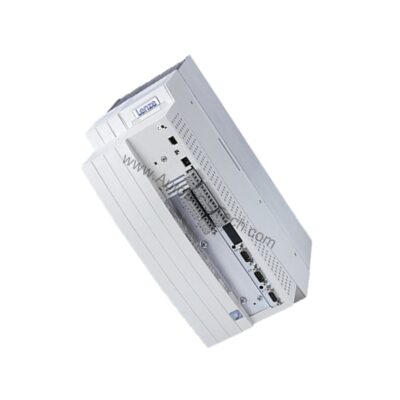

Lenze EVF9326-EVV004 Vector Frequency Inverter 11kW Panel Mount

Technical Specifications Breakdown

Key parameters for the EVF9326-EVV004 are listed below for quick reference:

Real-World Applications for Maximum ROI

Conveyor Systems: In material handling, the EVF9326-EVV004 provides precise speed control, reducing product damage and improving throughput. The safe standstill function enhances operator safety during loading and unloading, potentially lowering insurance costs.

Pumps and Fans: For HVAC or process pumps, the drive's variable speed control can cut energy use by up to 30% compared to constant-speed operation. The LED display gives operators real-time feedback on motor speed and status, enabling quick adjustments to optimize efficiency.

Packaging Machinery: With an output frequency range up to 600 Hz, this inverter can drive high-speed servo-like applications, increasing line speed and productivity. The IP20 protection is suitable for clean, dry industrial environments typical of packaging plants.

Installation and Setup Guidance

Proper installation is key to maximizing the lifespan of your drive. Mount the unit on a flat, vertical panel using the designated mounting points. Ensure adequate clearance around the unit for airflow, as the ambient operating temperature is rated up to 60°C. Connect the three-phase input to the terminals marked L1, L2, and L3, observing the correct phase sequence. Set the input frequency (50 or 60 Hz) via the front panel to match your local electrical grid. For detailed wiring diagrams and parameter settings, refer to the Lenze Series 9300 manual.

Maintenance and Reliability Best Practices

Regular inspections are essential to keep the drive operating reliably. Periodically check for dust accumulation on the heatsink and clean it with a dry, low-pressure air stream if necessary. Verify that all terminal connections remain tight, as thermal cycling can loosen them over time. The unit's storage temperature range of -25°C to 60°C means it can be kept in unheated warehouses, but avoid exposing it to condensation. The safe standstill function should be tested at least once a year to ensure it is functioning correctly.

Cost-Benefit Analysis: Why This Drive Pays Off

Every specification of this inverter contributes to a lower total cost of ownership. The 11 kW power rating ensures you are not oversizing your drive, which reduces initial capital expenditure and ongoing energy consumption. The wide input voltage range (400 to 480V AC) allows for stable operation even when line voltages fluctuate, minimizing the risk of nuisance trips that can halt production. Additionally, the high output frequency capability (up to 600 Hz) means the drive can handle high-speed applications without requiring a separate gearbox, saving on mechanical components and maintenance.

Compatibility and Integration Considerations

The EVF9326-EVV004 is part of the Lenze Series 9300, a well-established family of drives known for ease of integration. It accepts standard three-phase AC input and provides a variable-frequency output to control standard induction motors. The LED display simplifies local operation, and the drive can be integrated into larger control systems using standard analog or digital I/O (not specified, but typical for the series). For advanced networking, consult Lenze documentation for available fieldbus options.

Purchasing and Support from AutoDCSTech

We understand that unplanned downtime is costly, which is why we stock the EVF9326-EVV004 and offer fast worldwide shipping. Our team of automation specialists can help you confirm that this drive meets your application requirements. Contact us today to request a quote or to discuss your spare parts strategy. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
