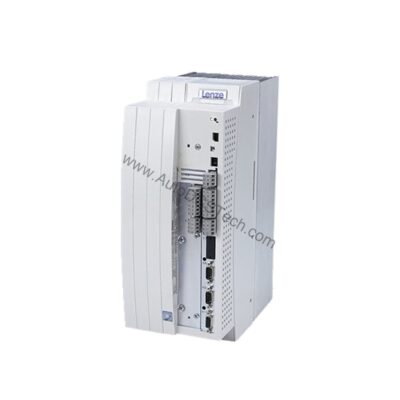

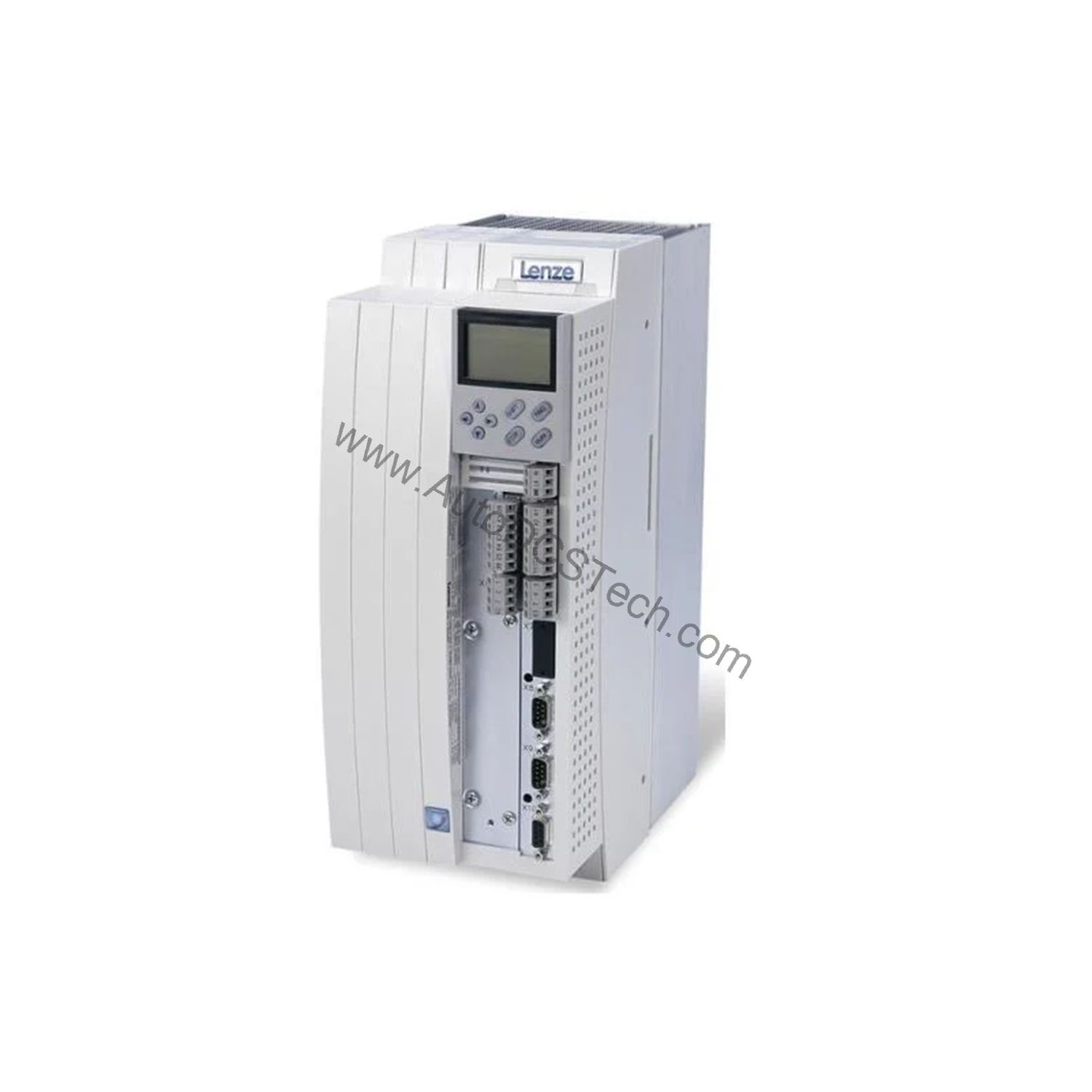

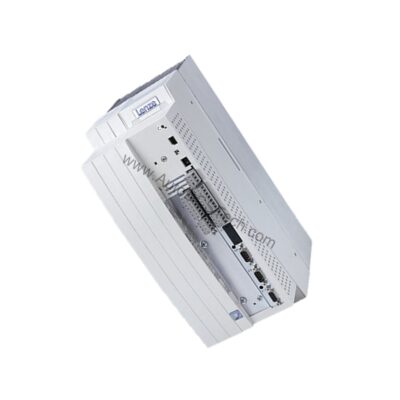

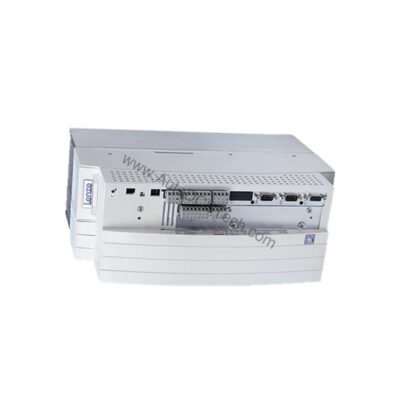

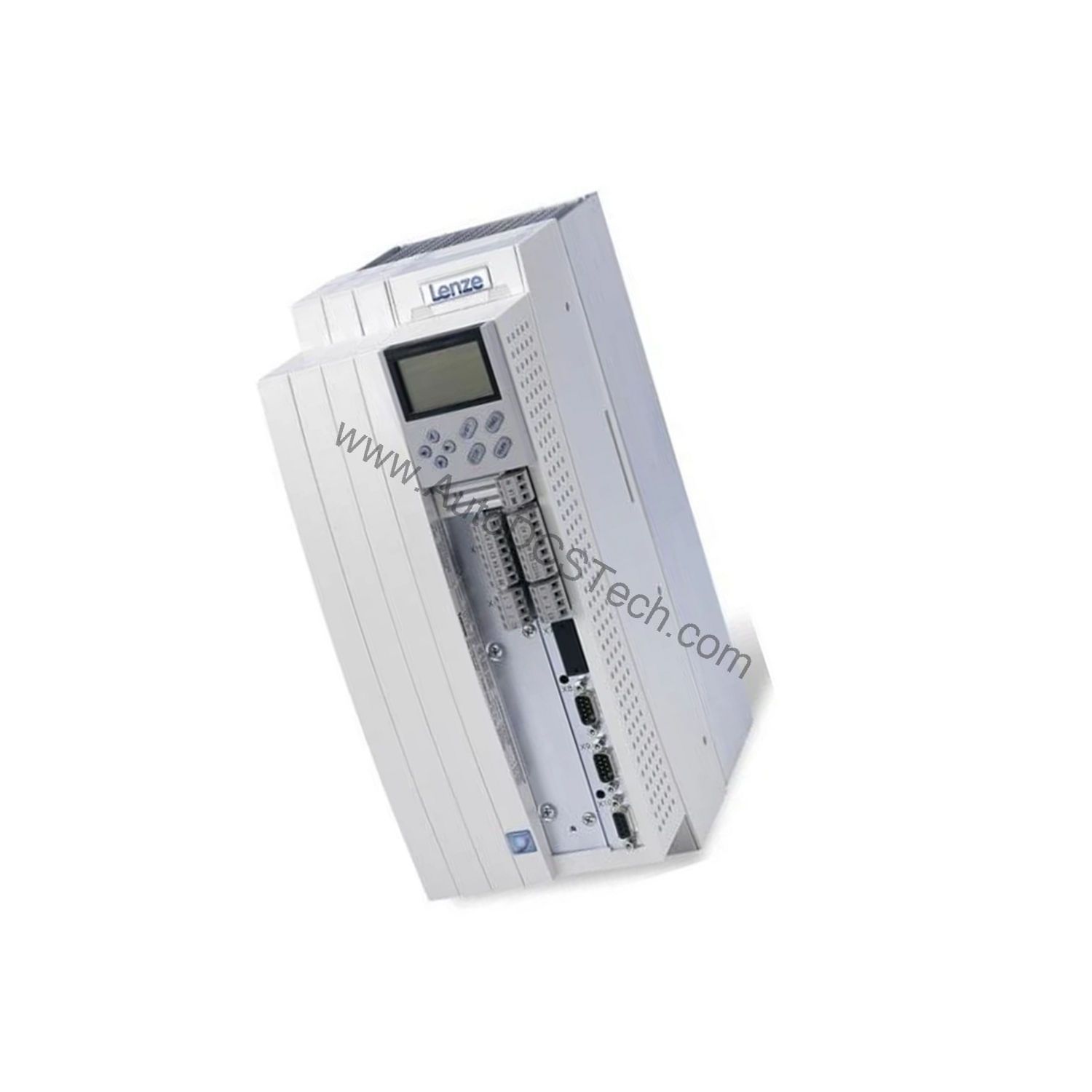

Lenze EVF9326-EV 9300 Vector Frequency Inverter 11kW

Technical Specifications Breakdown

Key parameters for the EVF9326-EV are listed below for quick reference:

Real-World Applications for the 9300 Vector Drive

This inverter is well-suited for conveyors, mixers, and pumps where consistent torque is critical. In a fan and pump application, the 11 kW power rating ensures energy-efficient operation. For constant torque loads like extruders or winders, the 23.5 amp rating provides the necessary current to maintain performance. The open/closed loop flexibility allows you to use it in both simple V/Hz control and more demanding vector control applications.

Installation and Setup Guidance

When installing the EVF9326-EV, ensure the ambient temperature and ventilation meet the IP20 enclosure requirements. Mount the drive in a clean, dry cabinet to prevent dust ingress. Verify that the input supply voltage matches the 380...480V AC rating before energizing. Use proper shielding for control wiring to avoid electromagnetic interference. Always follow the manufacturer's manual for terminal connections and parameter settings.

Maintenance and Reliability Tips

Regularly inspect the cooling fans and heat sinks for dust buildup, as overheating is a common cause of drive failure. Check all power and control connections for tightness every six months. Because the drive is IP20 rated, it is not suitable for washdown environments, so keep it protected from moisture. Monitoring the drive's operating temperature and load current can help predict potential issues before they cause downtime.

Why the Lenze EVF9326-EV Delivers Reliable Motor Control

The Lenze EVF9326-EV from the 9300 Vector series provides the precise motor control you need to keep operations running smoothly. This frequency inverter is engineered for three-phase applications requiring robust performance and flexibility. Its open and closed loop capability makes it a versatile choice for a wide range of industrial machinery.

Compatibility and Integration

The 9300 Vector series is designed to work with a variety of Lenze motors and feedback devices. With 7 digital inputs and 4 digital outputs, you can easily interface with PLCs and other control systems. The 2 analog inputs and 2 analog outputs allow for precise speed and torque reference signals. This drive supports both open-loop and closed-loop configurations, giving you the flexibility to upgrade your system without replacing the entire drive.

Purchasing Advice from AutoDCSTech

AutoDCSTech offers genuine industrial automation parts with competitive pricing. Contact our team to verify current lifecycle status and availability before ordering. We can help you confirm that this model meets your specific requirements and provide fast shipping to minimize your downtime.
