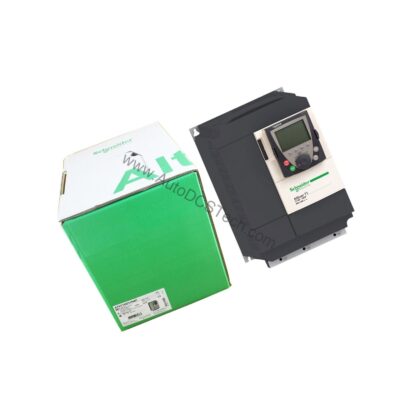

Schneider ATV71HD11N4 Variable Speed Drive 11kW 15HP 480V

Technical Specifications Breakdown

Key parameters for the ATV71HD11N4 are listed below for quick reference:

Application Scenarios for Maximum ROI

Typical uses include:

• Conveyor Systems: The sensorless flux vector control (SFVC) provides accurate torque control even without an encoder, reducing system cost while maintaining performance.
• Pumps and Fans: The adjustable PI regulator and energy adaptation (ENA) system optimize energy consumption for variable torque loads, lowering operational expenses.
• Hoists and Cranes: With transient overtorque capability up to 170% for 60 seconds and braking torque up to 150% with an external resistor, this drive handles demanding start/stop cycles reliably.

Installation and Setup Guidance

Proper installation ensures long-term reliability. The ATV71HD11N4 is designed for vertical mounting within +/- 10 degrees. Use shielded cable up to 50 m or unshielded up to 100 m for motor connections. The integrated EMC filter simplifies compliance with EN 61800-3 environments. Ensure adequate clearance for heat sink ventilation and use the provided tightening torques (0.6 N.m for control terminals, 3 N.m for power terminals).

Maintenance and Reliability

Routine inspection of the cooling fan and heat sink is recommended to prevent overheating. The drive operates without derating from -10 to 50 °C and can be stored from -25 to 70 °C. With IP20 protection, it is suitable for clean, dry enclosures. The unit's insulation resistance exceeds 1 MOhm at 500 V DC, confirming robust electrical isolation.

Selecting the Right Drive for Complex High-Power Machines

The Schneider ATV71HD11N4 is engineered to meet these challenges, offering robust performance for both asynchronous and synchronous motors in demanding industrial environments.

Compatibility and Integration

This drive supports CANopen and Modbus communication protocols via RJ45 and SUB-D connectors, enabling seamless integration into existing automation networks. It also accepts optional communication cards for Profibus DP, EtherNet/IP, DeviceNet, and others. The 7 discrete inputs and 2 relay outputs provide flexible I/O for external control.

Selection Guide and Purchasing Advice

When evaluating this drive, confirm that your motor power and voltage match the 11 kW / 15 hp rating at 380-480 V. For applications requiring encoder feedback, the drive supports flux vector control with sensor. AutoDCSTech offers this unit with full technical support. Please verify current lifecycle status and availability before ordering.
