Technical Specifications Breakdown
Key parameters for the BMEP586040C are listed below for quick reference:
| Feature | Specification |
|---|---|
| Range of Product | Modicon M580 |
| Product or Component Type | Processor module |
| Impregnation Material | Conformal coated |
| Number of Racks | 8 |
| Local I/O Processor Capacity (Discrete) | 6144 I/O |
| Local I/O Processor Capacity (Analog) | 1536 I/O |

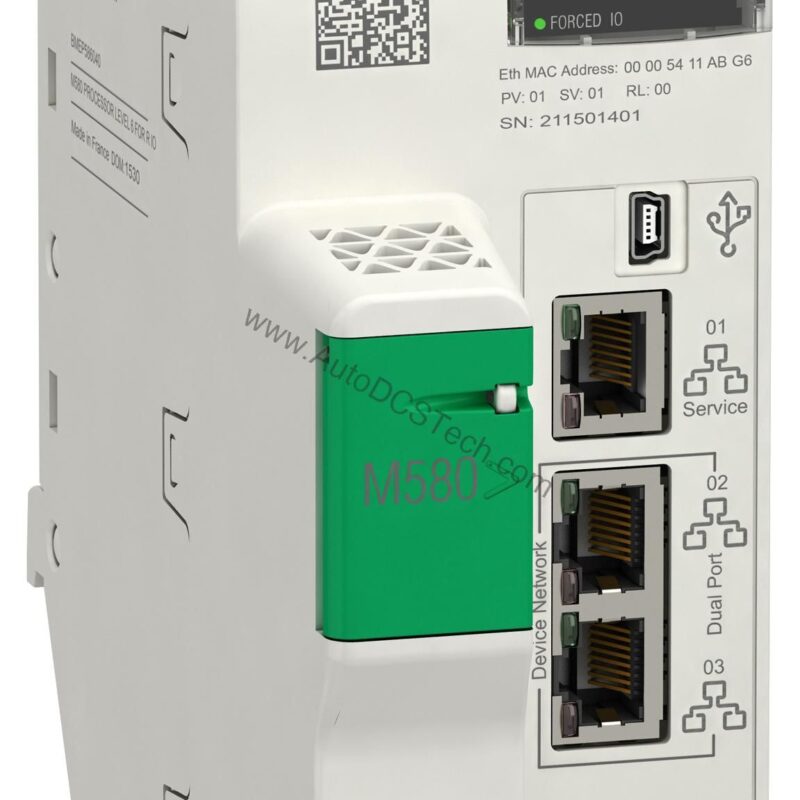

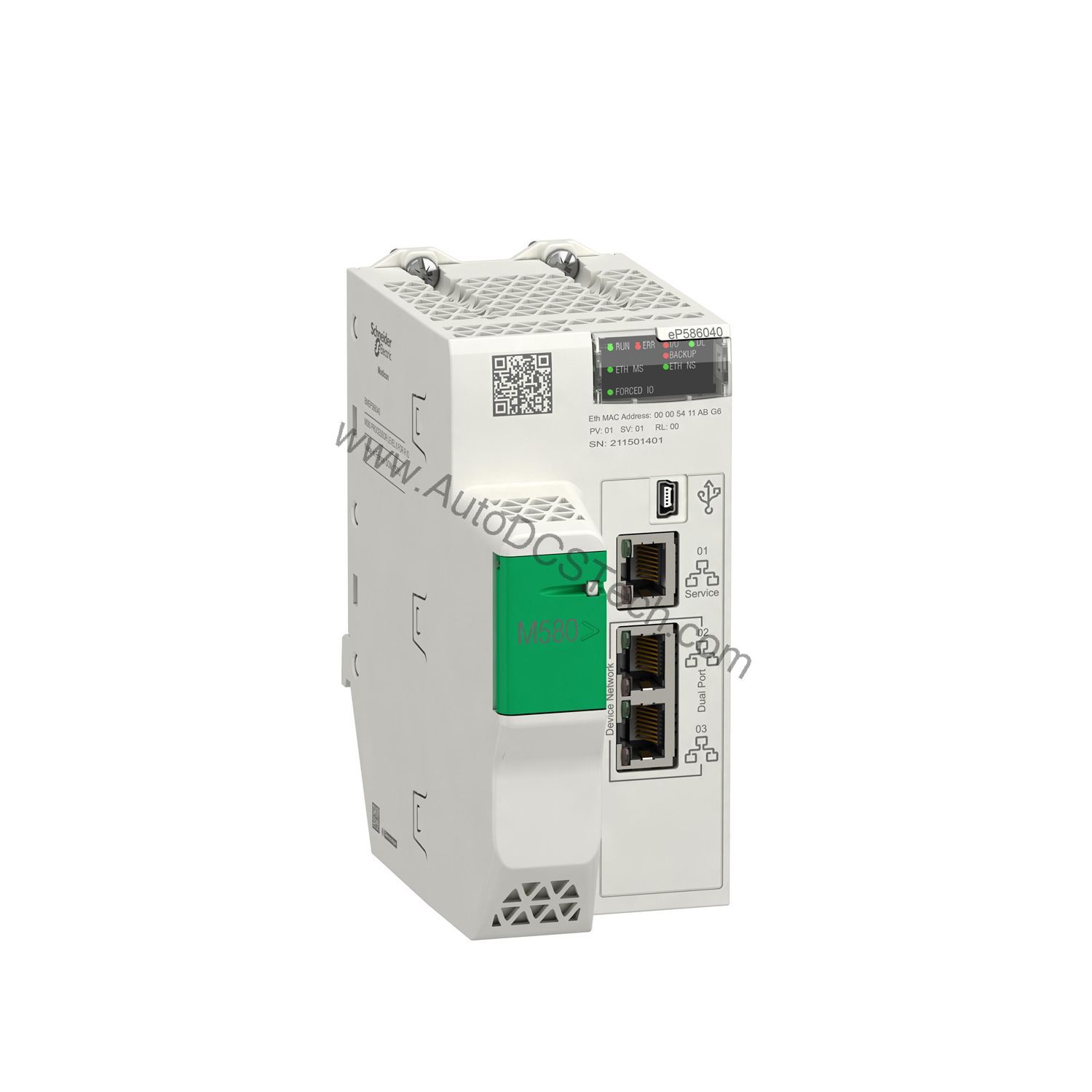

| Integrated Connection Type | 1 Ethernet TCP/IP service port, 2 Ethernet TCP/IP device network, USB type mini B |
| Memory Description | Expandable flash, 4 GB data storage; Integrated RAM, 10 kB system memory; Integrated RAM, 64 MB program and data |
| Current Consumption | 300 mA 24 V DC |
| MTBF Reliability | 775000 H |
| Ambient Air Temperature for Operation | -13…140 °F (-25…60 °C) |
| IP Degree of Protection | IP20 |
| Product Weight | 1.872 lb(US) (0.849 kg) |
Real-World Applications
Process Control in Harsh Environments
Its 1536 analog I/O capacity supports precise monitoring of pressure, flow, and temperature loops.
High-Density Discrete Control
The 8-rack support allows distributed I/O placement near machinery, reducing wiring costs.
Redundant Remote I/O Architectures
The module supports up to 31 remote I/O stations with 2 remote drops, enabling fault-tolerant designs for critical infrastructure like water treatment or power distribution.
Installation and Setup Guidance
When installing the BMEP586040C, ensure the rack provides internal power supply as specified. Mount the module in a clean, dry location (IP20 rating) and avoid exposure to conductive dust. Use the USB mini B port for local programming via EcoStruxure Control Expert. For Ethernet connectivity, connect the service port to a configuration PC and device network ports to plant-wide control networks. Verify that the ambient temperature stays within -13 to 140 °F to prevent thermal stress.
Maintenance and Reliability

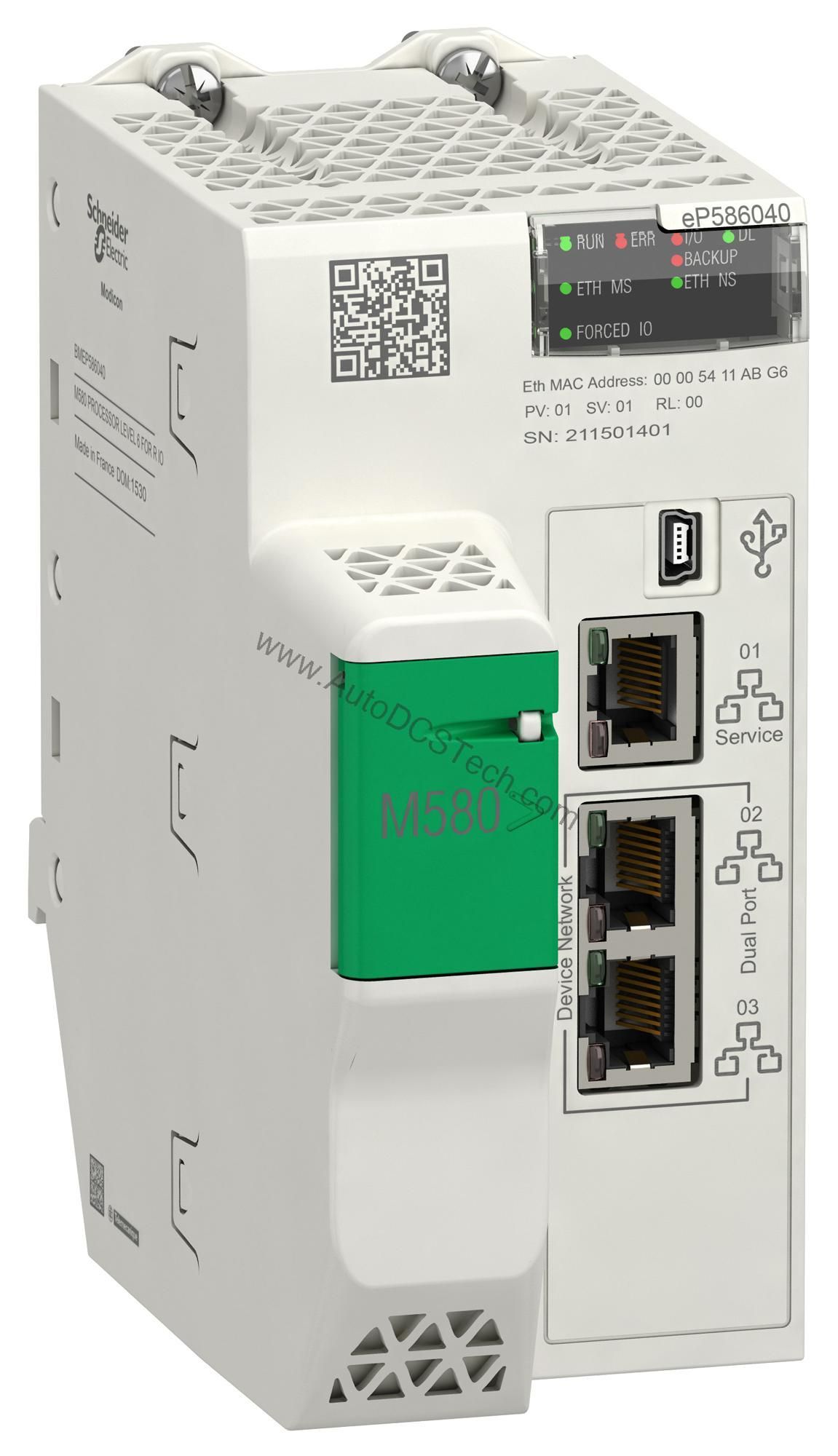

The BMEP586040C boasts an MTBF of 775,000 hours, indicating high reliability under normal conditions. Periodic inspection should focus on LED status indicators: RUN (green), ERR (red), and I/O (red). Clean the enclosure with a dry cloth; do not use solvents. The conformal coating protects against moisture and mild chemical exposure, but avoid submersion. For storage, keep the module between -40 and 185 °F.
Optimizing Industrial Control with the Schneider BMEP586040C
Industrial automation engineers often face the challenge of balancing processing power with environmental resilience. The Schneider BMEP586040C Modicon M580 processor module directly addresses this need by combining high I/O capacity with conformal coating for protection against moisture and contaminants. This module is designed for demanding applications where reliability and performance are non-negotiable.
Compatibility and Integration
Communication services include RIO scanner and DIO scanner for remote and distributed I/O. The module is certified for ATEX zone 2/22 and IECEx zone 2/22, making it suitable for potentially explosive atmospheres. It also complies with IEC 61131-2 and UL 61010-2-201 standards.
Selection Guide and Purchasing Advice
When selecting the BMEP586040C, consider your I/O count and environmental conditions. AutoDCSTech offers this processor module with fast shipping and expert support. Contact our team to verify lifecycle status and availability before ordering.
Availability & Condition at AutoDCSTech
| Part Number | BMEP586040C |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | France |
