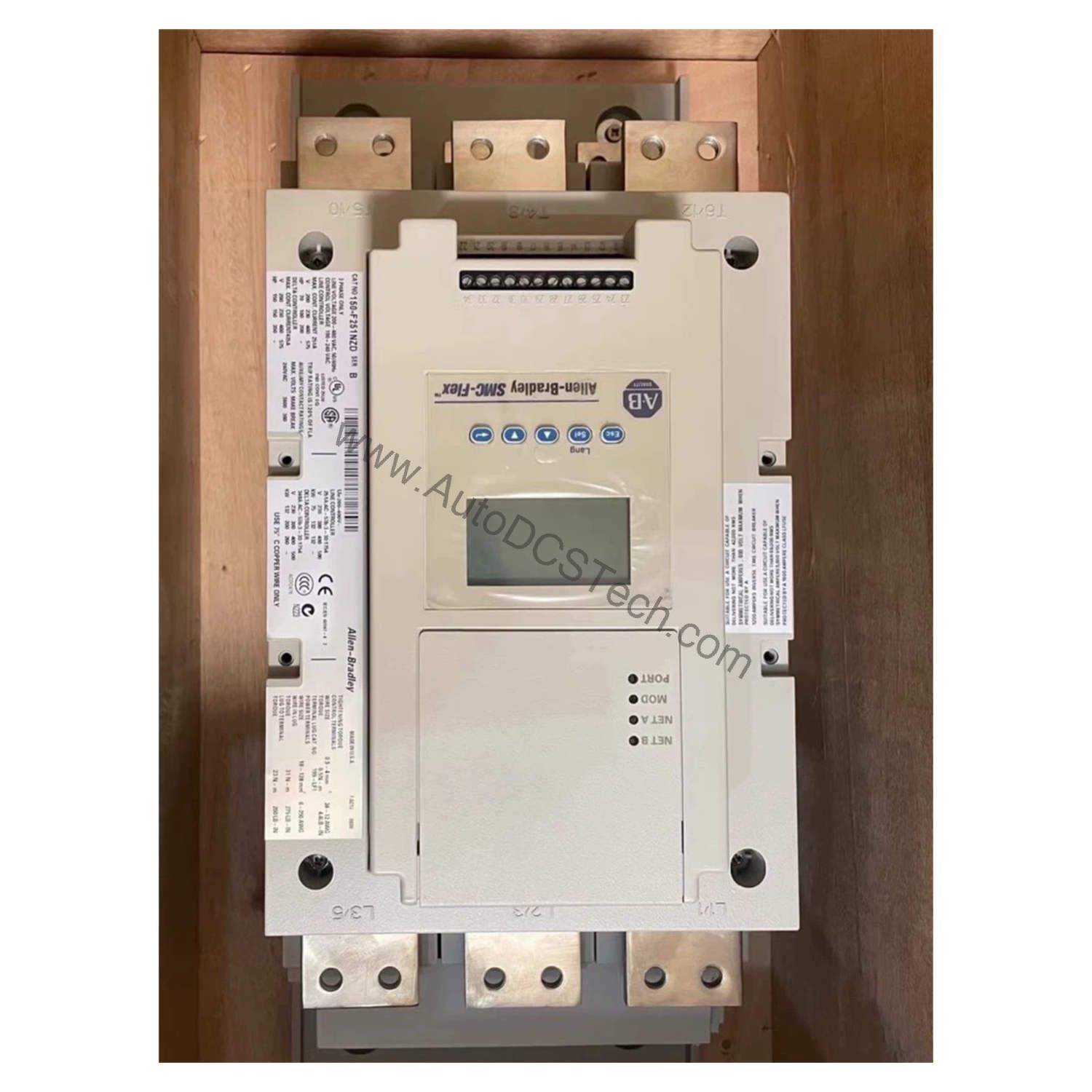

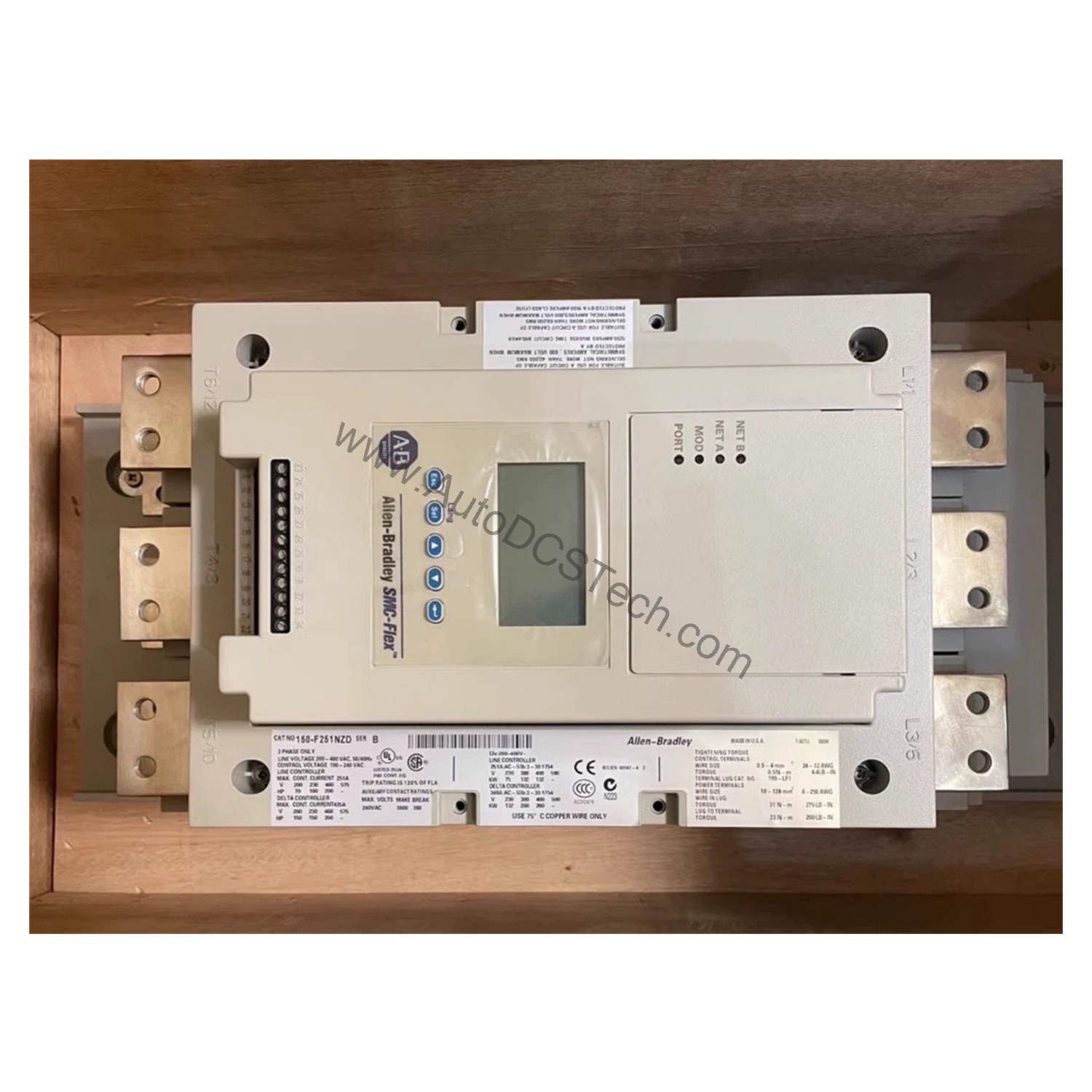

Allen-Bradley 150-F25NBR SMC-Flex Solid State Controller 25A 15HP

Optimizing Motor Starting with the Allen-Bradley 150-F25NBR

Industrial motor startups often cause mechanical stress, voltage sags, and inrush current spikes that damage equipment and reduce uptime. The Allen-Bradley 150-F25NBR SMC-Flex Solid State Controller directly addresses these failure modes by providing precise, programmable control over motor acceleration and deceleration. This unit is designed for 3-phase squirrel cage induction motors and Wyre-Delta motors, offering a robust solution for demanding applications.

Technical Specifications Breakdown

Key parameters for the 150-F25NBR are listed below for quick reference:

Industry Applications and Cost-Benefit

In pumping stations, sudden starts can cause water hammer and pipe damage. The 150-F25NBR’s soft start and soft stop modes eliminate pressure surges, reducing maintenance costs. For conveyor systems in material handling, current limit starting prevents belt slippage and mechanical wear. The dual ramp start feature allows operators to fine-tune acceleration for varying load conditions, improving process consistency and extending equipment life. By minimizing electrical and mechanical stress, this controller lowers total cost of ownership through reduced downtime and fewer component replacements.

Installation and Setup Guidance

Install the controller in a dry environment, mounted on the floor or wall. A qualified technician must follow all safety procedures for solid-state electronics. The open enclosure requires careful consideration of ambient conditions; ensure adequate ventilation and protection from dust and moisture. Connect the 3-phase input line voltage (200-460V AC, 50/60 Hz) and the 24V AC/DC control voltage as specified. Use the three-line LCD display and 5-key keypad for programming the seven standard modes: soft start, selectable kickstart, current limit start, dual ramp start, full voltage start, linear speed acceleration, preset slow speed, and soft stop. Optional braking and pump control modes are also available.

Maintenance and Reliability

Periodic inspection of connections and enclosure integrity is recommended. Keep the unit free of contaminants and ensure the cooling path remains unobstructed. The built-in electronic motor overload, undervoltage, overvoltage, stall, and jam detection features provide comprehensive protection. Regularly verify that protection settings match motor nameplate data.

Compatibility and Integration

The 150-F25NBR includes built-in DPI communication via a serial port interface. This allows connection to a Human Interface Module (HIM) and various Allen-Bradley communication modules such as Remote I/O, DeviceNet, ControlNet, Ethernet, and ProfiBUS. This integration capability simplifies system monitoring and remote control.

Selection Guide and Purchasing Advice

When selecting a solid state controller, verify that the 25 A and 15 Hp @ 460V AC ratings match your motor and application. The 200-460V AC input range offers flexibility for different line voltages. AutoDCSTech stocks the Allen-Bradley 150-F25NBR and can assist with availability and lifecycle status. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
