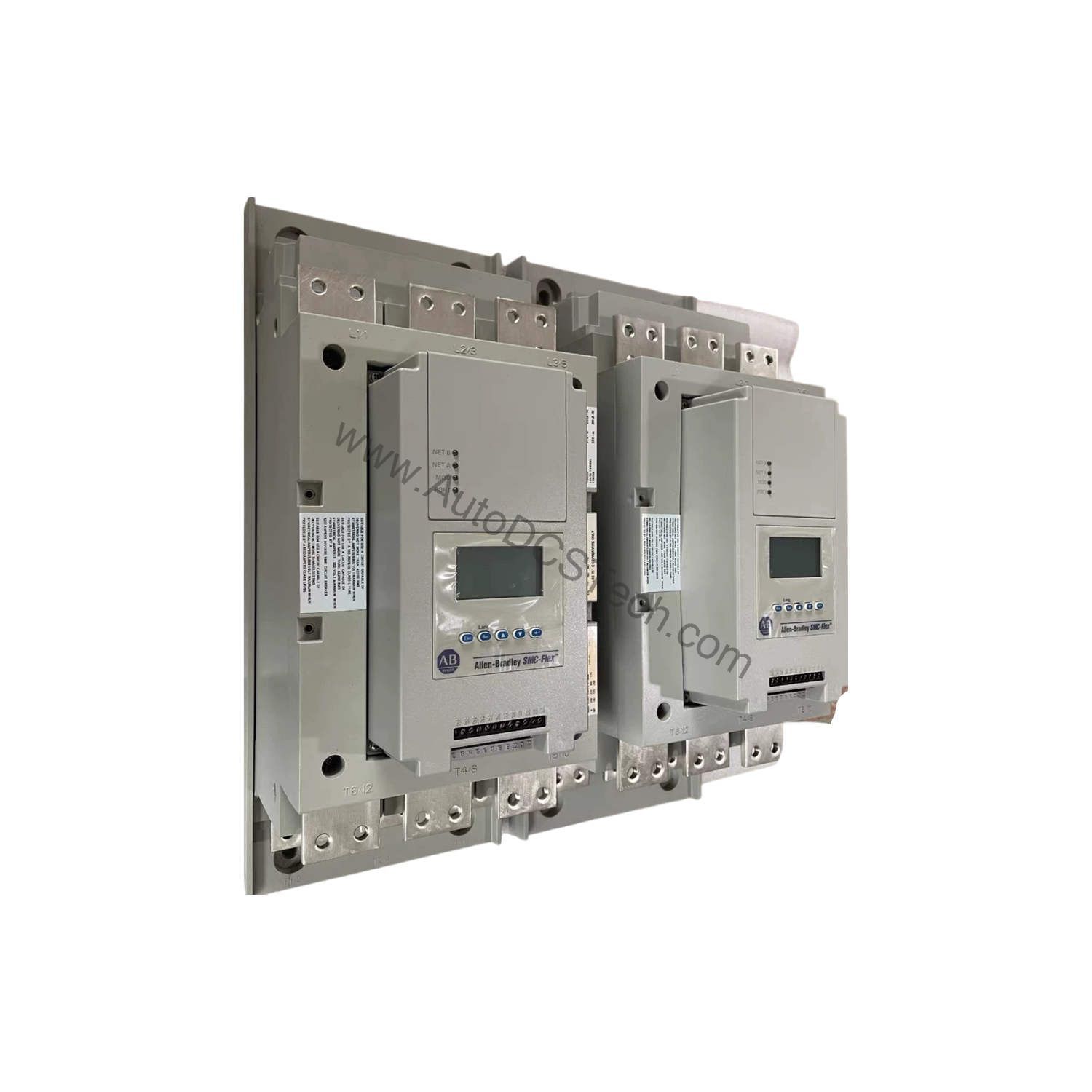

Allen-Bradley 150-F25FCD SMC-Flex Smart Motor Controller, IP65, 25A

Technical Specifications Breakdown

Key parameters for the 150-F25FCD are listed below for quick reference:

Industry Applications and Operational ROI

The 150-F25FCD is well-suited for pumping, conveying, and HVAC systems where controlled acceleration reduces mechanical wear and prevents water hammer. In material handling, its soft start and stop modes extend belt and gear life, lowering maintenance costs. The IP65 (Type 4/12) enclosure allows reliable operation in washdown or dusty environments, such as food processing or sawmills, without additional panel protection. By reducing inrush current and torque spikes, this controller minimizes electrical and mechanical stress, translating to fewer unplanned downtimes and lower total cost of ownership.

Installation and Setup Guidance

Mount the controller on a flat, vertical surface within a clean, dry area. Ensure adequate clearance around the enclosure for heat dissipation and cable entry. Connect input line voltage per the 500-575V AC, 3-phase, 50 and 60 Hz specification using properly rated conductors. The control circuit requires 100-240V AC. Use the built-in keypad and LCD to configure operating modes such as soft start, current limit start, or dual ramp. Verify all connections before applying power, and follow local electrical codes.

Maintenance and Reliability

Periodically inspect the enclosure seals and cooling vents to maintain the IP65 rating. Clean the exterior with a damp cloth; avoid solvents. Check for loose connections and signs of overheating. The controller’s solid-state design eliminates contact wear, but environmental factors like humidity and temperature extremes should be monitored. Operate within the specified ambient range for optimal reliability.

SMC-Flex Smart Motor Controller: Engineered for Demanding Environments

Industrial motor control has evolved from simple electromechanical starters to intelligent solid-state systems that enhance equipment longevity and process reliability. The Allen-Bradley 150-F25FCD SMC-Flex Smart Motor Controller exemplifies this shift, combining rugged construction with advanced microcomputer-based starting for three-phase induction motors. Designed for applications requiring protection against harsh conditions, this controller delivers precise control while minimizing mechanical stress.

Compatibility and Integration

The 150-F25FCD includes a DPI communication interface supporting DeviceNet, ControlNet, Ethernet, Remote I/O, and Profibus networks. This enables seamless integration into existing automation architectures. The controller also features four programmable relay outputs for status indication and external bypass control.

Selection Guide and Purchasing Advice

When selecting a smart motor controller, match the full-load current and horsepower of your motor to the controller rating. The 150-F25FCD is rated 25 A and 15 Hp at 460V AC, making it suitable for medium-sized motors. For applications requiring IP65 protection and flexible network connectivity, this model is a robust choice. AutoDCSTech stocks this unit and offers expert support to ensure proper selection. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
