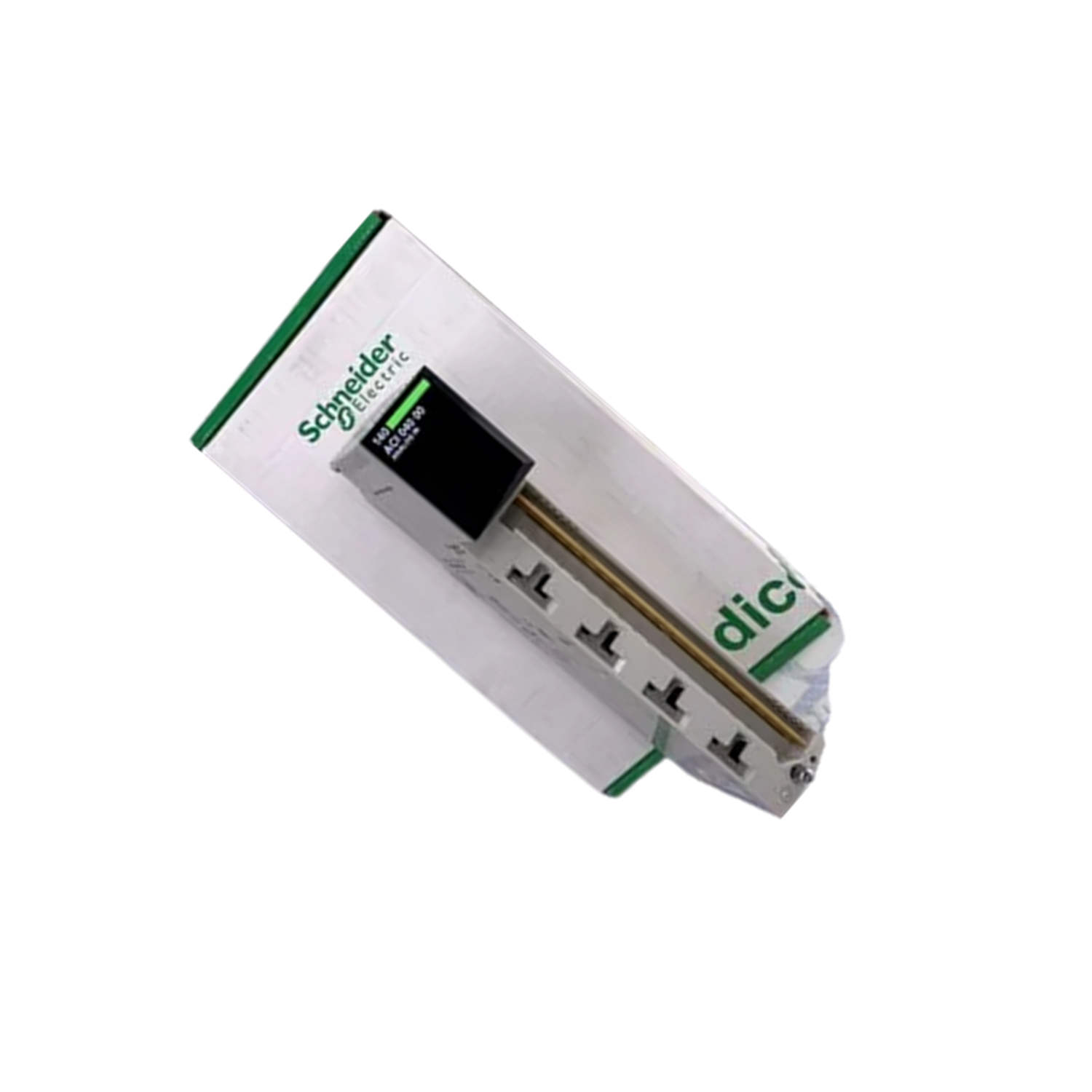

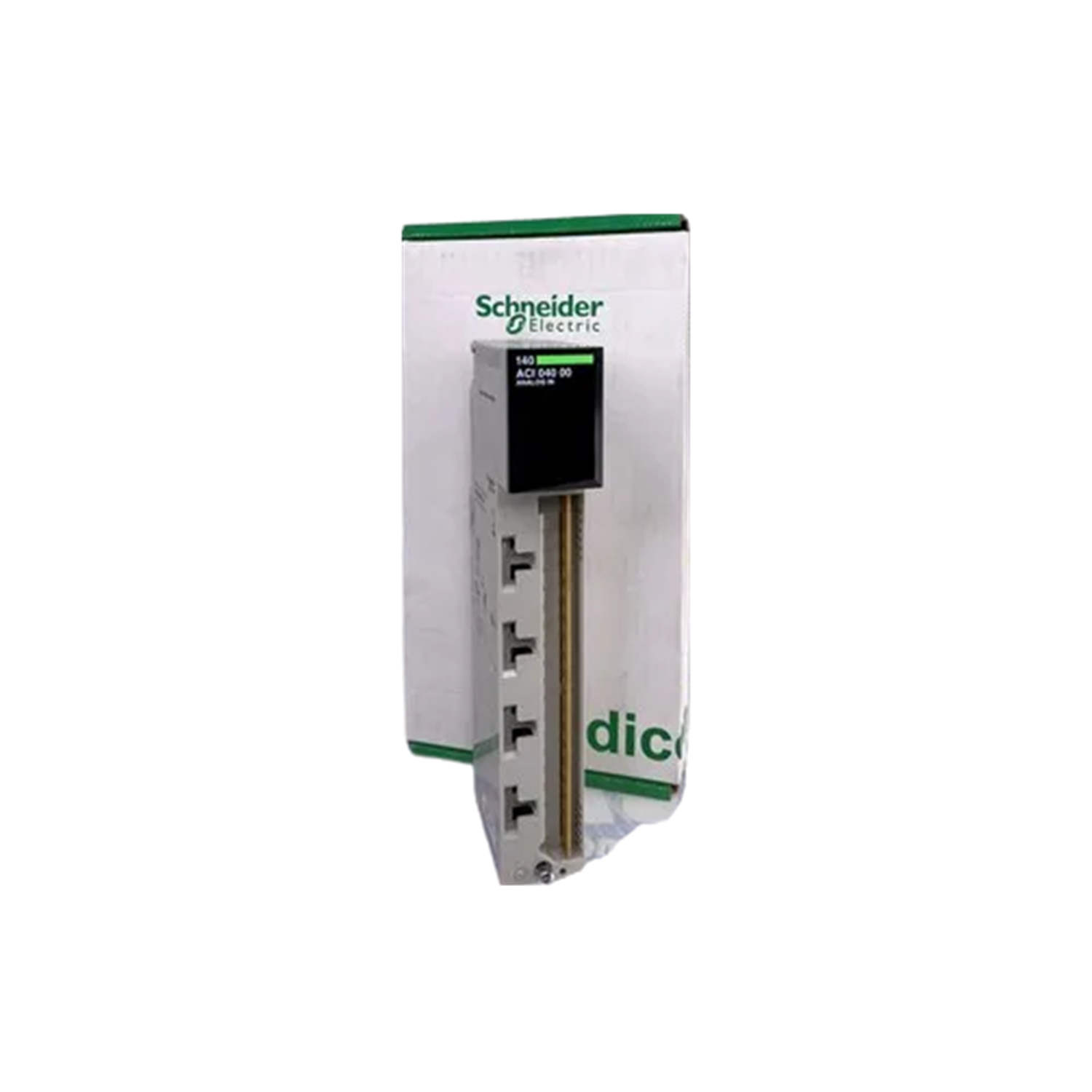

Product Overview
The Schneider Electric 140ACI05100SC is a 32-point input module from the Modicon Quantum series, designed for high-accuracy measurement in industrial automation. By offering selectable 12-bit or 16-bit resolution, this module lets you balance precision and cost—using lower resolution for less critical channels saves processing overhead and reduces system expense. With an accuracy range of ±0.1% to ±0.2% of full scale, it ensures reliable data for applications where small errors lead to costly waste.
Technical Specifications Breakdown
Key parameters for the 140ACI05100SC are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Input Module, 32 Point |
| Product Line | Modicon Quantum |
| Part Number | 140ACI05100SC |
| Weight | 2.00 lbs (0.91 kg) |
| Precision | 12-bit or 16-bit resolution |
| Accuracy | ±0.1% to ±0.2% of full scale |
| Channel-to-Channel Isolation | Typically 500V DC |
| Channel-to-Backplane Isolation | Typically 1500V DC |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Mounting Type | DIN rail or panel mount |
| Relative Humidity | 5% to 95% non-condensing |
Industry Applications
Process Control in Chemical Plants: The high accuracy (±0.1% to ±0.2%) reduces measurement errors, directly lowering raw material waste and rework costs. The 500V DC channel-to-channel isolation prevents cross-talk between sensors, avoiding false readings that could halt production.
Water Treatment Facilities: With 32 input points, this module consolidates multiple sensor signals, cutting per-point wiring and I/O costs. Its 1500V DC backplane isolation protects the control system from ground loops, reducing downtime from electrical noise.
Discrete Manufacturing: Using 12-bit resolution for non-critical sensors saves processing power and speeds up scan cycles, while 16-bit mode handles precision weighing or flow measurements—optimizing both performance and hardware investment.
Installation & Setup Guidance
Mount the module on a DIN rail or panel using the provided slots. Ensure ambient temperature stays within 0°C to 60°C to maintain accuracy. For cost-effective wiring, use shielded twisted-pair cables for analog inputs; the 500V DC channel isolation allows mixing signal types without extra isolators. Connect the backplane via the Quantum bus; verify that the 1500V DC isolation rating matches your system's ground scheme to avoid ground loops.
Maintenance & Reliability
Inspect the module quarterly for dust or moisture, as humidity above 95% non-condensing can degrade isolation. The 0.91 kg weight makes it easy to handle during replacements. Storing spares at -40°C to 85°C ensures long shelf life. If accuracy drifts, recalibrate using the 12-bit or 16-bit settings—this avoids unnecessary module swaps, saving replacement costs.
Compatibility & Integration
The 140ACI05100SC integrates with Modicon Quantum backplanes and supports Schneider's Unity Pro software. Its 32-point density reduces the number of modules needed, lowering total system cost. For mixed I/O racks, the 500V DC channel isolation allows adjacent modules to operate without interference, simplifying layout and reducing enclosure size.
Selection Guide & Purchasing Advice
When selecting this module, consider your required resolution: 12-bit for general monitoring, 16-bit for precision tasks. The ±0.1% accuracy suits critical loops; ±0.2% is fine for less demanding channels. At SpareTechPLC, we stock the 140ACI05100SC with verified specifications. Please verify current lifecycle status and availability with SpareTechPLC before ordering to ensure compatibility with your system.
Troubleshooting & Common Issues
If readings are noisy, check that channel-to-backplane isolation is intact (1500V DC). For accuracy drift, confirm the module is within 0°C to 60°C operating range. If a channel fails, test with a known signal; the 500V DC isolation prevents cross-channel faults. Do not disassemble the module—contact SpareTechPLC for replacement.
