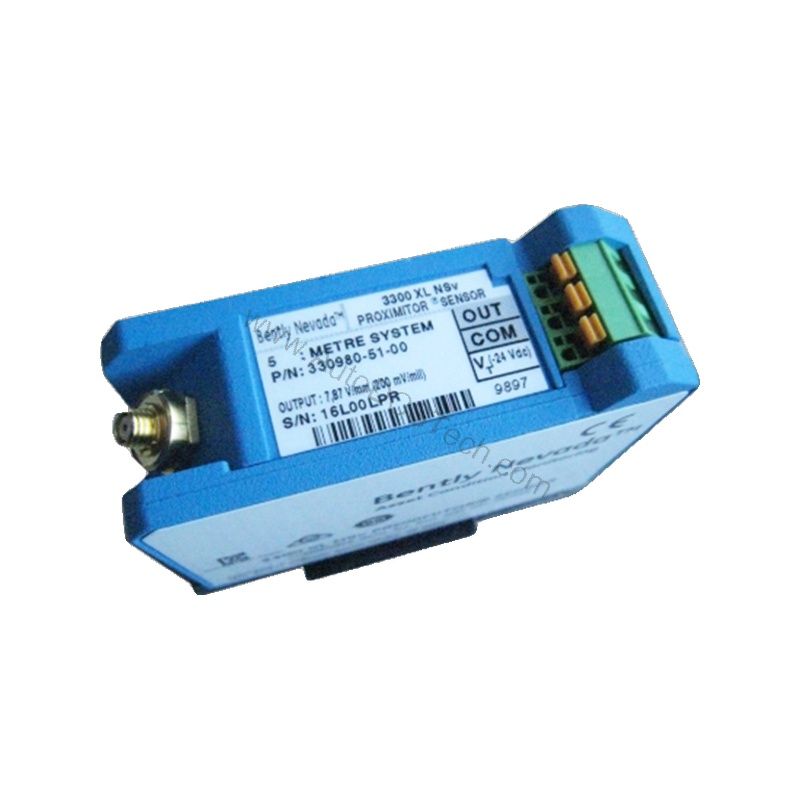

330980-72-00 7.0m NSv Proximitor Sensor

Introduction to the 330980-72-00

When you need precise vibration monitoring in tight spaces, the 330980-72-00 from Bently Nevada delivers. This NSv Proximitor Sensor is engineered for high-density DIN-rail or panel mounting. Its thin profile simplifies installation in crowded cabinets. Moreover, the sensor provides excellent RFI/EMI immunity without special mounting considerations. This design helps maintain signal integrity even near high-frequency radio sources.

Key Features and Technical Specifications

The 330980-72-00 is part of the 3300 XL NSv family, sharing features with the 3300 XL 8 mm Proximitor Sensor. Key specifications include:

• System length: 7.0 meters (23.0 feet), no mounting hardware
• Agency approval: Not required (option 00)
• Proximitor Sensor material: A380 aluminum
• Weight: 255 g (9 oz)
• Input: Accepts one noncontacting 3300 RAM or 3300 NSv Proximity Probe and Extension Cable
• Power: Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption; -23 Vdc to -26 Vdc with barriers
• Output resistance: 50 Ω
• Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
• Operating temperature: -52°C to +100°C (-62°F to +212°F)
• Storage temperature: -52°C to +105°C (-62°F to +221°F)
• Relative humidity: 100% condensing, nonsubmersible when connectors are protected (tested to IEC 68-2-3 damp heat)

One distinctive feature is the SpringLoc terminal strips. These require no special installation tools, enabling faster and highly robust field wiring connections. This reduces installation time and improves connection reliability.

Real-World Applications

The 330980-72-00 excels in machinery protection and condition monitoring. It is ideal for turbomachinery, pumps, compressors, and other rotating equipment. Because of its slim design, it fits easily into retrofit projects where panel space is limited. Additionally, its enhanced RFI immunity makes it suitable for environments with variable frequency drives or radio transmitters. By providing accurate shaft vibration and position measurements, this sensor helps prevent unplanned downtime.

Installation and Setup

Mounting the 330980-72-00 is straightforward. You can install it on a standard DIN rail or use traditional panel mounting. The SpringLoc terminals accept solid or stranded wire without special tools. Ensure the probe gap is set to 1.0 mm (40 mils) for optimal performance, as per the standard calibration conditions. Also, verify that the power supply meets the required voltage range. For barrier installations, the supply must be between -23 Vdc and -26 Vdc. Always follow the manufacturer's guidelines for probe installation and cable routing to avoid signal degradation.

Maintenance and Reliability

Routine inspection of the sensor and its connections is essential. Check the SpringLoc terminals periodically for tightness. Also, verify that the probe and extension cable are free from damage. Because the sensor is rated for 100% condensing humidity (when connectors are protected), ensure that connectors remain sealed in wet environments. The operating temperature range of -52°C to +100°C allows use in extreme conditions. Regular calibration checks against a Bently Nevada AISI 4140 steel target will maintain system accuracy. If you notice any drift in output, consult the official Bently Nevada documentation for troubleshooting steps.

Compatibility and Integration

The 330980-72-00 works with Bently Nevada 3300 RAM or 3300 NSv proximity probes and extension cables. It is designed for use with Bently Nevada monitoring systems. The sensor outputs a voltage signal proportional to the gap between the probe tip and the target. This signal can be fed into compatible monitors for analysis. For detailed integration guidelines, refer to the product manual or contact AutoDCSTech for support.

Troubleshooting Common Issues

If you encounter erratic readings, first check the power supply voltage. Operation at a more positive voltage than -23.5 Vdc can reduce the linear range. Also, inspect the probe gap; deviations from 1.0 mm (40 mils) can affect accuracy. Ensure that the target material is AISI 4140 steel, as other materials may cause interchangeability errors. If RFI interference is suspected, verify that the sensor is properly grounded and that the mounting complies with CE requirements. For persistent issues, consult the Bently Nevada manual.

Support and Availability

The 330980-72-00 is available through AutoDCSTech. As an industrial automation parts supplier, AutoDCSTech can provide current lifecycle status and availability. Contact us to place an order or request technical support.
