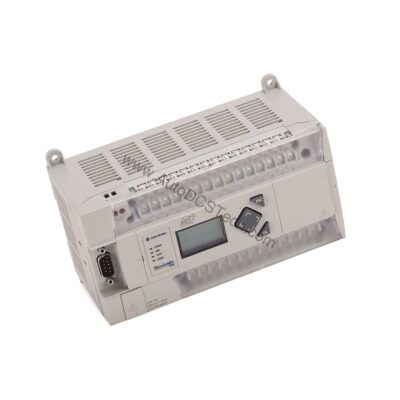

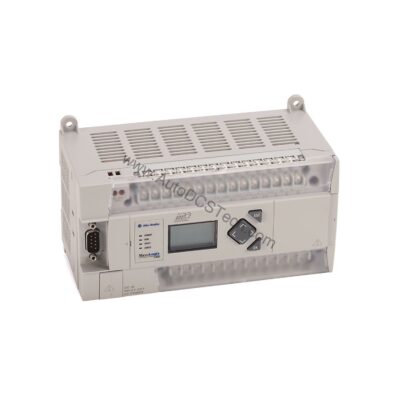

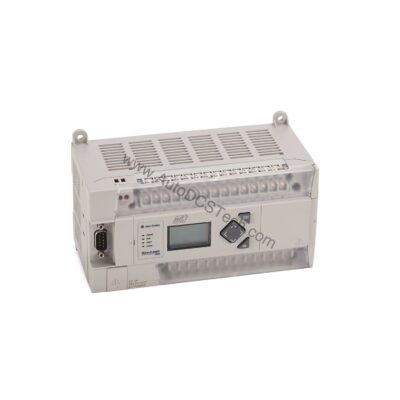

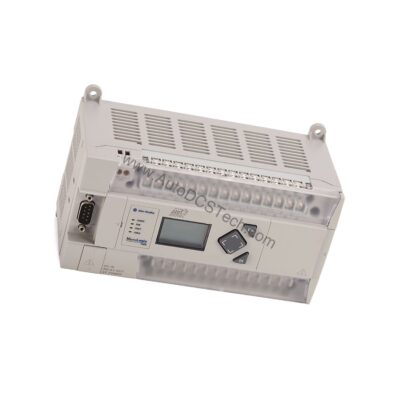

Technical Specifications Breakdown
Key parameters for the 1766-L32BXBA are listed below for quick reference:
| Feature | Specification |
|---|---|
| Product Type | MicroLogix 1400 Controller |
| Number of I/O | 32 |
| Inputs | Twelve (12) Fast 24VDC; Eight (8) Normal 24VDC |
| Outputs | Six (6) Relay; Three (3) Fast DC; Three (3) Normal DC |
| Analog Inputs | Two (2) Voltage, 0…10.0VDC - 1 LSB |
| Analog Outputs | Two (2) Voltage, single-ended 0-10VDC |
| Operating Power | 24V DC |
| Memory | 20 KB |
| Communication Ports | One isolated RS232/RS485 combo; One non-isolated RS232; One Ethernet |
| Supported Protocols | Serial: DF1, ASCII, MODBUS RTU, DNP3, DH485; Ethernet: Ethernet I/P, DNP3, MODBUS TCP/IP |
Industry Applications
Packaging and Material Handling
In packaging lines, the 1766-L32BXBA handles high-speed counting and precise timing using its twelve fast 24VDC inputs and three fast DC outputs. The built-in real-time clock enables time-stamped event logging for quality control. This reduces downtime and improves throughput.
Water and Wastewater Monitoring
For small treatment plants, the controller's two analog voltage inputs (0-10VDC) connect to level or pressure sensors. The relay outputs can drive alarms or pumps. The Ethernet port supports MODBUS TCP/IP for SCADA integration, providing cost-effective remote monitoring.
Machine Retrofits
When upgrading older machinery, the 1766-L32BXBA replaces multiple discrete components. Its 20 KB memory stores complex logic, and the RS232/485 ports interface with variable frequency drives or operator panels. This simplifies wiring and reduces panel space.

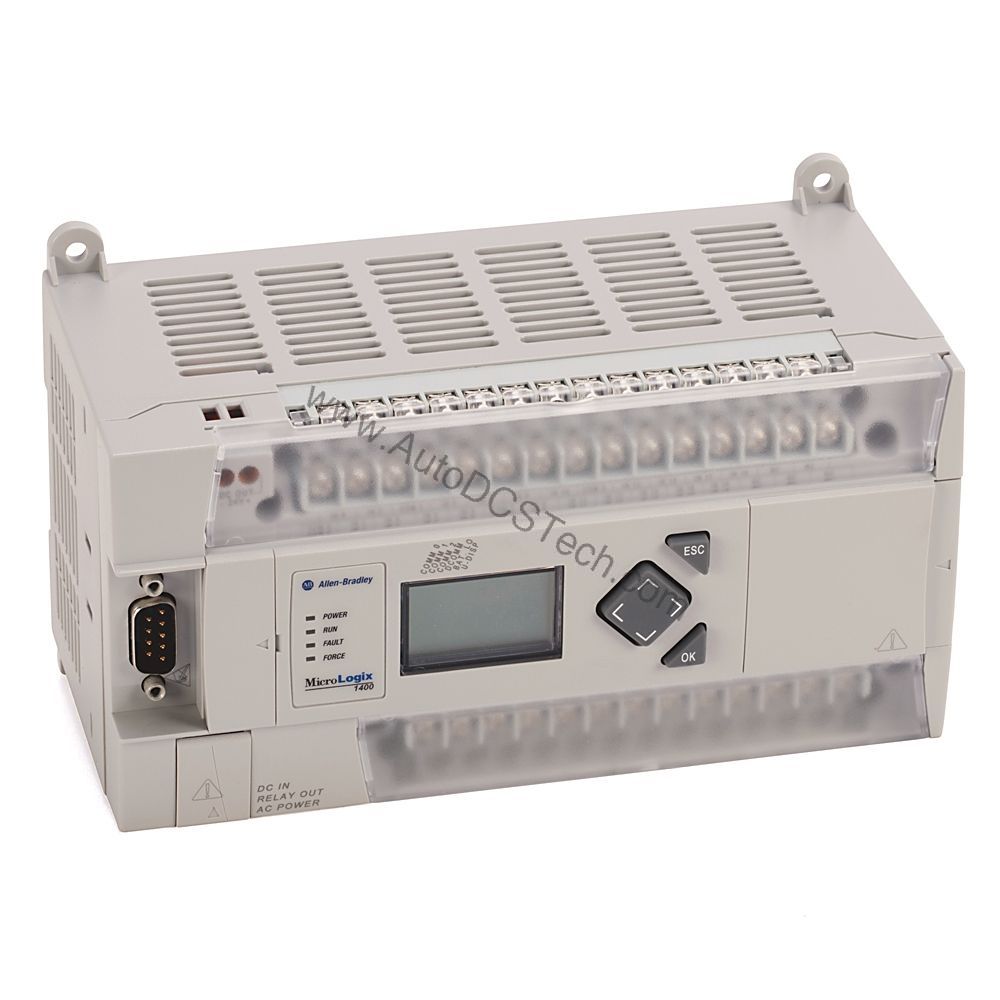

Installation and Setup Guidance
Mount the controller on a DIN rail or panel in a clean, dry enclosure. Connect a 24VDC power supply to the input terminals. Ensure the supply can handle the inrush current (24V DC: 15 A for 20 ms). Wire digital inputs using shielded cable for noise immunity. For analog inputs, use twisted-pair cable and maintain a 0-10VDC signal range. The Ethernet port auto-negotiates speed; configure the IP address via the programming software. The isolated RS232/485 port simplifies connection to modems or multi-drop networks.
Maintenance and Reliability
The 1766-L32BXBA requires minimal maintenance. Inspect the enclosure periodically for dust or moisture. The battery-backed RAM preserves programs; replace the 1746-BA battery every few years as part of routine service. Verify that the operating frequency (47-63 Hz) environment is stable. The open enclosure design demands a clean atmosphere—avoid conductive contaminants.
Overcoming Space and Cost Constraints in Small Automation
In many manufacturing environments, floor space is at a premium and budgets are tight. Engineers often struggle to find a programmable logic controller that delivers robust functionality without requiring a large footprint or excessive investment. The Allen-Bradley 1766-L32BXBA MicroLogix 1400 Controller directly addresses this challenge. It packs essential control features into a compact unit, enabling reliable automation for micro and small applications.
Compatibility and Integration
Expand I/O using up to seven 1762 expansion modules. The Ethernet port supports web server and email capabilities for remote notifications. Serial protocols like DF1 and Modbus RTU allow connection to third-party devices such as drives and sensors. The DNP3 protocol suits utility and energy applications.
Selection Guide and Purchasing Advice
When selecting the 1766-L32BXBA, confirm your I/O count and type match the embedded configuration. For projects needing more I/O, plan for expansion modules. AutoDCSTech stocks this controller and can advise on lifecycle status. Contact us for availability and pricing to ensure your project stays on schedule.
Availability & Condition at AutoDCSTech
| Part Number | 1766-L32BXBA |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
