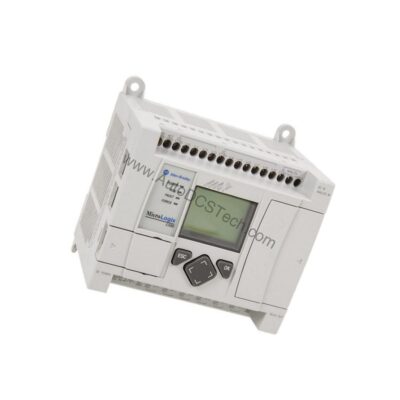

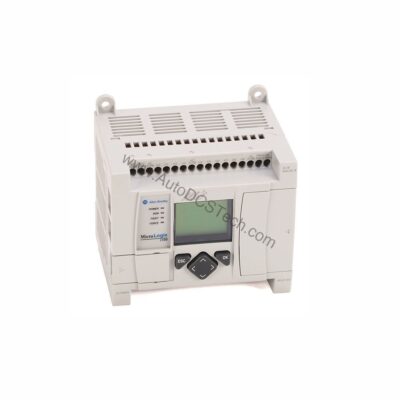

Allen-Bradley 1763-L16DWD MicroLogix 1100 Programmable Controller

Product Overview

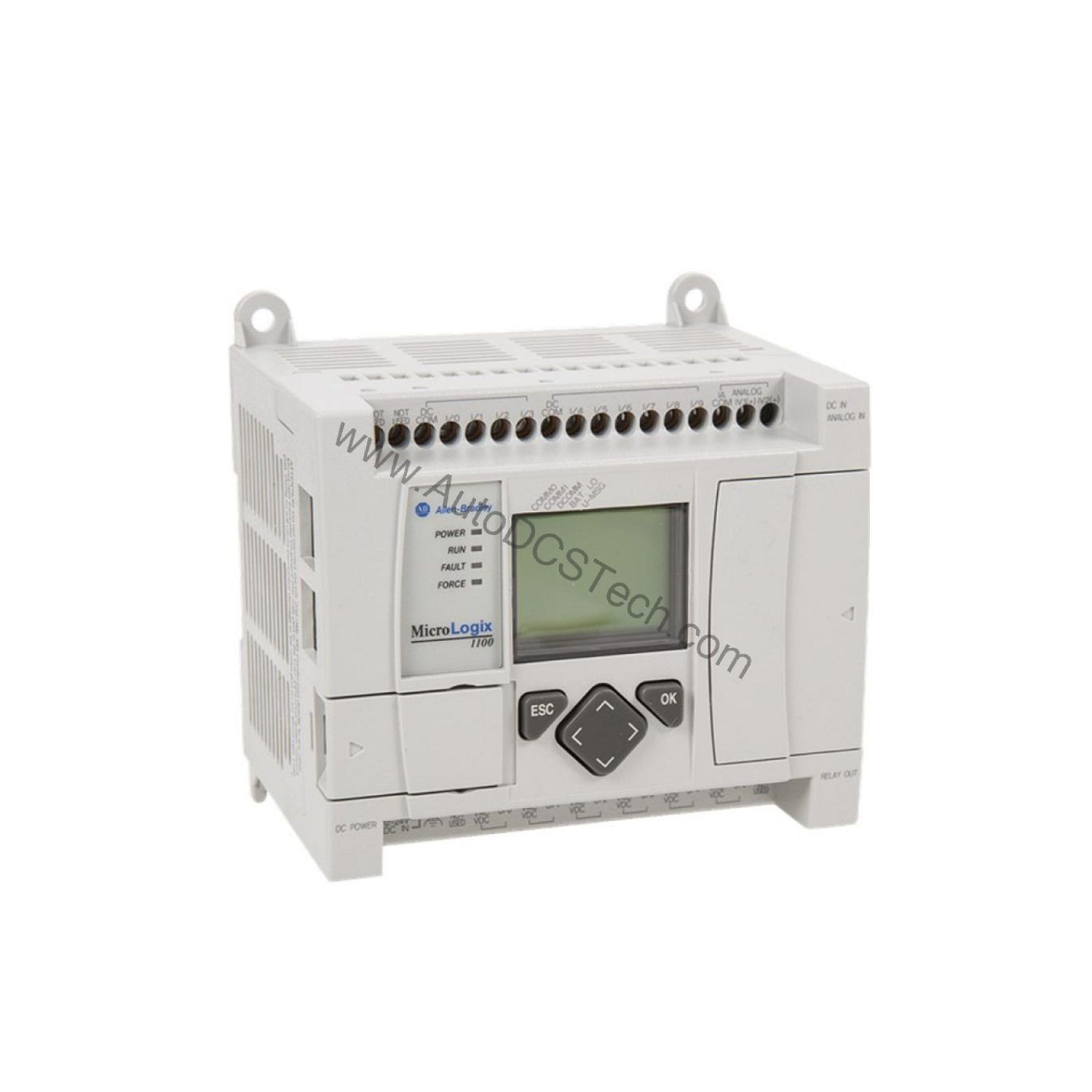

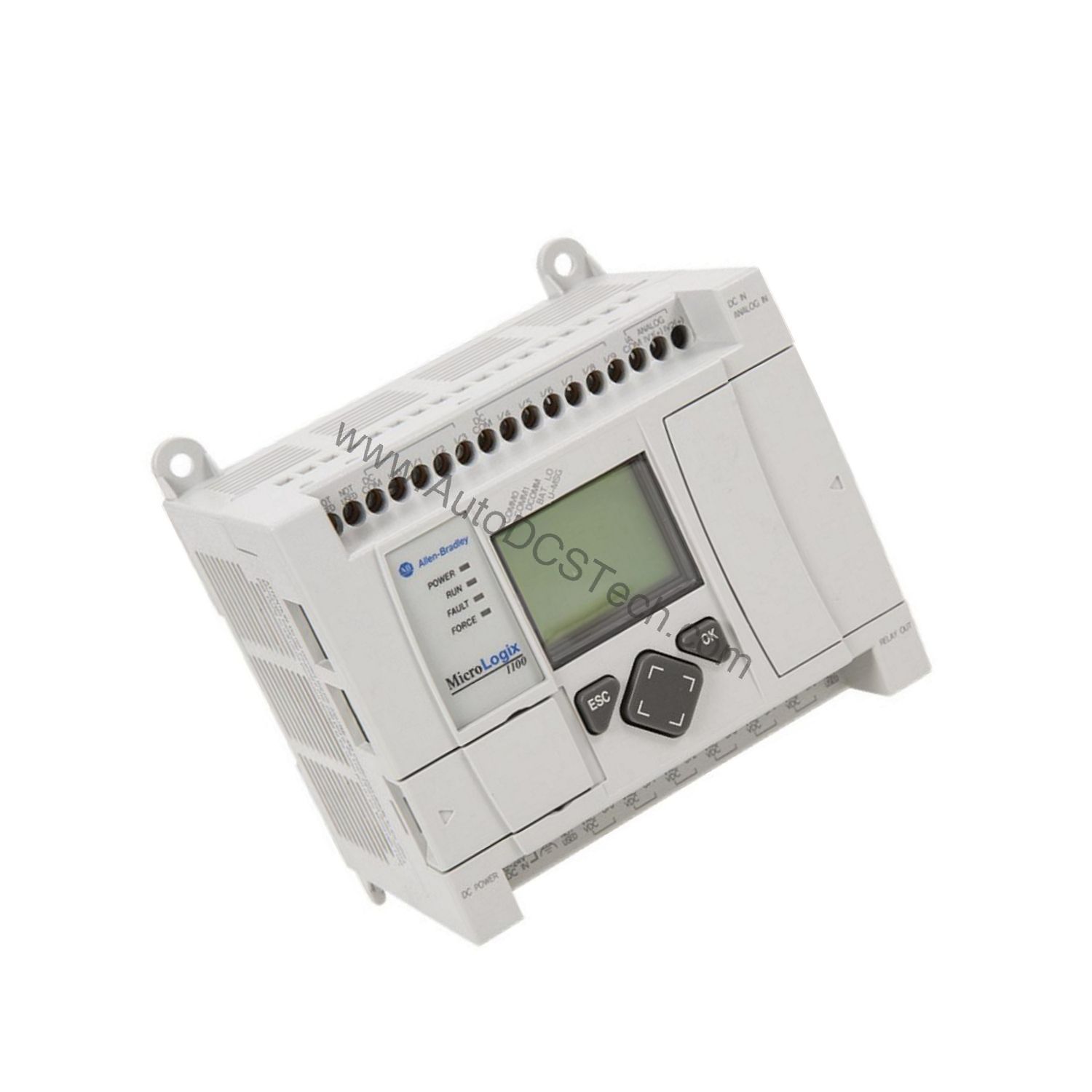

The Allen-Bradley 1763-L16DWD is a programmable controller from the MicroLogix 1100 series, designed for small to medium automation applications. It offers 16 integrated I/O points, including 12/24V DC digital inputs, 2 analog inputs (0-10VDC), and 6 relay outputs. This controller is DC-powered (12 to 24 Volts DC) and features built-in communication ports: one RS-232/485 and one Ethernet. The integrated LCD and keypad allow local monitoring and data modification. With its compact size (3.5 x 4.33 x 3.43 inches) and support for up to 4 expansion modules, the 1763-L16DWD provides flexible I/O expansion for evolving system needs. It is suitable for applications requiring reliable control in environments like packaging, material handling, and machine control.

Technical Specifications Breakdown

Key parameters for the 1763-L16DWD are listed below for quick reference:

Industry Applications

This controller is well-suited for discrete manufacturing and process control tasks. In packaging lines, the 1763-L16DWD can manage conveyor sequencing, product detection, and reject mechanisms using its digital inputs and relay outputs. Its Ethernet port supports integration with SCADA or HMI systems, allowing operators to monitor production metrics remotely. The RS-232/485 port facilitates communication with variable frequency drives or serial devices, enhancing system flexibility.

Installation & Setup Guidance

Mount the 1763-L16DWD horizontally on a DIN rail or directly on a panel. Use 12-20 AWG solid wire or 14-20 AWG stranded wire for power and input connections to ensure reliable termination. For analog inputs, use Belden #8761 cable with drain wire and foil shield, connected to the grounding system to minimize noise. The controller supports up to four 1762 expansion modules; attach them to the right side using the built-in bus connector. Configure the controller using RSLogix 500 or Connected Components Workbench software via the Ethernet or RS-232 port. Set the IP address through the LCD keypad or software to match your network.

Maintenance & Reliability

Operate the controller within its temperature range of -20 to 65 degrees Celsius. The relay outputs have a mechanical life of 10,000,000 cycles; inspect contacts periodically for wear. The backup battery preserves volatile memory (RAM) during power loss; replace it every 2-3 years or when the low-battery indicator appears. Keep the enclosure clean and free of conductive dust. The unit is certified for Class 1, Division 2 hazardous locations (Groups A, B, C, D), so ensure proper installation per local codes.

Compatibility & Integration

The RS-232/485 port supports DF1, DH485, MODBUS, and ASCII protocols, enabling connection to HMI panels, SCADA systems, and third-party devices like barcode scanners. The Ethernet port supports EtherNet/IP for high-speed data exchange with PLCs and drives. Use the LCD keypad to view and modify data locally without a programming terminal.

Selection Guide & Purchasing Advice

When selecting a controller, consider I/O count, communication needs, and environmental conditions. For larger systems, consider the MicroLogix 1400 series. AutoDCSTech stocks this model and offers fast shipping. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
