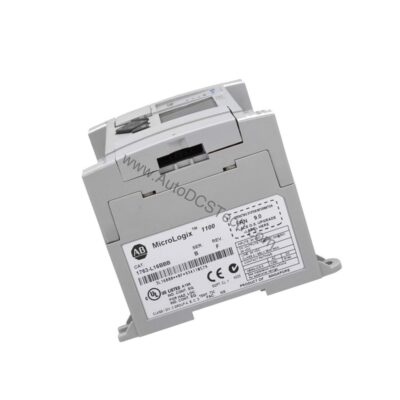

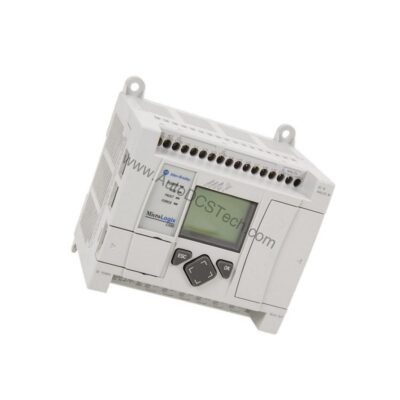

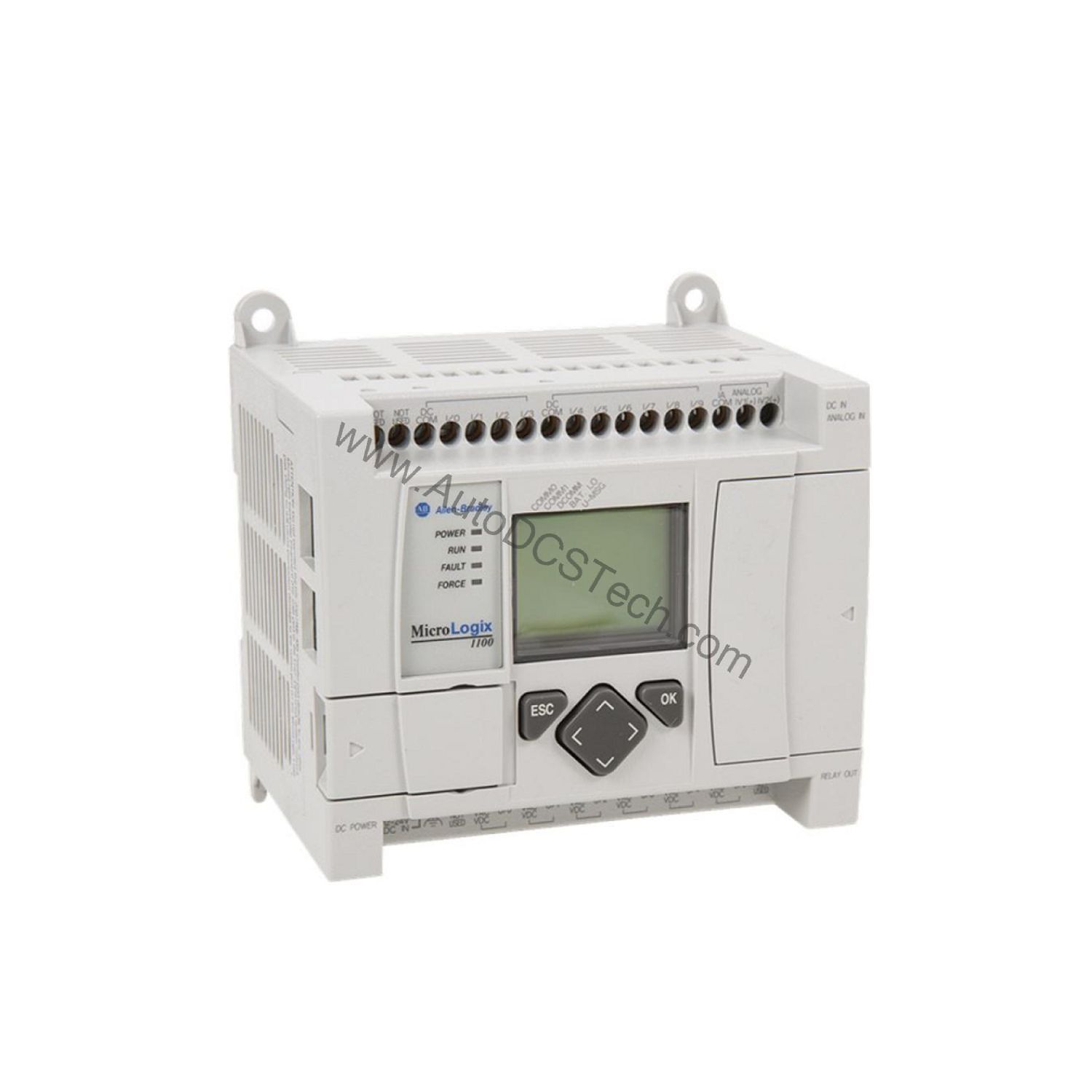

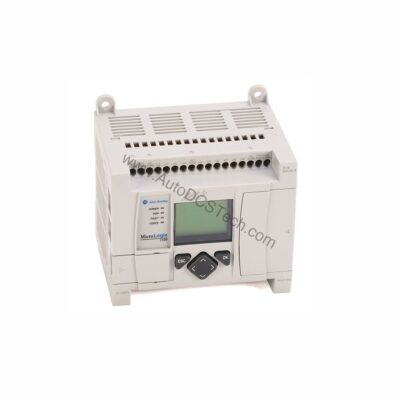

Allen-Bradley 1763-L16BBB MicroLogix 1100 Controller Guide

Cost-Benefit & Operational ROI

For small automation systems, selecting the right controller directly impacts total cost of ownership. The Allen-Bradley 1763-L16BBB MicroLogix 1100 controller offers a balanced mix of I/O and communication features, reducing the need for additional modules. Its 24VDC power input ( -15%, +10%) Class 2 SELV simplifies integration with common industrial power supplies, lowering installation complexity.

Technical Specifications Breakdown

Key parameters for the 1763-L16BBB are listed below for quick reference:

Industry Applications

In packaging lines, the 1763-L16BBB manages discrete inputs from sensors and controls relay outputs for actuators, while analog inputs monitor voltage signals from pressure transducers. Its built-in Ethernet supports data exchange with SCADA, enabling remote monitoring that reduces downtime. For material handling, the FET outputs drive small DC loads directly, eliminating external relays and cutting component costs.

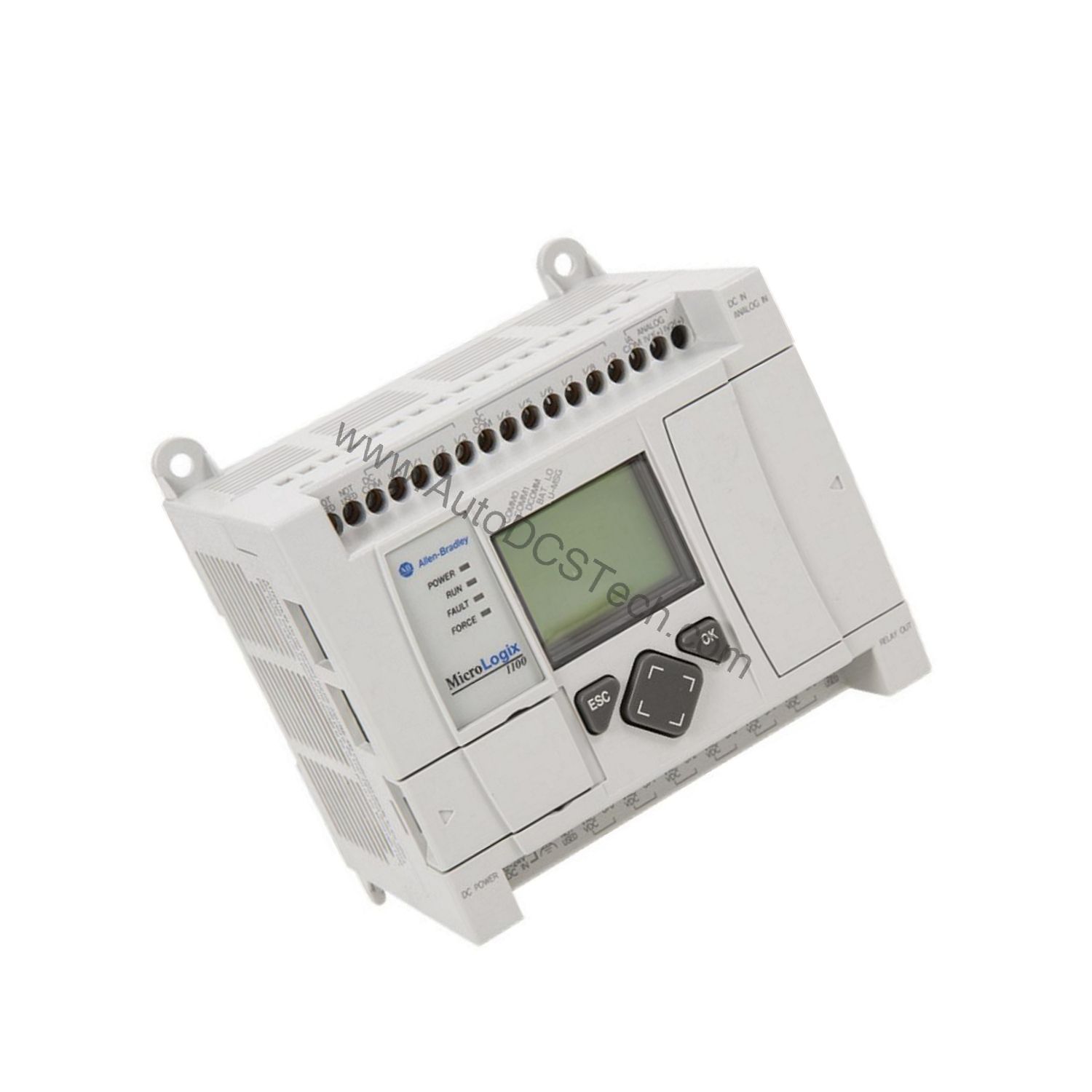

Installation & Setup Guidance

Mount the 1763-L16BBB in a clean, dry enclosure away from vibration sources. Connect the 24VDC supply to the power terminals, ensuring polarity matches. Wire digital inputs (14-26.4VDC at 65°C or 14-30VDC at 30°C) and analog inputs (0-10VDC) per the wiring diagram. For relay outputs, observe load ratings: 125VDC at 1.0A continuous, 120/240VAC at 2.5A continuous. FET outputs are rated 24VDC. Use the RS-232 port for peer-to-peer communication and the Ethernet port for network integration. The LCD display aids local monitoring during commissioning.

Maintenance & Reliability

Periodically inspect the controller for dust accumulation and ensure ambient temperature stays within -4 to 149°F. Verify that the 24VDC supply remains within tolerance. The unit withstands operational vibration of 1.5 G and a 30G relay shock rate. For hazardous locations (Class 1, Division 2, Groups A, B, C, D), follow all applicable codes. No internal adjustments are required; rely on the LCD for status checks.

Compatibility & Integration

The 1763-L16BBB supports DF1, MODBUS, and Ethernet I/P protocols, enabling integration with Allen-Bradley and third-party devices. The RS-232/485 combo port allows connection to legacy equipment, while the 10/100 Mbps Ethernet port facilitates modern networked architectures. Use the 1763-MM1 memory module for program storage. This controller fits into MicroLogix 1100 ecosystems.

Selection Guide & Purchasing Advice

When evaluating this controller, confirm your I/O count matches: 10 digital inputs, 2 analog inputs, 2 relay outputs, and 4 FET outputs. The 24VDC power requirement suits systems with existing 24V supplies. For applications needing additional I/O, consider expansion modules. AutoDCSTech stocks the 1763-L16BBB and can advise on lifecycle status and availability. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
