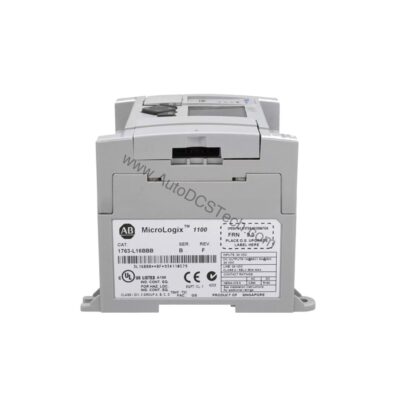

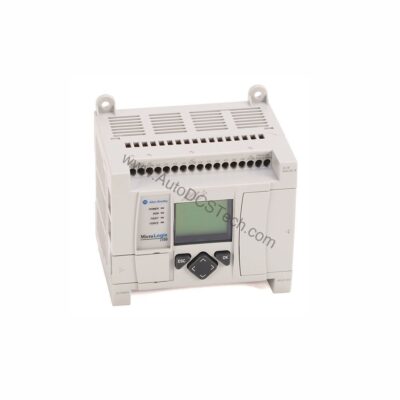

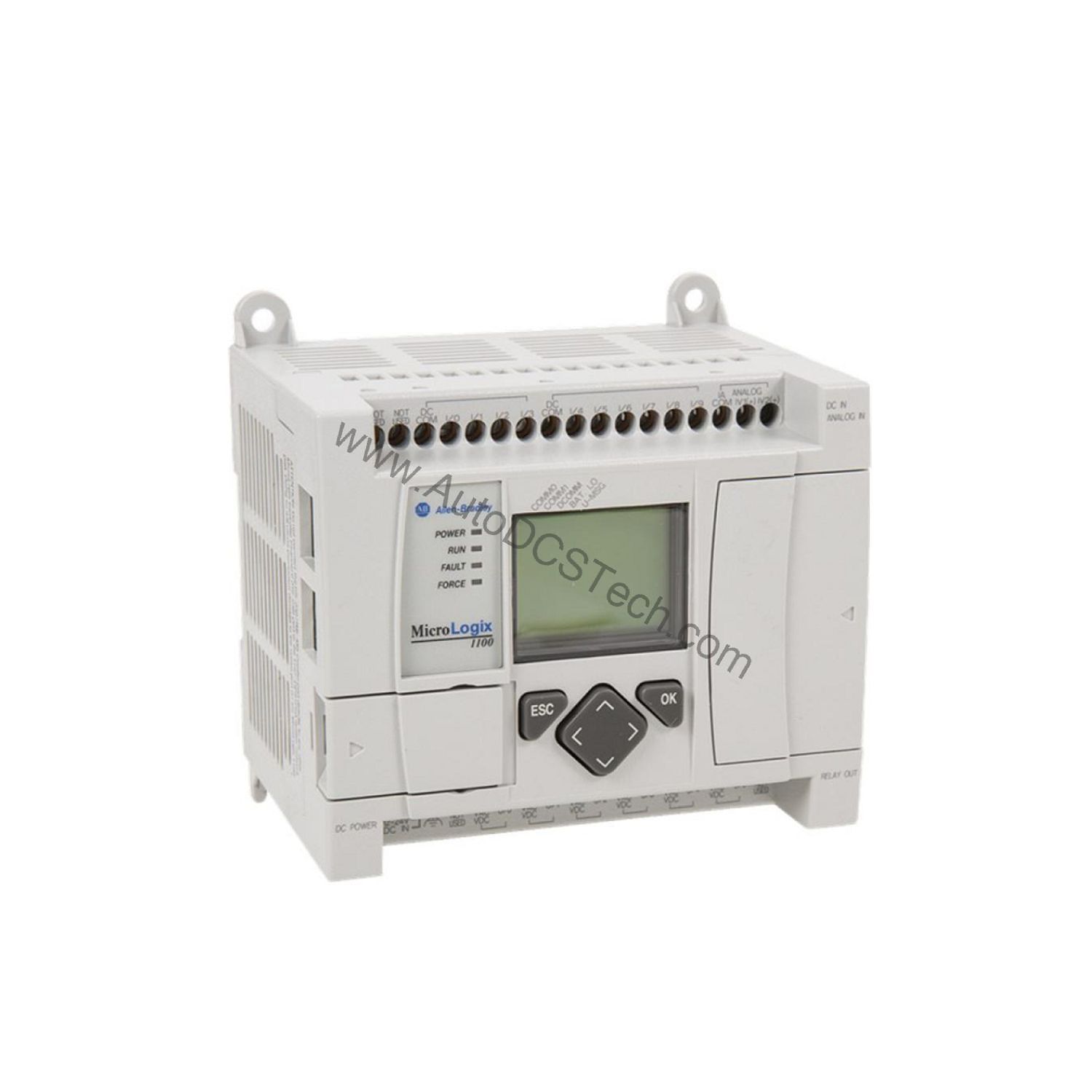

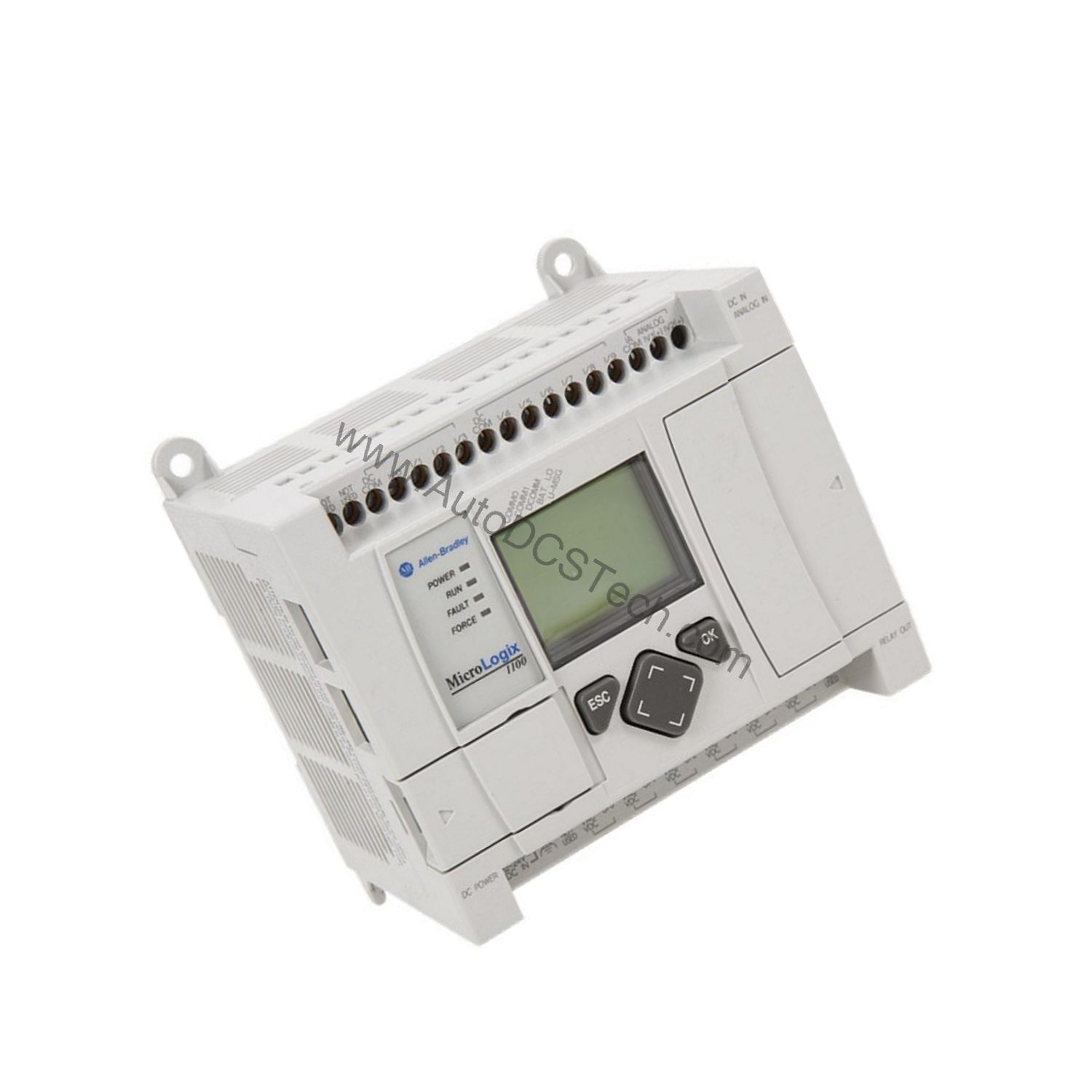

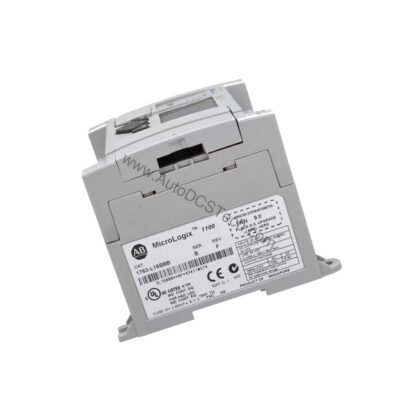

Allen-Bradley 1763-L16BWA MicroLogix 1100 Programmable Controller

Technical Specifications Breakdown

Key parameters for the 1763-L16BWA are listed below for quick reference:

Industry Applications

Material Handling and Conveyor Control

With 10 digital inputs and 6 relay outputs, this controller manages start/stop sequences, safety interlocks, and diverter gates. The high-speed inputs (4 of the digital inputs) capture encoder pulses for precise positioning without an external counter module.

Pump and Valve Sequencing in Water Treatment

Analog inputs (0-10VDC) read level transmitters or pressure sensors, while relay outputs actuate solenoid valves. The Ethernet port enables SCADA integration for remote monitoring, reducing manual rounds.

Packaging Machine Logic

Replace a panel full of relays with a single MicroLogix 1100. The 1763-L16BWA handles timing, counting, and interlocking, and its LCD display provides local status without a separate HMI.

Installation and Setup Guidance

Mount the controller on a DIN rail or panel using the integral mounting slots. Connect input power (120 to 240 Volts AC) to the dedicated terminals, observing proper overcurrent protection per local codes. For analog inputs, use Belden #8761 shielded cable with the drain wire grounded at one end only. Configure the 2-wire, 3-wire, or 4-wire transmitter as needed; note that loop power is not supplied. Set communication parameters via the RS-232/485 or Ethernet port using RSLogix 500 or Connected Components Workbench.

Maintenance and Reliability

Inspect the controller periodically for dust accumulation on the LCD and ventilation slots. The non-volatile battery-backed RAM retains the program during power loss; replace the battery every 5 years or when the low-battery indicator appears. Operate within the ambient temperature range of -20 to 65 degrees Celsius and non-condensing humidity of 5 to 95%.

Compact Control for Small-Scale Automation

Compatibility and Integration

The 1763-L16BWA supports up to four expansion modules, allowing I/O count growth without replacing the controller. The built-in Ethernet port supports EtherNet/IP for peer-to-peer messaging and HMI/SCADA connectivity. The RS-232/485 port can communicate with variable frequency drives, barcode scanners, or serial printers.

Selection Guide and Purchasing Advice

When selecting a controller for a small machine or remote station, consider the 1763-L16BWA if you need 10 digital inputs, 2 analog inputs, and 6 relay outputs in a single unit. Verify the input power matches your facility voltage (120 to 240 Volts AC). AutoDCSTech stocks this model and can confirm current lifecycle status before ordering.

Troubleshooting and Common Issues

If the controller does not power up, check the input power connections and verify that the voltage is within the 120 to 240 Volts AC range. For analog readings that appear erratic, inspect the cable shielding and ensure the drain wire is grounded at one end. If relay outputs fail to energize, measure the coil voltage and confirm the load current does not exceed 3A per group. For communication faults, verify the IP address and baud rate settings match the network.
