Robust Hazardous Area Control with the Schneider 140DIO33000C

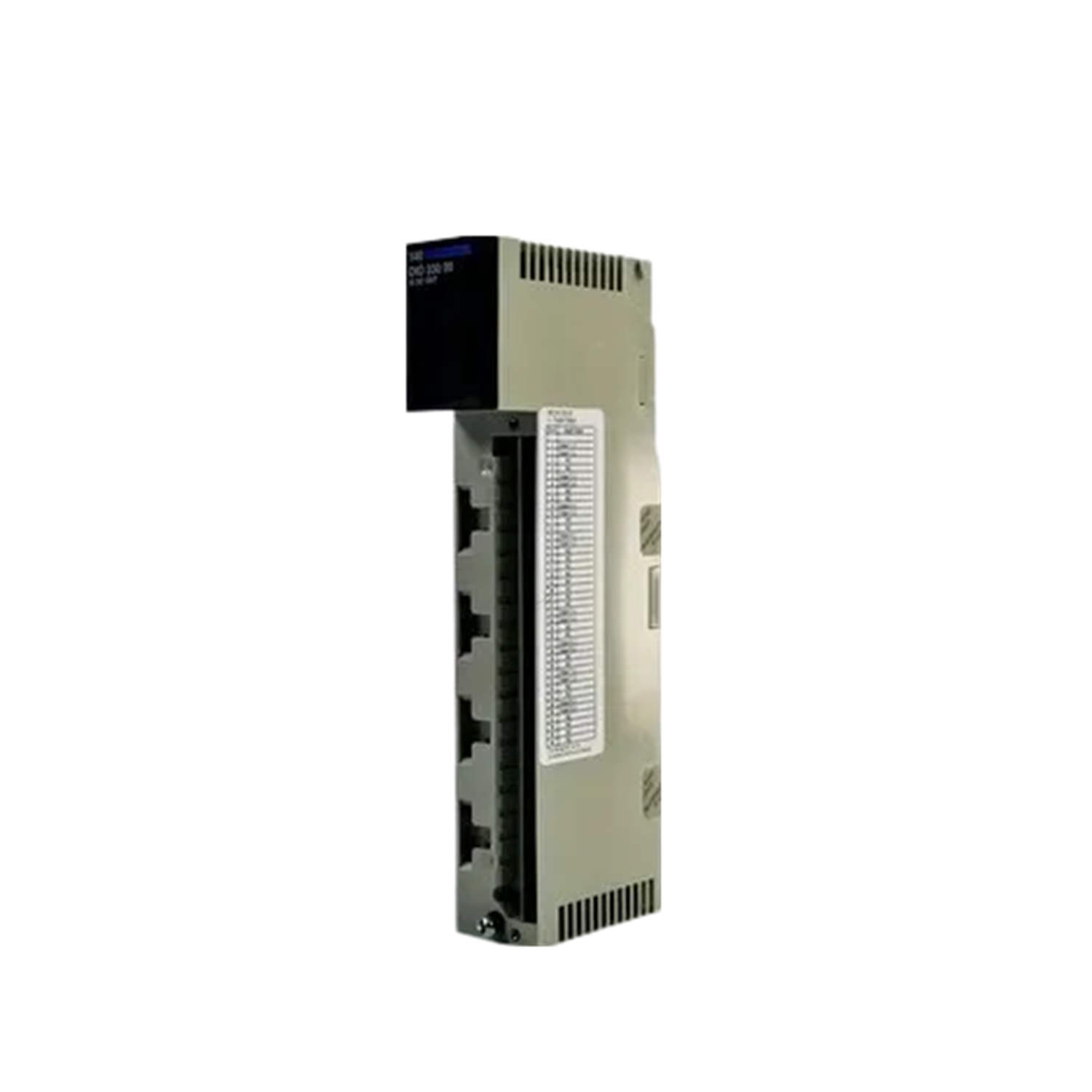

Industrial facilities operating in explosive dust environments face unique control challenges. The Schneider 140DIO33000C intrinsically safe discrete output module is engineered to meet these demands, providing reliable switching in Zone 20, 21, and 22 areas. This Modicon Quantum module eliminates the need for external safety barriers, simplifying system design and reducing installation costs.
Technical Specifications Breakdown
Key parameters for the 140DIO33000C are listed below for quick reference:
| Feature | Specification |
|---|---|
| Output Type | Open Collector |
| Output Voltage | 24 V |
| Maximum Load Current (Module) | 360 mA |
| Maximum Load Current (Per Point) | 45 mA |
| Off State Leakage Current | 0.4 mA per point |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| ESD Resistance | 4 kV contact, 8 kV air |
| EMF Resistance | 10 V/m (80–2000 MHz) |
| Operating Altitude | ≤ 5000 m |
| Humidity | 95% without condensation |
Industry Applications for Intrinsically Safe Outputs
This module excels in environments where flammable dust is present, such as grain handling, pharmaceutical powder processing, and coal-fired power plants. The open collector outputs can directly actuate solenoids, indicator lights, and small relays within the hazardous zone. By using the 140DIO33000C, engineers reduce the risk of ignition while maintaining precise control over critical processes.

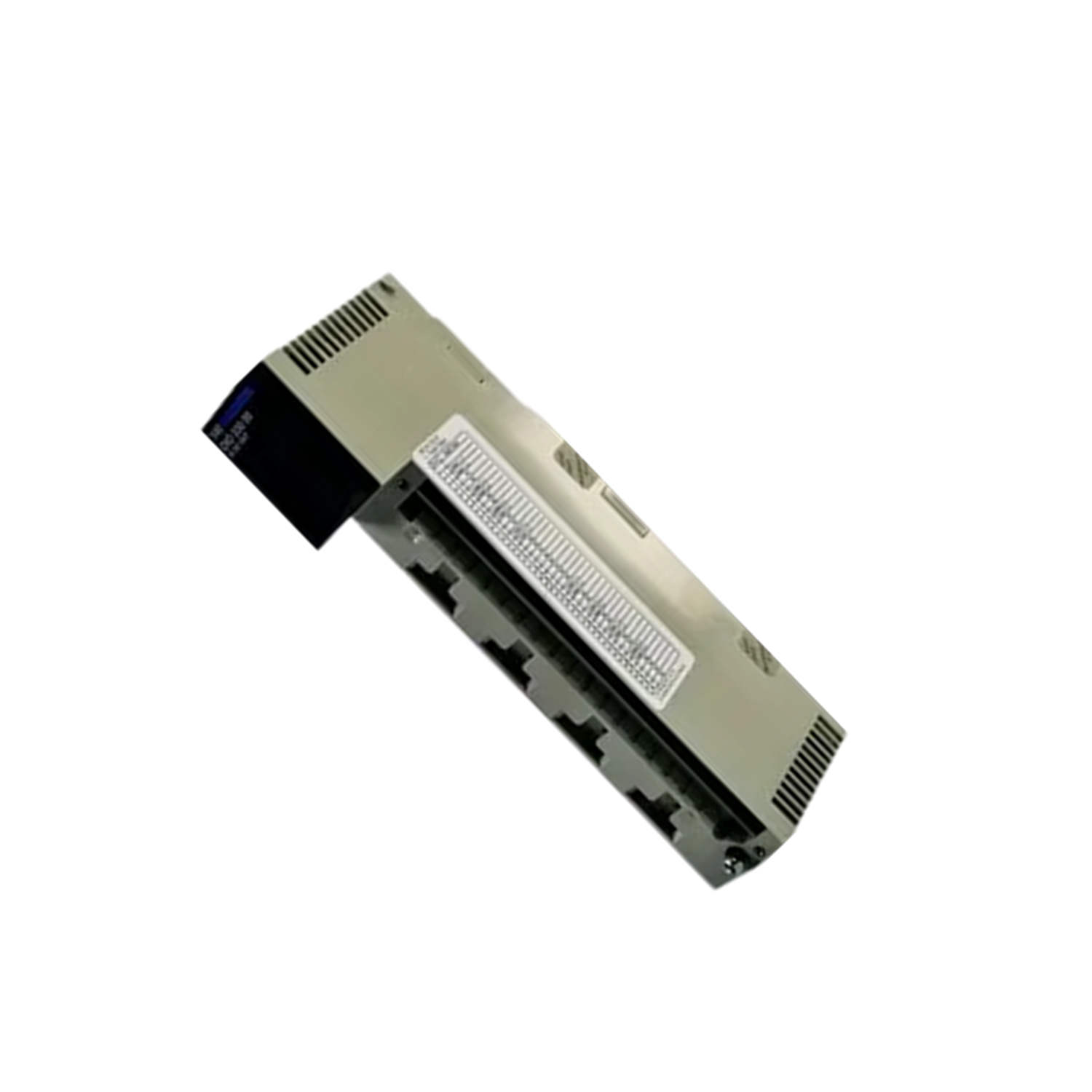

Installation & Setup Guidance
Mount the module in a standard Modicon Quantum rack. Ensure the backplane bus current requirement of 2.2 A is met by the power supply. Hot swapping is not permitted per intrinsic safety standards—always power down the rack before insertion or removal. Use approved intrinsically safe wiring practices for field connections to maintain the safety integrity of the loop.
Maintenance & Reliability
Periodically inspect the module for signs of moisture or dust accumulation. The conformal coating (Humiseal 1A33) protects against condensation, but the environment should remain within 95% relative humidity without condensation. Check the internal fuse and transient voltage suppression components only during scheduled outages. Replace the module if output current exceeds 360 mA or if leakage current rises above 0.4 mA per point.
Compatibility & Integration
The 140DIO33000C integrates seamlessly with the Modicon Quantum automation platform. It is supported by programming software including Concept V2.2 and above, ProWORX, and Unity Pro. The module provides 2500 V DC isolation between channels and the bus, ensuring robust noise immunity in industrial environments.
Selection Guide & Purchasing Advice
When selecting an intrinsically safe output module, verify that your application requires open collector outputs at 24 V with a maximum of 45 mA per point. The 140DIO33000C is certified for Zone 20, 21, and 22 dust areas. For current lifecycle status and availability, please contact SpareTechPLC before ordering. We offer competitive pricing and fast shipping on this and other Modicon Quantum modules.
Troubleshooting & Common Issues
If outputs fail to energize, first check the bus power supply and confirm the module is seated correctly. Measure the output voltage at the terminals—it should be 24 V when active. If leakage current exceeds 0.4 mA, the output transistor may be damaged. For ESD-related failures, ensure proper grounding of the rack and use wrist straps during handling. If the module does not communicate, verify that the software version is compatible (Concept V2.2 or later).
