Introduction

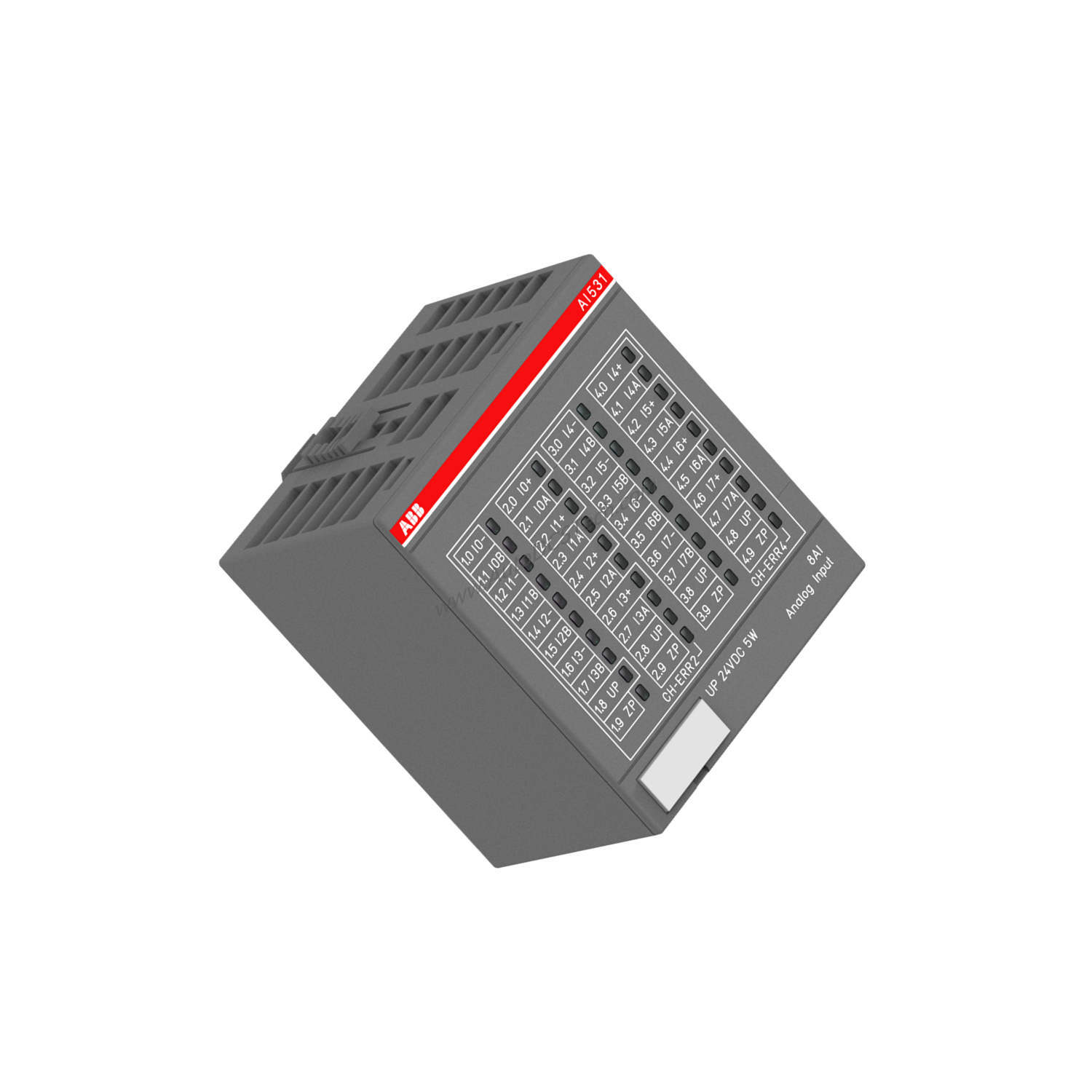

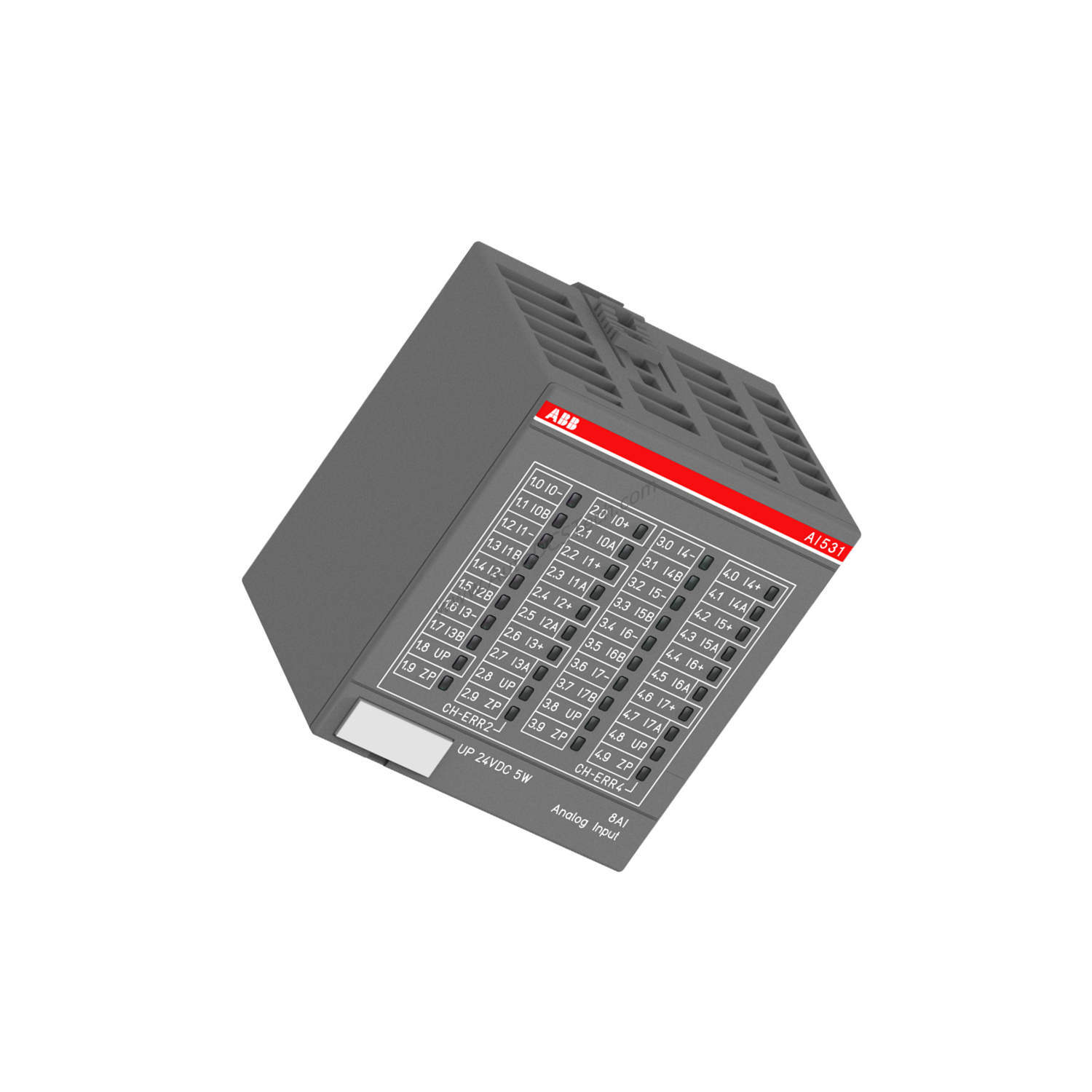

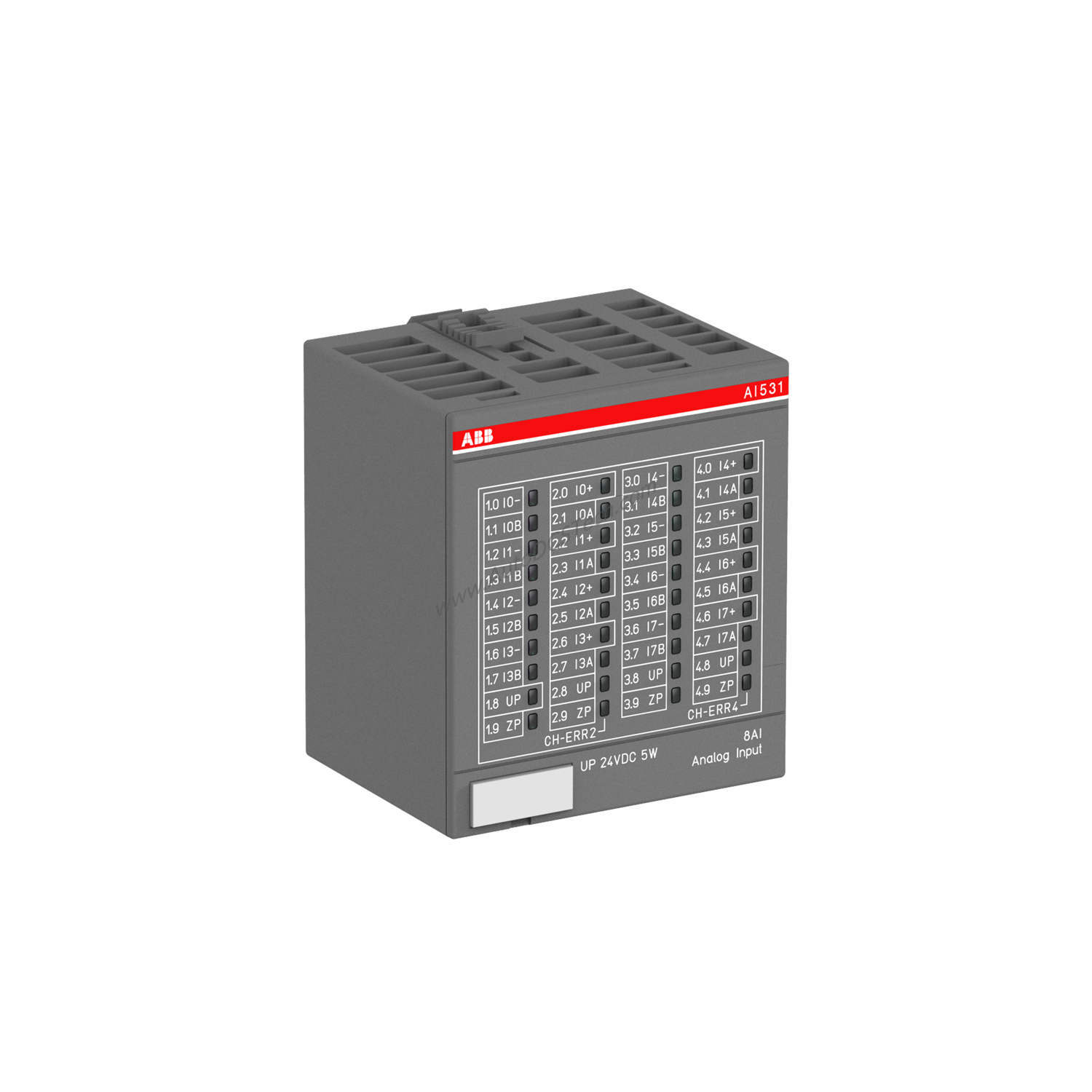

In the evolving landscape of industrial automation, the demand for precise and flexible signal acquisition has never been higher. The ABB AI531 analog input module addresses this need by integrating eight analog inputs capable of handling voltage, current, RTD, resistance, thermocouple, and digital input signals. This versatility makes it a cornerstone for modern control systems where accuracy and adaptability are paramount. Part of ABB's S500 series, the AI531 delivers reliable performance in demanding environments, ensuring seamless integration into distributed automation architectures.
Technical Specifications Breakdown
The ABB AI531 offers a robust set of technical features that directly impact system performance. It provides 8 analog inputs supporting signal types: U (voltage), I (current), RTD, R (resistance), TC (thermocouple), and DI (digital input). The resolution is 16 bit including sign, enabling fine measurement granularity for critical processes. Operating on a 24 V DC supply, the module ensures stable power consumption. Its degree of protection is IP20 for the housing, suitable for clean indoor environments. The ambient operating temperature ranges from 0 to +60 °C, while storage temperature spans -40 to +70 °C, allowing reliable operation across varied conditions. The module weighs only 0.128 kg and measures 62 mm depth, 76 mm height, and 67.5 mm width, making it compact for space-constrained cabinets.
Industry Applications
In process industries such as chemical plants and refineries, the AI531 excels at monitoring temperature via RTD or thermocouple inputs, ensuring safe reactor conditions. For manufacturing lines, its current and voltage inputs capture sensor data for precise motor control and quality inspection. The digital input capability also allows limit switch monitoring, reducing the need for separate modules. This multi-signal flexibility minimizes inventory complexity and simplifies system design.
Installation & Setup Guidance
Mount the AI531 module securely on a DIN rail within an IP20-rated enclosure. Connect the 24 V DC supply to the designated terminals, ensuring proper polarity. For analog inputs, use shielded twisted-pair cables to minimize electromagnetic interference. Configure the input type via the host controller software, selecting the appropriate signal range for each channel. Verify wiring before powering up to prevent damage. The module supports 1- to 4-wire connections for RTD and resistance measurements, enhancing accuracy in long-distance runs.
Maintenance & Reliability
Regularly inspect the module for dust accumulation and ensure ventilation around the housing. Check terminal connections for tightness periodically, as vibration can loosen them. The AI531's solid-state design reduces wear, but environmental factors like humidity can affect performance. Operate within the specified 0 to +60 °C range to maintain accuracy. For critical applications, consider redundant configurations to minimize downtime. Following ABB's guidelines extends service life and reduces total cost of ownership.
Compatibility & Integration
The AI531 integrates seamlessly with ABB S500 distributed I/O systems and compatible PLCs. It communicates via the S500 backplane bus, supporting high-speed data exchange with controllers. The module is designed for use with ABB AC500 and other automation platforms that accept S500 I/O modules. No additional communication protocols are required for basic operation, simplifying system architecture. Always verify compatibility with your specific controller model before integration.
Selection Guide & Purchasing Advice
Before purchasing the ABB AI531, confirm your system's supply voltage (24 V DC) and available slot space (67.5 mm width per module). Evaluate the number of analog inputs needed; this module offers 8 channels, which may suit medium-scale applications. For larger systems, multiple AI531 units can be stacked. SpareTechPLC stocks genuine ABB AI531 modules with fast shipping and competitive pricing. Contact our team to check current availability and lifecycle status to ensure your project stays on schedule.
Frequently Asked Questions
Q1: Can the AI531 handle both thermocouple and RTD inputs simultaneously?
Yes, each of the 8 analog inputs can be individually configured for thermocouple, RTD, resistance, voltage, current, or digital input, allowing mixed signal types on the same module.
Q2: What is the maximum cable length for RTD connections?
The AI531 supports 1- to 4-wire RTD connections. For best accuracy, keep cable lengths under 100 meters and use shielded twisted-pair cables to reduce noise.
Q3: Is the AI531 compatible with ABB AC500 PLCs?
Yes, the AI531 is part of the S500 series and works directly with ABB AC500 controllers via the backplane bus. Always verify firmware compatibility with your specific AC500 model.
Q4: What is the power consumption of the AI531 module?
The module operates on 24 V DC supply. Exact current draw depends on the number of active channels and signal types; refer to the product manual for detailed power specifications.
Q5: Does the AI531 require external signal conditioning?
No, the module includes built-in signal conditioning for all supported input types (U, I, RTD, R, TC, DI), simplifying installation and reducing external component needs.
