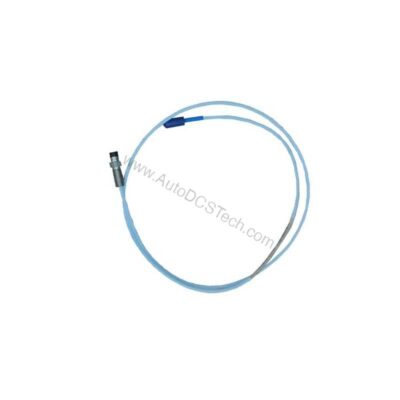

330174-00-02-10-02-CN Bently Nevada 3300 5mm Probe M8 Armored

What Makes the 330174-00-02-10-02-CN a Reliable Choice for Turbomachinery Monitoring?

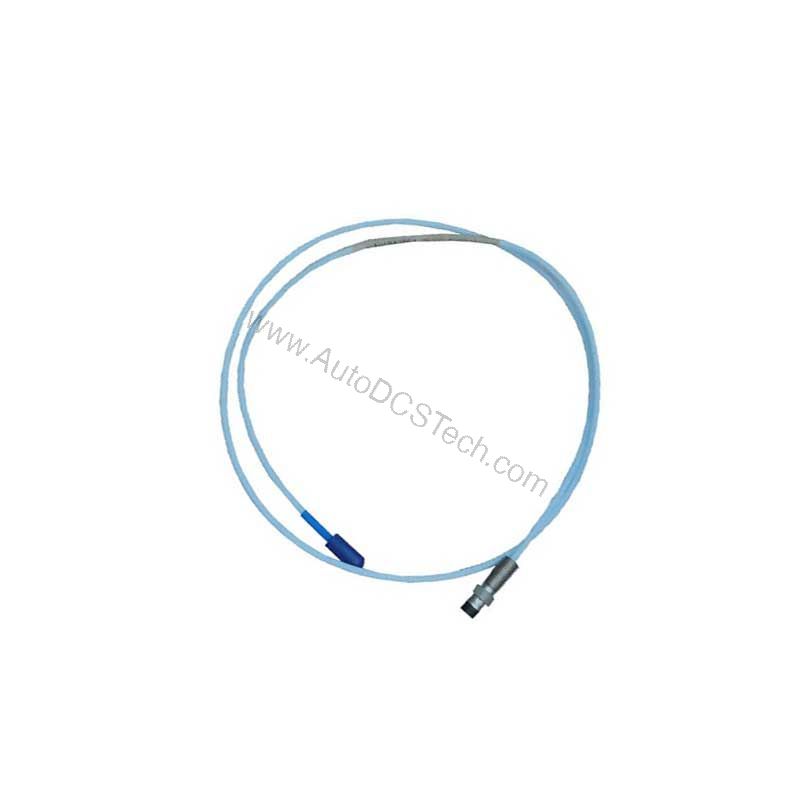

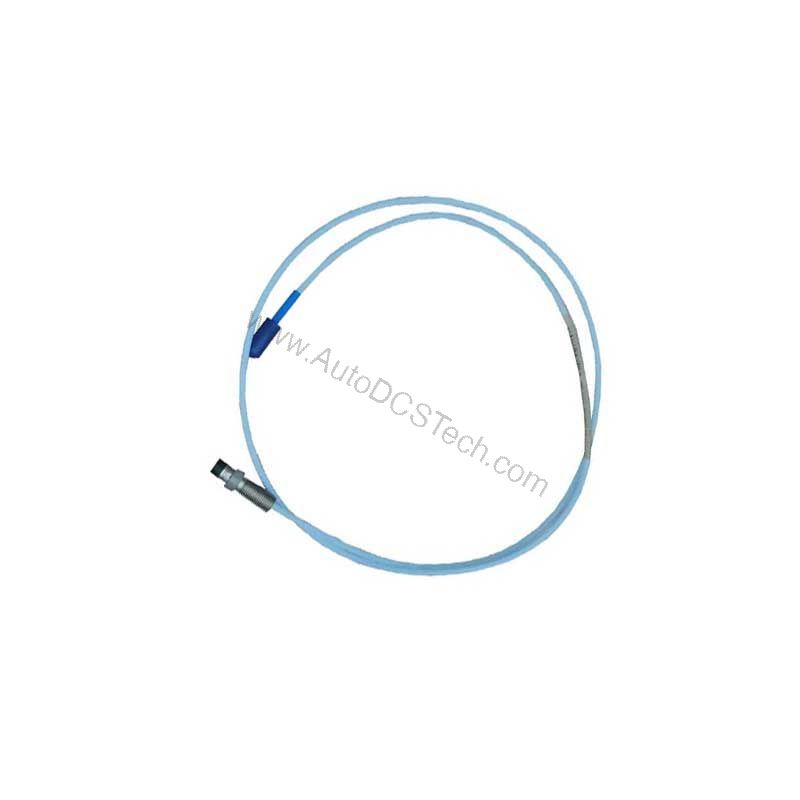

How do you ensure precise, repeatable displacement measurements in harsh industrial environments? The Bently Nevada 330174-00-02-10-02-CN answers that challenge with engineering-grade precision. As a 3300 5mm probe, it features an M8 x 1 thread and a 1.0 metre armored cable, making it ideal for continuous vibration and position monitoring on rotating machinery.

Key Features and Verified Specifications of the 330174-00-02-10-02-CN

Every specification of this probe is exact and verified. The probe tip is made from polyphenylene sulfide (PPS), while the case uses AISI 304 stainless steel for durability. With a total length of 1.0 metre and a weight of 0.323 kg, it balances robustness with ease of installation. The miniature coaxial ClickLoc connector ensures secure signal transmission.

• Input Voltage: Requires -17.5 Vdc to -26 Vdc at 12 mA maximum.
• Output Resistance: 50 Ω.
• Probe DC Resistance: 7.59 ± 0.50 Ω from center to outer conductor.
• Probe Temperature Range: -35°C to +177°C.
• Thread Engagement: M8 x 1, maximum 12 mm.
• Cable Bend Radius: 25.4 mm minimum.

These parameters ensure the probe delivers stable performance even under extreme conditions.

Installation and Integration Best Practices

Proper installation is critical for accurate measurements. First, verify the target material and gap. The probe case torque should be 5.1 N·m recommended, with a maximum of 7.3 N·m. Additionally, respect the minimum cable bend radius of 25.4 mm to avoid damage. When integrating into existing systems, ensure the power supply provides -17.5 Vdc to -26 Vdc. Operation at a more positive voltage than -23.5 Vdc can reduce linear range. Therefore, always confirm your supply voltage matches the specification.

Maintenance and Reliability

Regular inspection of the probe tip and cable is essential. Because the probe operates in temperatures up to +177°C, check for any signs of wear or contamination. The armored cable provides mechanical protection, but avoid excessive bending. Furthermore, verify the connector torque periodically to maintain signal integrity. Following these practices extends service life and ensures continuous monitoring.

Ordering and Support

For precise matching to your system, contact AutoDCSTech with your exact requirements. Please verify current lifecycle status and availability before ordering.
