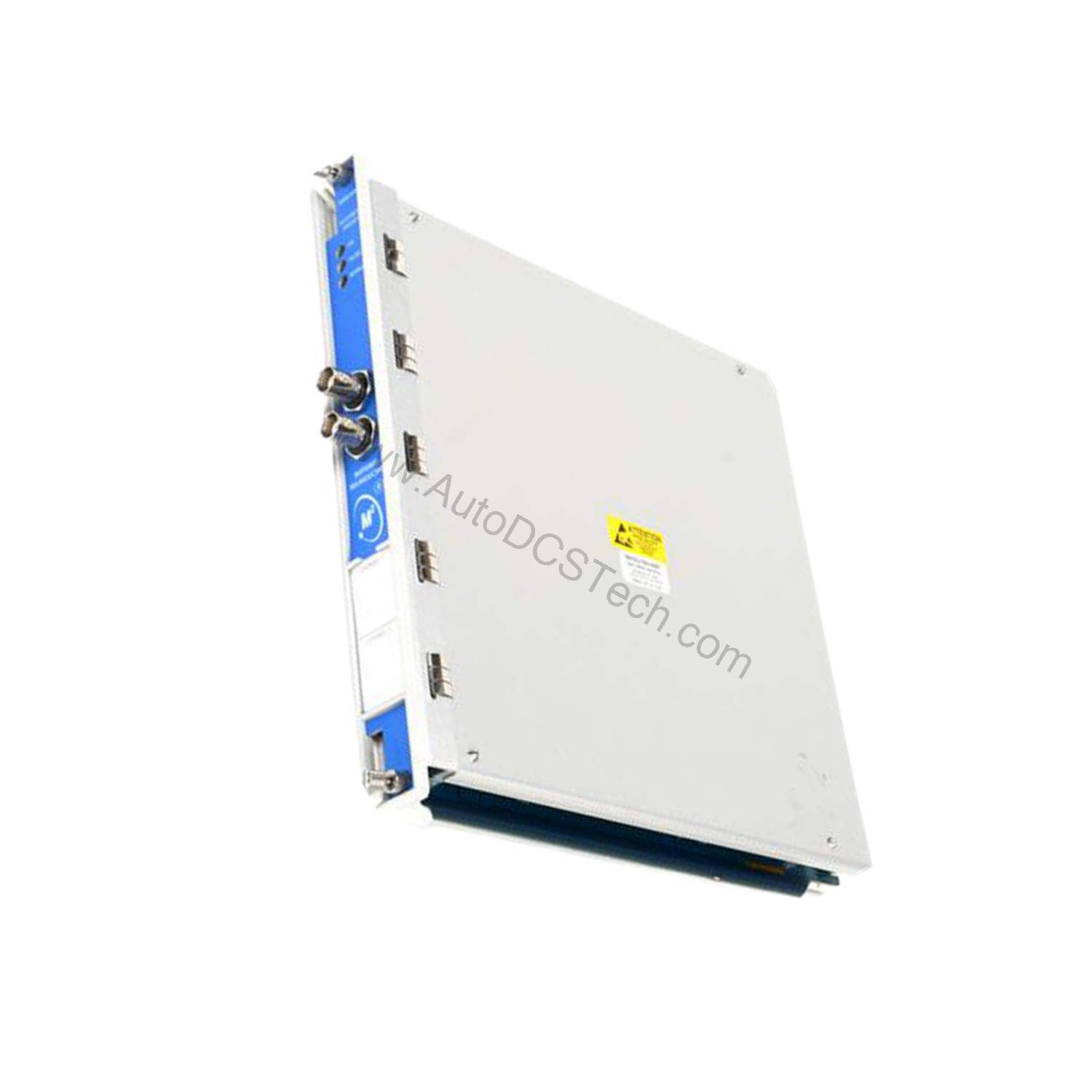

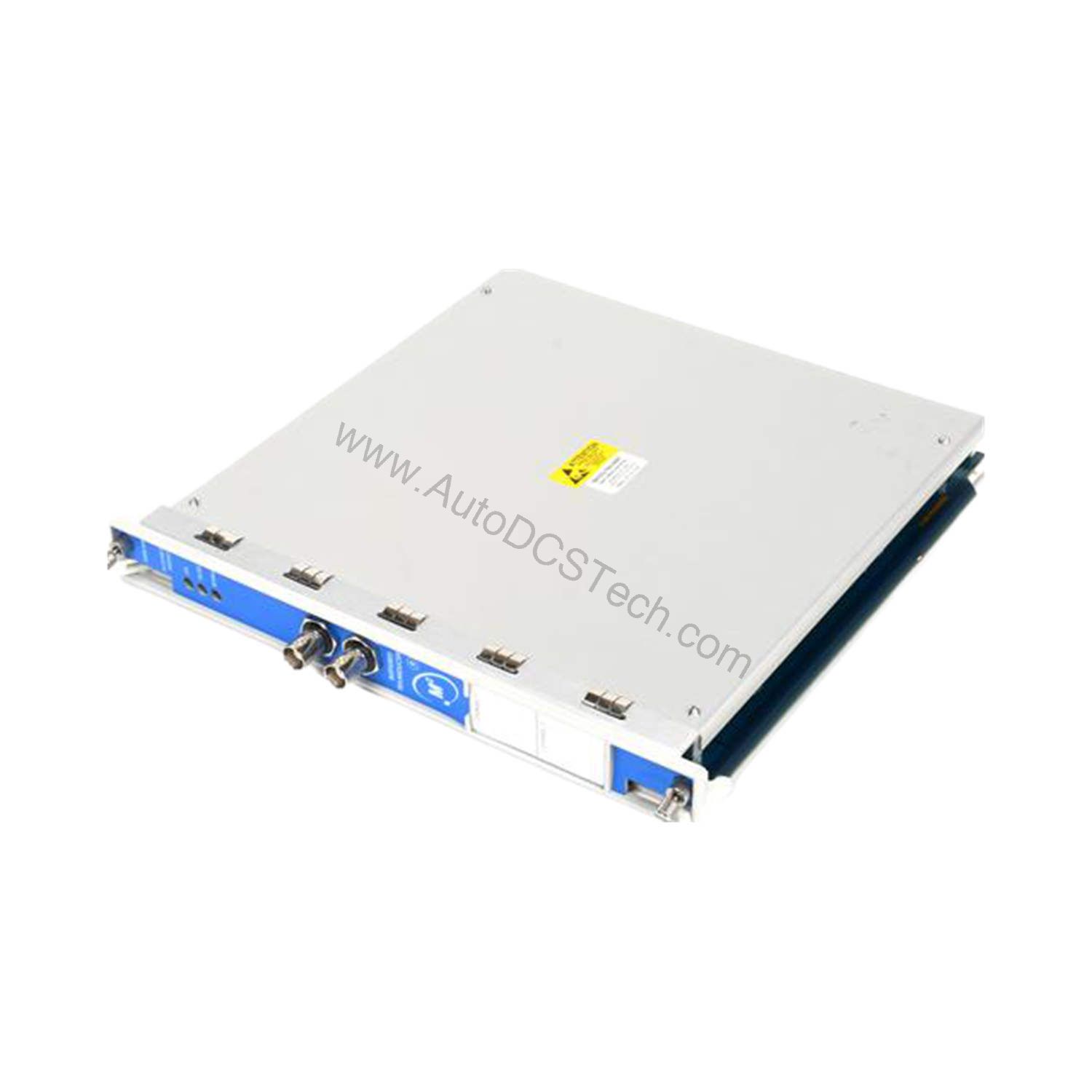

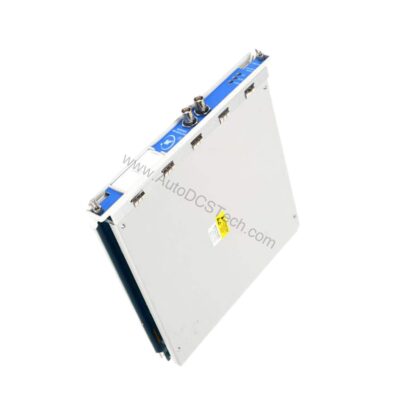

3500/50M-01-01 Bently Nevada Tachometer Module

3500/50M-01-01 Tachometer Module Overview

When precise speed measurement is critical for your rotating machinery, the 3500/50M-01-01 from Bently Nevada provides reliable performance. This tachometer module is designed for use in the 3500 monitoring system, accepting up to two transducer signals from proximity probes or magnetic pickups. With a wide input signal range of +10.0 V to -24.0 V, it handles diverse sensor outputs. The module's typical power consumption is 5.8 watts, ensuring efficient operation within your rack.

Key Features and Technical Specifications

The 3500/50M-01-01 offers several features that make it a robust choice for speed monitoring. Its transducer power supply delivers 24 Vdc at 40 mA maximum per channel, providing stable excitation for your sensors. The module supports 1 to 255 events per revolution for rotor acceleration and zero speed channels, while other channel types support 0.0039 to 255 events per revolution. All channel types handle a maximum full scale range of 99,999 rpm and a maximum input frequency of 20 kHz.

• Input impedance: 20 kΩ (standard), 40 kΩ (TMR), 7.15 kΩ (internal barrier)
• RPM accuracy: ±0.1 rpm below 100 rpm, ±1 rpm from 100 to 10,000 rpm, ±0.01% above 10,000 rpm
• RPM/min accuracy: ±20 rpm/min
• Minimum input frequency: 0.0167 Hz for proximity transducers, 3.3 Hz for passive magnetic pickups
• Front panel LEDs: OK, TX/RX, and Bypass indicators for status monitoring

This module is available with internal terminations (I/O module type 01) and carries cNRTLus approval for Class 1, Division 2 hazardous locations. Its physical dimensions are 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in) for the monitor module, weighing 0.82 kg (1.8 lb). The I/O module with internal barrier measures 241.3 mm x 24.4 mm x 163.1 mm (9.50 in x 0.96 in x 6.42 in) and weighs 0.46 kg (1.01 lb).

Applications and Use Cases

The 3500/50M-01-01 is ideal for turbomachinery, compressors, and other high-speed rotating equipment where accurate speed measurement is essential. In these applications, the module's high accuracy and wide frequency range help detect speed variations that could indicate mechanical issues. Moreover, its support for multiple events per revolution enables detailed rotor acceleration analysis, which is valuable for condition monitoring programs. For engineers upgrading existing monitoring systems, this module integrates seamlessly into a 3500 rack, providing consistent and reliable data.

Installation and Setup

Installing the 3500/50M-01-01 requires a full-height front slot in a 3500 rack, with the I/O module occupying a full-height rear slot. Ensure that your system firmware meets the required versions: 3500/22M module firmware revision 1.70, 3500/01 configuration software version 4.20 or later, 3500/02 data acquisition software version 2.52 or later, and 3500/03 display software version 1.52 or later. The 3500/50M firmware must be revision 5.30 or later. Note that this module is not compatible with any version of the 3500/20. During setup, verify that the input signal range does not exceed +10.0 V to -24.0 V, as signals beyond this range are internally limited.

Maintenance and Reliability

Regular inspection of the 3500/50M-01-01 ensures long-term reliability. Check the front panel LEDs periodically to confirm normal operation; the OK LED indicates proper functioning, while the TX/RX LED shows communication status. The Bypass LED signals when the module is in bypass mode. Since the module is part of a safety monitoring system, follow the manufacturer's manual for any maintenance procedures. Keeping the module clean and free from excessive vibration or temperature extremes will help maintain its accuracy and extend its service life.

Compatibility and Integration

The 3500/50M-01-01 is designed for the Bently Nevada 3500 monitoring system. It communicates with other modules in the 3500 rack, as indicated by the TX/RX LED. For integration, you need the specified firmware and software versions listed above. The module accepts signals from proximity probe transducers and magnetic pickups, making it versatile for various sensor types. Ensure your system configuration matches these requirements to achieve optimal performance.

Troubleshooting and Common Issues

If the OK LED is off, the module may not be receiving power or may have failed. Check the rack power supply and reseat the module. If the TX/RX LED is not blinking, communication with other modules may be interrupted; verify that the module is properly seated and that the rack backplane is functioning. If speed readings are inaccurate, confirm that the input signal is within the specified range and that the transducer is correctly connected. For persistent issues, consult the Bently Nevada documentation or contact AutoDCSTech for support.

Product Support and Availability

The 3500/50M-01-01 is available through AutoDCSTech, a reliable supplier of industrial automation parts. We maintain stock to ensure prompt delivery for your maintenance or upgrade needs. For technical assistance or to verify lifecycle status, please contact our team.
