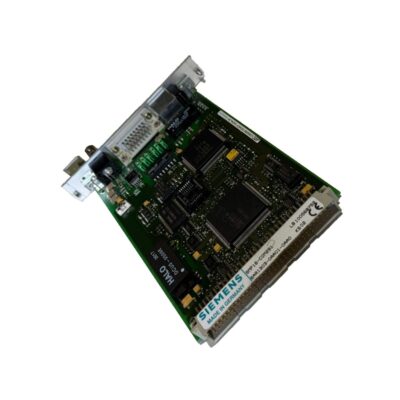

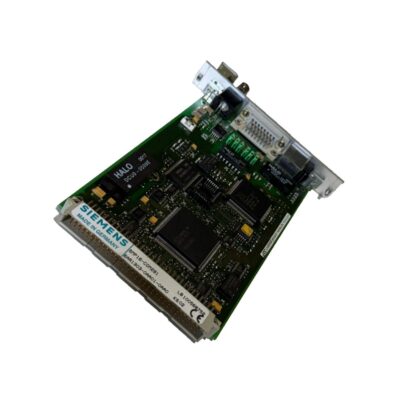

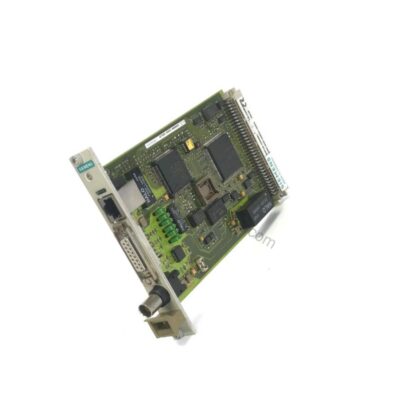

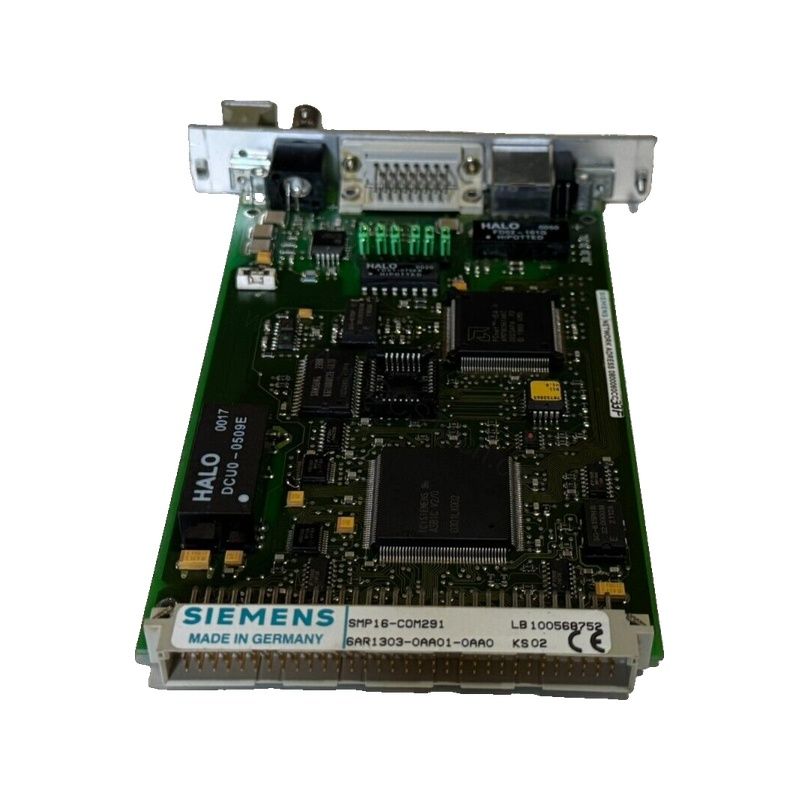

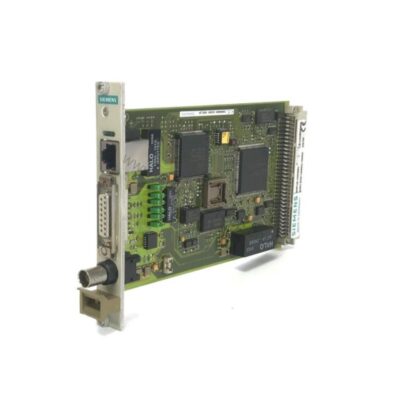

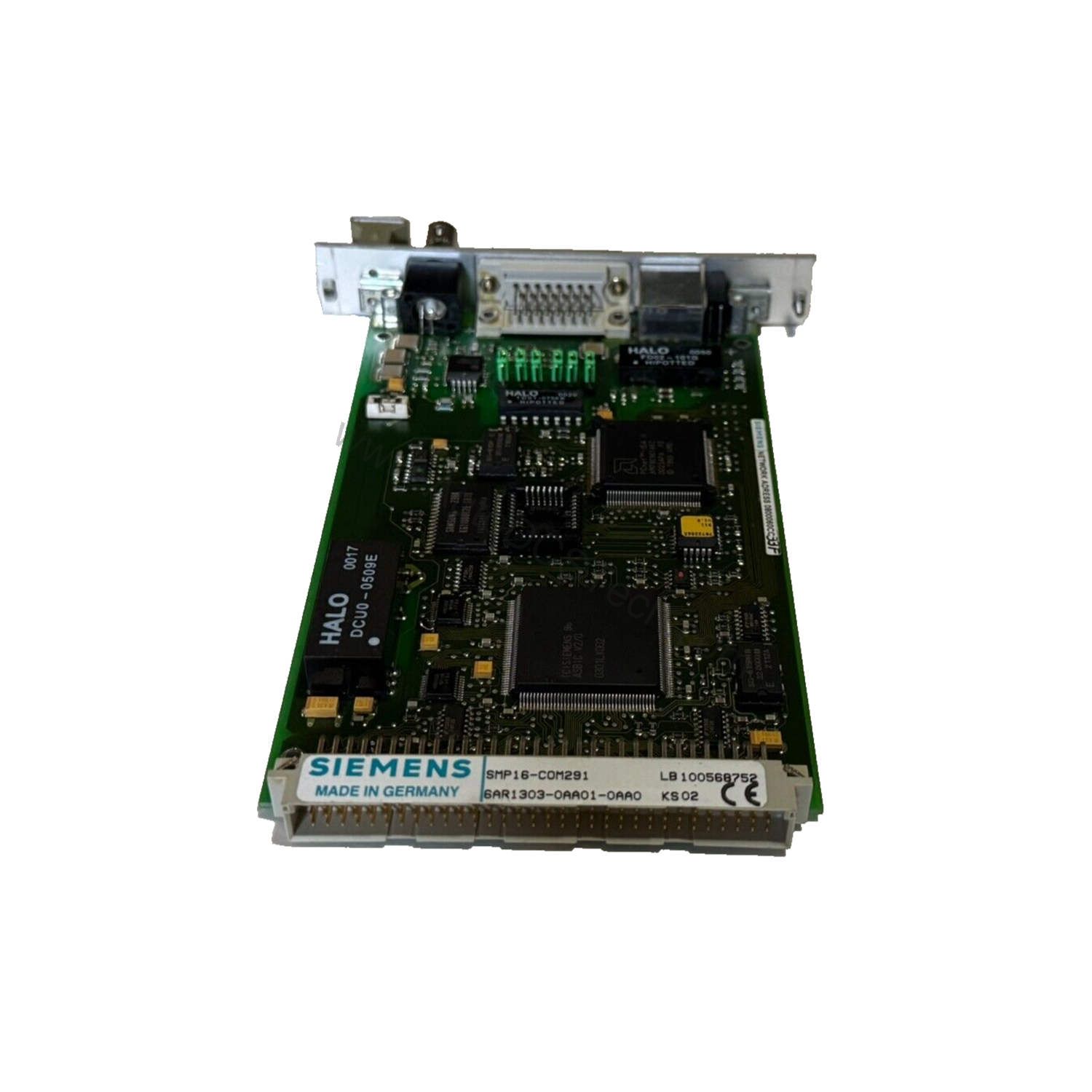

6AR1303-0AA01-0AA0 10 Mbit/s Interface Module

Introduction to the Siemens 6AR1303-0AA01-0AA0 Interface Module

When your automation system demands dependable Ethernet communication, the 6AR1303-0AA01-0AA0 from Siemens provides a robust interface solution. This module is part of the I/O Modules series, engineered to integrate seamlessly into industrial networks. With a transmission rate of 10 Mbit/s, it supports a wide range of automation tasks, from data acquisition to control signaling.

Designed for durability, the 6AR1303-0AA01-0AA0 operates in temperatures from 0 to 60 degrees Celsius and handles humidity up to 80% RH (non-condensing). Its lightweight construction, weighing only 0.49 pounds, simplifies installation and reduces mechanical stress on mounting rails.

Key Features and Technical Specifications

This interface module offers a set of specifications that ensure reliable performance in industrial environments. Below is a summary of the critical parameters:

• Network Type: Ethernet
• Transmission Rate: 10 Mbit/s
• Operating Temperature Range: 0 to 60 degrees Celsius
• Humidity Tolerance: Up to 80% RH (non-condensing)
• Maximum Operating Altitude: 1000 meters above sea level without derating
• Protection Class: IP20
• Certification: CE
• Weight: 0.49 pounds

One distinctive aspect of the 6AR1303-0AA01-0AA0 is its Ethernet connectivity at 10 Mbit/s. This transmission rate is well-suited for applications that require consistent, moderate-bandwidth data exchange, such as remote I/O monitoring or parameter configuration. The IP20 protection class indicates that the module is safeguarded against solid objects larger than 12.5 mm, making it appropriate for general indoor use in control cabinets.

Applications and Use Cases

The 6AR1303-0AA01-0AA0 finds application in various industrial automation scenarios. For instance, it can serve as a communication gateway between a PLC and remote sensors, enabling real-time data collection. In manufacturing lines, this module facilitates the transfer of status information between machines, improving overall equipment effectiveness. Additionally, its Ethernet compatibility allows straightforward integration into existing network infrastructures, reducing deployment time. Consequently, engineers can rely on this interface module to maintain stable communication links in demanding production environments.

Installation and Setup

Installing the 6AR1303-0AA01-0AA0 is straightforward, thanks to its compact design and lightweight construction. To ensure optimal performance, mount the module in a clean, dry enclosure that provides adequate ventilation. The IP20 rating means the module is not protected against water ingress, so avoid placing it in areas with high moisture or dust accumulation. When connecting the Ethernet cable, verify that the network switch or router supports 10 Mbit/s operation to match the module's transmission rate. Additionally, ensure that the ambient temperature remains within the specified range of 0 to 60 degrees Celsius to prevent overheating.

Maintenance and Reliability

Routine maintenance of the 6AR1303-0AA01-0AA0 is minimal, but periodic inspection is recommended to ensure long-term reliability. Check the Ethernet connections for signs of wear or corrosion, and verify that the module's ventilation slots are free from dust. Since the module is not rated for extreme environmental conditions, maintaining a stable operating environment will extend its service life. Following the manufacturer's guidelines for periodic checks can help prevent unexpected downtime and reduce total cost of ownership.

Compatibility and Integration

The 6AR1303-0AA01-0AA0 is designed to work with Ethernet-based networks, making it compatible with a wide range of industrial controllers and switches. Its 10 Mbit/s transmission rate aligns with legacy Ethernet standards, ensuring interoperability with older systems that may not support higher speeds. This compatibility simplifies upgrades, as the module can be integrated into existing network architectures without requiring major changes. For specific integration details, refer to the official Siemens documentation or contact AutoDCSTech for technical support.

Troubleshooting Common Issues

If communication issues arise with the 6AR1303-0AA01-0AA0, start by checking the physical Ethernet connection. A loose or damaged cable is a common cause of intermittent connectivity. Verify that the network settings match the module's transmission rate of 10 Mbit/s; mismatched speeds can lead to link failures. Additionally, monitor the ambient temperature and humidity to ensure they stay within the specified limits, as extreme conditions can affect performance. If problems persist, consult the official Siemens troubleshooting guide or contact AutoDCSTech for assistance.

Product Support and Availability

The Siemens 6AR1303-0AA01-0AA0 is available through AutoDCSTech, a trusted supplier of industrial automation parts. We keep this model in stock and ready to ship, ensuring minimal lead time for your projects. For pricing, availability, or technical inquiries, contact our team, and we will assist you promptly.
