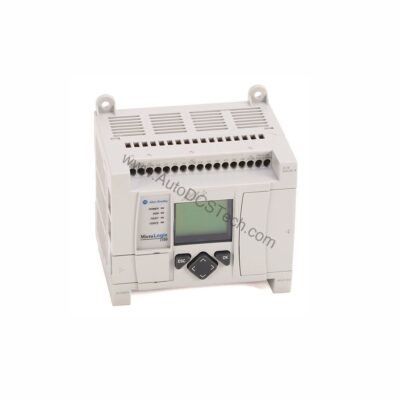

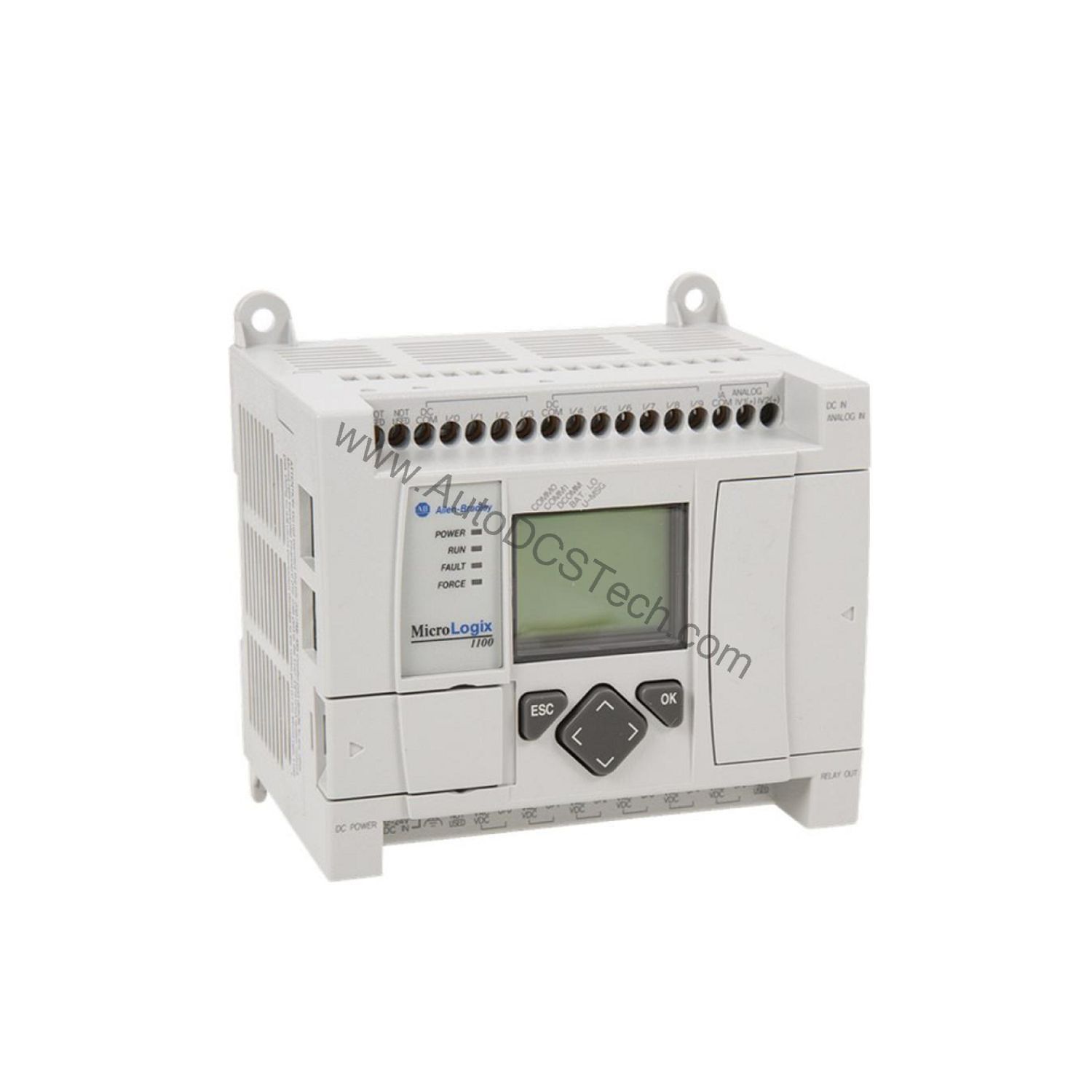

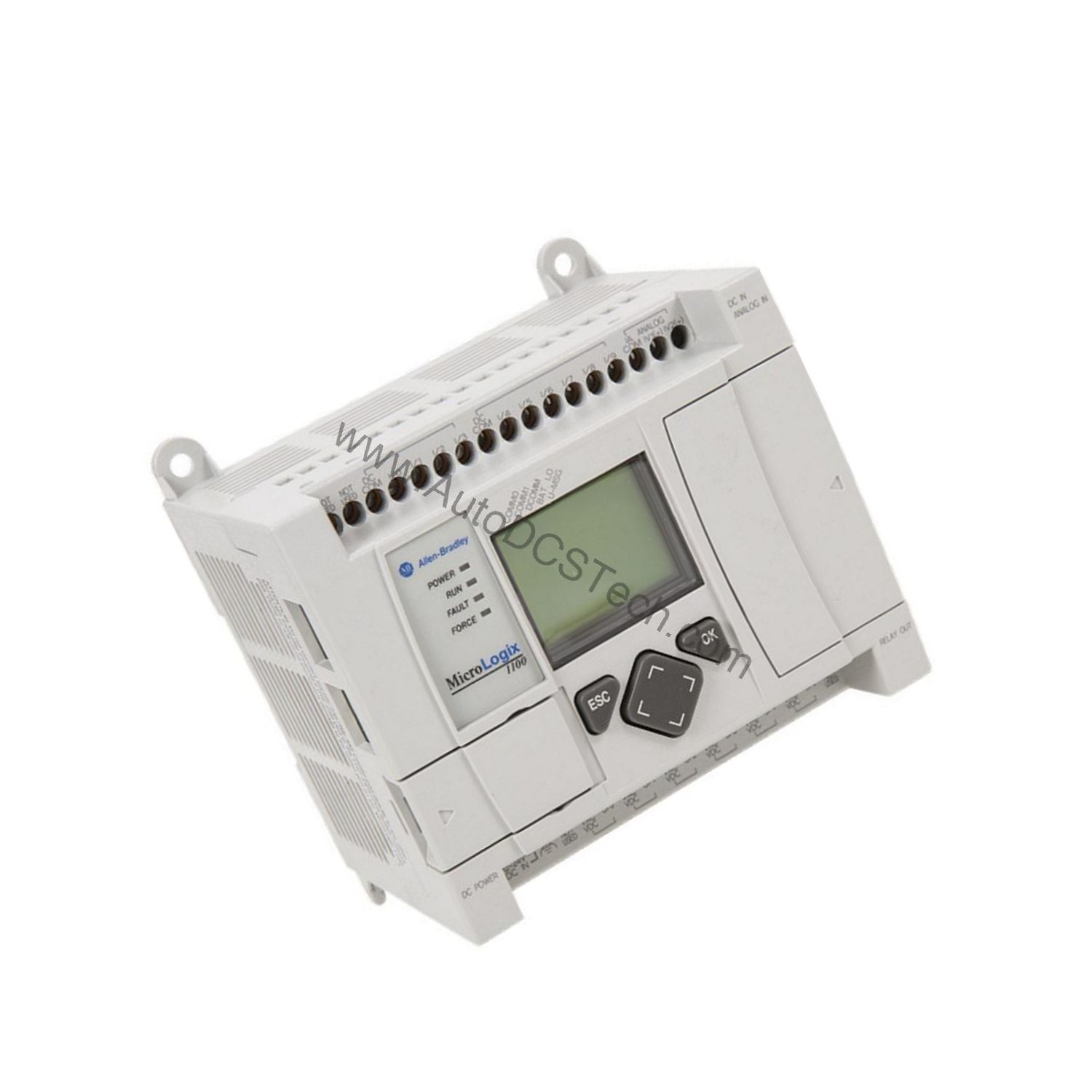

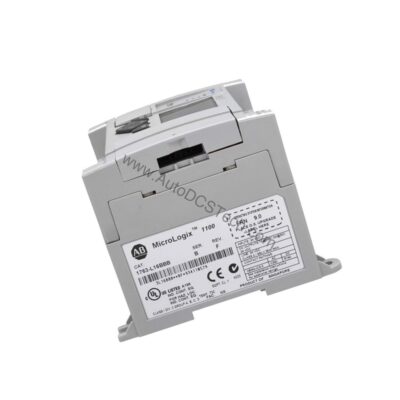

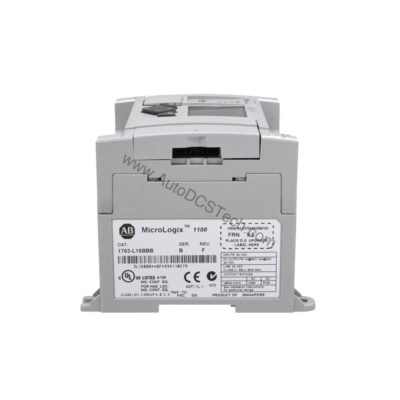

Allen-Bradley 1763-L16AWA MicroLogix 1100 Programmable Controller

Product Overview

The Allen-Bradley 1763-L16AWA is a programmable controller from the MicroLogix 1100 series under the Bulletin 1763 family. Designed for small-scale industrial automation, this compact unit integrates discrete and analog I/O along with communication ports.

Technical Specifications Breakdown

Key parameters for the 1763-L16AWA are listed below for quick reference:

Industry Applications

The 120VAC digital inputs interface directly with proximity sensors and limit switches, while the 0-10VDC analog inputs accept signals from pressure or level transmitters. The six relay outputs handle motor starters, solenoid valves, and alarms. Its compact size makes it suitable for OEM machinery and skid-mounted systems.

Installation & Setup Guidance

Mount the 1763-L16AWA in an industrial enclosure to reduce environmental exposure and electrical interference. Connect the input power supply rated at 120 to 240 Volts AC. Use the RS-232/485 combo port for peer-to-peer or multi-node communication; ensure connected devices are floating or referenced to controller ground. The Ethernet port supports 10/100 Mbps EtherNet/IP for programming and monitoring. The built-in LCD display allows local assignment of communication parameters and I/O testing.

Maintenance & Reliability

Periodically inspect the controller for dust accumulation and verify that all wiring connections remain tight. Check the relay output contacts for wear if switching high-current loads. The relay mechanical life is rated at 10,000,000 cycles. Ensure the enclosure maintains proper ventilation to keep the internal temperature within safe limits.

Compatibility & Integration

The integrated RS-232/485 port supports DF1 protocol for peer-to-peer or Modbus communications. The Ethernet port enables seamless integration into existing EtherNet/IP networks, allowing remote access and programming from any available Ethernet node. The embedded web server provides additional monitoring capability.

Selection Guide & Purchasing Advice

When evaluating the 1763-L16AWA for your application, consider the I/O count: 10 digital inputs, 2 analog inputs, and 6 relay outputs. For projects requiring more I/O, expansion modules may be needed. AutoDCSTech offers this controller with fast shipping and expert support. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
