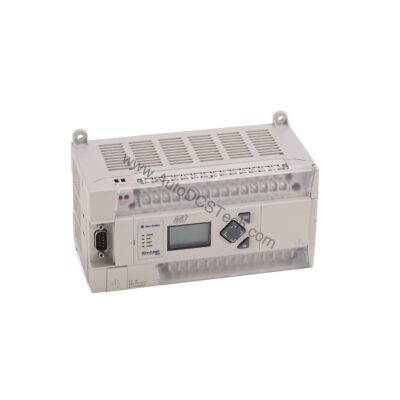

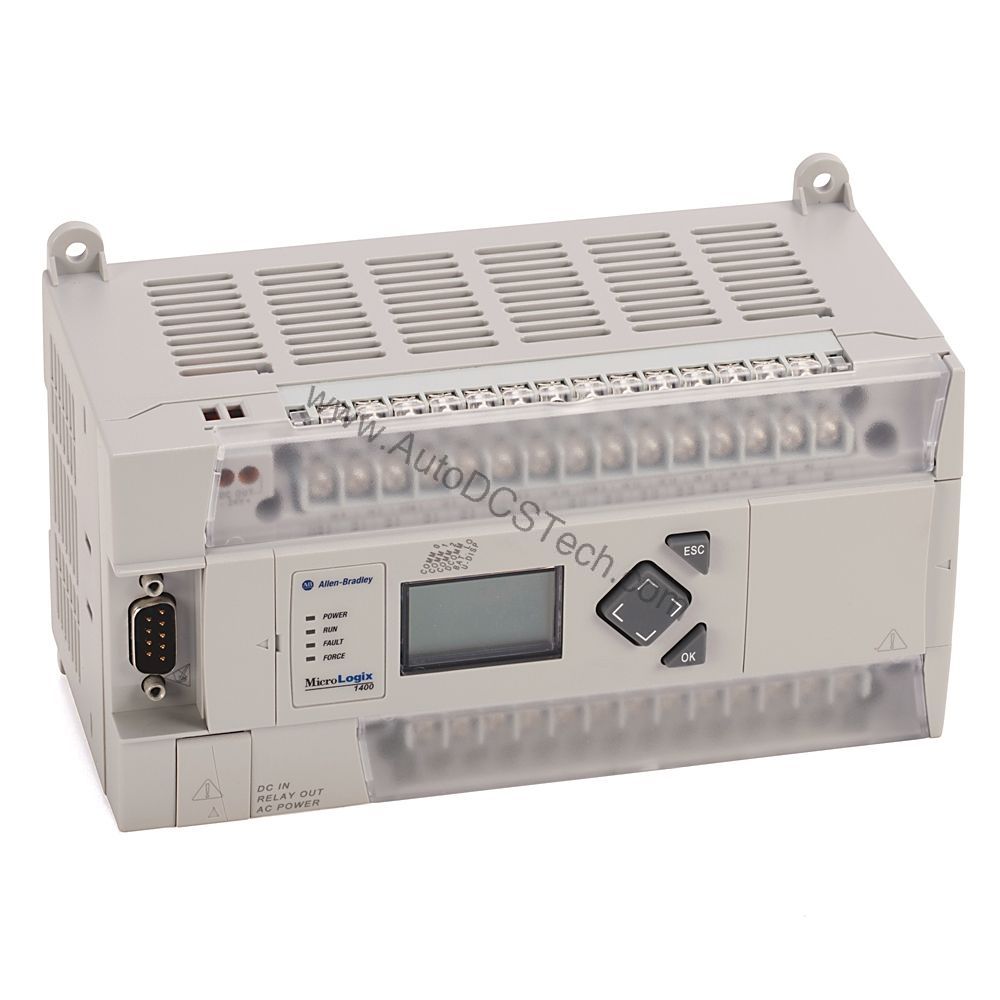

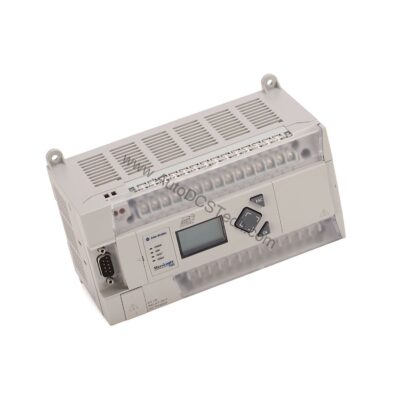

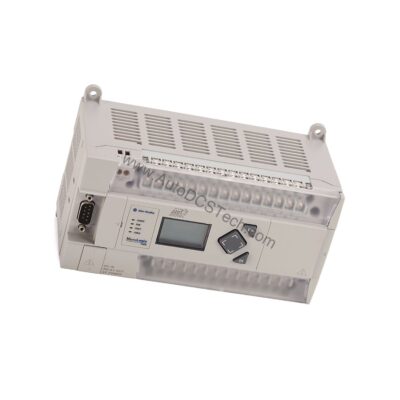

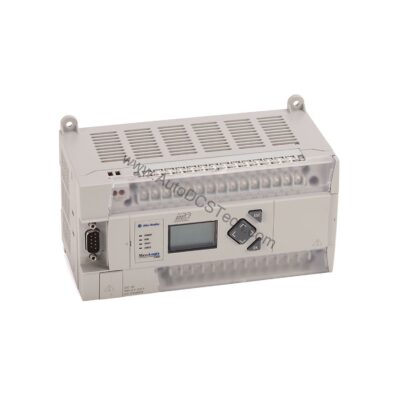

Allen-Bradley 1766-L32BXB MicroLogix 1400 Controller Overview

Technical Specifications Breakdown

Key parameters for the 1766-L32BXB are listed below for quick reference:

Industry Applications

For example, in a packaging line, the fast 24V DC inputs can capture encoder pulses for precise position tracking, while the relay outputs switch motor contactors or solenoid valves. In building management systems (BMS), the mixed I/O allows connection to sensors (24V DC) and actuators (relay), all within one chassis. The built-in real-time clock enables time-based scheduling for HVAC or lighting control, reducing the need for external timers.

Installation & Setup Guidance

Mount the 1766-L32BXB on a DIN rail or panel in a clean, dry industrial environment (Over Voltage Category II). Connect 24V DC power to the dedicated terminals, observing polarity. For communication, use the isolated RS232/485 port for noisy environments or the Ethernet port for network integration. Configure the controller using Rockwell Automation's RSLogix 500 programming software. Ensure the battery is installed for RAM retention; the built-in RTC will maintain time even without power if the battery is fresh.

Maintenance & Reliability

Periodically inspect the controller for dust accumulation and ensure adequate ventilation. The open enclosure design requires a clean environment; avoid exposure to conductive contaminants. Check the battery status annually and replace if the RTC loses time. The 1766-L32BXB has no user-serviceable internal parts; contact a qualified technician for any repairs.

Compatibility & Integration

The controller supports multiple industrial protocols: Ethernet/IP for seamless integration with other Rockwell devices, MODBUS TCP/IP for third-party equipment, and DNP3 for utility applications. The serial ports handle DF1, ASCII, MODBUS RTU, and DH485, enabling connection to legacy devices. The embedded high-speed counters (up to 6 channels at 100 kHz) work with incremental encoders for motion control.

Selection Guide & Purchasing Advice

When selecting the 1766-L32BXB, verify that your I/O count and type match the embedded configuration: 20 inputs (12 fast DC, 8 normal DC) and 12 outputs (6 relay, 3 fast DC, 3 normal DC). If you need more I/O, the controller supports expansion via 1762 modules. AutoDCSTech stocks this model and can advise on lifecycle status. Please verify current availability before ordering.

Troubleshooting & Common Issues

If the controller fails to power on, check the 24V DC supply and the power supply inrush current (15 A for 20 ms) to ensure the source can handle the surge. For communication issues, verify cable connections and port settings (baud rate, parity). If the RTC resets, replace the internal battery. For high-speed counter errors, confirm the input signal frequency does not exceed 100 kHz and that the wiring is shielded.
