330980-70-CN 7.0m Bently Nevada NSv Proximitor Sensor

330980-70-CN Overview: Bently Nevada NSv Proximitor Sensor

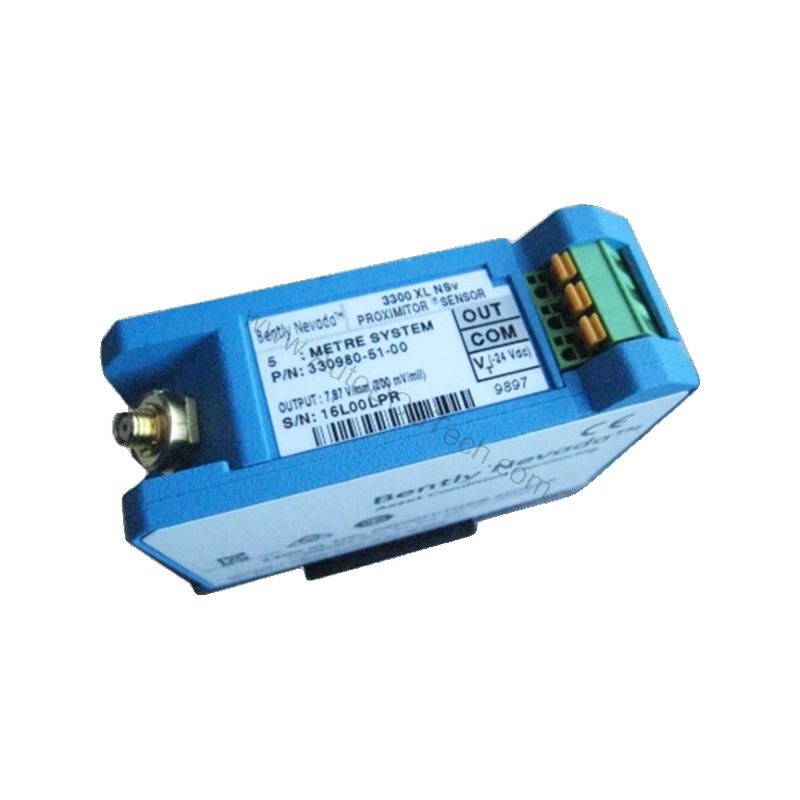

When machinery vibration threatens uptime, the 330980-70-CN from Bently Nevada provides a compact, reliable sensing solution. This NSv Proximitor Sensor is designed for permanent installation in industrial environments where accurate displacement measurement is critical. With a 7.0-meter (23.0 feet) system length and panel mount option, it integrates easily into existing monitoring systems.

The sensor's thin profile supports high-density DIN-rail mounting, saving valuable cabinet space. Its improved RFI/EMI immunity ensures stable readings even near radio frequency sources, meeting European CE mark approvals without special shielding. This makes the 330980-70-CN a robust choice for retrofits and new installations alike.

Key Features and Technical Specifications

Every specification below is directly from the official datasheet, ensuring accuracy for your engineering evaluation.

• Model: NSv Proximitor Sensor (330980 series)
• Total Length: 7.0 meters (23.0 feet) system length
• Mounting Option: Panel mount (suffix 70)
• Agency Approval: Country Specific (suffix CN)
• Proximitor Sensor Material: A380 aluminum
• Weight: 255 g (9 oz)
• Input: Accepts one noncontacting 3300 RAM or 3300 NSv Proximity Probe and Extension Cable
• Power Requirement: -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption; -23 Vdc to -26 Vdc with barriers
• Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
• Output Resistance: 50 Ω
• Operating Temperature: -52°C to +100°C (-62°F to +212°F)
• Storage Temperature: -52°C to +105°C (-62°F to +221°F)
• Relative Humidity: 100% condensing, non-submersible when connectors are protected (tested to IEC 68-2-3 damp heat)

The power supply range is critical: operation at a more positive voltage than -23.5 Vdc can reduce the linear range, so verify your supply voltage carefully. The output resistance of 50 Ω ensures compatibility with standard monitoring equipment.

Applications and Use Cases

The 330980-70-CN is used for rotating machinery protection, including pumps, motors, compressors, and turbines. Its compact size and RFI immunity make it suitable for installations near variable frequency drives (VFDs) or radio transmitters. The panel mount option is ideal for control cabinets, while the DIN-rail capability supports high-density layouts. For example, in a compressor train with limited cabinet space, the thin design allows multiple sensors to be mounted side-by-side without compromising signal integrity.

Installation and Setup

Installation is straightforward with the SpringLoc terminal strips, which require no special tools and provide robust field wiring connections. Ensure the power supply is within the specified range (-17.5 Vdc to -26 Vdc without barriers; -23 Vdc to -26 Vdc with barriers) to avoid reduced linear range. Mount the sensor on a panel or DIN rail, and connect the probe and extension cable as per the manual. Always follow the manufacturer's guidelines for gap setting and target material (Bently Nevada AISI 4140 steel recommended for accuracy).

Maintenance and Reliability

Regular inspection is recommended to verify that connectors are protected from moisture, as the sensor is rated for 100% condensing humidity but is non-submersible. Periodically check that the mounting is secure and that the probe gap remains within specification. The A380 aluminum housing is durable, but avoid exposing the sensor to temperatures outside the -52°C to +100°C operating range. With proper care, the 330980-70-CN offers long-term reliability, reducing downtime and maintenance costs.

Compatibility and Integration

The 330980-70-CN is designed to work with Bently Nevada 3300 RAM or 3300 NSv Proximity Probes and extension cables. It is compatible with Bently Nevada monitoring systems that accept proximity transducer inputs. For integration details, refer to the official Bently Nevada documentation or contact AutoDCSTech for assistance.

Troubleshooting and Common Issues

If you experience erratic readings, first check the power supply voltage—operation above -23.5 Vdc can reduce linear range. Verify that the probe and extension cable are properly connected and that the target is a Bently Nevada AISI 4140 steel target (or calibrated accordingly). RFI/EMI interference is minimized by design, but ensure that the sensor is not mounted too close to high-frequency sources. If problems persist, consult the troubleshooting section of the Bently Nevada manual.

Product Support and Availability

The 330980-70-CN is available through AutoDCSTech, your trusted industrial automation parts supplier. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Contact our team for pricing and lead times.
