Allen-Bradley 22D-B5P0F104 PowerFlex 40P AC Drive, 5A, 240V

PowerFlex 40P Adjustable Frequency Drive Overview

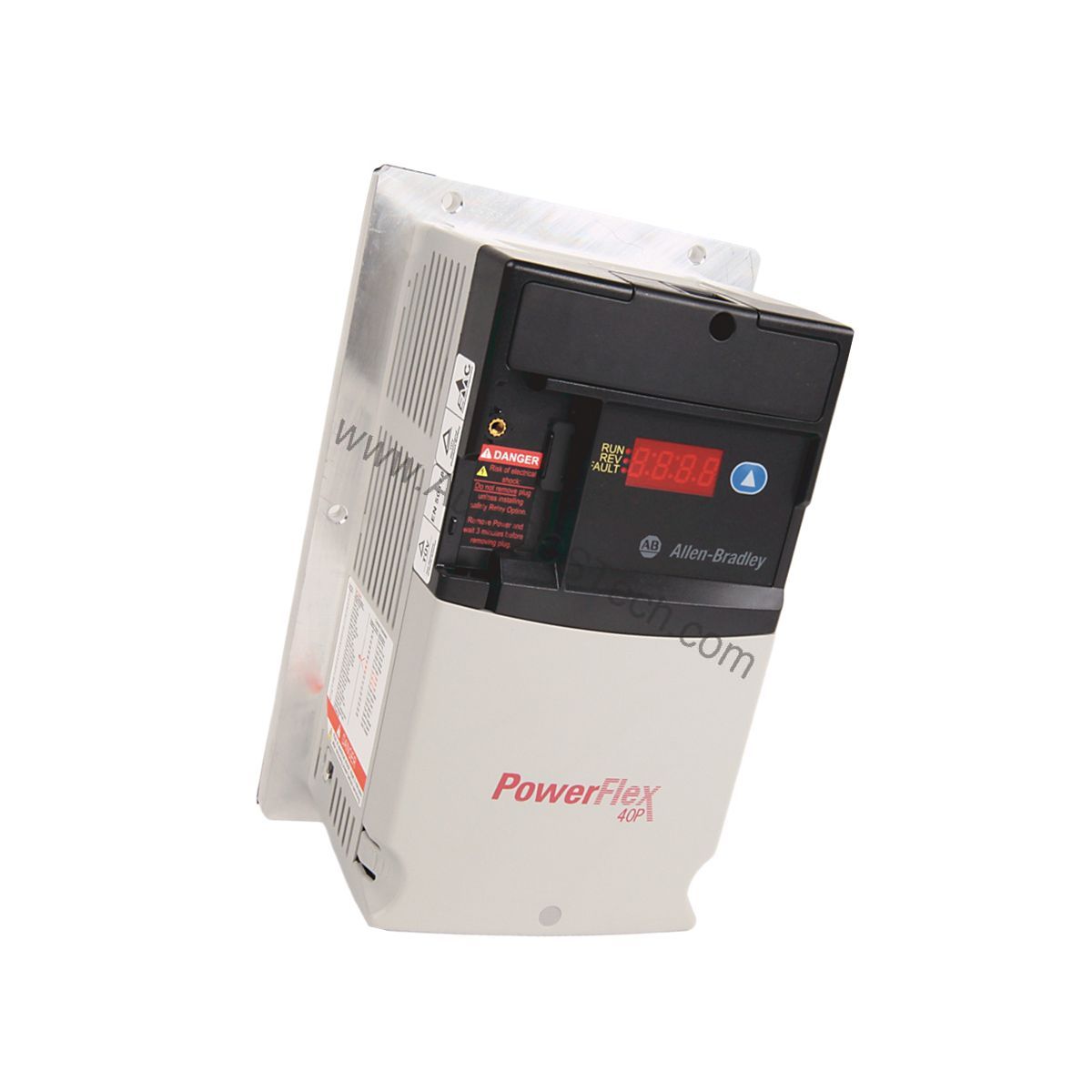

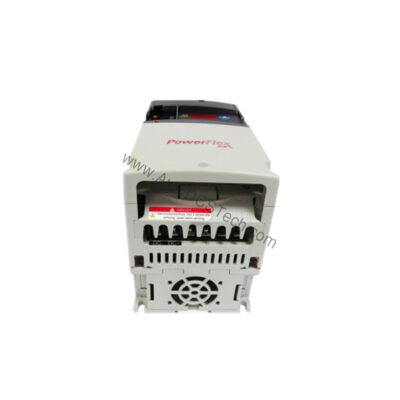

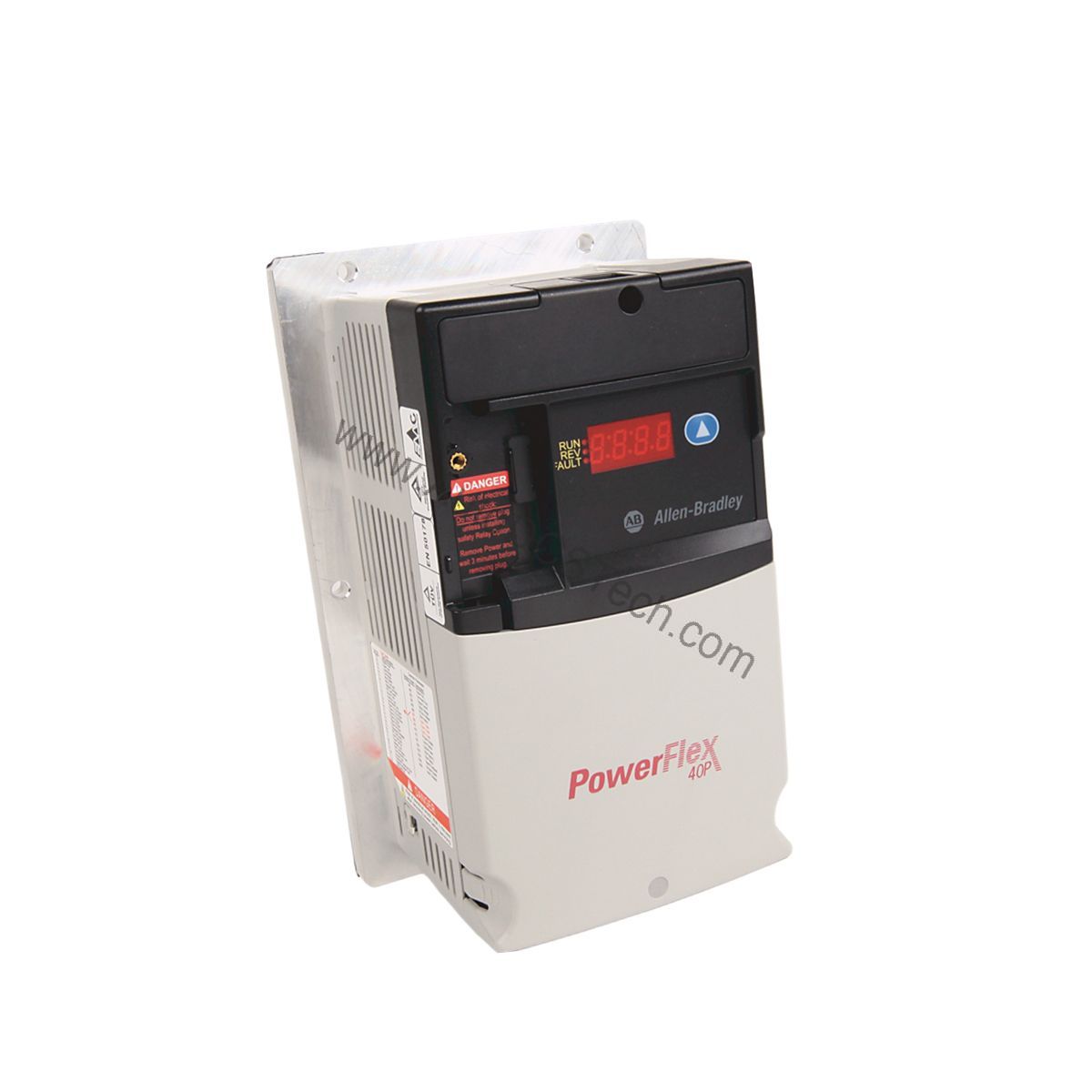

The Allen-Bradley 22D-B5P0F104 is an adjustable frequency AC drive from the PowerFlex 40P series, designed for precise speed and torque control of three-phase induction motors. This flange-mounted unit delivers 5.0 A output and is rated for 1 Horsepower (0.75 kW) at 240 Volts AC three-phase input. Its compact frame size B and open NEMA Type 1 (IP20) enclosure make it suitable for panel integration where space is limited.

Engineers often choose this drive for applications requiring reliable variable speed control, such as conveyors, fans, and pumps. The 22D-B5P0F104 supports multiple control methods, including Sinusoidal PWM, Volts per Hertz, and Sensorless Vector Control, providing flexibility for different load profiles. With integral RS485 communication, programming and monitoring via a PC are straightforward.

Technical Specifications Breakdown

Key parameters for the 22D-B5P0F104 are listed below for quick reference:

Industry Applications

Typical uses include:

• Conveyor Systems: The 5.0 A output and 1 HP rating handle light to medium conveyor loads, while the programmable frequency range (0 to 500 Hz) allows fine speed adjustments.
• Pumps and Fans: Sensorless Vector Control provides good low-speed torque, making it suitable for centrifugal loads where energy savings are critical.
• Packaging Machinery: The compact flange-mount design fits into tight control panels, and the multiple digital inputs enable flexible control sequences.

Installation & Setup Guidance

When installing the 22D-B5P0F104, ensure the enclosure provides adequate ventilation for convection cooling. The drive is flange-mounted, so the heat sink extends through the panel to dissipate heat efficiently. Use a 10A fuse on the input line for protection, as recommended by professionals. The control logic operates at 24 Volts DC and can be set for sink or source via a DIP switch. Two analog inputs (0-10V DC or 4-20 mA) are available for speed reference, and one programmable relay output (1NO/1NC, 3A rated) can be used for status indication.

Maintenance & Reliability

Regular inspection of the drive’s cooling path is essential. Keep the heat sink fins clean and ensure ambient temperature stays within the operating range of –10 to 50 degrees Celsius. If the drive is operated in an enclosure, consider derating if the ambient temperature exceeds 40 degrees Celsius, especially when using the Zero Stacking option. Periodically check all wiring connections for tightness and verify that the protective earth ground is secure.

Compatibility & Integration

The 22D-B5P0F104 includes integral RS485 communication, allowing connection to PLCs or SCADA systems. The drive supports seven digital inputs for functions like start, stop, forward, reverse, RS-485 control, local control, second acceleration/deceleration, auxiliary fault, clear fault, preset frequencies, and purge. This flexibility simplifies integration into existing control architectures.

Selection Guide & Purchasing Advice

When selecting a replacement drive, verify that the input voltage and phase match your facility’s supply. The 22D-B5P0F104 requires 240 Volts AC three-phase input. Also confirm the enclosure type (IP20) meets your environmental requirements; if dust or moisture is a concern, you may need a higher-rated enclosure (IP 40, IP 54, or IP 65) available separately. At AutoDCSTech, we stock genuine Allen-Bradley drives and can help you confirm compatibility. Contact us for availability and lifecycle status before ordering.

Troubleshooting & Common Issues

If the drive fails to start, check the control wiring and the DIP switch setting for sink/source logic. Verify that the analog input signal is within the configured range (0-10V DC or 4-20 mA). If the drive trips on overcurrent, inspect the motor and cabling for shorts or ground faults. For communication issues, ensure the RS485 network is properly terminated and that the drive address is set correctly. Always refer to the user manual for detailed fault codes.
