Technical Specifications Breakdown
Key parameters for the ABFM16H301 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Cabled Connector |
| Product Line | Modicon Quantum |
| Number of Channels | 16 |
| Cable Length | 9.8 ft (3 m) |
| Signal Type | Digital relay output signals |
| Electrical Connection | 2 Connectors |
| AWG Gauge | AWG 22 |
| Connector Type | HE10 |
| Wire Section | 0.324 mm² |
| Number of Ways | 20 ways |
| Operating Temperature Range | –20 °C to +60 °C |
| Channel Splitting | 2 x 8 |
| Cable Construction | Multi-conductor shielded cable |
| Current Rating | 0.5 A |
| Voltage Rating | 250 V |
| Net Weight | 2.2 lb(US) (1 kg) |
Industry Applications for Reliable Signal Management
This cabled connector is well-suited for discrete manufacturing and process control applications where digital relay outputs must be transmitted from a Modicon Quantum PLC to field devices like contactors, solenoids, or indicator lights. The 16-channel configuration allows for efficient grouping of outputs, while the channel splitting (2 x 8) enables segmented wiring for easier troubleshooting. The shielded cable construction minimizes electromagnetic interference, making it a robust choice for noisy industrial environments.
Installation and Setup Guidance
When integrating this connector into a Modicon Quantum system, ensure the 20-way HE10 connectors are securely mated to the corresponding I/O module. The AWG 22 wire gauge supports standard field wiring; use appropriate termination tools to maintain signal integrity. The cable length of 9.8 feet provides sufficient reach for most cabinet layouts, but avoid sharp bends to preserve the shielding effectiveness. Verify that the operating temperature stays within –20 °C to +60 °C to prevent performance degradation.
Maintenance and Reliability
Periodically inspect the connector for signs of wear, corrosion, or loose connections. The shielded construction helps maintain signal quality, but environmental factors like moisture or dust should be controlled. No special maintenance tools are required beyond standard industrial practices. For long-term reliability, ensure the current does not exceed 0.5 A per channel and voltage stays within 250 V.
Robust Connectivity for Modicon Quantum Systems

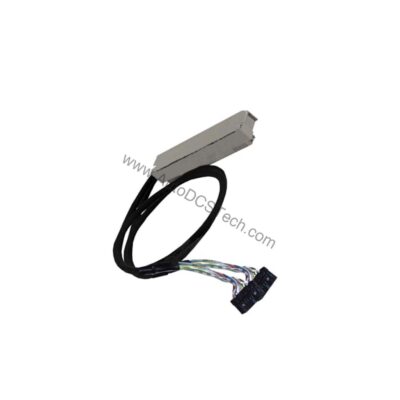

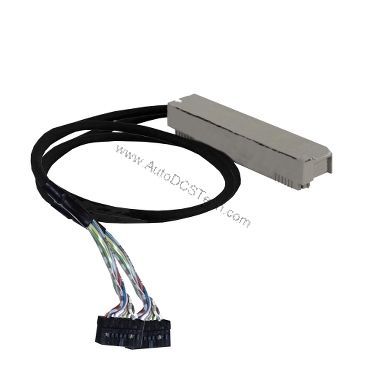

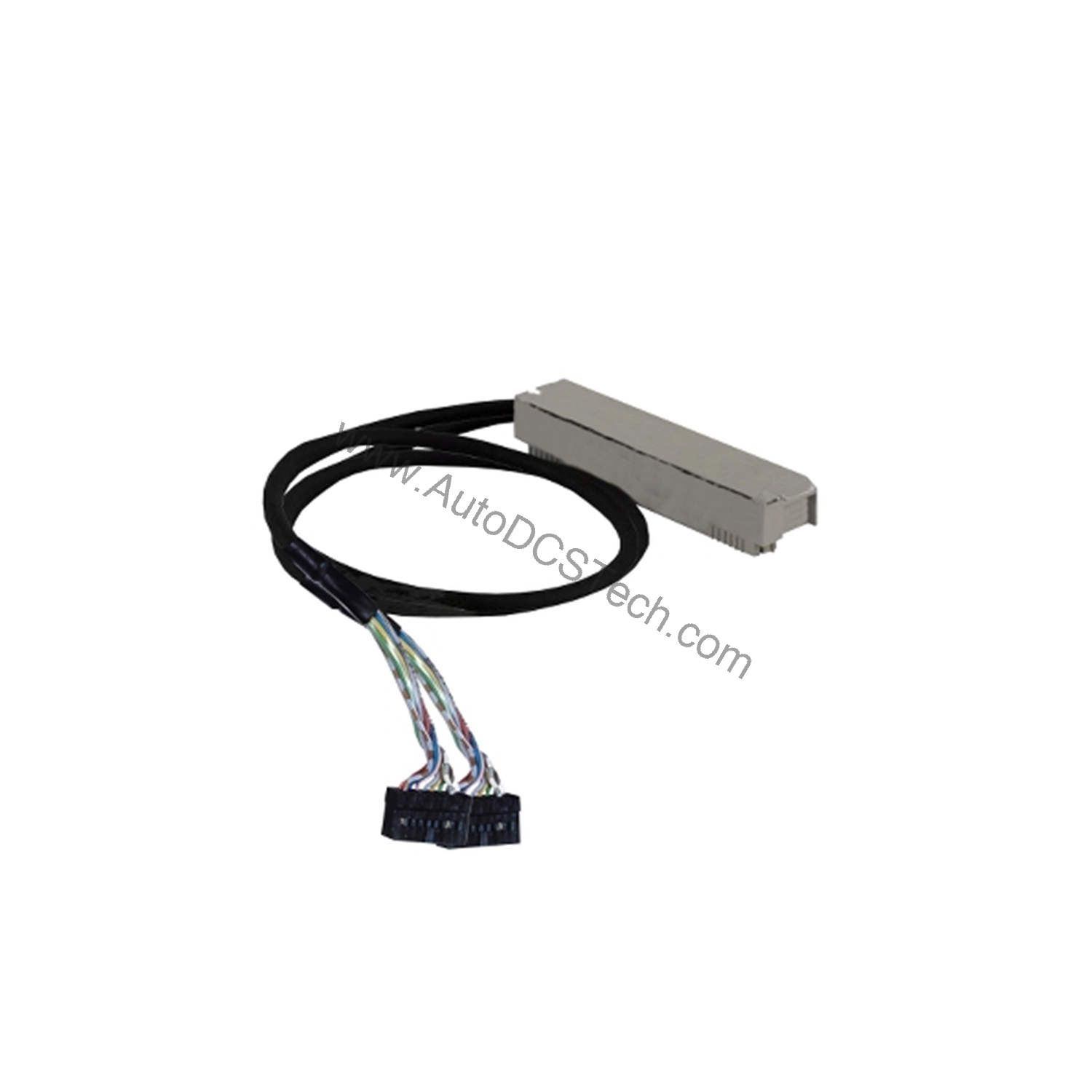

The Schneider Electric ABFM16H301 is a precision-engineered cabled connector designed for the Modicon Quantum series of programmable logic controllers. This component serves as a critical link for managing digital relay output signals across 16 channels, ensuring reliable data transmission in industrial automation environments. With a cable length of 9.8 feet (3 meters), it offers flexibility in cabinet wiring and panel layouts.
Compatibility and Integration
The ABFM16H301 is designed specifically for the Modicon Quantum PLC family, with confirmed compatibility with the 984A120 Compact unit. It functions as a connection accessory for digital relay output modules, enabling straightforward integration into existing automation architectures. The two HE10 connectors simplify daisy-chaining or parallel connections where needed.
Selection Guide and Purchasing Advice
When selecting a cabled connector for your Modicon Quantum system, verify the number of channels and signal type match your I/O module requirements. The ABFM16H301 offers a balanced combination of channel count, cable length, and shielding. For pricing, availability, and lifecycle status, consult AutoDCSTech — your trusted source for industrial automation parts. AutoDCSTech can confirm current stock and provide support for legacy system upgrades.
Availability & Condition at AutoDCSTech
| Part Number | ABFM16H301 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | France |
