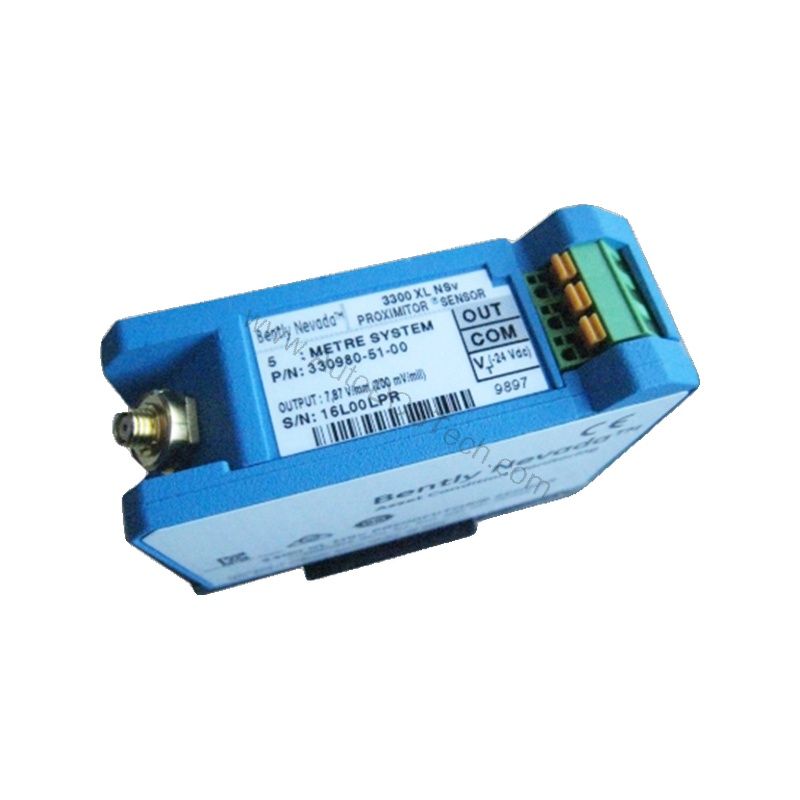

Introduction to the 330980-71-00
When you need precise vibration monitoring in tight spaces, the 330980-71-00 from Bently Nevada delivers. This NSv Proximitor Sensor is part of the 3300 XL family, engineered for high-density installations. Its thin profile allows mounting on a DIN rail or a traditional panel, giving you flexibility in cabinet design.
With a 7.0-meter (23.0 feet) system length, this sensor suits applications where the probe must be placed away from the monitor. The DIN mount option simplifies installation, reducing mechanical stress on the sensor.
Key Features & Technical Specs
Let's examine the core specifications that define the 330980-71-00:
- Model: NSv Proximitor Sensor
- Manufacturer: Bently Nevada
- Total Length: 7.0 meters (23.0 feet) system length
- Mounting: DIN mount
- Agency Approval: Not required (option 00)
- Proximitor Sensor Material: A380 aluminum
- Sensor Weight: 255 g (9 oz)
- Input: Accepts one noncontacting 3300 RAM or 3300 NSv Proximity Probe and Extension Cable
- Power Requirement: -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption; -23 Vdc to -26 Vdc with barriers
- Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
- Output Resistance: 50 Ω
- Operating Temperature: -52°C to +100°C (-62°F to +212°F)
- Storage Temperature: -52°C to +105°C (-62°F to +221°F)
- Relative Humidity: 100% condensing, non-submersible when connectors are protected; tested to IEC 68-2-3 damp heat
One standout feature is the improved RFI/EMI immunity. This allows the sensor to achieve European CE mark approvals without special mounting considerations. Nearby high-frequency radio signals won't adversely affect the transducer system, ensuring reliable readings in industrial environments.
Applications & Use Cases
The 330980-71-00 is ideal for machinery protection and condition monitoring. Use it with turbines, compressors, pumps, and motors to measure shaft vibration and position. Its thin design makes it perfect for retrofit projects where panel space is limited.
For example, in a high-density cabinet with multiple sensors, the DIN mount capability saves valuable space. The improved RFI immunity also makes it suitable for installations near variable frequency drives or radio transmitters.
Installation & Setup
Mounting the 330980-71-00 is straightforward. The DIN rail option allows quick snap-on installation without special tools. Alternatively, you can panel-mount it using traditional methods.
The SpringLoc terminal strips require no special installation tools. They facilitate faster, highly robust field wiring connections. Ensure the probe gap is set to 1.0 mm (40 mils) for optimal performance, as specified in the datasheet.
Power the sensor with a -24 Vdc supply for best linear range. Remember that operating at a more positive voltage than -23.5 Vdc can reduce the linear range. For barrier applications, use -23 Vdc to -26 Vdc.
Maintenance & Reliability
Regular inspection is key to long-term reliability. Check the sensor and cable for physical damage, and verify that the mounting remains secure. Since the sensor operates in harsh environments, periodically inspect connectors for moisture or corrosion.
The A380 aluminum housing provides durability and good thermal conductivity. With a wide operating temperature range of -52°C to +100°C, it can withstand extreme conditions. The 100% condensing humidity rating means it can handle damp environments, as long as connectors are protected.
Compatibility & Integration
This sensor works with Bently Nevada monitoring systems that accept 3300 NSv Proximitor inputs. It is designed to interface with 3300 RAM or 3300 NSv Proximity Probes and extension cables. Ensure your monitor is compatible with the NSv series.
For system integration, the sensor outputs a voltage signal proportional to gap. The low output resistance of 50 Ω allows driving long cable runs without significant signal degradation.
Troubleshooting & Common Issues
If you encounter erratic readings, first check the power supply voltage. The sensor requires -17.5 Vdc to -26 Vdc without barriers. A voltage outside this range can cause inaccurate output.
Another common issue is improper probe gap. The specified gap is 1.0 mm (40 mils) for standard targets. If the gap is too large or too small, linearity will suffer.
RF interference can also affect readings. The improved RFI immunity of this model minimizes such problems, but ensure that the sensor is not placed directly next to high-power transmitters.
Product Support & Availability
The 330980-71-00 is available from AutoDCSTech. Contact us for current pricing and lead times. Our team can assist with technical questions and ensure you select the right sensor for your application.
Availability & Condition at AutoDCSTech
| Part Number | 330980-71-00 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
