Introduction: The Evolution of Vibration Monitoring
Industrial machinery has grown more complex, and so has the demand for precise, reliable vibration monitoring. Early proximity sensors were bulky and susceptible to electrical noise, often requiring special shielding and careful placement. Over time, engineers sought a solution that combined accuracy with ease of installation. The 330980-71-CN from Bently Nevada represents a significant step forward in this evolution, offering a compact, DIN-mountable design that simplifies installation while maintaining the high performance expected from the 3300 XL series.

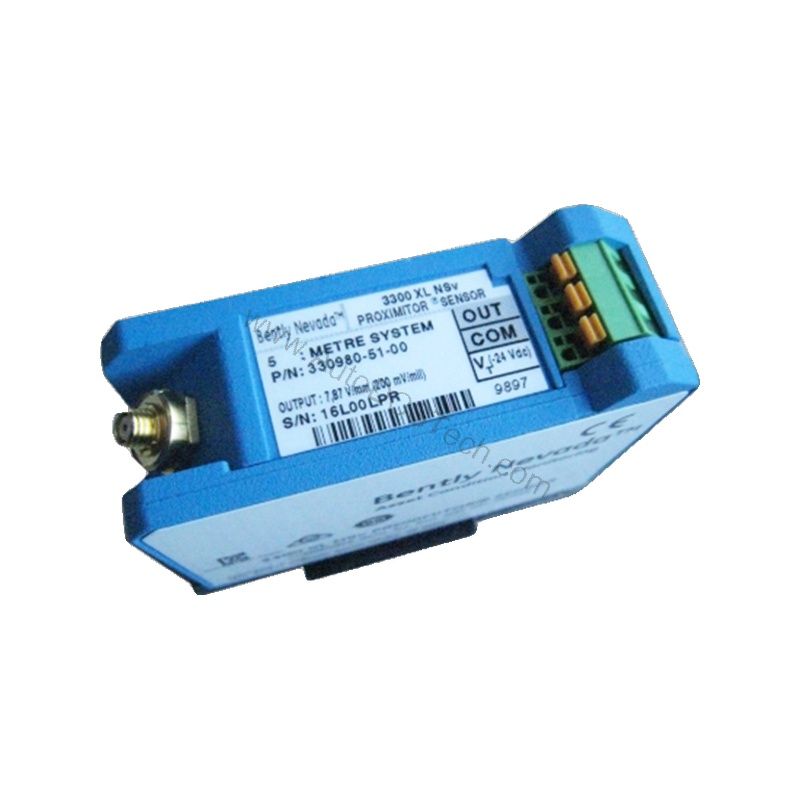

This NSv Proximitor Sensor is engineered for modern industrial environments where space is at a premium and signal integrity is critical. Its thin profile allows for high-density DIN-rail mounting, making it an ideal choice for control panels with limited space. Additionally, its improved RFI/EMI immunity ensures stable operation even near high-frequency radio sources, a common challenge in industrial settings.
Key Features and Technical Specifications
The 330980-71-CN is part of the Bently Nevada 3300 XL family, designed to work with noncontacting proximity probes. Below are the essential specifications derived directly from the product data:
- Model: 330980 - NSv Proximitor Sensor
- Total Length and Mounting Option: 71 - 7.0 meters (23.0 feet) system length, DIN mount
- Agency Approval Option: CN = Country Specific
- Proximitor Sensor Material: A380 aluminum
- Proximitor Sensor Weight: 255 g (9 oz)
- Input: Accepts one noncontacting 3300 RAM or 3300 NSv Proximity Probe and Extension Cable
- Power Requirement: -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption; -23 Vdc to -26 Vdc with barriers
- Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
- Output Resistance: 50 Ω
- Operating Temperature: -52°C to +100°C (-62°F to +212°F)
- Storage Temperature: -52°C to +105°C (-62°F to +221°F)
- Relative Humidity: 100% condensing, non-submersible when connectors are protected (tested to IEC 68-2-3 damp heat)
One distinctive feature is the SpringLoc terminal strips, which require no special installation tools and facilitate faster, highly robust field wiring connections. This design reduces installation time and improves connection reliability, a critical factor in preventing signal loss or intermittent faults.
Installation and Mounting Flexibility
The 330980-71-CN is designed for flexible mounting. Its thin profile allows for high-density DIN-rail installation, which is particularly beneficial in retrofit projects where panel space is limited. Alternatively, it can be mounted in a traditional panel configuration, giving engineers the freedom to choose the best layout for their specific application.
The 7.0-meter system length provides ample reach between the probe and the proximitor, reducing the need for extension cables in many installations. The DIN mount option simplifies mechanical mounting, and the SpringLoc terminals ensure secure electrical connections without specialized tools.
Performance and Reliability
Reliability is paramount in condition monitoring. The 330980-71-CN is built to withstand harsh environments, with an operating temperature range from -52°C to +100°C and 100% condensing humidity (non-submersible). This makes it suitable for outdoor or unheated indoor installations.
The improved RFI/EMI immunity is a key performance advantage. It allows the sensor to achieve European CE mark approvals without special mounting considerations, and it prevents nearby high-frequency radio signals from adversely affecting the transducer system. This ensures accurate vibration data even in electrically noisy environments.
Applications and Use Cases
The 330980-71-CN is commonly used in rotating machinery monitoring, including turbines, compressors, pumps, and motors. Its ability to measure shaft vibration and position is critical for predictive maintenance programs. For example, in a petrochemical plant, the sensor can be mounted on a compressor train to detect early signs of bearing wear or misalignment, allowing maintenance to be scheduled before a catastrophic failure occurs.
Furthermore, the DIN-rail mounting option makes it an excellent choice for new installations or upgrades where control panel space is at a premium. The 7.0-meter system length is well-suited for machines where the probe must be located a moderate distance from the monitoring cabinet.
Maintenance and Long-Term Reliability
To ensure long-term accuracy, periodic inspection of the sensor and its connections is recommended. The SpringLoc terminals provide a secure connection, but it is good practice to verify tightness during routine maintenance. Additionally, the sensor's aluminum housing is durable, but it should be protected from physical damage and excessive vibration at the mounting point.
Given its wide operating temperature range and humidity tolerance, the sensor is designed for minimal maintenance. However, regular calibration checks are advised to maintain measurement accuracy, especially in critical machinery protection applications.
Compatibility and Integration
The 330980-71-CN accepts one noncontacting 3300 RAM or 3300 NSv Proximity Probe and Extension Cable. It is designed to work with Bently Nevada monitoring systems, providing seamless integration into existing condition monitoring architectures. The output resistance of 50 Ω ensures compatibility with standard monitoring equipment.
For systems requiring intrinsic safety barriers, the sensor can operate with a supply voltage of -23 Vdc to -26 Vdc when barriers are used. This flexibility allows integration into hazardous area installations, subject to the appropriate agency approvals.
Common Issues and Troubleshooting
One common issue with proximity sensors is signal drift due to temperature changes. The 330980-71-CN is designed to minimize this, but it is important to operate within the specified temperature range for optimal performance. Another potential issue is improper gap setting; the sensor's linear range is specified for a probe gap of 1.0 mm (40 mils) with a Bently Nevada supplied AISI 4140 steel target. Deviating from this target material or gap can affect accuracy.
If the sensor does not provide a signal, check the power supply voltage and ensure it is within the -17.5 Vdc to -26 Vdc range (or -23 Vdc to -26 Vdc with barriers). Also, verify that the probe and extension cable are properly connected and that the probe tip is clean and free of debris.
Support and Availability
The 330980-71-CN is available from AutoDCSTech, an industrial automation parts supplier. For current lifecycle status and availability, please contact AutoDCSTech before ordering. Our team can provide technical support and assist with your procurement needs.
Availability & Condition at AutoDCSTech
| Part Number | 330980-71-CN |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
