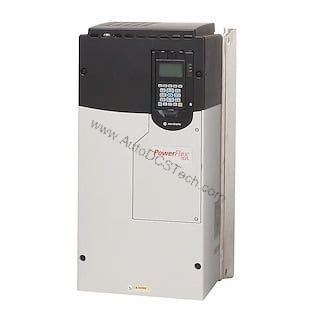

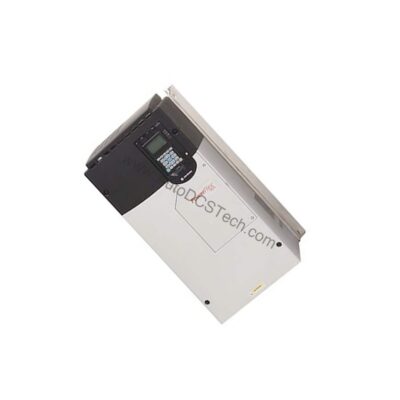

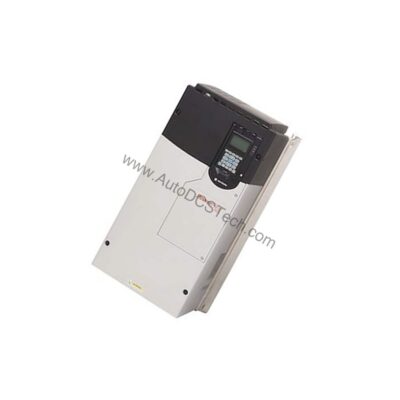

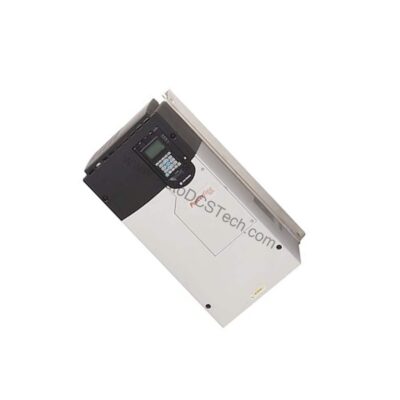

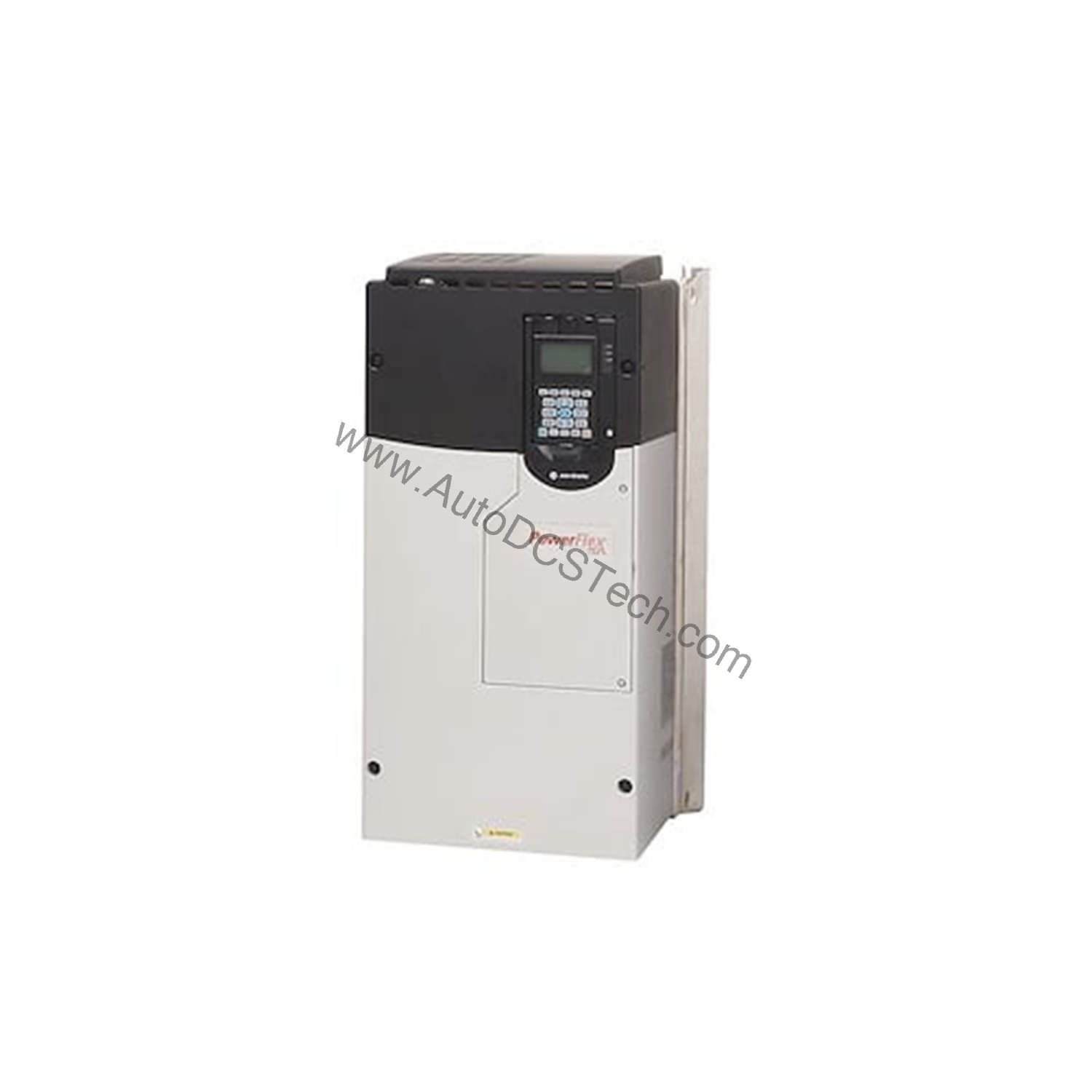

Allen-Bradley 20F1ANC205JN0NNNNN PowerFlex 753 AC Drive 205A

Technical Specifications Breakdown

Key parameters for the 20F1ANC205JN0NNNNN are listed below for quick reference:

Real-World Applications in Heavy Industry

The 205 A output and 110 kW normal duty rating make it suitable for large material handling lines in mining or aggregate processing. The heavy-duty rating of 90 kW ensures reliable operation under peak loads, reducing downtime and maintenance costs.

Installation and Setup Guidance

When installing the 20F1ANC205JN0NNNNN, ensure the enclosure type (Open Type, IP20/IP00) is appropriate for the environment. The unit uses forced air cooling, so maintain adequate clearance around the drive for airflow. The AC input with precharge feature helps manage inrush current during startup. Use the three option card slots to add communication modules or additional I/O as needed.

Maintenance and Reliability

Regular inspection of the cooling fan and air filters is recommended to prevent overheating. The common mode capacitor jumper is pre-installed to reduce electrical noise. Periodically check all power connections for tightness and signs of wear. The drive's filtering capability enhances reliability in electrically noisy environments.

Addressing High-Demand Motor Control Challenges

Industrial operations often face the challenge of controlling large motors under variable loads while maintaining efficiency and reliability. The Allen-Bradley 20F1ANC205JN0NNNNN, a PowerFlex 753 series AC drive, directly addresses this need. Designed for robust performance, this unit delivers precise motor control in environments requiring high current and power output.

Compatibility and Integration

The PowerFlex 753 series supports embedded I/O and three option card slots, allowing integration with various control networks. While specific protocols are not listed, the drive can be configured to work with common industrial automation systems. Verify compatibility with your existing control architecture before installation.

Selection Guide and Purchasing Advice

When selecting the 20F1ANC205JN0NNNNN, confirm that the 400V AC input voltage matches your facility's power supply. The 205 A output current must meet your motor's full-load current requirements. For applications with frequent overloads, the 90 kW heavy-duty rating provides a safety margin. AutoDCSTech offers this unit with detailed support to ensure the right fit for your operation. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
