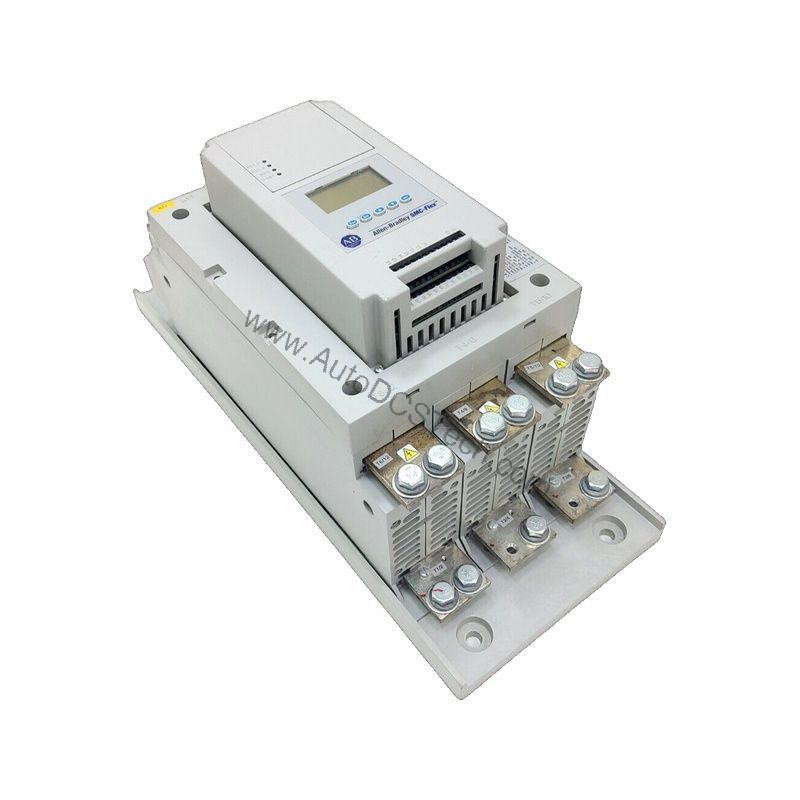

Allen-Bradley 150-F201FHD SMC-Flex Solid State Controller 201A 150HP

Cost-Efficient Motor Control with the Allen-Bradley 150-F201FHD

When managing three-phase squirrel cage induction motors, the Allen-Bradley 150-F201FHD SMC-Flex Smart Motor Controller delivers a solid-state solution that directly reduces operational costs. This controller integrates an integral bypass, which minimizes heat loss and shrinks the electronic footprint, lowering enclosure size and associated expenses.

Technical Specifications Breakdown

Key parameters for the 150-F201FHD are listed below for quick reference:

Industrial Applications That Maximize ROI

The 201A rating and 150HP capacity at 460V AC make it suitable for medium-horsepower motors in water treatment, material handling, and HVAC. By limiting inrush current, the SMC-Flex extends motor life and cuts maintenance costs.

Installation and Setup Guidance

Mount the IP65 (Type 4/12) enclosure in a clean, dry location within the -5 to 50°C operating range. Ensure the input line voltage matches 200-208V AC, 3-phase, 50/60 Hz. Connect the control circuit to 100-240V AC per the manual. Use 1600A Class L fuses for protection as specified. Verify the power circuit voltage stays within -15% to +10% of nominal.

Maintenance and Reliability

Periodically inspect the heatsink fan (59VA, 100-249V AC) and clean the enclosure vents to maintain airflow. The controller dissipates up to 200W of heat, so ensure ambient temperature stays below 50°C. Check for error codes on the front panel LCD. Store the unit between -20 to 75°C when not in use.

Compatibility and Integration

The 150-F201FHD integrates with standard 3-phase systems and offers four programmable auxiliary contacts for normal, up-to-speed, fault, and alarm signaling. The built-in MOV and RC snubber network protect against voltage transients, reducing unplanned downtime.

Selection Guide and Purchasing Advice

Before ordering, verify your motor’s full-load current and voltage match the 201A and 200-208V AC input. The SMC-Flex series supports multiple operational modes via the front panel keypad. Please confirm current lifecycle status and availability with AutoDCSTech before purchasing. Our team can help match this controller to your application for maximum cost efficiency.
