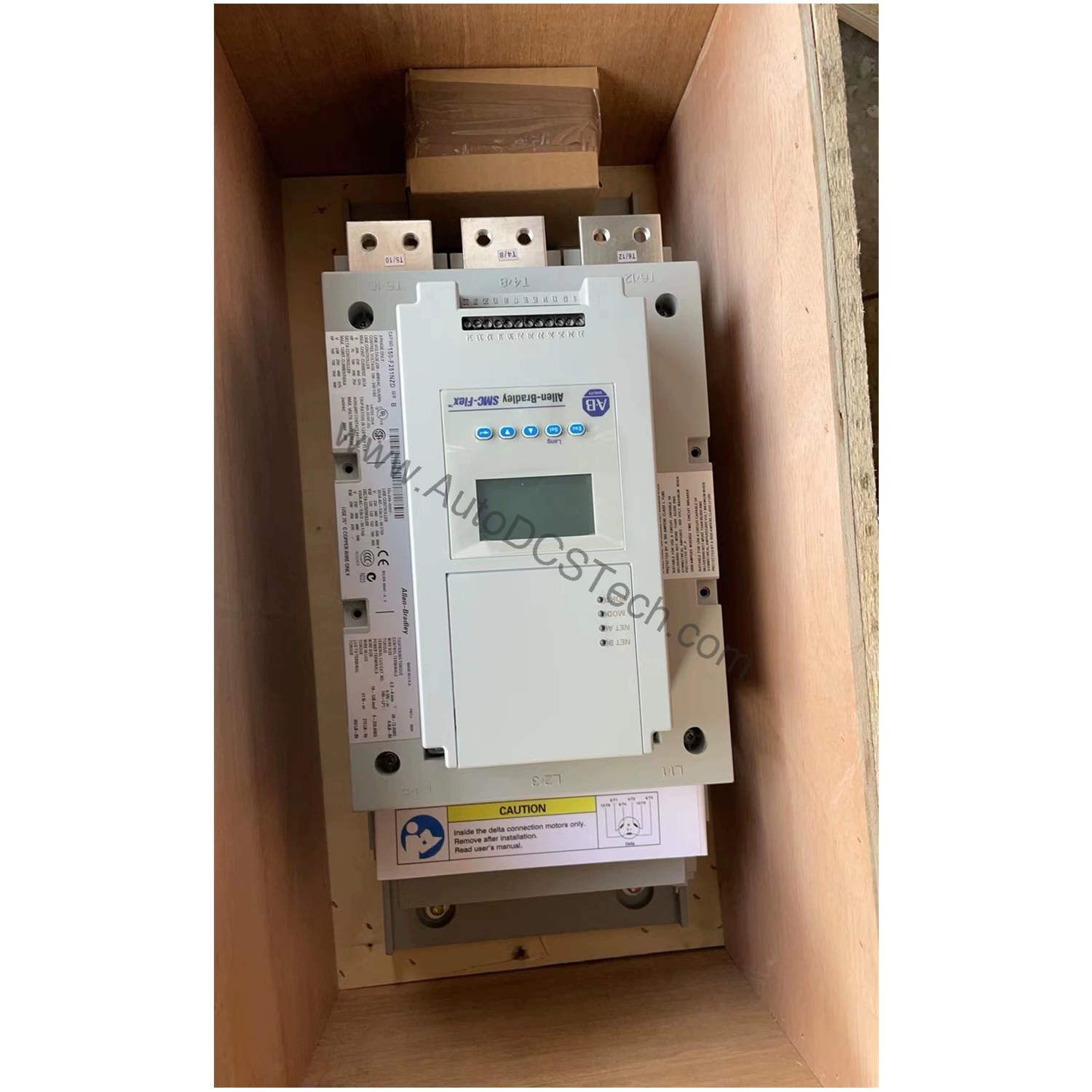

Allen-Bradley 150-F251NBRD SMC Flex Smart Motor Controller 251A

Technical Specifications Breakdown

Key parameters for the 150-F251NBRD are listed below for quick reference:

Industry Applications for Enhanced Motor Control

Pump and Fan Speed Management

In water treatment and HVAC systems, the SMC Flex reduces mechanical shock during start-up by ramping voltage and current. Its adjustable braking control (0...400% of motor full-load current) enables precise stopping for centrifugal loads, minimizing water hammer and wear.

Conveyor and Material Handling

For high-inertia conveyor systems, the 150-F251NBRD provides controlled acceleration to prevent belt slippage and product damage. The integrated motor overload protection (117% of motor FLC) ensures thermal safety without external relays.

Compressor and Crusher Applications

Heavy-duty compressors benefit from the soft starter's ability to limit inrush current to 84...251 A (line connected) or 145...435 A (delta connected). The RC snubber network and metal oxide varistors (220 J optional) protect against voltage transients, extending equipment life.

Installation and Setup Guidance

Mount the open-type enclosure in a clean, dry environment with adequate airflow. The heatsink hockey puck thyristor modular design requires unobstructed ventilation to maintain operating temperature between -5 to 50 °C. Use M10 x 1.5 bolts for line/load power connections per NEMA and CENELEC EN50 012 markings. For control wiring, employ clamping yoke connections with M3 screws. Ensure the control circuit receives 24V AC/DC from a dedicated supply; the transformer control module draws 75VA at 100...240V AC. Set trip class (10, 15, 20, or 30) based on motor starting characteristics and load inertia.

Maintenance and Reliability

Periodically inspect the heatsink fins for dust accumulation and clean with low-pressure compressed air. Verify tightness of power terminal connections (M10 bolts) annually. Monitor the heatsink fan (40VA @ 110/120V AC or 220/240V AC) for unusual noise or failure. The IP2X terminal covers require visual check for damage. Store the unit at -20 °C minimum and avoid condensation (humidity 5...95% noncondensing).

Optimize Motor Starting and Protection with the SMC Flex

This soft starter combines precise control, comprehensive protection, and flexible integration to enhance equipment longevity and operational efficiency.

Compatibility and Integration

The controller integrates with standard short-circuit protection devices (fuse, circuit breaker, Class CC/J/L) and supports Type 1 coordination. Auxiliary contacts (19/20, 29/30, 31/32, 33/34) provide status feedback for PLC or SCADA systems. The optional SMB smart motor braking control enables dynamic braking without external contactors. For PTC motor thermistor protection, connect up to 6 sensors with a cold resistance below 1500 Ω.

Selection Guide and Purchasing Advice

When selecting the 150-F251NBRD, verify motor full-load current (FLC) and connection type (line or delta). For 460V AC applications, the 251A rating supports 100-200 Hp. AutoDCSTech stocks this unit with full technical support. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
