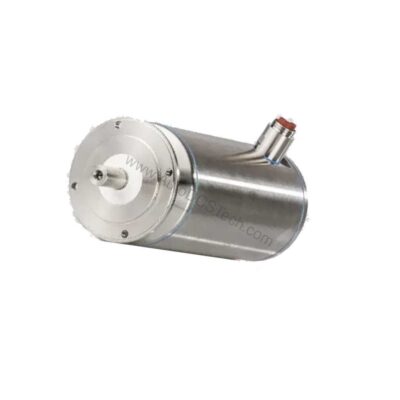

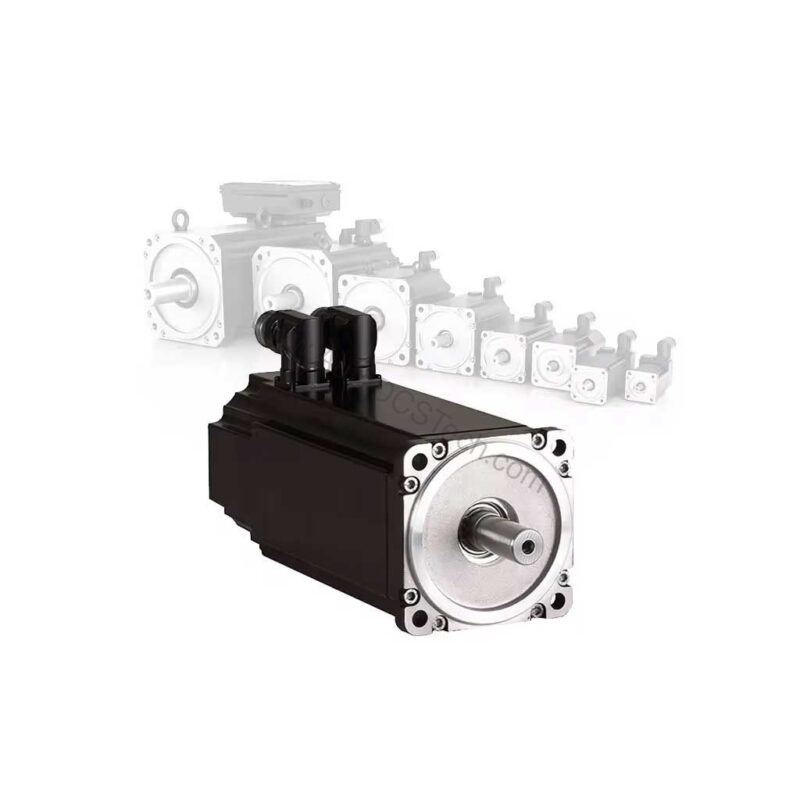

8LSC53.ee045ffgg-4: 4500 rpm B&R Servo Motor
The 8LSC53.ee045ffgg-4 is the 4500 rpm B&R Servo Motor covered on this page. The attribute that decides whether it fits the existing installation without modification is 5023 W.
This configuration's 4500 rpm b&r servo motor is the attribute that drives the replacement decision. Selecting this unit comes down to confirming the configuration against the installation it is being fitted to. 4500 rpm b&r servo motor is the attribute that decides fit and function, and verifying 5023 W against the existing equipment is the check that prevents a part that installs but does not perform.
| Feature | Specification |
|---|---|
| Manufacturer | B&R |
| Brand | B&R |
| Part Number | 8LSC53.ee045ffgg-4 |
| Nominal speed | 4500 rpm |
| Nominal torque | 10.7 Nm |
| Nominal power | 5023 W |
| Nominal current | 9.8 A |
| Maximum torque | 30.0 Nm |
| Maximum current | 41.7 A |
| Torque constant | 1.09 Nm/A |
| Voltage constant | 65.97 V/1000rpm |
| Stator resistance | 0.647 Ohm |
| Moment of inertia | 6.8 kg·cm² |
· Last updated:
Availability & Condition at AutoDCSTech
| Part Number | 8LSC53.ee045ffgg-4 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
