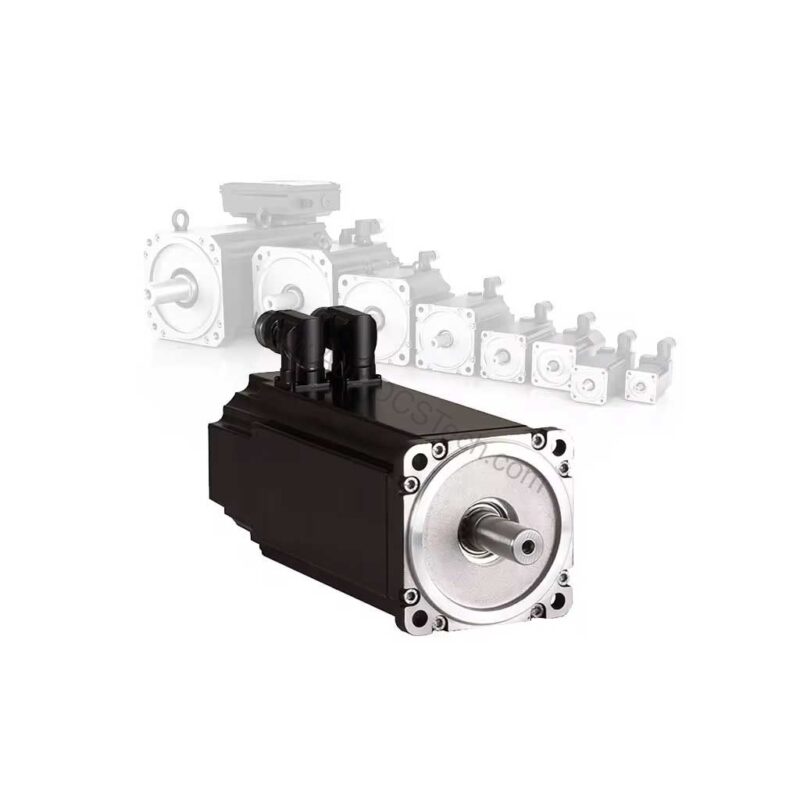

8LSC53.ee030ff00-4: 3 Phase Servo Motor 12.1 Nm
The 8LSC53.ee030ff00-4 is the 3 Phase Servo Motor 12.1 Nm covered on this page. The attribute that decides whether it fits the existing installation without modification is 3798 W.
This configuration's 3 phase servo motor 12.1 nm is the attribute that drives the replacement decision. Selecting this unit comes down to confirming the configuration against the installation it is being fitted to. 3 phase servo motor 12.1 nm is the attribute that decides fit and function, and verifying 3798 W against the existing equipment is the check that prevents a part that installs but does not perform.
| Feature | Specification |
|---|---|
| Manufacturer | B&R |
| Brand | B&R |
| Part Number | 8LSC53.ee030ff00-4 |
| Nominal speed | 3000 rpm |
| Nominal torque | 12.1 Nm |
| Nominal power | 3798 W |
| Nominal current | 7.4 A |
| Maximum torque | 30.0 Nm |
| Maximum speed | 5000 rpm |
| Torque constant | 1.63 Nm/A |
| Moment of inertia | 6.8 kg·cm² |
| Mass (without brake) | 10.60 kg |
| Recommended drive | ACOPOS 013X |
· Last updated:
Availability & Condition at AutoDCSTech
| Part Number | 8LSC53.ee030ff00-4 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
