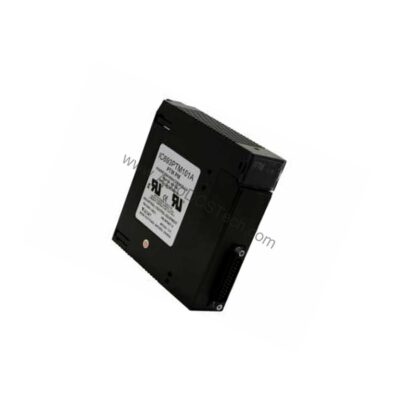

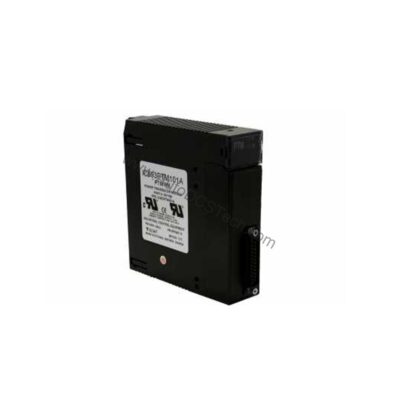

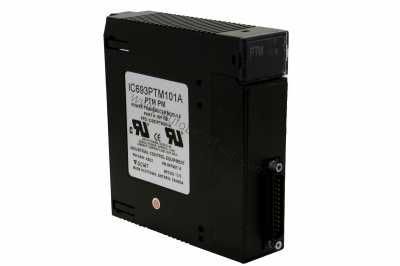

IC693PTM101: Power Transducer Module for Series 90 30
The IC693PTM101 is the Power Transducer Module for Series 90 30 covered on this page. The attribute that decides whether it fits the existing installation without modification is 10-120 Volts AC.
The reason to specify this exact variant is power transducer module for series 90 30. In a machine protection or condition-monitoring installation power transducer module for series 90 30 is the attribute that decides whether the sensor reaches the target and reads it on the correct gap. A probe or transducer specified to the wrong case length, thread or sensitivity either cannot reach the measured surface or returns vibration values that do not line up with the rest of the train. Confirming 10-120 Volts AC against the existing mount is therefore the first check before a replacement, not an afterthought.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC693PTM101 |
| Voltage | 10-120 Volts AC |
| Current | 0-7.5 Amperes |
| Frequency | 35-70 Hertz |
| Dissipation | 4 Watts |
| Backplane Isolation Voltage | 1500 Volts |
| Data Calculation Speed | 20 ms at 50 hertz, 16.67 ms at 60 Hertz |
| Resolution | 14-bit |
| Backplane Power Consumption | 5V @ 400mA max. |
This part belongs to a discontinued platform (GE Series 90-30), superseded by PACSystems RX3i (IC695 series). We stock remaining new and refurbished units.
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic693pcm301-programmable-coprocessor-module-for-series-90-30-plc | confirm the configuration against your installation |
| ge-ic693pwr321-standard-power-supply-for-series-90-30-plc | confirm the configuration against your installation |
| ge-fanuc-ic693pwr330-high-capacity-power-supply-for-series-90-30-plc | confirm the configuration against your installation |
| ge-ic693pbm200-profibus-dp-master-module-for-series-90-30 | confirm the configuration against your installation |
| ge-fanuc-ic693pbm201-series-90-30-profibus-master-communication-module | confirm the configuration against your installation |
| ge-ic693pbs201-profibus-dp-slave-interface-module-for-series-90-30 | confirm the configuration against your installation |
| ge-fanuc-ic693pcm300-programmable-coprocessor-module-for-series-90-30 | confirm the configuration against your installation |
| ge-fanuc-ic693pcm311-programmable-coprocessor-module-for-series-90-30-plcs | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC693PTM101 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
