TM3AM6 | Schneider Electric Modicon TM3 Analog Mixed Module

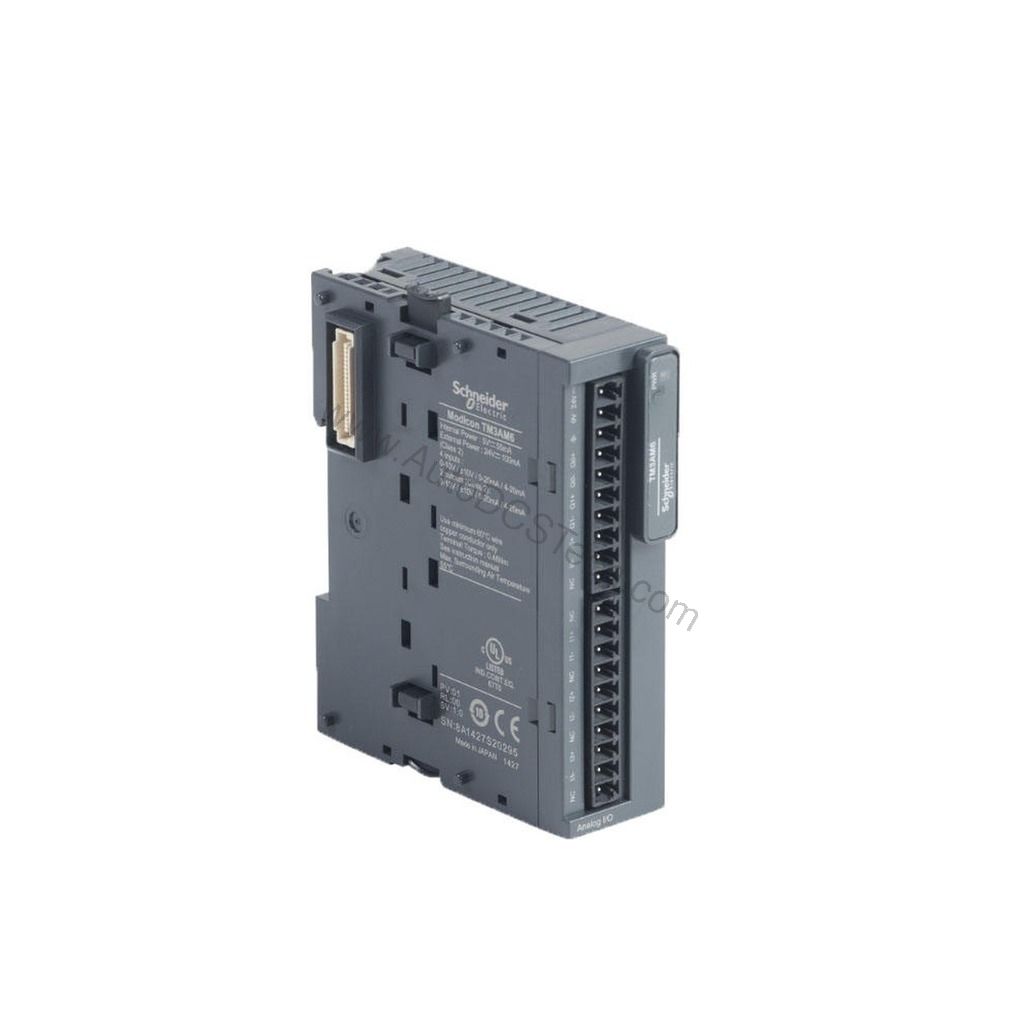

Product Overview: TM3AM6 Analog Mixed Module

The Schneider Electric TM3AM6 is a Modicon TM3 analog mixed module engineered for precise signal acquisition and control in industrial automation systems. As part of the Modicon TM3 expansion series, this module provides four analog inputs and two analog outputs, all configurable per channel. Consequently, it suits applications requiring mixed-signal processing within a compact footprint. The TM3AM6 operates on a 24 Vdc supply via the TM3 bus and draws 50 mA at 5 V DC under full load. Furthermore, it supports Modicon M221, M241, M251, and M262 platforms, ensuring seamless integration into existing control architectures.

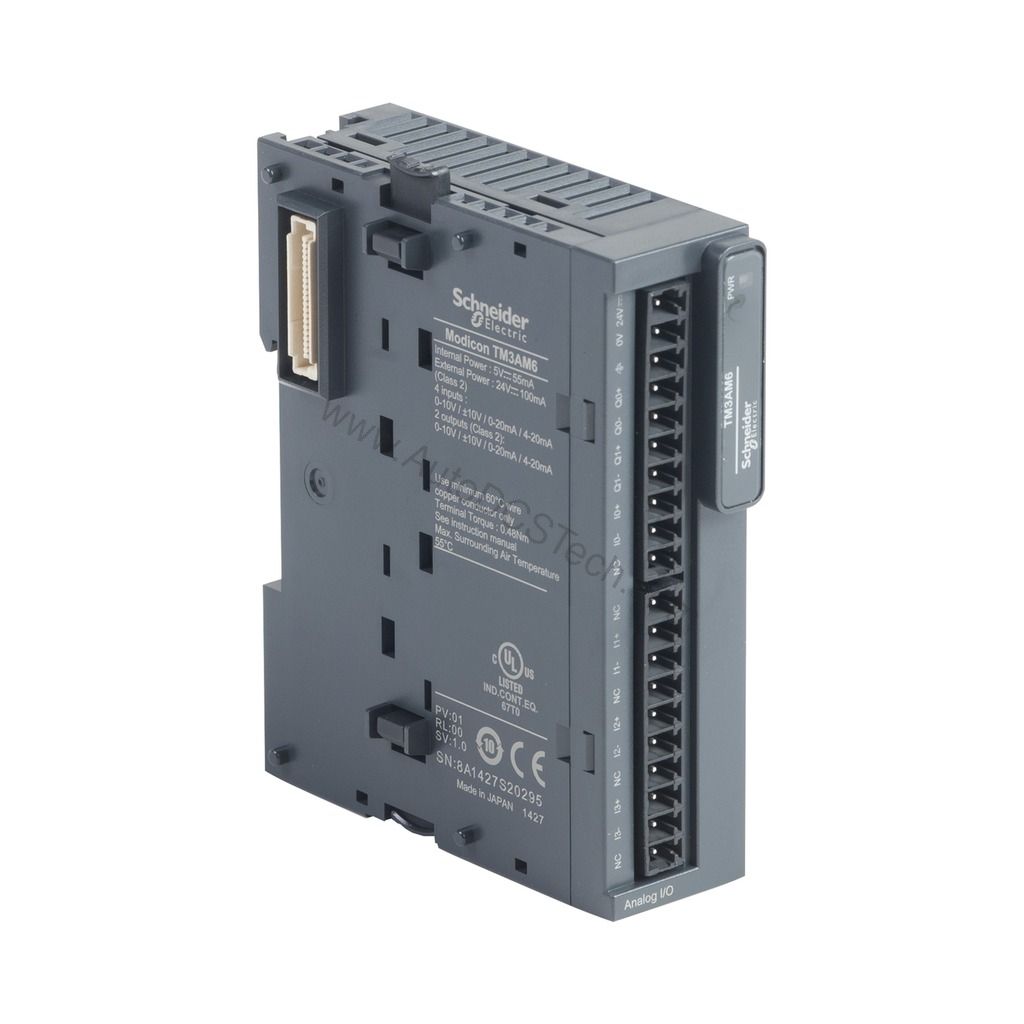

TM3AM6 Technical Specifications and Performance

The module delivers 12-bit resolution on both inputs and outputs, with an accuracy of ±0.1% of full scale at 25 °C. Over the operating temperature range of 0 to +55 °C, accuracy remains within ±1% of full scale. In addition, isolation of 1500 V AC between analog I/O and supply, plus 500 V AC between analog I/O and internal logic, protects against signal interference. The TM3AM6 also features channel, module, and bus diagnostics for rapid fault identification. Its response time is defined as 1 ms conversion plus 1 ms per channel plus one controller cycle time. The table below summarizes key parameters.

Comparison with Similar Analog Modules

When compared to other analog mixed modules in the Modicon TM3 range, the TM3AM6 distinguishes itself through its configurable per-channel signal types and 12-bit resolution. Unlike fixed-range modules, it accepts 0-10 V, ±10 V, 0-20 mA, and 4-20 mA on both inputs and outputs. Additionally, the 1500 V AC isolation between analog I/O and supply exceeds typical 500 V AC ratings found in some alternatives. For engineers prioritizing flexibility and noise immunity, the TM3AM6 offers a precise, engineering-grade solution.

Applications and Integration

The TM3AM6 is ideal for process control, machine monitoring, and data acquisition tasks. Because it supports multiple signal types, it can interface with temperature transmitters, pressure sensors, and variable frequency drives. In a typical use case, the module captures 4-20 mA signals from flow meters while simultaneously outputting 0-10 V commands to proportional valves. Furthermore, its compatibility with Modicon M221, M241, M251, and M262 controllers simplifies integration. For networks requiring fieldbus communication, an external gateway may be necessary; confirm cable and gateway requirements with your supplier.

Installation and Maintenance

Mount the TM3AM6 on a DIN rail within a control cabinet, respecting the IP20 protection rating. Wiring uses a removable screw terminal block with 3.81 mm pitch. Ensure the 24 Vdc supply is stable and within specification. Periodically inspect terminals for tightness and verify diagnostic LEDs for channel, module, and bus status. Since the module operates from 0 to +55 °C, avoid excessive heat buildup. For maintenance, follow Schneider Electric guidelines and do not attempt internal repairs.
