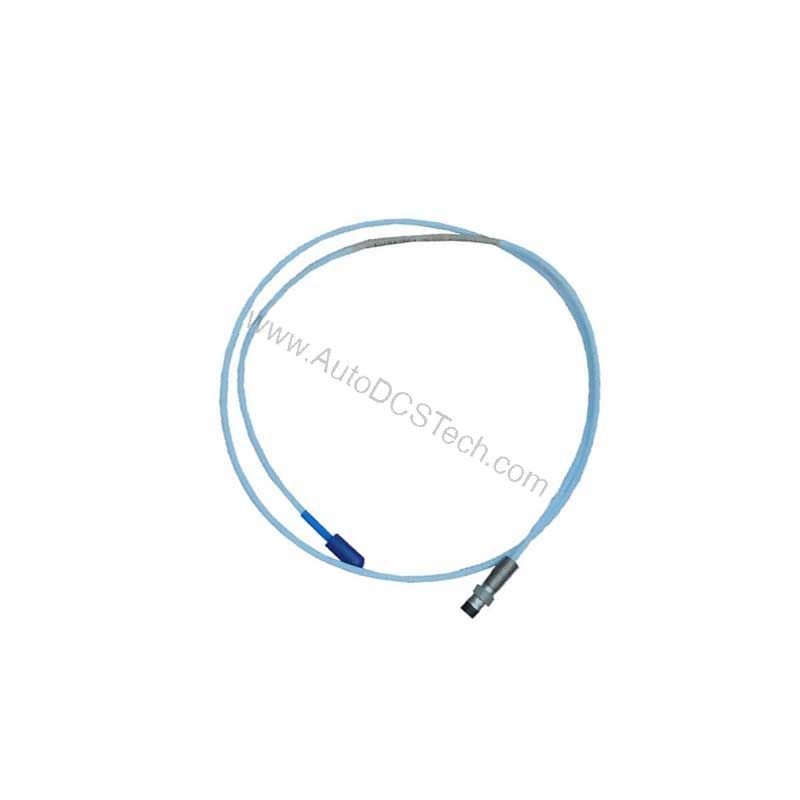

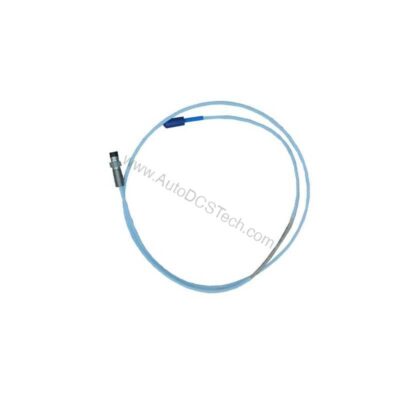

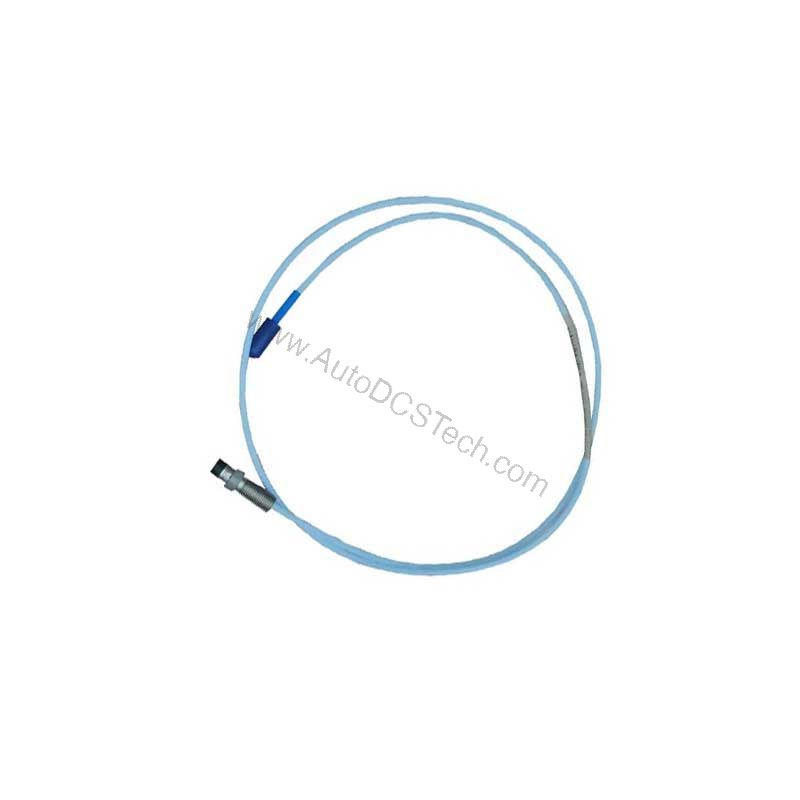

330174-00-08-05-02-05 Bently Nevada 3300 5mm Probe M8 Armored

Introduction: The Evolution of Precision Monitoring

Industrial machinery has evolved from simple mechanical linkages to complex high-speed rotating equipment. As operating speeds and loads increased, the need for exact, real-time displacement measurement became critical. Early monitoring systems lacked the sensitivity to detect micro-vibrations that signal impending failure. Consequently, engineers developed eddy current proximity probes that deliver engineering-grade precision. The Bently Nevada 330174-00-08-05-02-05 represents this evolution: a 3300 5mm probe with M8 x 1 thread and armor, designed for reliable shaft vibration and position measurement in harsh environments.

330174-00-08-05-02-05 Key Features and Technical Specifications

This probe integrates a polyphenylene sulfide (PPS) tip and an AISI 304 stainless steel case for chemical and mechanical durability. The miniature coaxial ClickLoc connector ensures secure, low-noise signal transmission. With a total length of 0.5 meter (1.6 feet) and an 80 mm overall case length, it fits confined installation spaces. The armor protects the cable from abrasion and mechanical damage. Weighing only 0.323 kg, it minimizes mass loading on the probe mount. The system requires a -17.5 Vdc to -26 Vdc power supply at 12 mA maximum consumption. Output resistance is 50 Ω, and sensitivity is less than 2 mV change per volt change in input voltage. The probe operates from -35°C to +177°C (-31°F to +351°F). For a complete system, pair it with a Bently Nevada 3300 XL Proximitor sensor and extension cable.

Applications and Use Cases

This probe is ideal for continuous monitoring of steam turbines, compressors, and large motors. For instance, in a power generation plant, it detects radial shaft vibration to prevent catastrophic bearing failure. Additionally, it measures axial thrust position in multistage pumps. Because of its armored cable, it suits installations where routing exposes the cable to debris or contact. The 5mm probe diameter allows access to tight bearing housings. Furthermore, the M8 x 1 thread ensures secure mounting with a recommended torque of 5.1 N·m (45 in·lb).

Installation and Setup

Proper installation begins with verifying the target material and gap. The probe is calibrated for AISI 4140 steel at a 1.27 mm (50 mil) gap. Use the M8 x 1 thread to mount the probe, and tighten to the recommended torque. Avoid exceeding the maximum torque of 7.3 N·m (65 in·lb). The minimum cable bend radius is 25.4 mm (1.0 in). Connect the miniature coaxial ClickLoc connector to the extension cable, ensuring the connector-to-connector torque does not exceed 0.565 N·m (0.42 ft·lbf). Keep the probe within its temperature range; exposure below -34°C (-30°F) may cause premature pressure seal failure.

Maintenance and Reliability

Periodic inspection ensures long-term reliability. Check the probe tip for wear or deposits, and verify cable armor integrity. Because the probe operates in extreme temperatures, monitor for signs of thermal stress. The PPS tip resists most chemicals, but avoid abrasive cleaning. For engineering-grade accuracy, recalibrate the system annually or per plant maintenance schedule. This proactive approach reduces unplanned downtime and extends service life.
