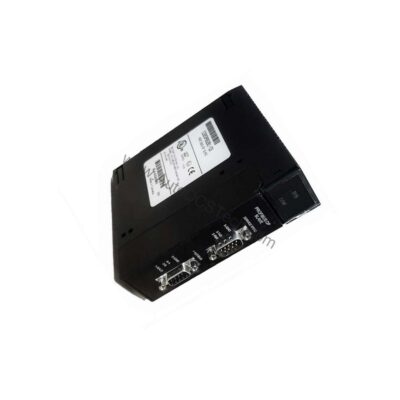

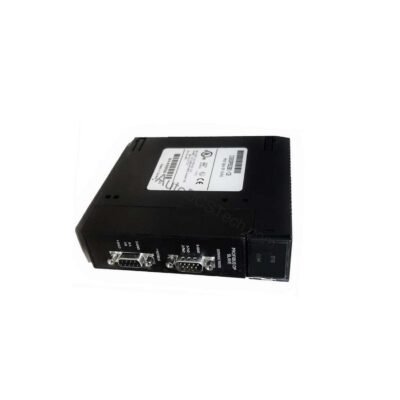

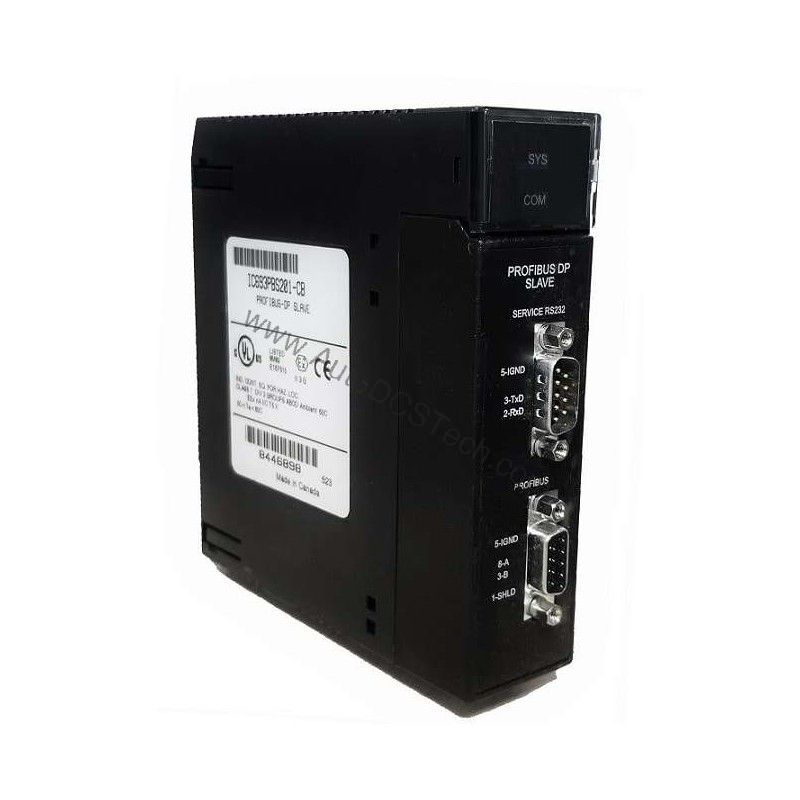

IC693PBS201: Profibus DP Slave Interface Module for Series 90 30
The IC693PBS201 is the Profibus DP Slave Interface Module for Series 90 30 covered on this page. The attribute that decides whether it fits the existing installation without modification is 0 to 60 degrees Celsius.
On this unit profibus dp slave interface module for series 90 30 is the figure that decides fit and function. A communication or network module is judged by the protocol it carries and the bus it joins, not by its catalogue headline. profibus dp slave interface module for series 90 30 sets which controllers and field devices it can bridge, and the isolation and termination it provides. Matching 0 to 60 degrees Celsius against the existing network topology avoids a module that fits the rack but cannot talk to the rest of the system.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC693PBS201 |
| Series | Series 90-30 |
| Part Number | IC693PBS201 |
| Communication Interface | One RS232 Service port, One Profibus Slave Port |
| Communication Protocol | ProfiBus |
| Slot Width | Single slot |
| Mounting Location | Any Series 90-30 Baseplate |
| Input Data | 244 Bytes |
| Output Data | 244 Bytes |
| Baud Rates | 9.6K, 19.2K, 93.75K, 187.5K, 500K, 1.5M, 3M, 6M, 12M Baud |
| Communication Ports | Two 9-pin D-Shell connectors |
| Status Information | Slave Status Word |
| Current Draw | 450mA @ 5VDC |
| Operating Temperature | 0 to 60 degrees Celsius |
| Product Lifecycle Status | Discontinued/Obsolete. |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic693pbm200-profibus-dp-master-module-for-series-90-30 | confirm the configuration against your installation |
| ge-fanuc-ic693pbm201-series-90-30-profibus-master-communication-module | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC693PBS201 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
