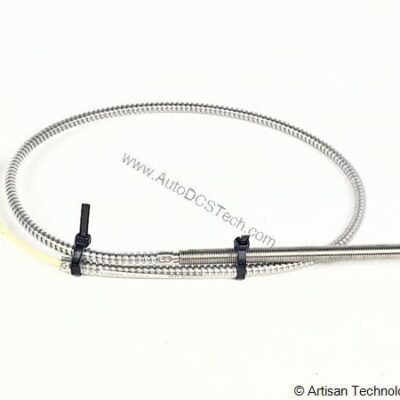

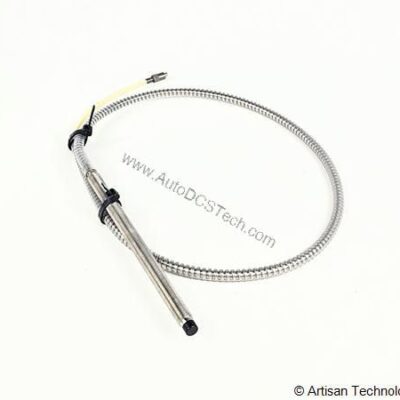

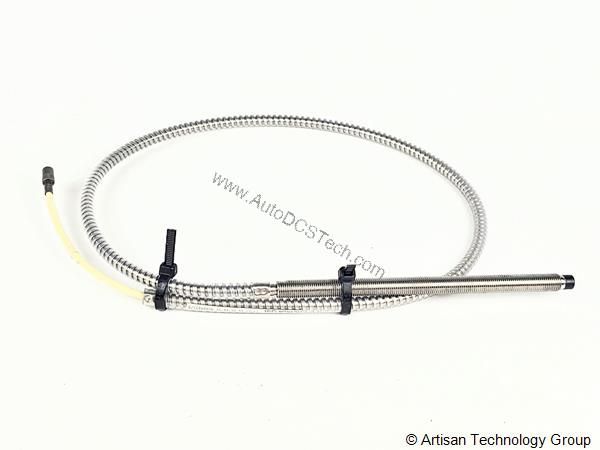

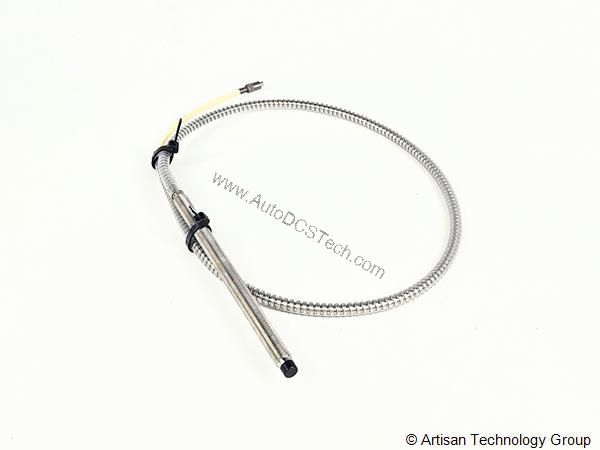

Technical Specifications Breakdown
Key parameters for the 21505-68-96-05-02 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Model | 21505 7200 Proximity Transducer Systems |
| Unthreaded Length Option | 68 - 6.8 in |
| Overall Case Length Option | 96 - 9.6 in |
| Total Length Option | 05 - 0.5 metre (20 inches) |
| Connector Option | 02 - With miniature male coaxial connector |
| Tip Diameter | 8 mm |
| Configuration Type Threads | 3/8-24 |
| Lead Armor | Yes (stainless steel) |
| Power | -17.5 Vdc to -26 Vdc at 12 mA maximum consumption |
| Calibrated Range | 80 mils (2.0 mm). Begins at approximately 10 mils (0.25 mm) from probe face |
| Scale Factor | 200 mV/mil (7.87 V/mm), ±4% (measured in increments of 10 mils over the calibrated range) if calibrated as a system, Within ±9.5% including interchangeability errors |
| Linearity | Within 0.8 mils (0.02 mm) of a 200 mV/mil straight line if calibrated as a system. Within 2.3 mils (0.06 mm) of a 200 mV/mil straight line including interchangeability errors |
| Frequency Response | 0 to 10 kHz (0 to 600,000 cpm); -5% at 10 kHz (600,000 cpm) |
| Temperature Sensitivity | Typically -396 change in scale factor at +150°F (+65°C) at 50 mils gap (1.27 mm) |
| Operating Temperature (Proximitor) | -60°F to +212°F (-51°C to +100°C) |
| Operating Temperature (Probe and Extension Cable) | -30°F to +350°F (-34°C to +177°C) |
| Relative Humidity | To 95%, noncondensing |
| Corrosion Resistance (8 mm probes only) | Probe operation is not affected by direct contact to: air, water, lube oil, ammonium hydroxide, sulfuric acid (10%), MEK (methyl-ethyl-ketone) or DMF (Dimethylformamide) |
| System Weight | 1.3 lbs. (0.59 kg) |
Industry Applications
Its 80 mils (2.0 mm) calibrated range and 200 mV/mil scale factor provide high-resolution data for trend analysis. The stainless steel armor protects against physical damage in high-vibration areas. Maintenance engineers rely on this probe for early detection of bearing wear, imbalance, and misalignment, reducing costly repairs.
Installation & Setup Guidance
Mount the 21505-68-96-05-02 using the 3/8-24 threaded configuration. Ensure the probe face is clean and the gap is set within the calibrated range (starting at approximately 10 mils from the probe face). Use the miniature male coaxial connector for secure signal transmission. Verify the power supply meets -17.5 Vdc to -26 Vdc at 12 mA maximum consumption. Calibrate the system as a whole to achieve ±4% scale factor accuracy.
Maintenance & Reliability
Inspect the probe and cable periodically for physical damage or corrosion. The probe is resistant to common industrial fluids as listed in the specifications. Keep the connector clean and dry to maintain signal integrity. The system weight of 1.3 lbs (0.59 kg) ensures easy handling during installation. No internal adjustments are needed; rely on system calibration.

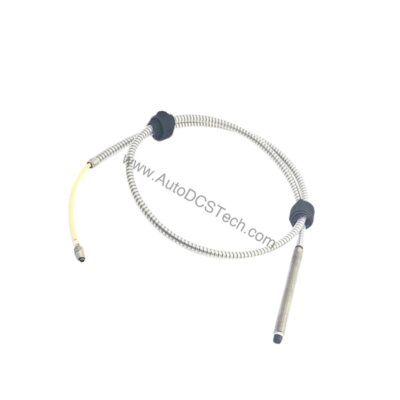

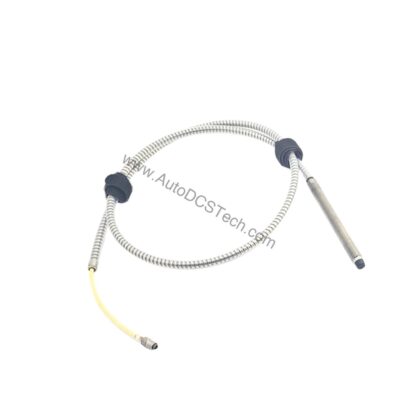

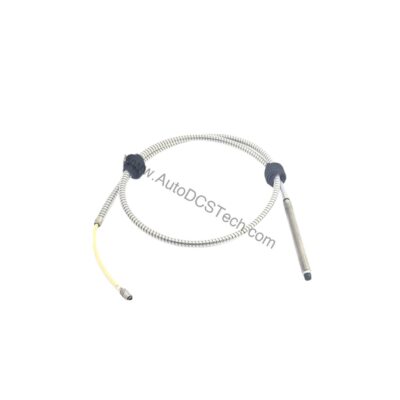

Reliable Vibration Monitoring for Critical Machinery
This 8mm probe, part of the 7200 Proximity Transducer System, delivers precise displacement measurements essential for early fault detection and preventing unplanned downtime. Its robust stainless steel armor and corrosion-resistant design make it suitable for harsh industrial environments.
Selection Guide & Purchasing Advice
When selecting a replacement or new installation, verify the unthreaded length (6.8 in), overall case length (9.6 in), and total length (0.5 meter) match your requirements. The 21505-68-96-05-02 is available new and original in factory packing from AutoDCSTech with a 12-month warranty. Contact AutoDCSTech for lifecycle status and availability before ordering.
Availability & Condition at AutoDCSTech
| Part Number | 21505-68-96-05-02 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
