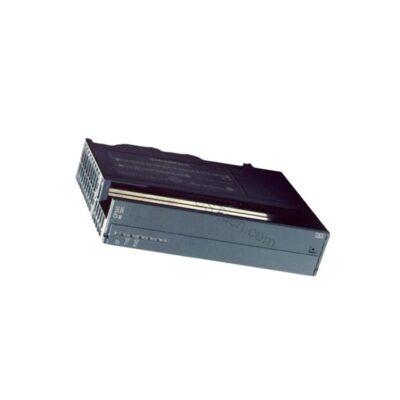

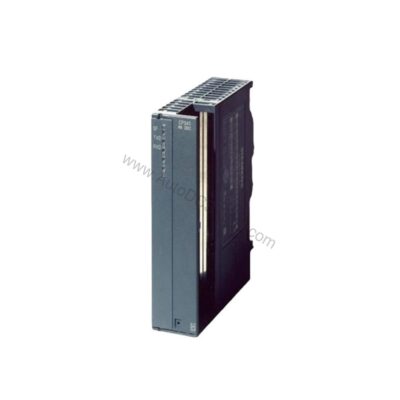

6ES7341-1CH01-0AE0 RS422/485 CP341 Communication Processor

Introduction to the 6ES7341-1CH01-0AE0

When serial communication reliability is critical, the 6ES7341-1CH01-0AE0 from Siemens provides a robust solution. This CP341 communication processor is designed for SIMATIC S7-300 PLCs, offering a dedicated RS422/485 interface for point-to-point data exchange. It is a spare part that includes a configuration package on CD, ensuring you have the tools needed for setup.

Engineers often face challenges with data integrity over long distances. The 6ES7341-1CH01-0AE0 addresses this with support for cable lengths up to 1,200 meters, making it suitable for distributed industrial layouts. Its isolated interface helps prevent ground loops and electrical noise, which are common sources of communication errors.

Key Features and Technical Specifications

The 6ES7341-1CH01-0AE0 is engineered for performance and flexibility. Below are its core specifications:

• Supply voltage: 24 V DC (rated)
• Input current from L+: max. 240 mA
• Input current from backplane bus: 5 V DC, max. 70 mA
• Power loss: max. 5.8 W
• Interface: 1 isolated RS422/485 (X.27)
• Transmission rate: 0.3 to 76.8 kbit/s
• Connector: 15-pin sub D
• Integrated protocols: 3964(R), ASCII, RK512, customer-specific drivers (reloadable)
• Max telegram length: 1,024 bytes (for 3964(R), ASCII, RK512)
• Dimensions: 40 mm x 125 mm x 120 mm
• Weight: approx. 300 g

One distinctive feature is the support for multiple protocols, including 3964(R), ASCII, and RK512. This flexibility allows the 6ES7341-1CH01-0AE0 to integrate with a wide range of legacy and modern devices, reducing the need for additional converters. The RS422/485 interface supports full-duplex and half-duplex operation, with the maximum transmission rate of 76.8 kbit/s achievable in half-duplex mode.

Applications and Use Cases

Common use cases include connecting S7-300 PLCs to barcode scanners, weigh scales, printers, and other serial devices. Its support for ASCII protocol makes it suitable for simple data exchange, while RK512 enables communication with Siemens and third-party systems.

For example, in a material handling system, the 6ES7341-1CH01-0AE0 can link a PLC to a series of barcode readers, ensuring accurate tracking of packages. The long cable length capability allows readers to be placed far from the control cabinet, simplifying installation.

Installation and Setup

Installing the 6ES7341-1CH01-0AE0 is straightforward. It mounts directly on the S7-300 DIN rail and connects to the backplane bus. The power supply uses three screw-type terminals: L+, M, and GND. Ensure the 24 V DC supply is stable and within rated limits.

The included configuration package on CD provides the necessary software to set up the communication parameters. When wiring the RS422/485 interface, use a 15-pin sub D connector and follow the pinout provided in the manual. Proper termination may be required for long cable runs to avoid signal reflections.

Maintenance and Reliability

To ensure long-term reliability, periodically inspect the 6ES7341-1CH01-0AE0 for signs of dust accumulation or loose connections. Verify that the supply voltage remains within the rated range and that the ambient temperature does not exceed specified limits. Because the module has no moving parts, maintenance is minimal, but regular checks can prevent unexpected downtime.

Given its robust design, the 6ES7341-1CH01-0AE0 is built to withstand harsh industrial environments. However, always follow the manufacturer's guidelines for cleaning and handling to avoid electrostatic discharge damage.

Compatibility and Integration

The 6ES7341-1CH01-0AE0 is part of the SIMATIC S7-300 family, ensuring seamless integration with S7-300 CPUs and other modules. It supports the following protocols: 3964(R), ASCII, and RK512. Customer-specific drivers can be loaded to accommodate unique communication requirements.

This module is not limited to Siemens systems; it can communicate with any device that supports RS422/485 and one of the integrated protocols. This makes it a versatile choice for mixed-vendor environments.

Troubleshooting Common Issues

If communication errors occur, first check the transmission rate settings. The 6ES7341-1CH01-0AE0 supports rates from 0.3 to 76.8 kbit/s, and mismatched settings between devices are a common issue. Ensure both sides use the same baud rate, parity, and stop bits.

Another potential issue is incorrect wiring. Verify that the 15-pin sub D connector is properly wired and that the shield is grounded. For long cable runs, confirm that termination resistors are installed if required.

If the module does not respond, check the power supply connections (L+, M, GND) and ensure the 24 V DC is present. Also, verify that the module is properly seated on the backplane bus.

Product Support and Availability

The 6ES7341-1CH01-0AE0 is available as a spare part. Our team can provide technical support and assist with your order.
