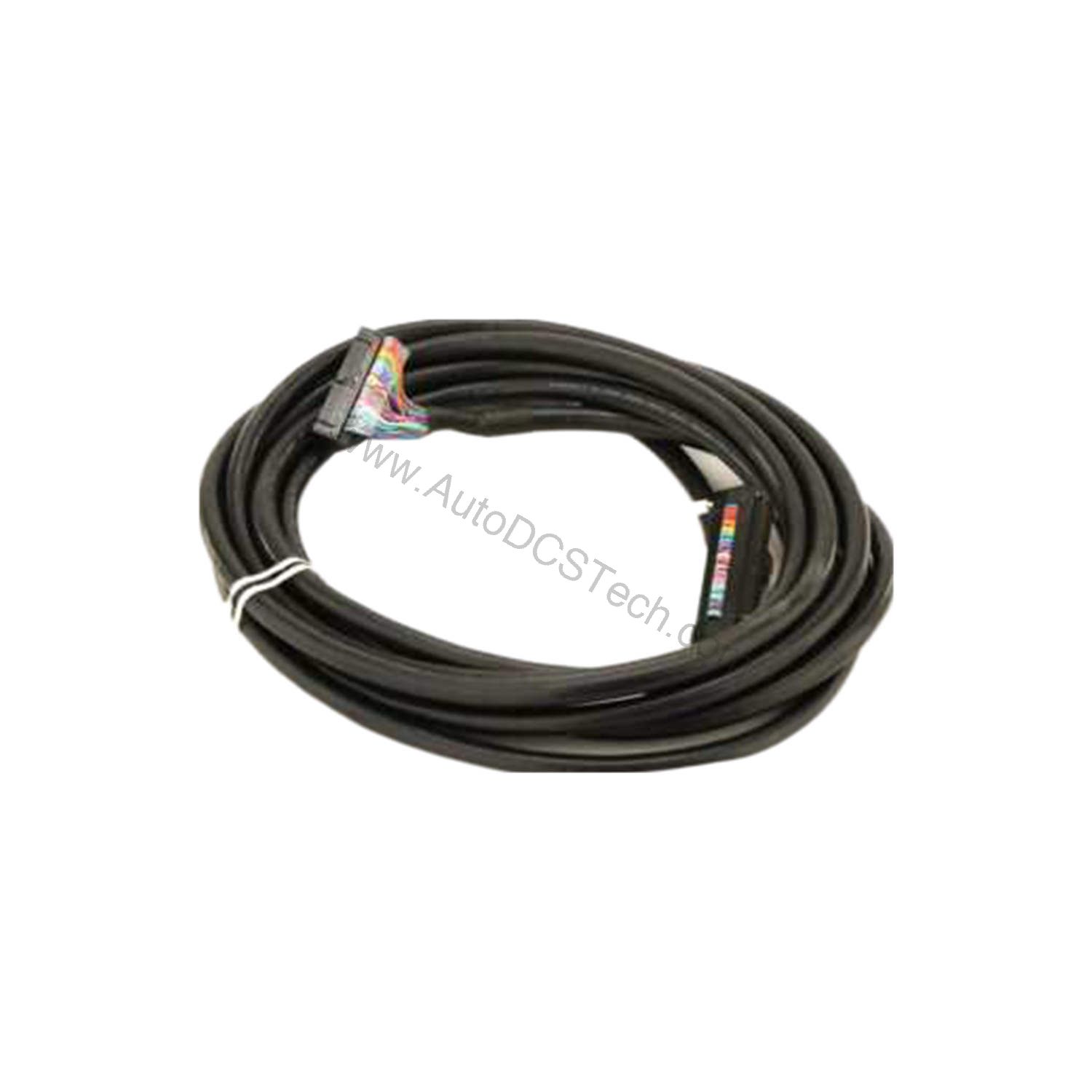

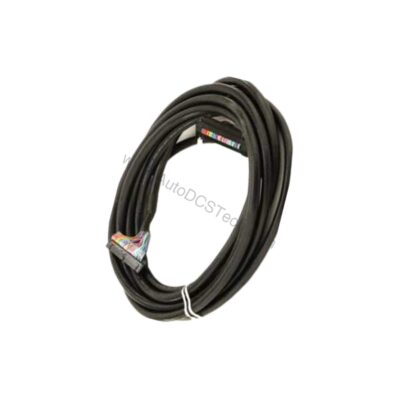

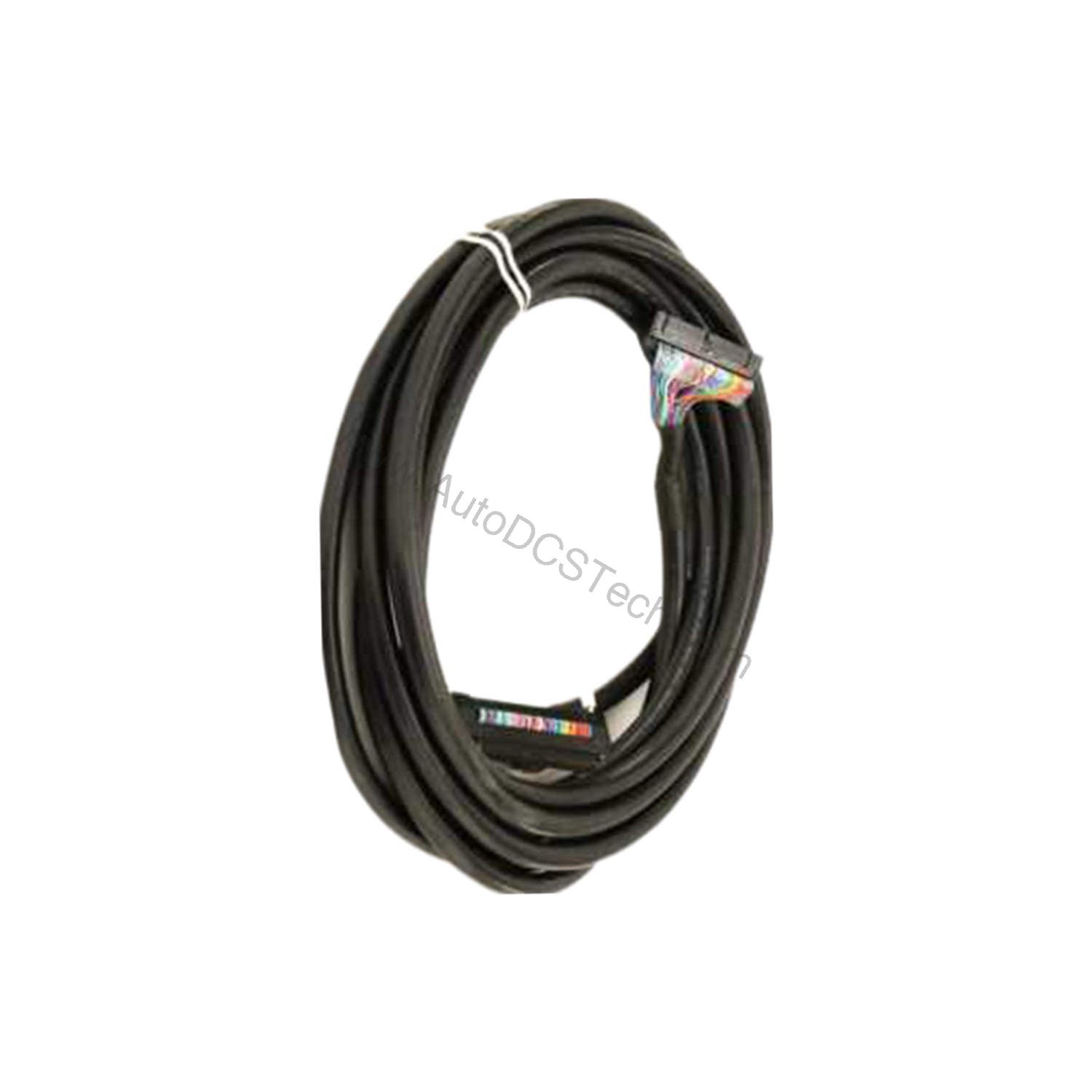

6ES7392-4BF00-0AA0 5m Connecting Cable for S7-300

Key Features and Technical Specifications

• Product type: Connecting cable for S7-300 64-channel modules.
• Cable length: 5 meters, providing flexible routing between modules.
• Ambient temperature (operation): 0 °C to 60 °C, suitable for typical industrial enclosures.
• Delivery quantity: 2 pieces per packing unit, reducing procurement frequency.

This cable is designed specifically for 64-channel modules, ensuring proper pinout and signal integrity. The 5-meter length offers ample reach for most cabinet layouts, while the two-piece pack supports redundant or dual connections.

Installation and Setup

Installing the 6ES7392-4BF00-0AA0 is straightforward. First, verify that your module is a 64-channel type compatible with this cable. Then, route the cable from the module to the I/O point, avoiding sharp bends and high-voltage lines. Secure the connectors firmly to prevent accidental disconnection. Finally, test the connection by monitoring signal status in your control program.

Maintenance and Reliability

To maintain reliable operation, inspect the cable periodically for wear, cuts, or loose connections. Operate within the specified ambient temperature range of 0 °C to 60 °C to avoid insulation degradation. Following these simple steps helps extend cable life and prevent intermittent faults.

Compatibility and Integration

The 6ES7392-4BF00-0AA0 is designed for Siemens S7-300 PLC systems, specifically for 64-channel digital or analog modules.

Troubleshooting Common Issues

If you encounter signal loss or intermittent errors, first check that the cable is fully seated at both ends. Next, inspect for physical damage along the 5-meter length. Also, confirm that the ambient temperature stays within 0 °C to 60 °C, as extreme conditions can affect performance. If issues persist, consult the Siemens manual or contact AutoDCSTech for support.

Product Support and Availability

The Siemens 6ES7392-4BF00-0AA0 is available through AutoDCSTech. Contact us to confirm stock and lead times. We are ready to assist with your automation needs.
