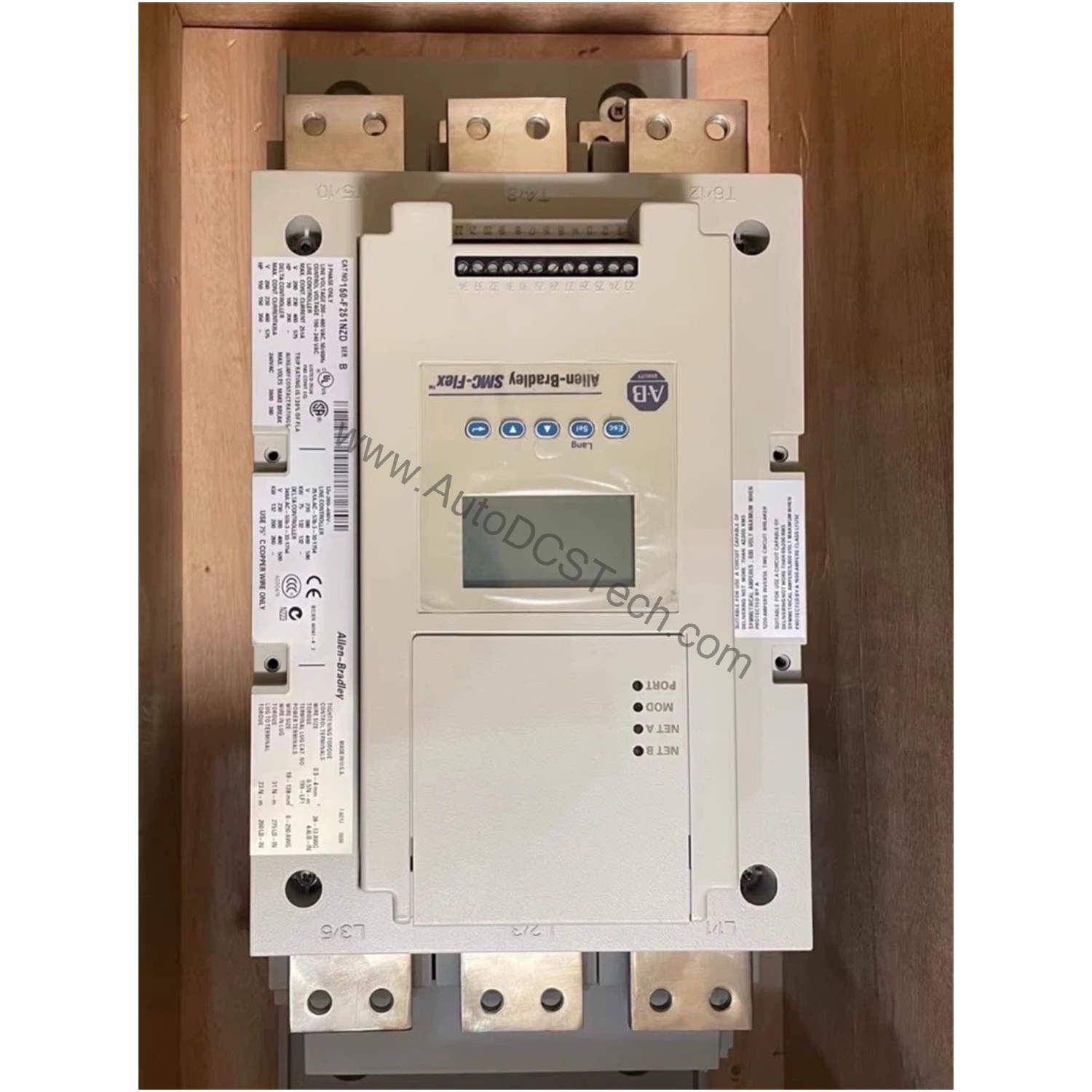

Allen-Bradley 150-F25NBDD SMC-Flex Controller 25A Motor Starter

Product Overview

Industrial motor control has evolved from simple across-the-line starters to sophisticated controllers that optimize energy use and reduce mechanical stress. The Allen-Bradley 150-F25NBDD SMC-Flex controller represents this advancement, offering a versatile solution for starting and stopping motors safely and efficiently. This component is designed for applications requiring precise control over acceleration and deceleration, such as conveyor systems and pumps. With a current rating of 25 Amps, it handles moderate loads while providing customizable control modes.

Technical Specifications Breakdown

Key parameters for the 150-F25NBDD are listed below for quick reference:

Industry Applications

Pump Control for Water Treatment

In water treatment facilities, centrifugal pumps often experience pressure surges during start-up. The 150-F25NBDD controller offers a pump control option that smoothly accelerates and decelerates the motor, reducing power surges and extending pump life. Operators can program starting and stopping times to match system requirements. Note that this option is not intended for emergency stopping.

Conveyor Systems in Manufacturing

For assembly lines requiring gentle starts to prevent product damage, this controller provides customizable control modes. The smart motor braking and slow speed with braking options enhance precision during material handling. The 25 Amp rating suits medium-duty conveyor drives.

Installation & Setup Guidance

Install the controller in a Type 2 IP 54 rated enclosure when dust or liquids are present, as specified in the technical data. The DPI port allows connection of interface modules like the 20-HIM LCD display. Up to two devices can be linked through this port, with a maximum output current of 280 milliamps. Use the keypad and LCD screen for programming. Control options must be specified at order time, as they are mutually exclusive; upgrading later requires replacing the controller.

Maintenance & Reliability

Inspect the enclosure seals periodically to maintain the IP 54 rating. Ensure ambient relative humidity stays between 0 to 95% non-condensing, and operating temperature remains within 32 to 122 degrees Fahrenheit. Air cooling requires unobstructed ventilation. Storage temperature range is -4 to 176 degrees Fahrenheit. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Compatibility & Integration

The DPI port enables integration with Allen-Bradley interface modules and drives. The controller is part of the SMC-Flex product line, designed for seamless communication within Rockwell Automation ecosystems. Use the DPI port for programming and monitoring via compatible HIM modules.

Selection Guide & Purchasing Advice

When selecting the 150-F25NBDD, confirm the 25 Amp rating matches your motor full-load current. Choose control options (pump control, smart motor braking, or slow speed with braking) at time of purchase. AutoDCSTech stocks this controller and can assist with availability checks.
