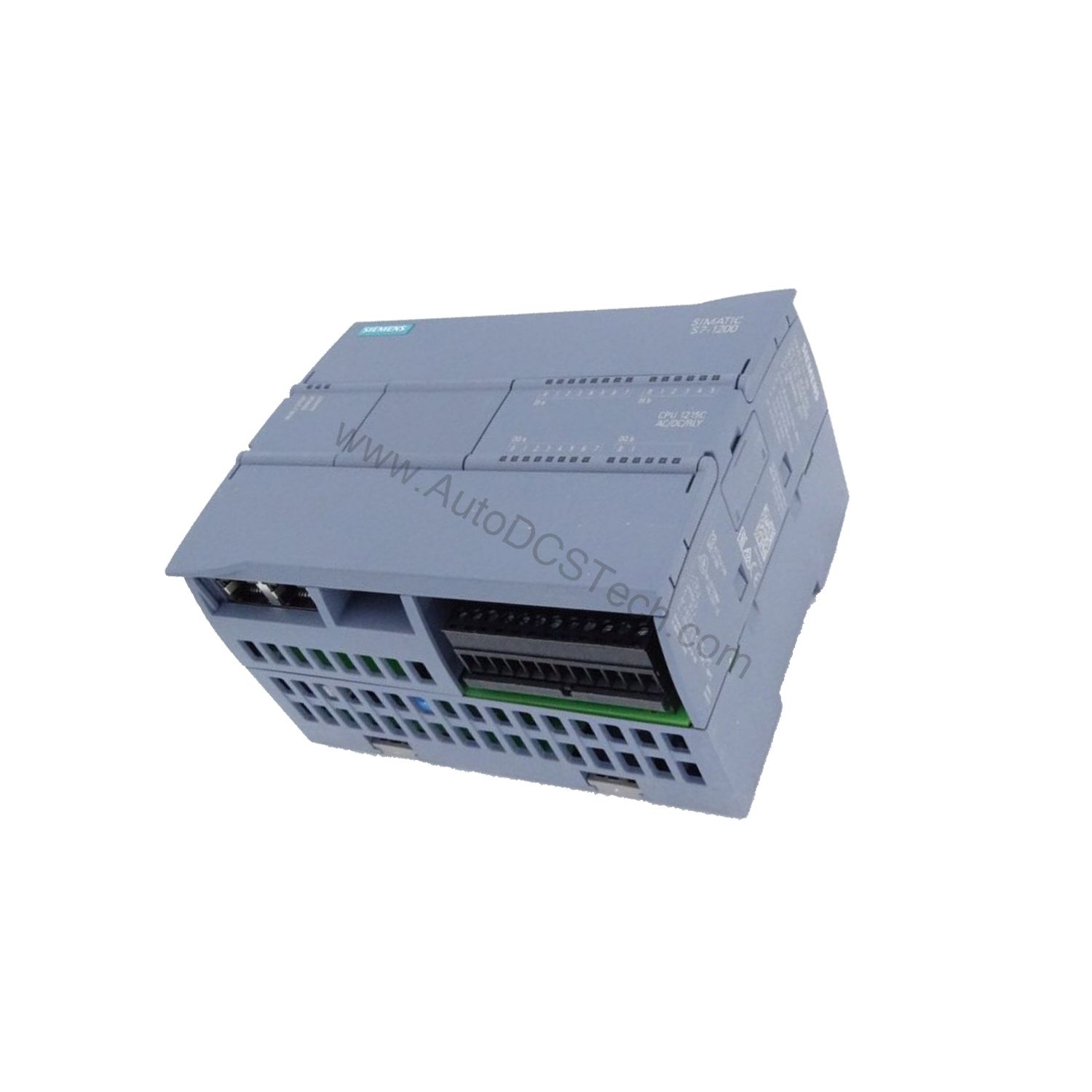

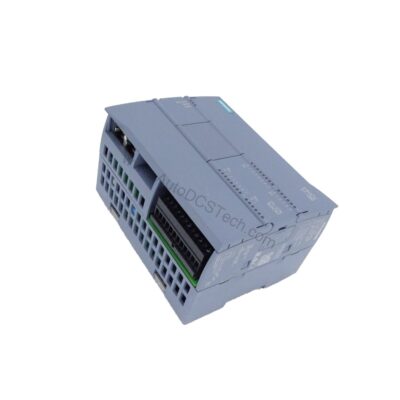

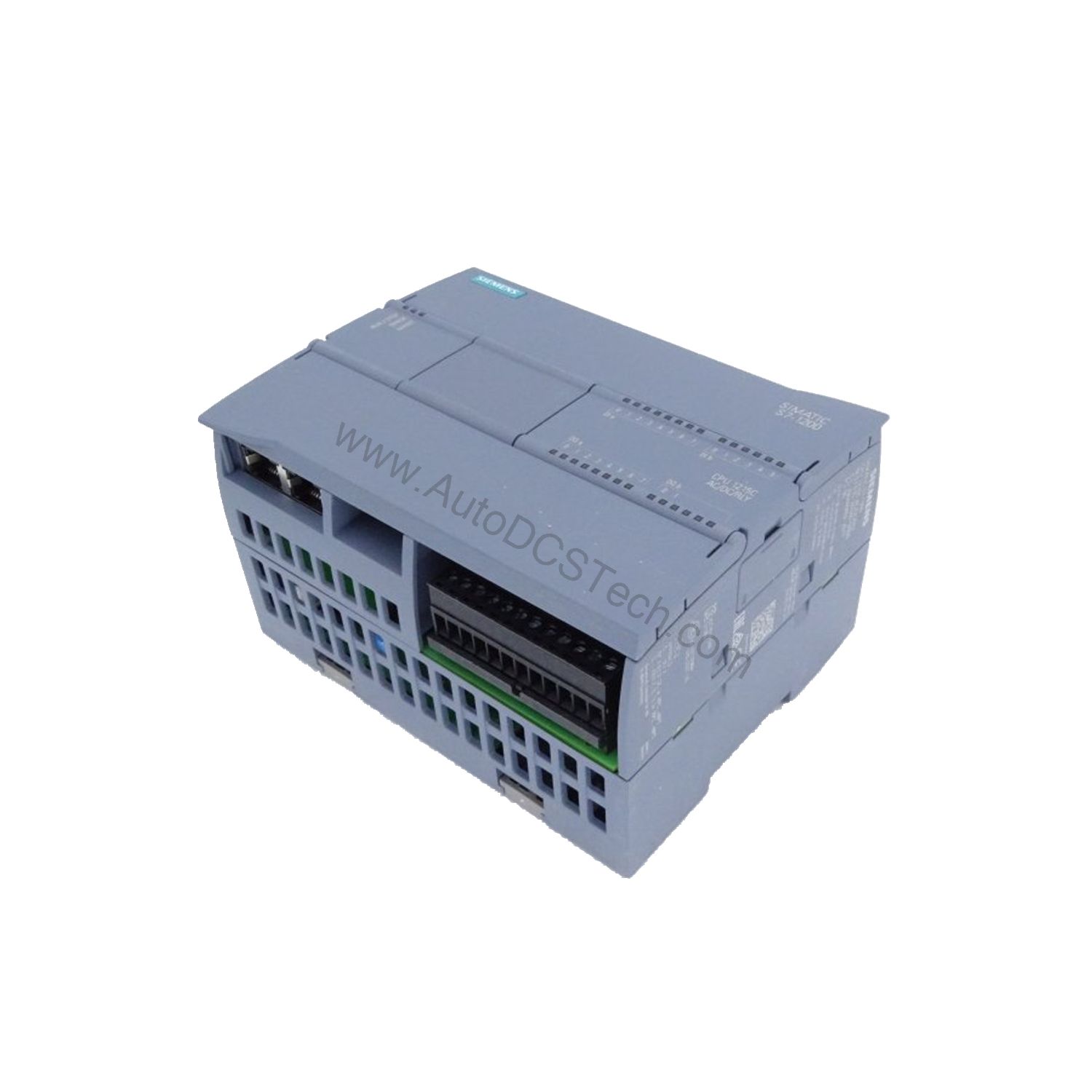

6ES7215-1BG40-0XB0 AC/DC/Relay CPU 125KB

Core Specifications and Performance Metrics

The 6ES7215-1BG40-0XB0 operates on a wide AC supply range of 85 to 264 V AC at 47 to 63 Hz, making it suitable for global installations. Its program and data memory totals 125 KB, with a load memory of 4 MB. The CPU supports up to 3 communication modules, 1 signal board, and 8 signal modules, offering flexibility for expanding I/O. Key performance figures include a bit operation time of 0.085 µs and a word operation time of 1.7 µs.

• 14 digital inputs (24 V DC), with 6 usable for high-speed counting (up to 100 kHz single-phase)
• 10 relay outputs, each rated for 2 A resistive load
• 2 analog inputs (0-10 V DC) with 10-bit resolution
• 2 analog outputs (0-20 mA DC) with 625 µs conversion time
• Integrated PROFINET interface with 2 ports, supporting IO Controller and IO Device
• Maintenance-free backup without battery

Installation and Setup Guidance

Mount the 6ES7215-1BG40-0XB0 on a standard DIN rail or wall mount, ensuring adequate airflow for vertical installations up to 50 °C. For horizontal mounting, the ambient temperature range is -20 °C to 60 °C. Use shielded cables for analog signals (max 100 m) and for technological functions (max 50 m). Unshielded digital input cables can run up to 300 m, but for high-speed counting, shielded cables are required. Configure the CPU using STEP 7 V13 SP1 or higher, and set the input delays (0.2 ms to 12.8 ms) according to your sensor characteristics.

Maintenance and Reliability Considerations

Periodically inspect the CPU for dust accumulation and ensure that the ambient temperature remains within the specified range. The relay outputs have a mechanical life of 10 million operations, but at rated load, the electrical life is 100,000 cycles—so plan for periodic relay replacement in high-cycle applications. The device features a hardware clock with a backup time of 480 hours, so time-critical processes remain accurate even after power loss. For long-term reliability, verify that the supply voltage stays within 85-264 V AC and that the frequency is between 47 and 63 Hz.

Overcoming Control Challenges with the 6ES7215-1BG40-0XB0

This CPU 1215C AC/DC/Relay controller integrates 14 digital inputs, 10 relay outputs, 2 analog inputs, and 2 analog outputs—all in a space-saving 130 mm wide housing. Engineers can reduce panel complexity by eliminating separate I/O modules for moderate-scale machines.

Integration and Communication Capabilities

The 6ES7215-1BG40-0XB0 includes a PROFINET interface with two ports, supporting both IO Controller and IO Device functionality. It can connect up to 16 IO devices as a controller, and as a device, it supports shared device operation with up to 2 controllers. For legacy networks, PROFIBUS can be added via a CM 1243-5 module, and AS-Interface is supported. The CPU also supports open IE communication (TCP/IP, UDP, ISO-on-TCP) and Modbus, making it versatile for various industrial protocols.

Common Issues and Troubleshooting

If the CPU fails to start, check the power supply voltage and ensure it is within the permissible range. For analog input issues, verify that the signal is within 0-10 V and that the input resistance is at least 100 kΩ. Relay output failures often result from exceeding the 2 A resistive load limit or from inductive loads without proper suppression. If communication errors occur, confirm that the PROFINET cable is shielded and that the transmission rate is set to 100 Mbit/s. For persistent problems, consult the diagnostic buffer, which is always present and can be accessed via the engineering software.

Availability and Support

The 6ES7215-1BG40-0XB0 is available from AutoDCSTech, an industrial automation parts supplier. Contact our team to verify current stock and lead times.
