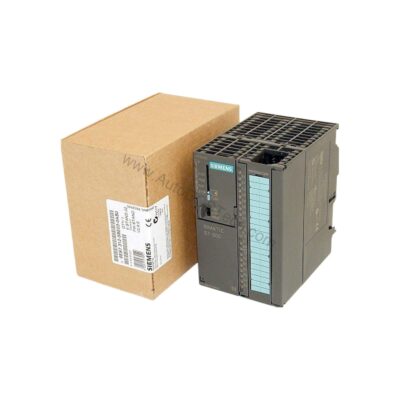

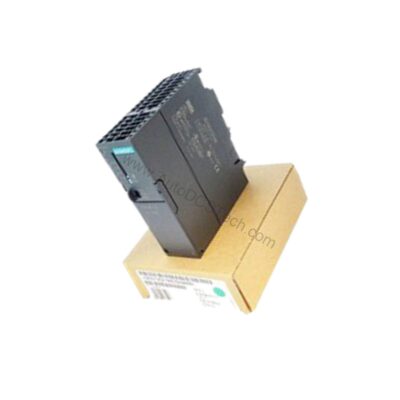

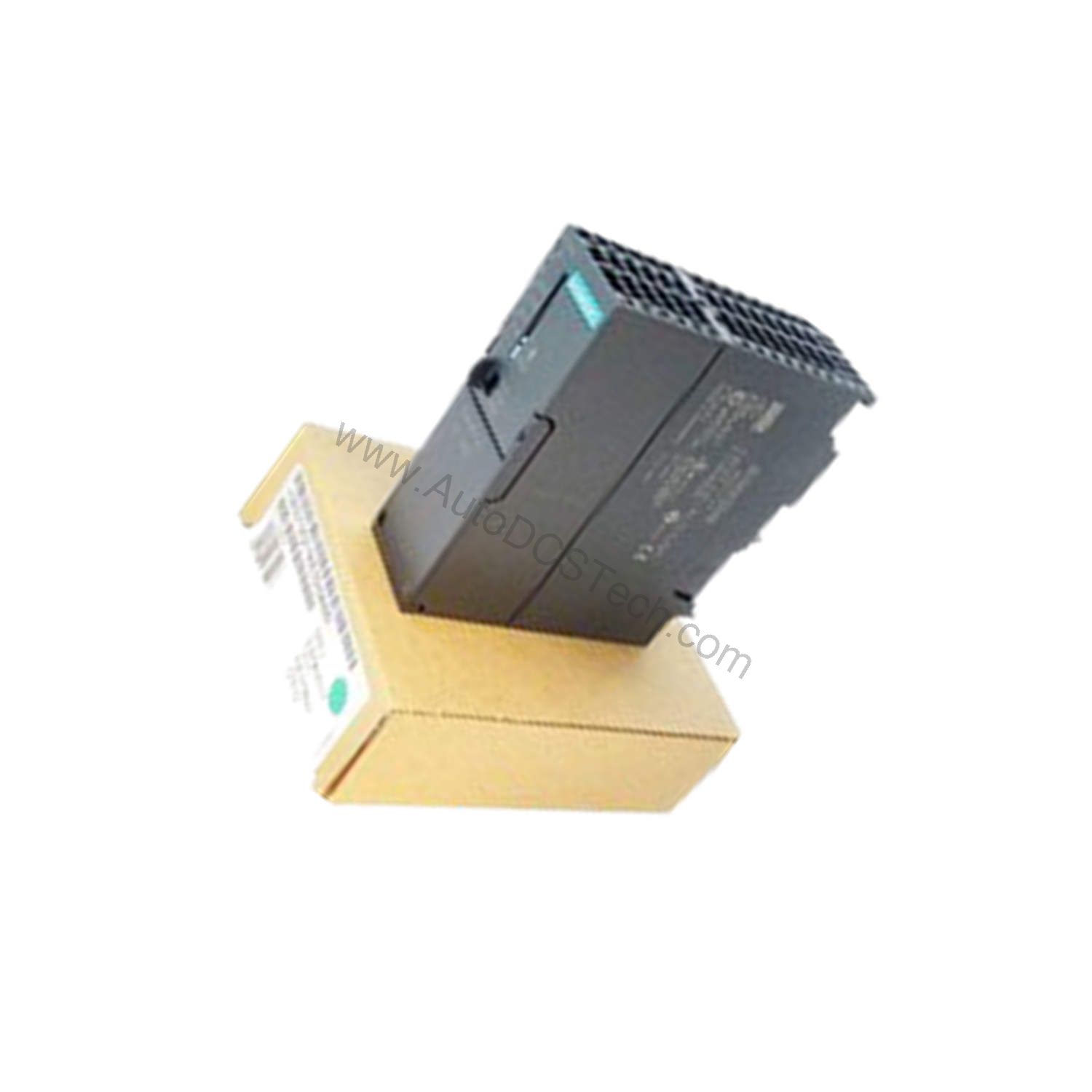

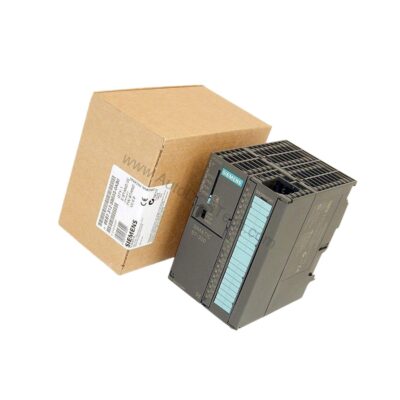

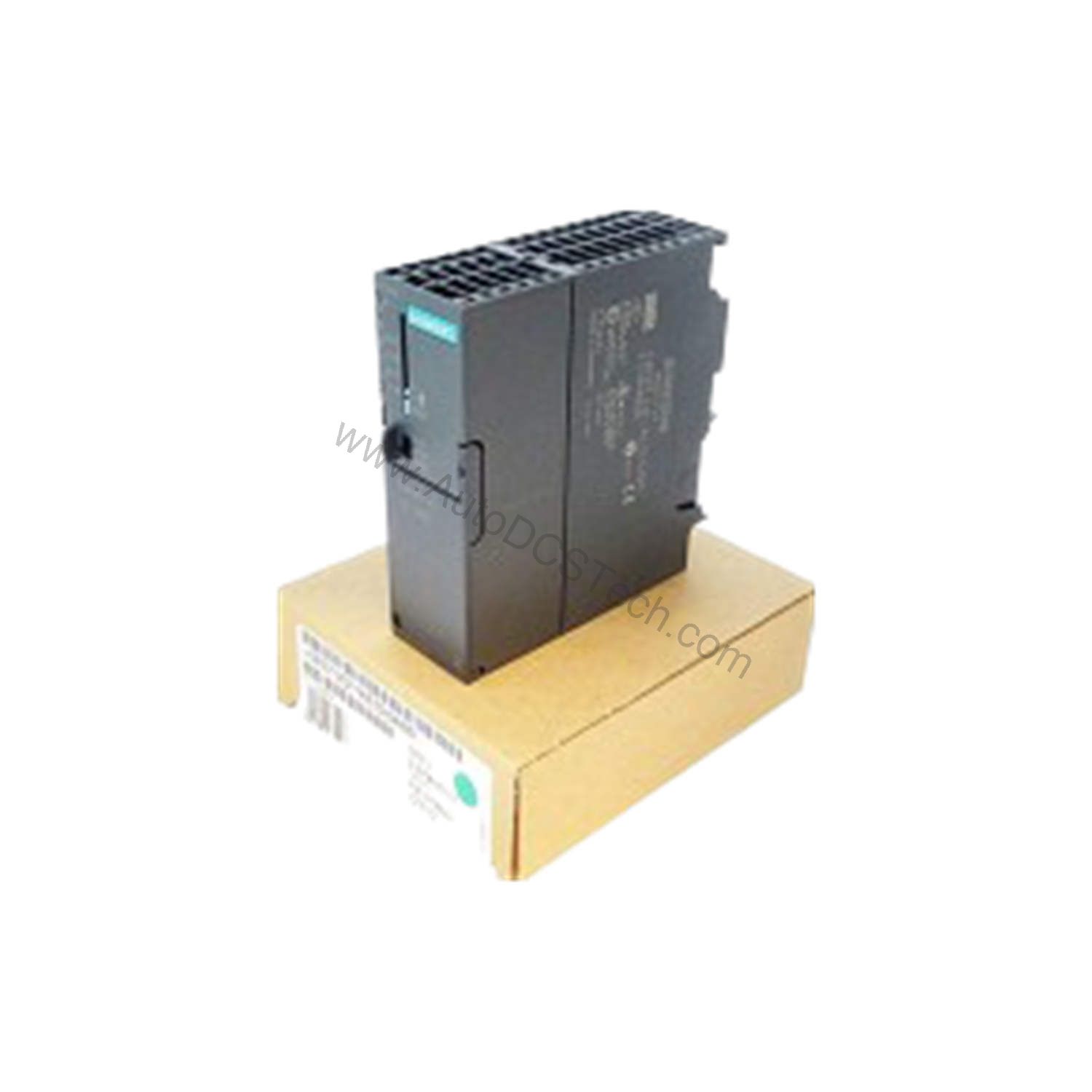

Introduction to the Siemens 6ES7312-1AE13-0AB0 CPU 312
When your SIMATIC S7-300 system needs a dependable processor, the 6ES7312-1AE13-0AB0 from Siemens serves as a genuine spare part. This CPU 312 module is engineered to maintain the performance and stability your automation processes require.
As a spare part, this unit ensures minimal downtime during unexpected failures. Its compact dimensions of 13 cm x 4 cm x 12.5 cm and a weight of 0.27 kg make it easy to handle and install. The firmware version V2.6 and HW functional status 01 confirm its compatibility with specific S7-300 configurations.
Key Features and Technical Specifications
The 6ES7312-1AE13-0AB0 offers a set of specifications that define its role in industrial control. Below is a structured breakdown of its core parameters:
- Manufacturer: Siemens
- Product Type: Spare Part SIMATIC S7-300 CPU 312
- Rated Value (DC): 24 V
- Power Loss (typ.): 2.5 W
- Dimensions (LxWxH): 13 cm x 4 cm x 12.5 cm
- Weight: 0.27 kg
- Firmware Version: V2.6
- HW Functional Status: 01
One distinctive aspect is its low typical power loss of 2.5 W, which contributes to energy efficiency and reduced heat generation inside the cabinet. This is particularly beneficial in densely packed panels where thermal management is critical.
Installation and Setup Guidance
Installing the 6ES7312-1AE13-0AB0 requires following standard S7-300 mounting procedures. Ensure the power supply provides a stable 24 V DC to meet the rated input. The module fits onto a standard DIN rail, and its compact size allows for straightforward placement.
Before installation, verify that your programming package is STEP 7 V5.2 + SP1 or higher with the necessary HW update. This ensures proper firmware recognition and configuration. Always power down the system before handling the module to avoid electrical hazards.
Maintenance and Reliability Tips
To maximize the lifespan of the 6ES7312-1AE13-0AB0, perform periodic inspections. Check for dust accumulation on the module and ensure adequate ventilation around the cabinet. The low power loss helps reduce thermal stress, but ambient temperature should remain within the S7-300 specified range.
Regularly verify that the firmware version matches your project requirements. If you encounter issues, consult the Siemens documentation for troubleshooting steps. For replacement needs, contact AutoDCSTech to confirm availability and current lifecycle status.
Compatibility and Integration Considerations
As a CPU 312 spare part, this module is designed for SIMATIC S7-300 systems. It works with the STEP 7 programming environment, which is essential for configuring and monitoring your control logic. The firmware version V2.6 indicates a specific feature set; confirm that your existing project supports this version.
For integration, the 24 V DC rated value aligns with typical industrial power supplies. However, always check your system's power budget to ensure the 2.5 W power loss is within acceptable limits. If you are upgrading from an older CPU, verify that your backplane and power module are compatible.
Availability and Support
The 6ES7312-1AE13-0AB0 is available as a spare part through AutoDCSTech. We recommend verifying current lifecycle status and stock before ordering. Our team can assist with product inquiries and technical support.
Availability & Condition at AutoDCSTech
| Part Number | 6ES7312-1AE13-0AB0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
