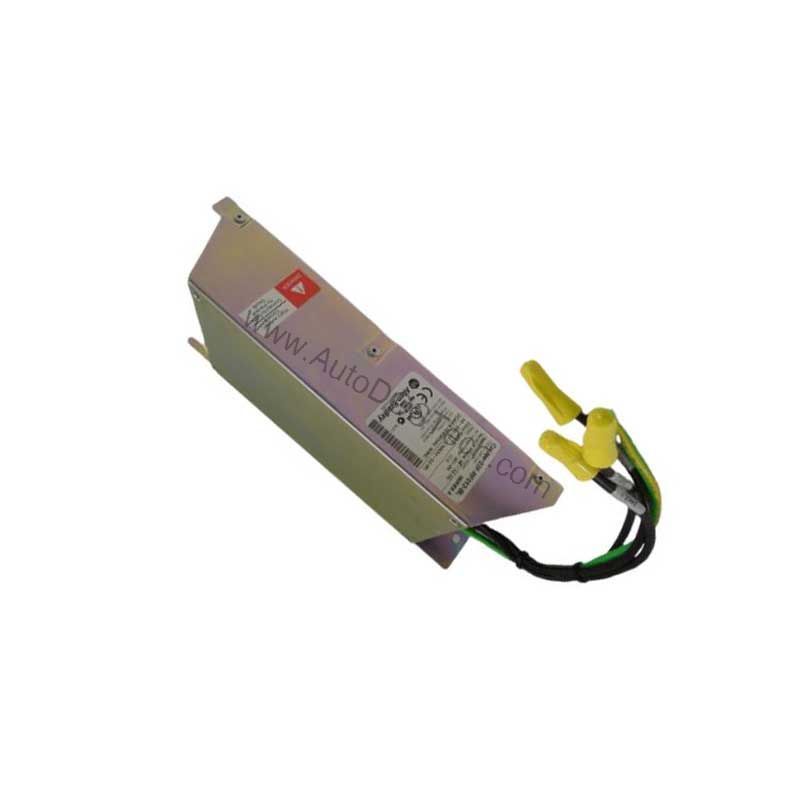

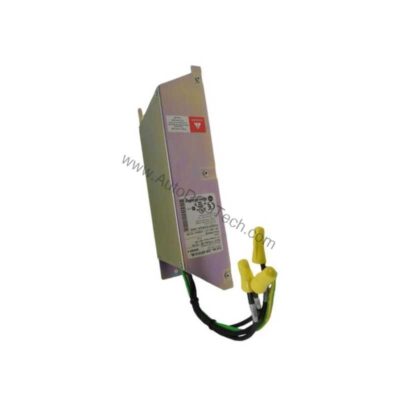

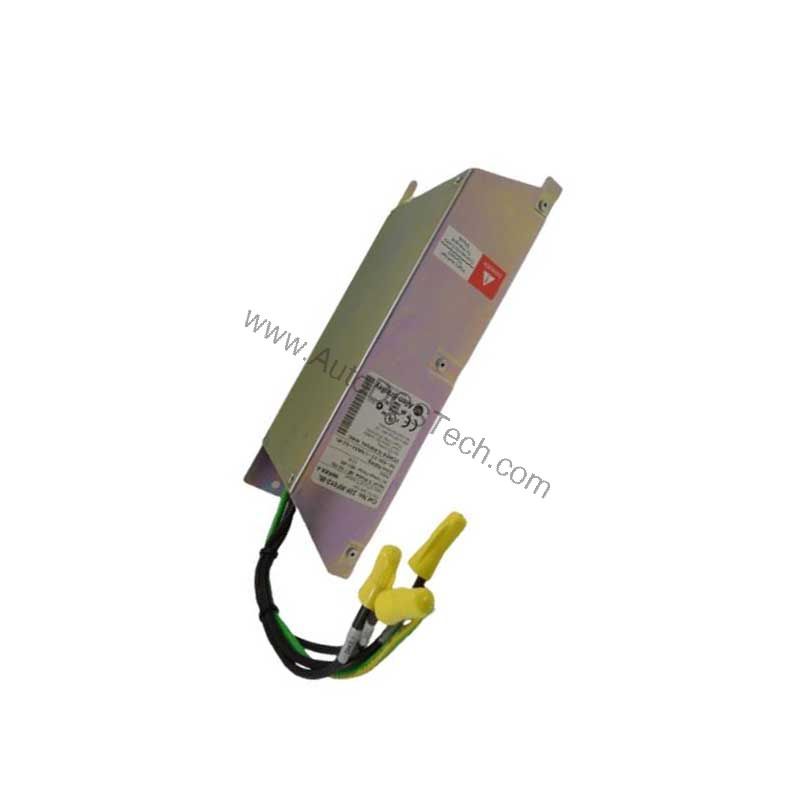

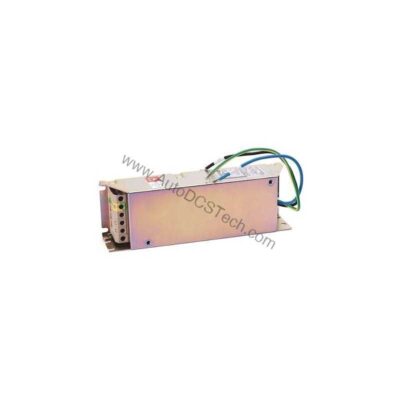

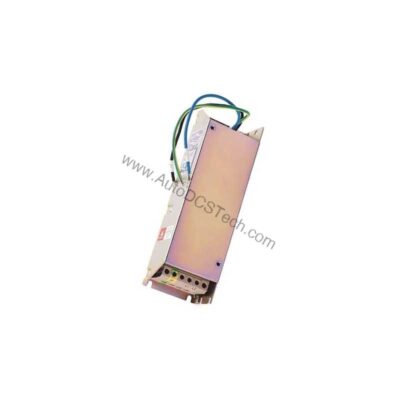

Allen-Bradley 22F-RF012-BS PowerFlex 4M EMC Filter Kit

Technical Specifications Breakdown

Key parameters for the 22F-RF012-BS are listed below for quick reference:

Industry Applications

For example, in conveyor systems, the filter helps maintain clean power, reducing the chance of drive faults that could halt production. In pump and fan applications, it ensures stable operation even in electrically noisy environments. The compact dimensions (15.60 mm width, 7.70 mm height, 27.51 mm depth) make it easy to integrate into existing panels, which is a significant advantage in retrofitting projects where space is at a premium.

Installation & Setup Guidance

Installing the 22F-RF012-BS is straightforward, but it requires careful attention to ensure optimal performance. First, verify that the drive is powered down and locked out before beginning any work. Mount the filter kit securely, following the manufacturer’s guidelines for orientation and clearance. Ensure that the input voltage matches the filter’s rating (480V, 50/60 Hz) and that the wiring is correctly phased for three-phase operation. Always use the provided hardware and torque specifications to avoid loose connections. After installation, perform a continuity check and then power up the system to confirm proper operation.

Maintenance & Reliability

Regular maintenance of the EMC filter is minimal but important. Periodically inspect the filter for signs of overheating, such as discoloration or a burnt smell. Check that all connections remain tight and that no debris has accumulated on the filter. Because the filter is passive, there are no moving parts to wear out, but environmental factors like humidity and dust can affect its performance. Keeping the enclosure clean and ensuring adequate ventilation will extend the life of the filter and the drive it protects.

The Evolution of Drive Protection

Industrial automation has come a long way since the days of simple motor starters. Today’s variable frequency drives (VFDs) are sophisticated, yet they remain vulnerable to electromagnetic interference (EMI) that can cause nuisance trips, communication errors, and even premature failure. As factories become more connected and drives are packed into tighter spaces, the need for reliable electromagnetic compatibility (EMC) has never been greater. The Allen-Bradley 22F-RF012-BS PowerFlex 4M EMC Filter Kit addresses this challenge head-on, providing a purpose-built solution designed to keep your 480V, 50/60 Hz three-phase system running smoothly.

What Is the 22F-RF012-BS?

The 22F-RF012-BS is an EMC filter kit manufactured by Allen-Bradley, part of the Rockwell Automation family. It is specifically engineered for the PowerFlex 4M series of AC drives. This filter helps reduce electromagnetic emissions and improves immunity to external interference, which is essential for meeting EMC standards in industrial environments. By installing this kit, you can enhance the reliability of your drive system and minimize the risk of operational disruptions caused by electrical noise.

Compatibility & Integration

The 22F-RF012-BS is designed specifically for the PowerFlex 4M series. It is compatible with drives rated for 480V, 50/60 Hz, three-phase input. Before ordering, confirm that your drive model falls within the supported power range (2.2 kW). This filter kit is not intended for use with other drive families, so always check compatibility with your existing equipment to avoid mismatches.

Selection Guide & Purchasing Advice

When selecting an EMC filter, it is crucial to match the filter’s ratings with your drive’s specifications. The 22F-RF012-BS is a reliable choice for PowerFlex 4M users who need to meet EMC requirements. At AutoDCSTech, we stock this filter kit and can help you verify compatibility with your specific drive model. Our team understands the importance of getting the right part the first time, so you can minimize downtime and keep your operations running efficiently. Contact us to check availability and current lifecycle status before placing your order.

Troubleshooting & Common Issues

If you encounter issues after installing the filter, start by checking the input power quality. Ensure that the voltage is within the rated range (480V) and that the frequency is stable at 50/60 Hz. Loose connections are a common cause of intermittent problems, so re-torque all terminals. If the drive still exhibits EMC-related issues, verify that the filter is properly grounded and that the wiring is not routed near high-noise sources. For persistent problems, consult the PowerFlex 4M user manual or contact AutoDCSTech for technical support.
