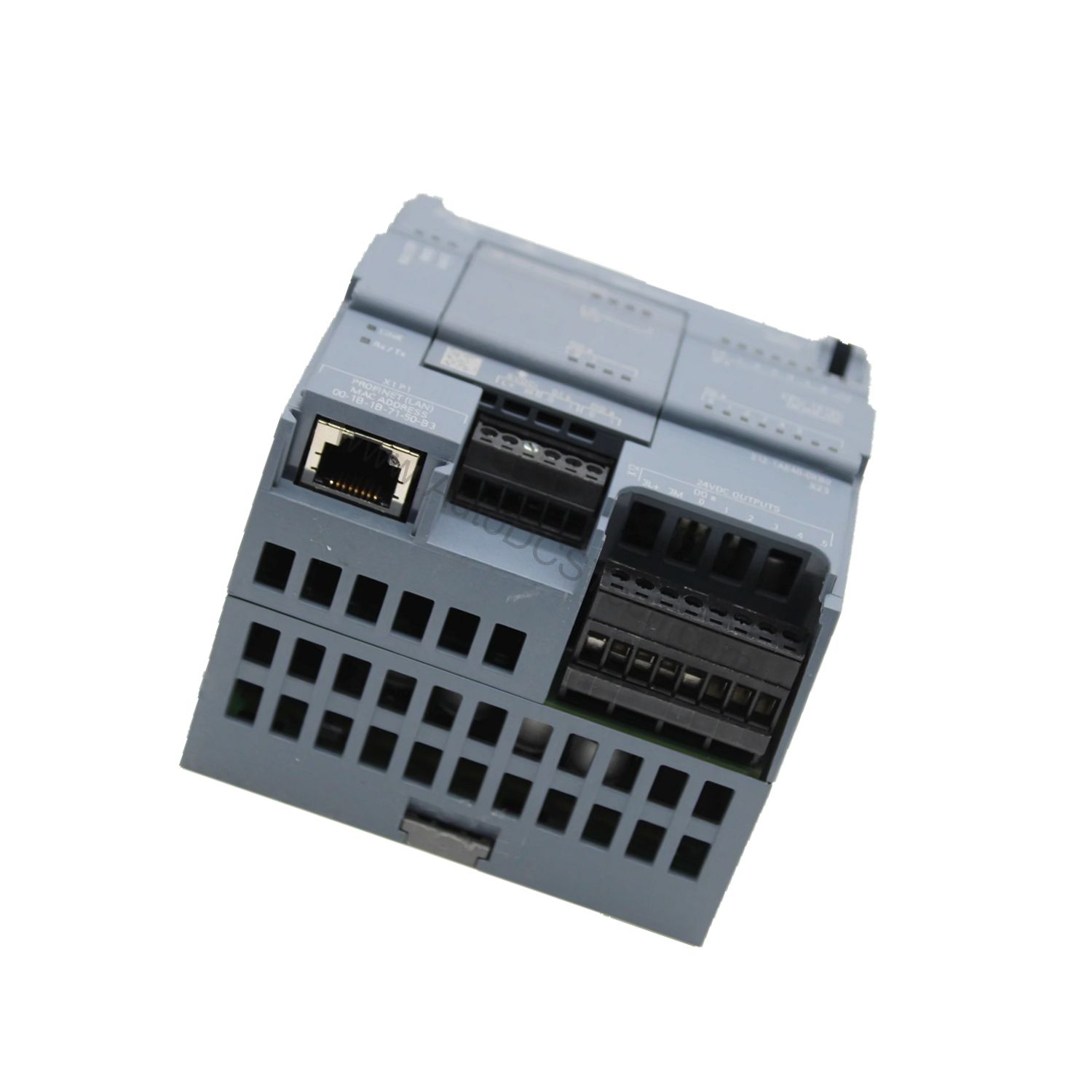

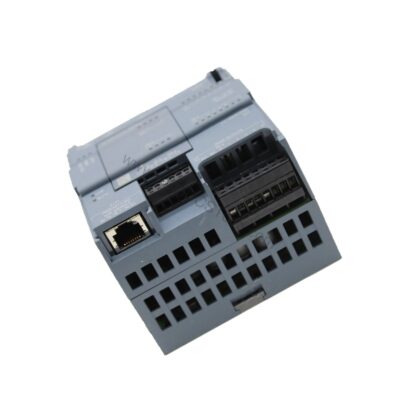

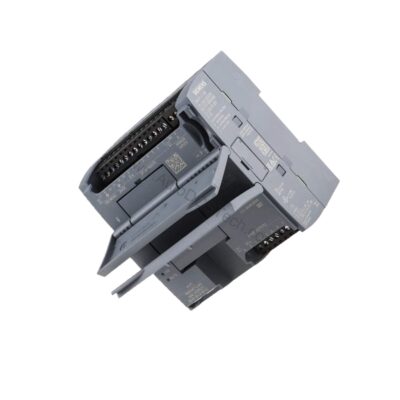

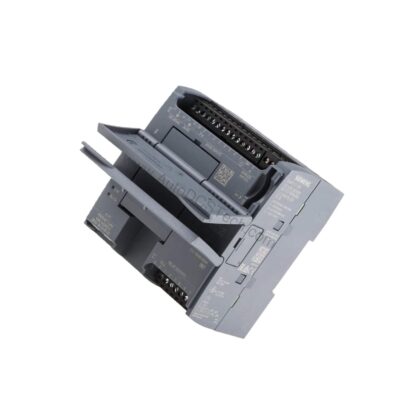

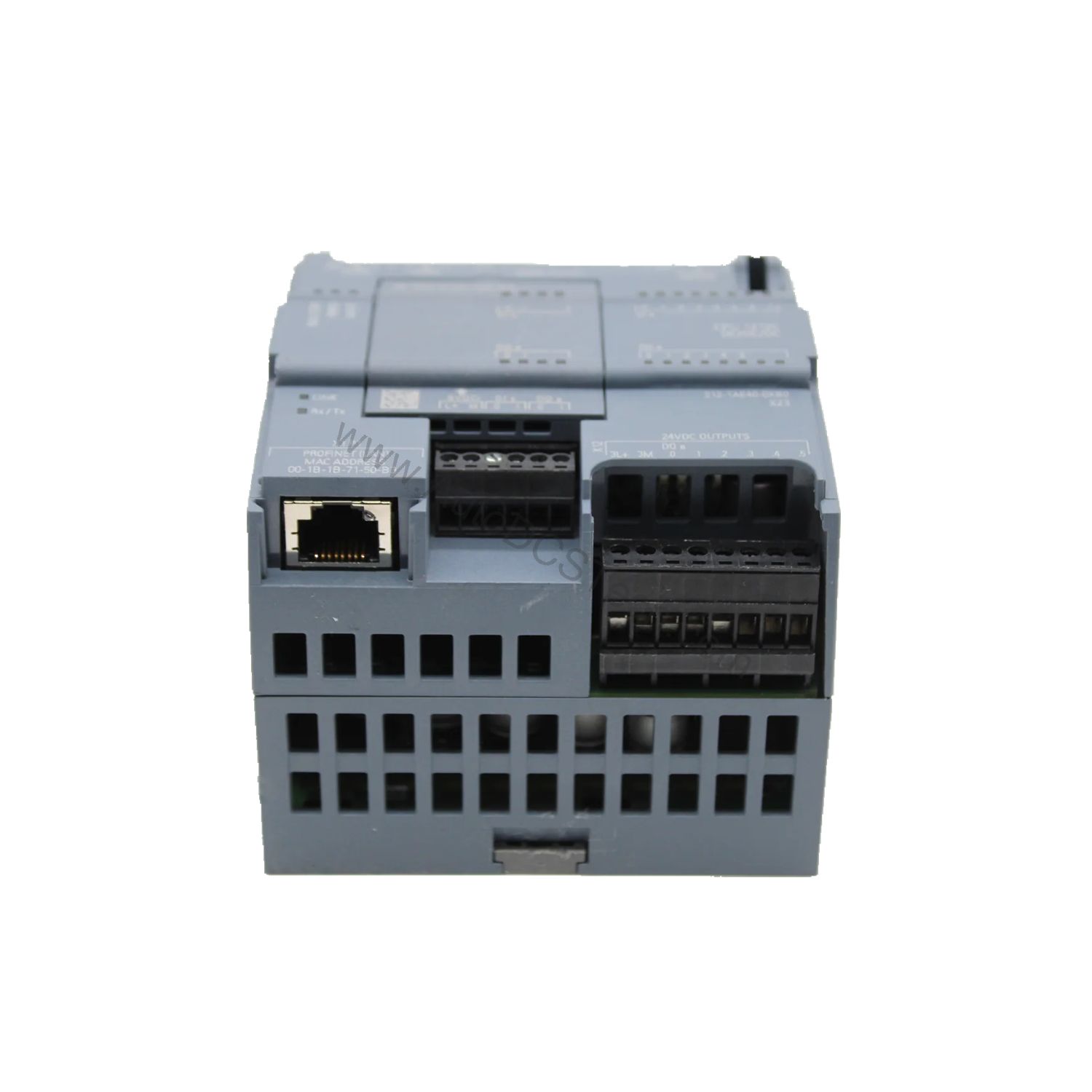

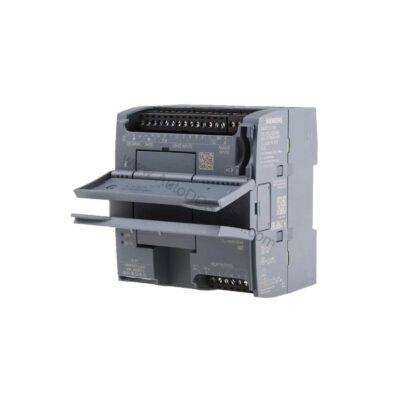

6ES7212-1HF40-0XB0 Siemens CPU 1212FC DC/DC/Relay

Introduction to the Siemens 6ES7212-1HF40-0XB0

When your application demands a compact yet powerful controller, the 6ES7212-1HF40-0XB0 from Siemens delivers. This CPU 1212FC is part of the SIMATIC S7-1200 family, engineered for reliability and performance. With onboard I/O of 8 digital inputs, 6 relay outputs, and 2 analog inputs, it handles a wide range of control tasks. The DC/DC/relay design ensures robust operation in industrial environments.

Key Features and Technical Specifications

The 6ES7212-1HF40-0XB0 operates on a 24 V DC supply with a permissible range of 20.4 to 28.8 V DC. It features 8 digital inputs rated for 24 V DC, with a signal "0" threshold of 5 V DC at 1 mA and signal "1" threshold of 15 V DC at 2.5 mA. The 6 relay outputs can switch up to 2 A with resistive loads, and the 2 analog inputs accept 0-10 V DC signals.

• Supply voltage: 24 V DC (20.4 to 28.8 V DC)
• Digital inputs: 8 (24 V DC)
• Relay outputs: 6 (2 A max)
• Analog inputs: 2 (0-10 V DC)
• Program/data memory: 150 KB
• Firmware version: V4.6
• Power loss: 9 W typical
• Dimensions: 90 x 100 x 75 mm
• Weight: approx. 385 g

One distinctive feature is the high-speed counting capability: 4 digital inputs can be used for technological functions, with single-phase counting at 100 kHz and differential counting at 80 kHz. This allows precise speed and position monitoring without extra modules.

Applications and Use Cases

The 6ES7212-1HF40-0XB0 suits applications requiring fail-safe logic, such as emergency stop circuits and safety interlocks. With PROFINET connectivity, it integrates easily into modern plant networks. The relay outputs handle inductive loads like contactors and small motors, while the analog inputs monitor sensors for temperature or pressure.

Installation and Setup

Mount the CPU on a standard DIN rail or panel. Ensure adequate clearance for ventilation and cable routing. Connect the 24 V DC supply to the L+ and M terminals, observing polarity. For digital inputs, use shielded cables up to 500 m for standard functions; for technological functions, limit shielded cable length to 50 m. Relay outputs accept unshielded cable up to 150 m. Analog inputs require twisted, shielded cable up to 100 m.

Maintenance and Reliability

Regular inspection ensures long-term reliability. Check all wiring connections periodically for tightness and signs of corrosion. The CPU has no battery, and data retention is maintenance-free. Operating temperature range is 0 to 55 °C horizontally and 0 to 45 °C vertically. Keep the enclosure clean and free of dust to maintain proper airflow. The relay outputs have a mechanical life of 10 million cycles and 100,000 cycles at rated load, so plan for periodic relay replacement in high-cycle applications.

Integration and Communication

This CPU supports PROFINET with one port, enabling it to act as an IO Controller or IO Device. It also supports PROFIsafe for safety communication, OPC UA server, Modbus, and open IE communication. For PROFIBUS or AS-Interface, additional communication modules (CM 1243-5 or CM 1242-5, CM 1243-2) are required. The integrated web server allows remote diagnostics and user-defined web pages.

Troubleshooting and Common Issues

If the CPU does not start, check the supply voltage is within 20.4-28.8 V DC. Verify the RUN/STOP LED status. For input issues, confirm the signal levels meet the thresholds. For output problems, check the relay contacts for wear or welding. Use the diagnostic buffer in STEP 7 to view error messages. Ensure firmware is V4.6 and programming is done with STEP 7 V18 or higher.

Support and Availability

The 6ES7212-1HF40-0XB0 is available from AutoDCSTech. Contact us for current stock and lead times.

Comparison with Similar CPUs

Compared to the standard CPU 1212C, the 6ES7212-1HF40-0XB0 adds fail-safe functionality, making it suitable for safety-related applications. It offers the same onboard I/O count but includes safety features like PROFIsafe and higher safety integrity levels (SIL 3, PLe). For applications not requiring safety, the standard CPU may be more cost-effective, but for integrated safety, this model is essential.
