Introduction: Solving Control System Reliability Challenges

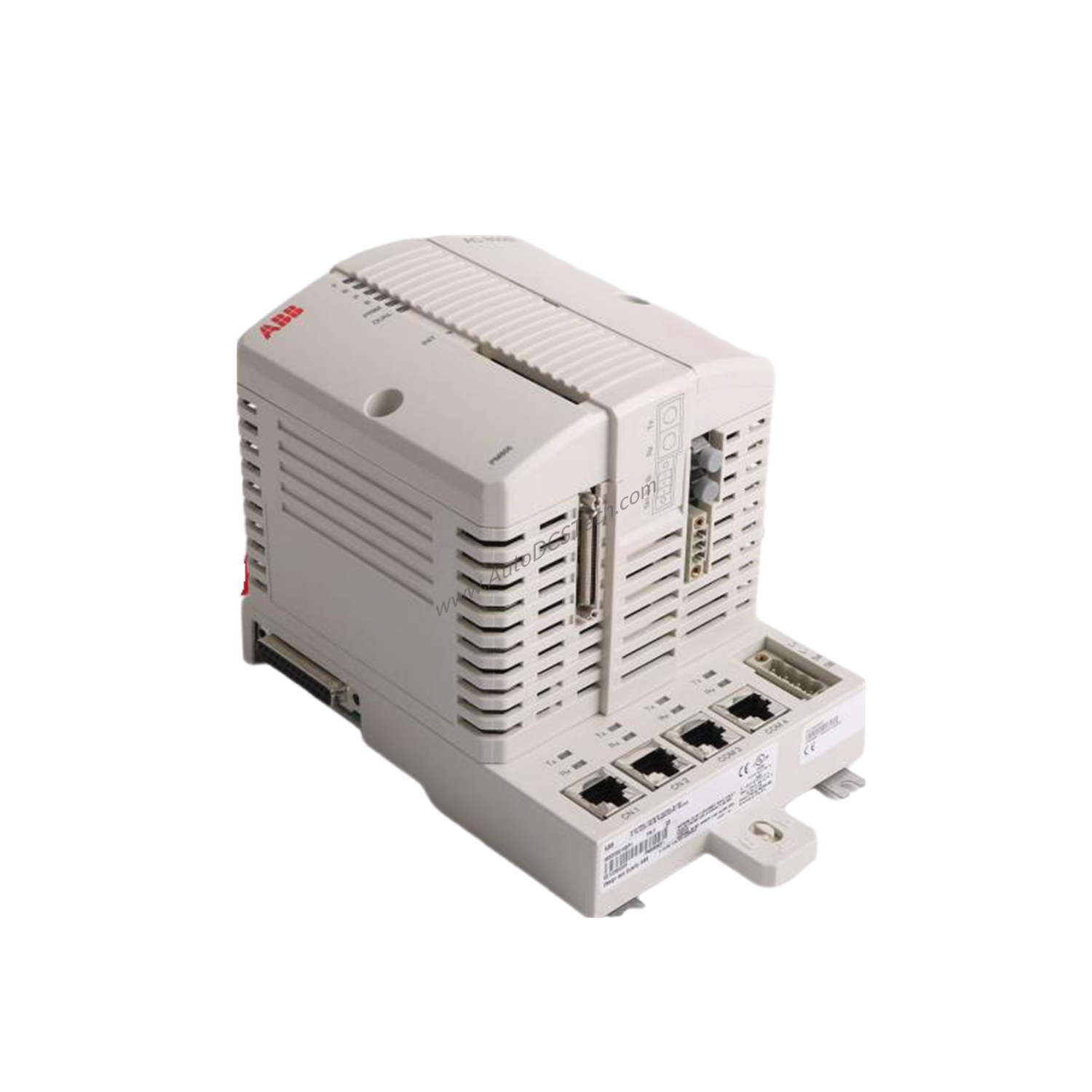

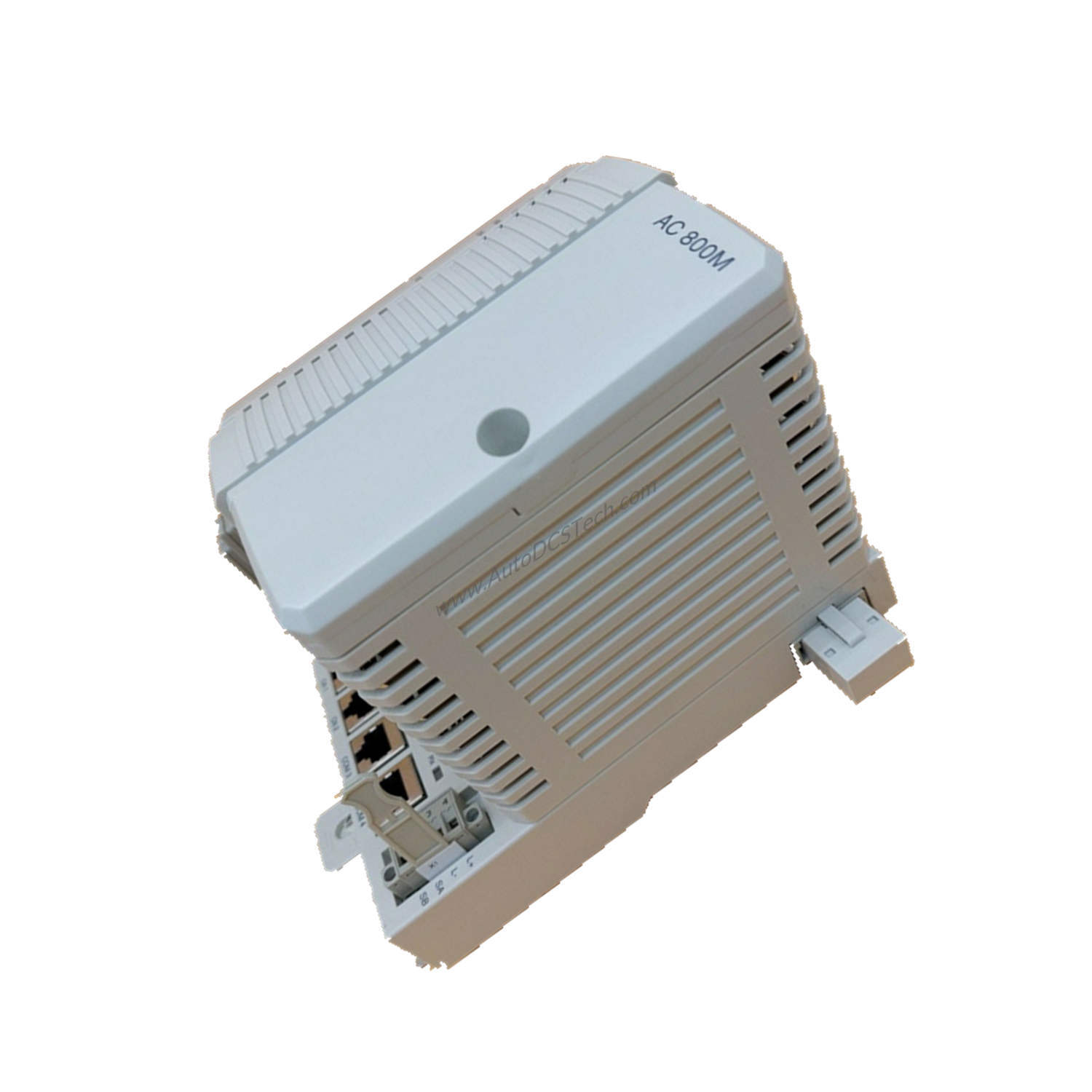

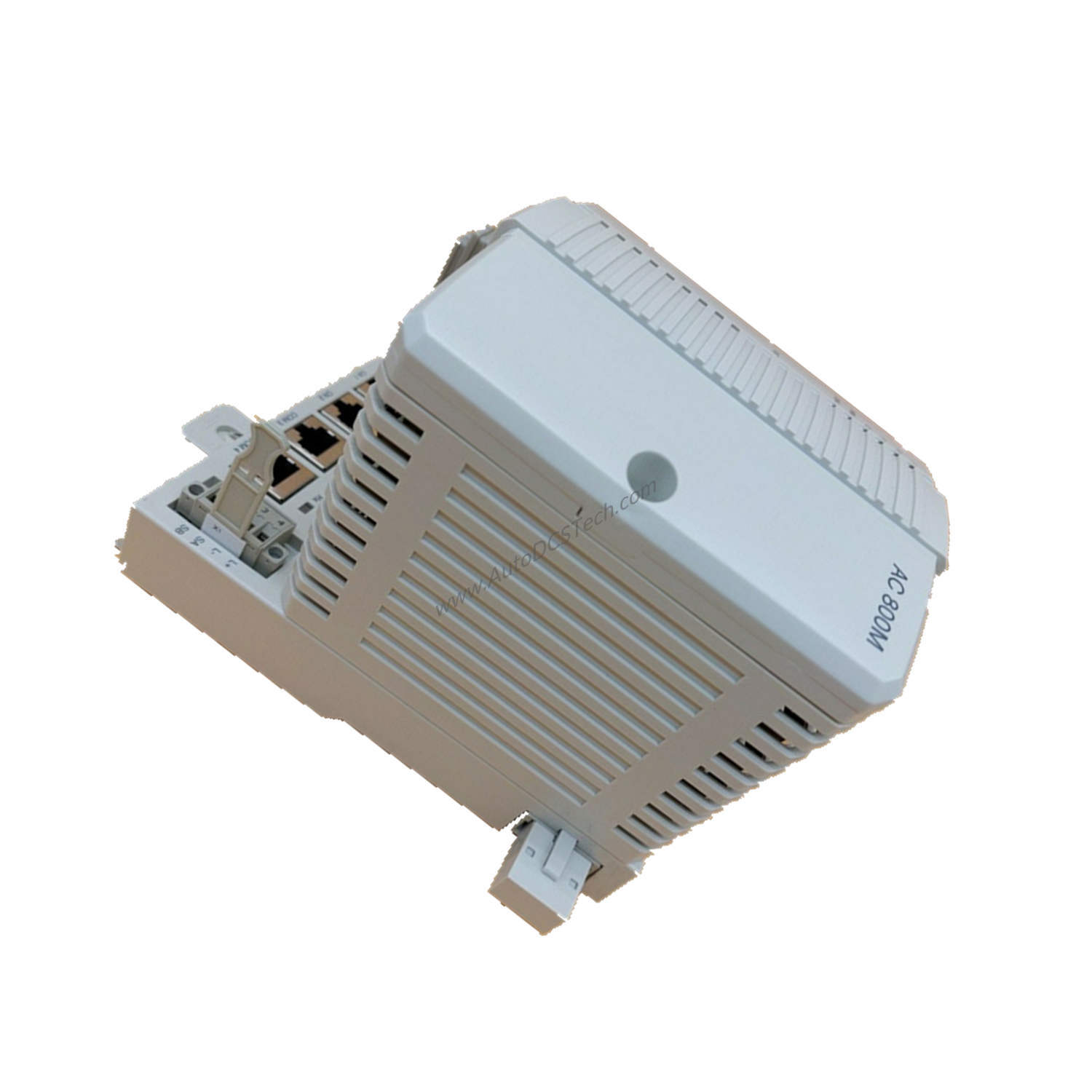

When industrial control systems face downtime due to processor failures or communication bottlenecks, the ABB PM860AK01 MPC860 CPU board provides a robust solution. This controller addresses common pain points like limited memory, slow processing, and network instability. Designed for the AC 800M family, it delivers dependable performance for demanding automation environments.
Technical Specifications Breakdown
The PM860AK01 features a 48 MHz clock frequency and achieves 0.23 ms for 1000 boolean operations, ensuring fast logic execution. With 16 MB of memory (from 800xA 5.1 FP4) and 10.346 MB RAM available for applications, it handles complex control tasks efficiently. The 2 MB flash PROM for firmware storage supports easy updates. Power supply is 24 V DC (19.2-30 V DC), with typical consumption of 180 mA and maximum 300 mA, dissipating 4.32 W (7.2 W max). These specs directly reduce the risk of processor overload and system lag.
Industry Applications: Real-World Use Cases
In manufacturing plants, the PM860AK01 manages up to 32 applications per controller and 64 programs per application, making it ideal for multi-line production control. For oil and gas facilities, its dual Ethernet channels (10 Mbit/s, IEEE 802.3) with MMS and IAC protocols ensure reliable communication across control networks. The controller supports up to 12 single CEX bus modules and 96 I/O modules on Modulebus, enabling scalable expansion without performance degradation.
Installation & Setup Guidance
Mount the PM860AK01 on a DIN rail using the slide & lock mechanism for simple attachment or detachment. Connect the two RJ45 Ethernet ports (CN1, CN2) to the Control Network, and use COM3 (RS-232C, 75-19200 baud) for modem connections or COM4 (RS-232C, 9600 baud, opto-isolated) for configuration tools. Ensure the 24 V DC supply is within 19.2-30 V DC. The unique Ethernet address on the TP830 base plate provides hardware identity for network setup.
Maintenance & Reliability
To maximize uptime, inspect the PM860AK01 periodically for environmental stress. It operates at +5 to +55 °C and withstands storage from -40 to +70 °C. With IP20 protection (EN 60529), it resists dust ingress without requiring enclosures. The built-in lithium backup battery (3.6 V) maintains real-time clock stability (100 ppm, ~1 h/year) during power loss. These features reduce maintenance frequency and extend service life, lowering total cost of ownership.
Compatibility & Integration
The PM860AK01 integrates seamlessly with ABB 800xA control builder software and supports Ethernet (IEEE 802.3) and PROFIBUS DP communication. It works with redundant power supply status input and synchronizes clocks to 1 ms between AC 800M controllers via CNCP protocol. The controller is compatible with cULus Class 1, Zone 2 hazardous locations and holds marine certificates (ABS, BV, DNV-GL, LR).
Selection Guide & Purchasing Advice
Before ordering the PM860AK01 (article number 3BSE066495R1), verify your system's power supply (24 V DC) and network requirements. SpareTechPLC offers this controller with full support and fast shipping. Contact us to confirm current lifecycle status and availability for your project.
