Introduction

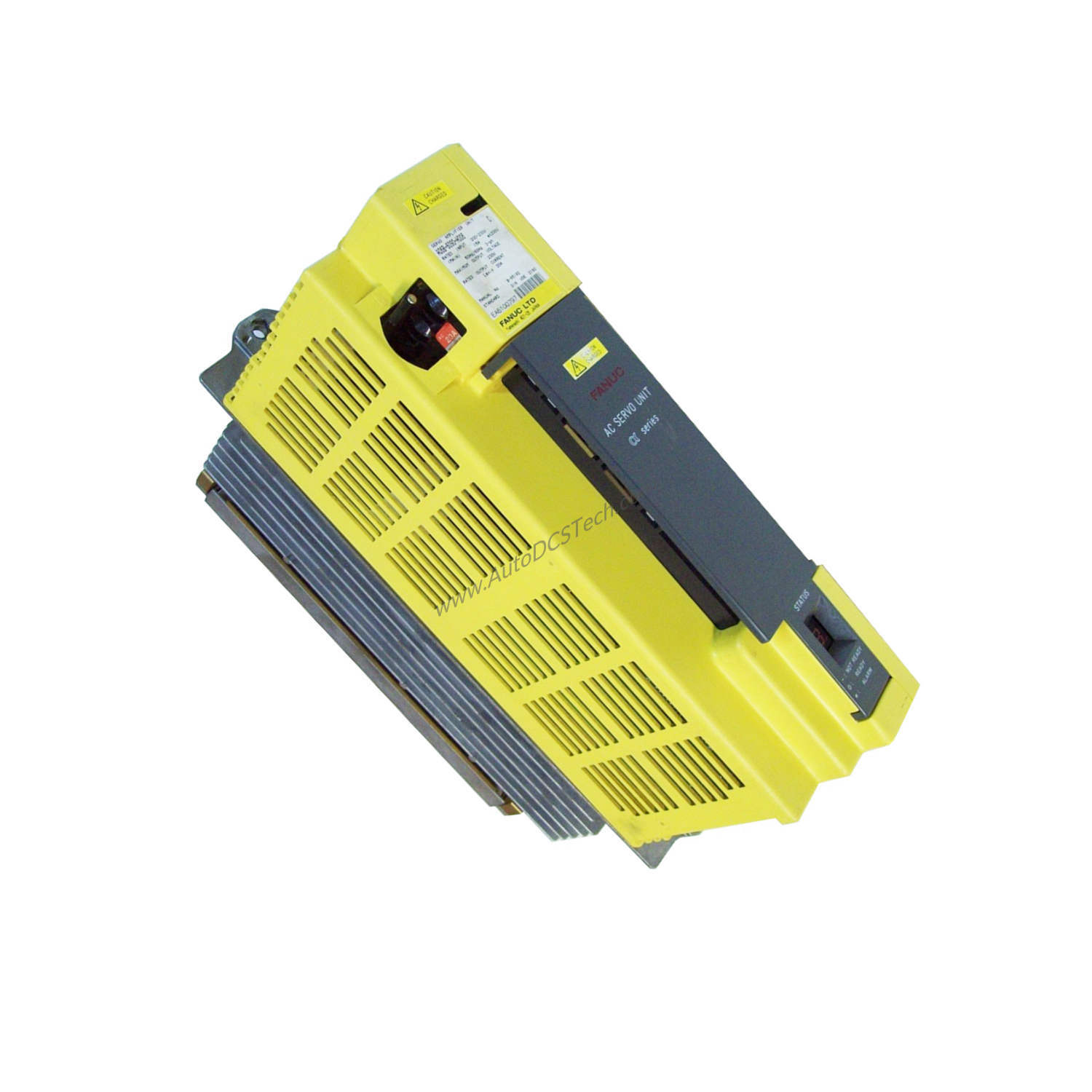

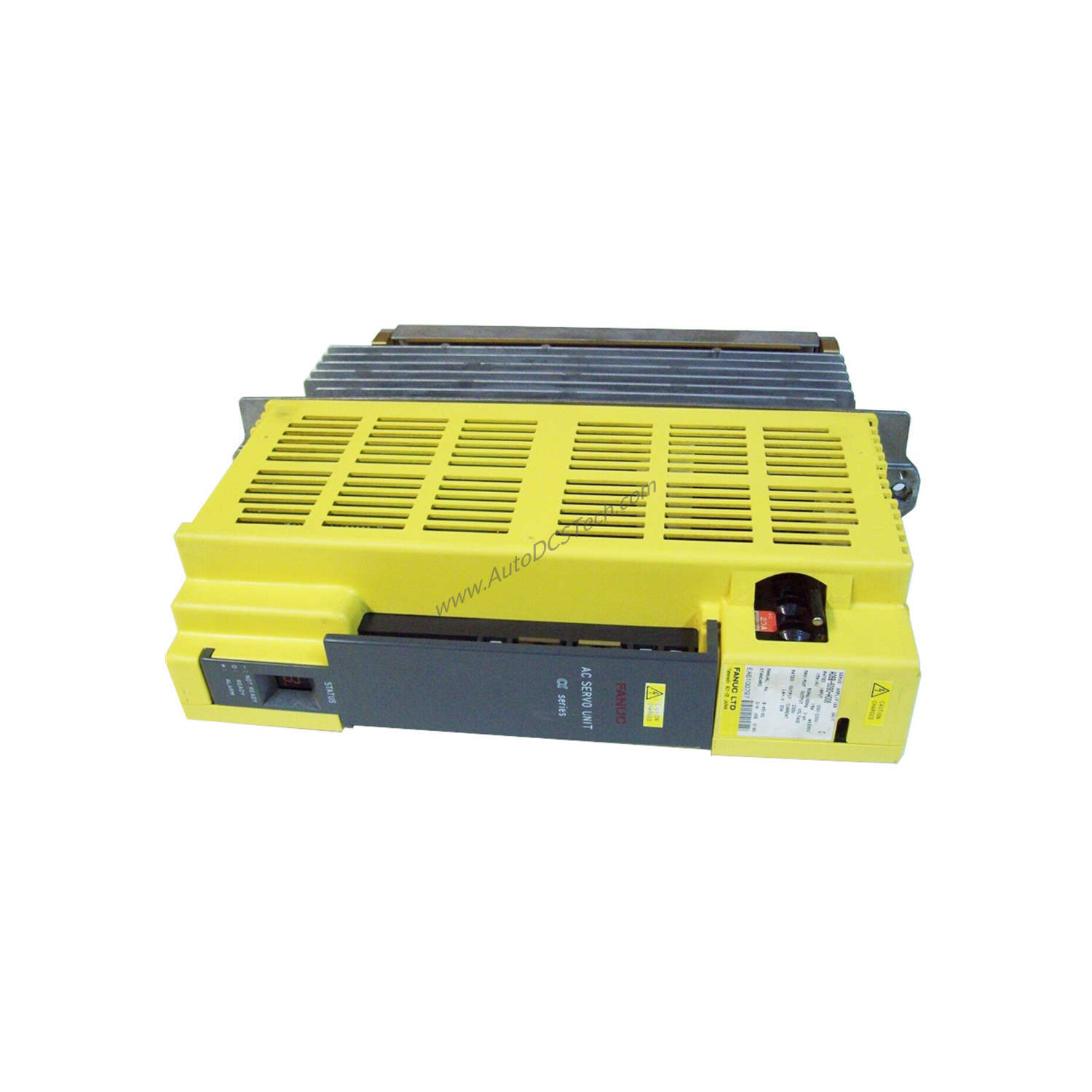

Struggling with servo drive reliability in demanding CNC machining? The FANUC A06B-6090-H004 Servo Amplifier (Servo Drive) provides the robust performance and protection your production floor needs. Designed for precision CNC systems, this amplifier handles high-current motor loads with ease.
Technical Specifications Breakdown
The FANUC A06B-6090-H004 operates with a rated output current of 40 A, ensuring ample power for driving servo motors in heavy-duty applications. It accepts an input voltage of 200-230 VAC and delivers a steady output voltage of 230 VAC, compatible with global electrical standards. The unit supports frequencies of 50/60 Hz, making it versatile for different regions. Built-in protection features guard against overload, overcurrent, and overvoltage conditions, preventing costly downtime.
Industry Applications
This servo amplifier excels in CNC milling, turning, and grinding centers where precise motion control is critical. For example, in a high-speed machining center, the A06B-6090-H004 maintains consistent torque and speed regulation, reducing scrap rates. Its air-cooled design allows reliable operation in factory environments without complex liquid cooling infrastructure.
Installation & Setup Guidance
Mount the FANUC A06B-6090-H004 vertically or on a wall for flexible installation. Ensure adequate airflow around the unit for effective air cooling. Verify that the input power source matches the 200-230 VAC requirement and that the output is correctly wired to the servo motor. Always follow the manufacturer's wiring diagram to avoid misconnection.
Maintenance & Reliability
Regularly inspect the air intake and exhaust vents for dust buildup to maintain cooling efficiency. Check for signs of overheating or unusual noise during operation. The built-in overload, overcurrent, and overvoltage protection help extend the amplifier's service life. Schedule periodic testing according to the manufacturer's guidelines to ensure continued reliable performance.
Selection Guide & Purchasing Advice
Before ordering the A06B-6090-H004, confirm that your CNC system requires a 40 A rated output current and 200-230 VAC input. Verify the mounting space allows for vertical or wall-mounted installation. SpareTechPLC stocks this genuine FANUC servo amplifier and can assist with availability and shipping details. Contact our team for current lifecycle status and replacement options.
Frequently Asked Questions
Q1: What is the rated output current of the FANUC A06B-6090-H004?
A: The rated output current is 40 A.
Q2: What input voltage does the A06B-6090-H004 require?
A: It requires an input voltage of 200-230 VAC.
Q3: Can this servo amplifier be mounted on a wall?
A: Yes, it supports vertical and wall-mounted installation.
Q4: What protection features does the A06B-6090-H004 include?
A: It includes overload, overcurrent, and overvoltage protection.
Q5: What is the operating temperature range?
A: The operating temperature range is 0°C to 55°C.
