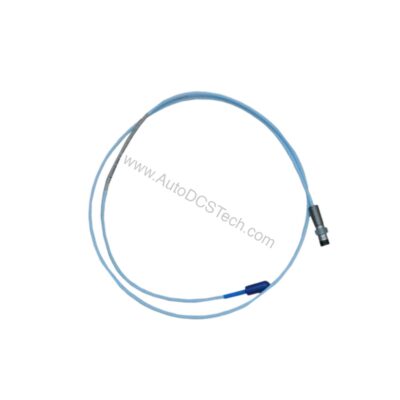

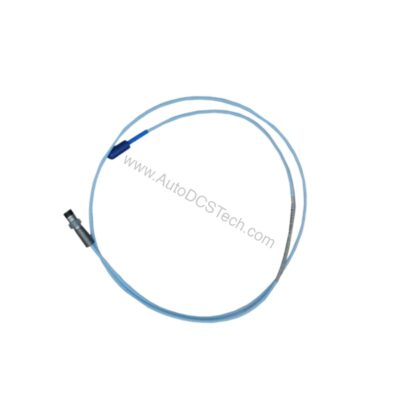

330171-05-63-05-02-CN Bently Nevada 5mm Probe 1/4-28

What Causes Unreliable Shaft Vibration Readings in Turbomachinery?

Inconsistent shaft vibration data often stems from a mismatched probe system. The Bently Nevada 330171-05-63-05-02-CN is a 5mm proximity probe engineered for exact displacement measurement in 3300 series systems. This probe features a 1/4-28 UNF thread, a 0.5-inch unthreaded length, and a 6.3-inch overall case length. Its polyphenylene sulfide (PPS) tip and AISI 304 stainless steel case deliver stable performance in harsh industrial environments. With a 0.5-meter total length and a miniature coaxial ClickLoc connector, it integrates seamlessly into existing monitoring setups. The probe operates with a -17.5 Vdc to -26 Vdc power supply at 12 mA maximum consumption, ensuring compatibility with standard Bently Nevada transmitters.

Key Specifications of the 330171-05-63-05-02-CN

• Input Voltage: Requires -17.5 Vdc to -26 Vdc at 12 mA maximum.
• Output Resistance: 50 Ω for reliable signal transmission.
• Probe DC Resistance: 7.45 ± 0.50 Ω from center to outer conductor.
• Isolation: Not specified; refer to official datasheet.
• Probe Tip Material: Polyphenylene sulfide (PPS) for chemical resistance.
• Case Material: AISI 304 stainless steel for durability.
• Temperature Range: -35°C to +177°C (-31°F to +351°F).
• Weight: 0.323 kg.

Each specification is verified to ensure engineering-grade precision in every part. The 5mm probe tip provides a linear range suitable for small shaft displacements, while the 1/4-28 thread ensures secure mounting. The maximum thread engagement is 0.375 inches, and a #3 or larger tap drill is recommended for installation.

Applications and Integration

This probe is ideal for continuous monitoring of shaft vibration, axial position, and radial displacement in steam turbines, compressors, and pumps. Its 0.5-meter cable length suits installations where the proximitor is mounted close to the probe. The ClickLoc connector allows quick, secure connections. For integration with 3300 series monitors, the probe pairs with a proximitor and extension cable. When wiring into fieldbus networks, an external gateway may be required; confirm cable and gateway compatibility with AutoDCSTech. The probe's AISI 304 stainless steel case resists corrosion, making it suitable for offshore and chemical plant environments.

Installation and Maintenance

Proper installation is critical for accurate measurements. Use a #3 or larger tap drill for the 1/4-28 mounting hole. Apply a recommended torque of 5.1 N·m (45 in·lb) to the probe case, with a maximum of 7.3 N·m (65 in·lb). Avoid exceeding these limits to prevent damage. The minimum cable bend radius is 25.4 mm (1.0 in). For maintenance, inspect the probe tip periodically for wear or contamination. Since the probe operates in temperatures up to +177°C, ensure the environment stays within this range. Exposing the probe to temperatures below -34°C may cause premature seal failure. Regular checks of the connector torque (0.565 N·m recommended) help maintain signal integrity.
