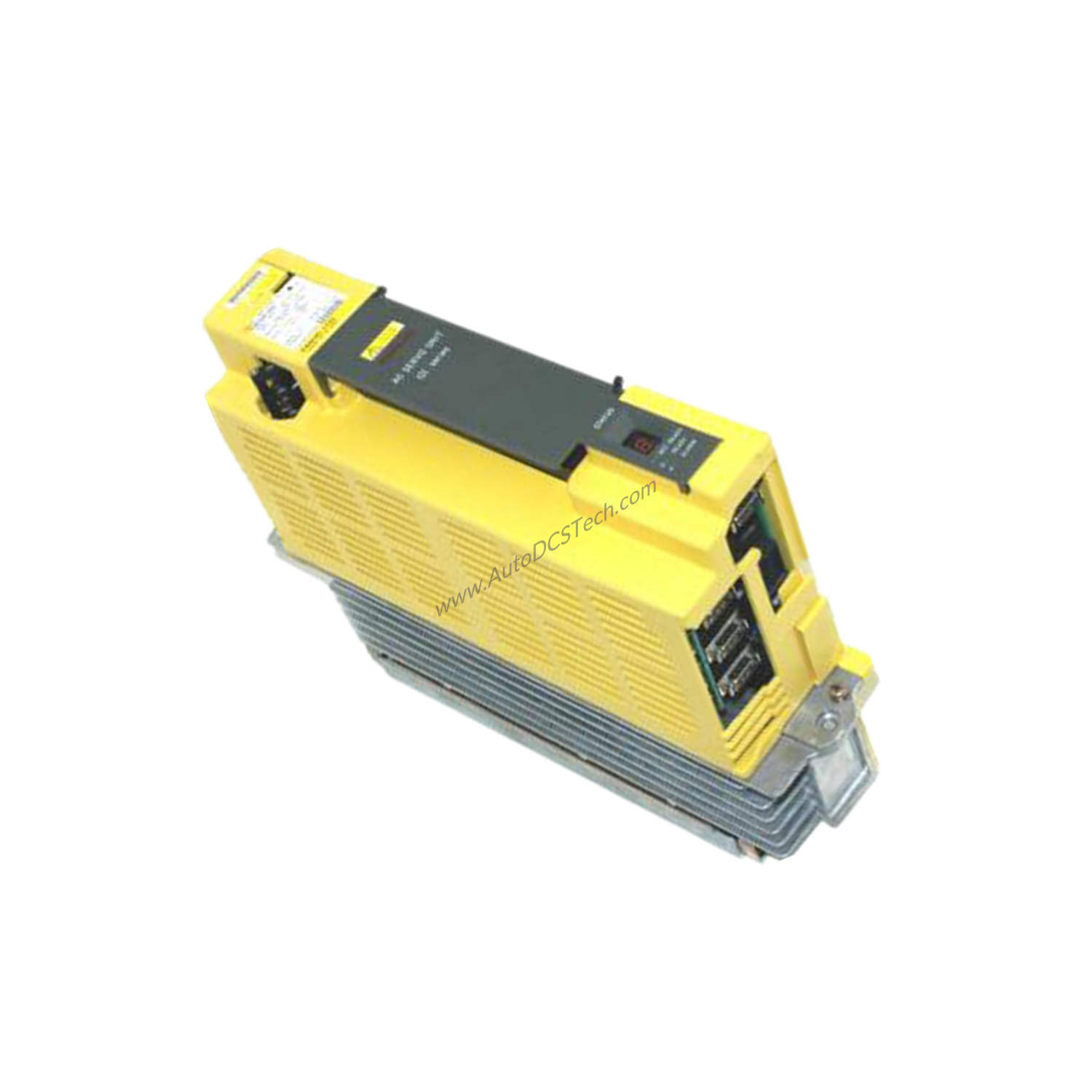

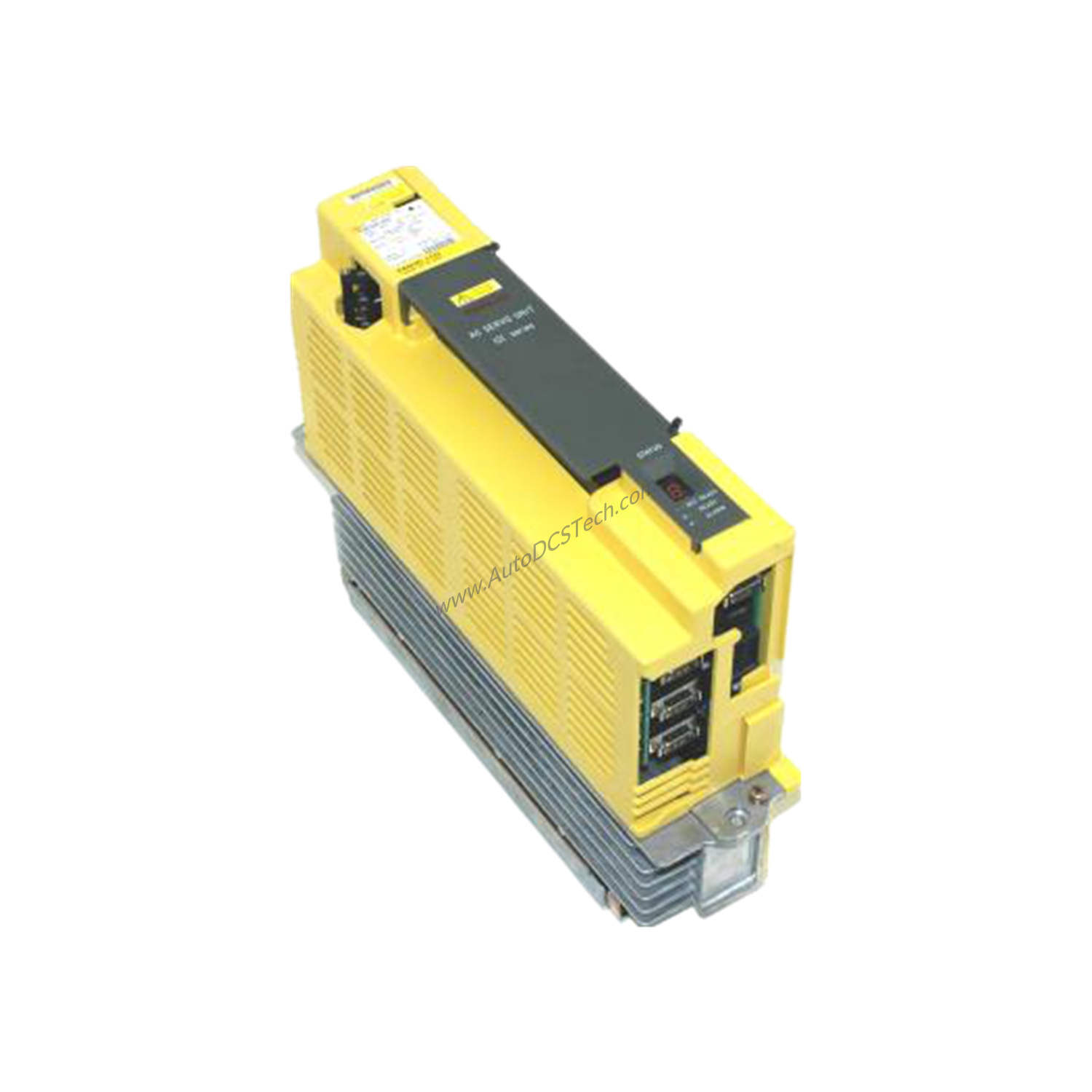

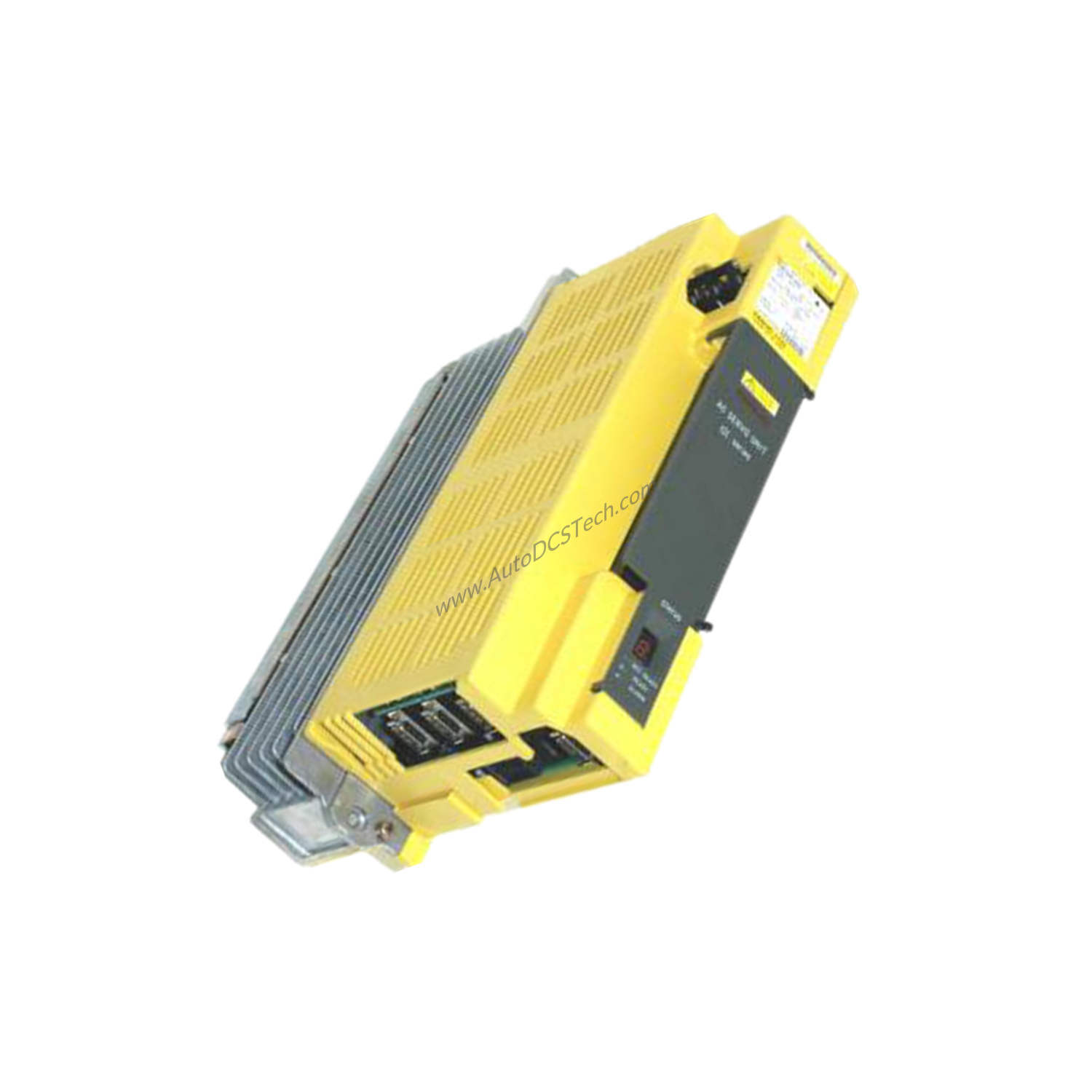

Product Overview
When your CNC system demands precise motion control and high reliability, the FANUC A06B-6090-H006 servo amplifier delivers. This robust unit is engineered for demanding manufacturing environments, providing a rated output current of 80 A to drive servo motors with accuracy and efficiency. Part of the A06B product line, this amplifier operates on an input voltage range of 200 to 230 VAC at 50/60 Hz, making it adaptable to various power supplies.
Technical Specifications Breakdown
Understanding key specifications helps you evaluate if this servo amplifier fits your application. The A06B-6090-H006 offers:
- Rated Output Current: 80 A – This high current capacity supports large servo motors common in heavy-duty CNC machining centers and milling machines.
- Input Voltage: 200-230 VAC – Works with standard three-phase industrial power, common in many facilities worldwide.
- Output Voltage: 230 VAC – Provides consistent voltage to servo motors, ensuring stable torque and speed control.
- Protection Features: Overload, Overcurrent, Overvoltage – Built-in safeguards prevent damage from electrical faults, reducing downtime and repair costs.
- Operating Temperature: 0°C to 55°C – Suitable for typical factory floor conditions without requiring special cooling.
Industry Applications
This servo amplifier excels in CNC applications where precision and reliability are non-negotiable. Typical use cases include:
- CNC Milling Machines – The 80 A output drives spindle and axis motors for high-speed material removal with tight tolerances.
- CNC Lathes – Provides smooth, accurate motion control for turning operations, enhancing surface finish and cycle times.
- Automated Assembly Systems – Integrates with robotic cells for precise positioning of components.
Installation & Setup Guidance
Mount the A06B-6090-H006 vertically or on a wall using the provided mounting holes. Ensure adequate clearance around the unit for air cooling. Connect input power from a 200-230 VAC, 50/60 Hz source, and route output wiring to the servo motor. Verify all connections are secure and follow local electrical codes. The amplifier’s air-cooled design requires unobstructed airflow; avoid installing in enclosed spaces without ventilation.
Maintenance & Reliability
Regular inspection of the A06B-6090-H006 ensures long service life. Check for dust accumulation on cooling fins and clean with low-pressure air if needed. Verify that input voltage remains within 200-230 VAC and that ambient temperature stays between 0°C and 55°C. The built-in protection features reduce the risk of failure, but periodic testing of overload and overcurrent functions is recommended. With proper care, this amplifier delivers years of dependable performance.
Selection Guide & Purchasing Advice
Before ordering the FANUC A06B-6090-H006, confirm that your CNC system requires an 80 A servo amplifier with 200-230 VAC input. Verify compatibility with your servo motor’s voltage and current ratings. This unit weighs 11.00 lbs (4.99 kg) and mounts vertically or on a wall. For expert assistance and competitive pricing, contact SpareTechPLC – your trusted source for industrial automation parts.
Frequently Asked Questions
Q: What is the rated output current of the FANUC A06B-6090-H006?
A: The rated output current is 80 A, suitable for driving large servo motors in CNC applications.
Q: What input voltage does this servo amplifier require?
A: It operates on an input voltage of 200 to 230 VAC at 50/60 Hz.
Q: What protection features does the A06B-6090-H006 include?
A: It includes overload, overcurrent, and overvoltage protection to safeguard against electrical faults.
Q: What is the operating temperature range for this amplifier?
A: The operating temperature range is 0°C to 55°C.
Q: How should I mount the A06B-6090-H006?
A: It can be mounted vertically or on a wall. Ensure proper airflow for air cooling.
