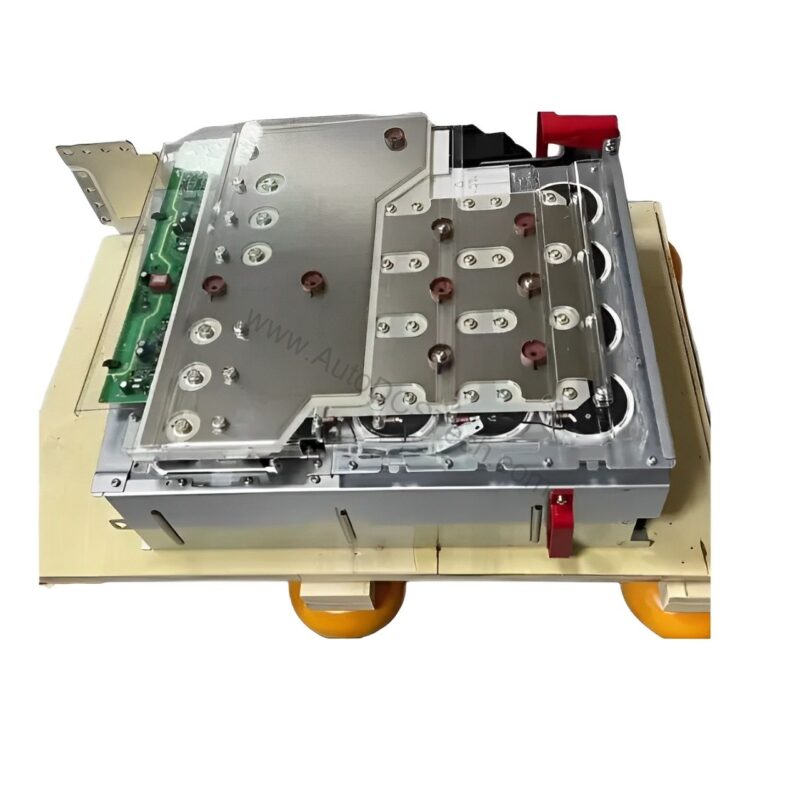

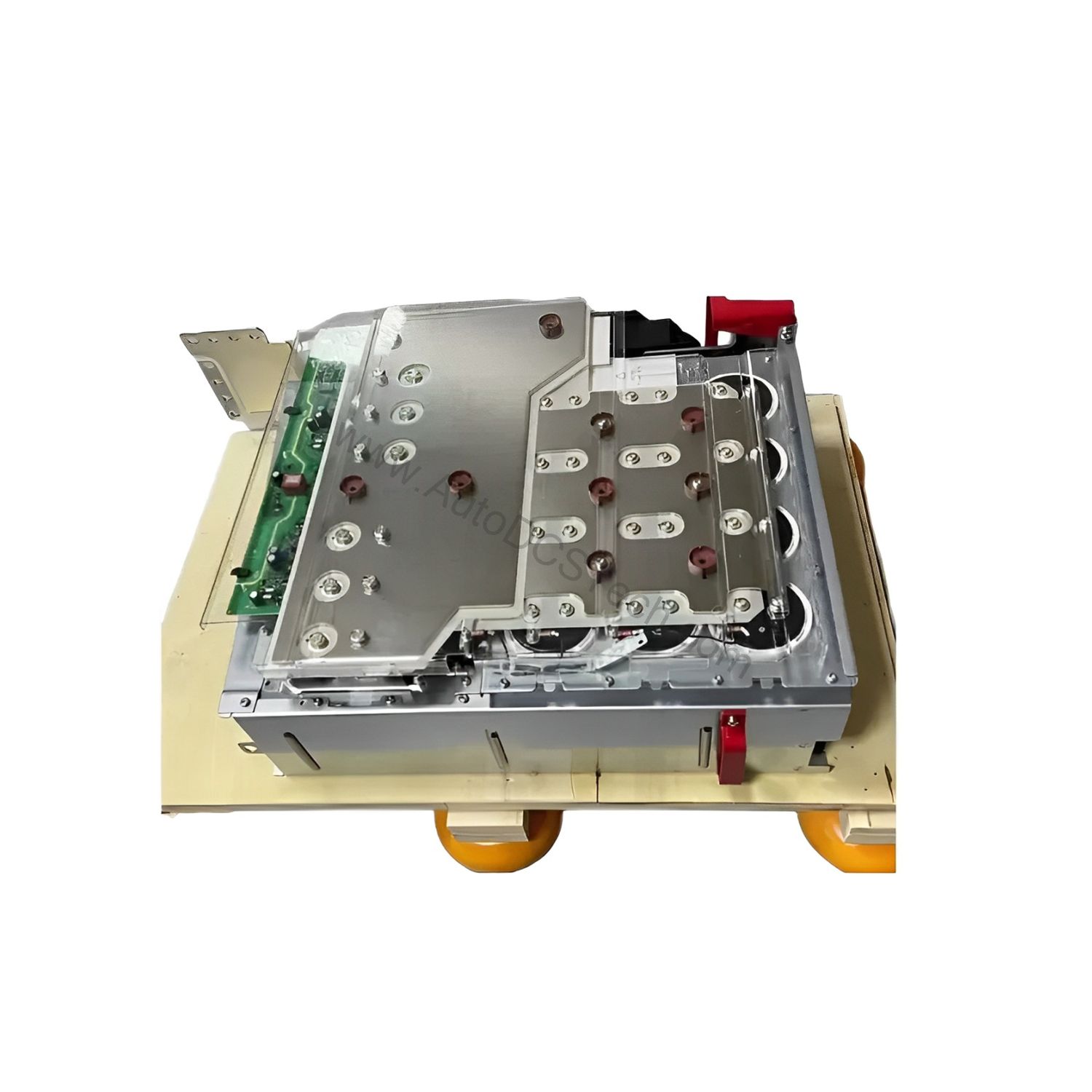

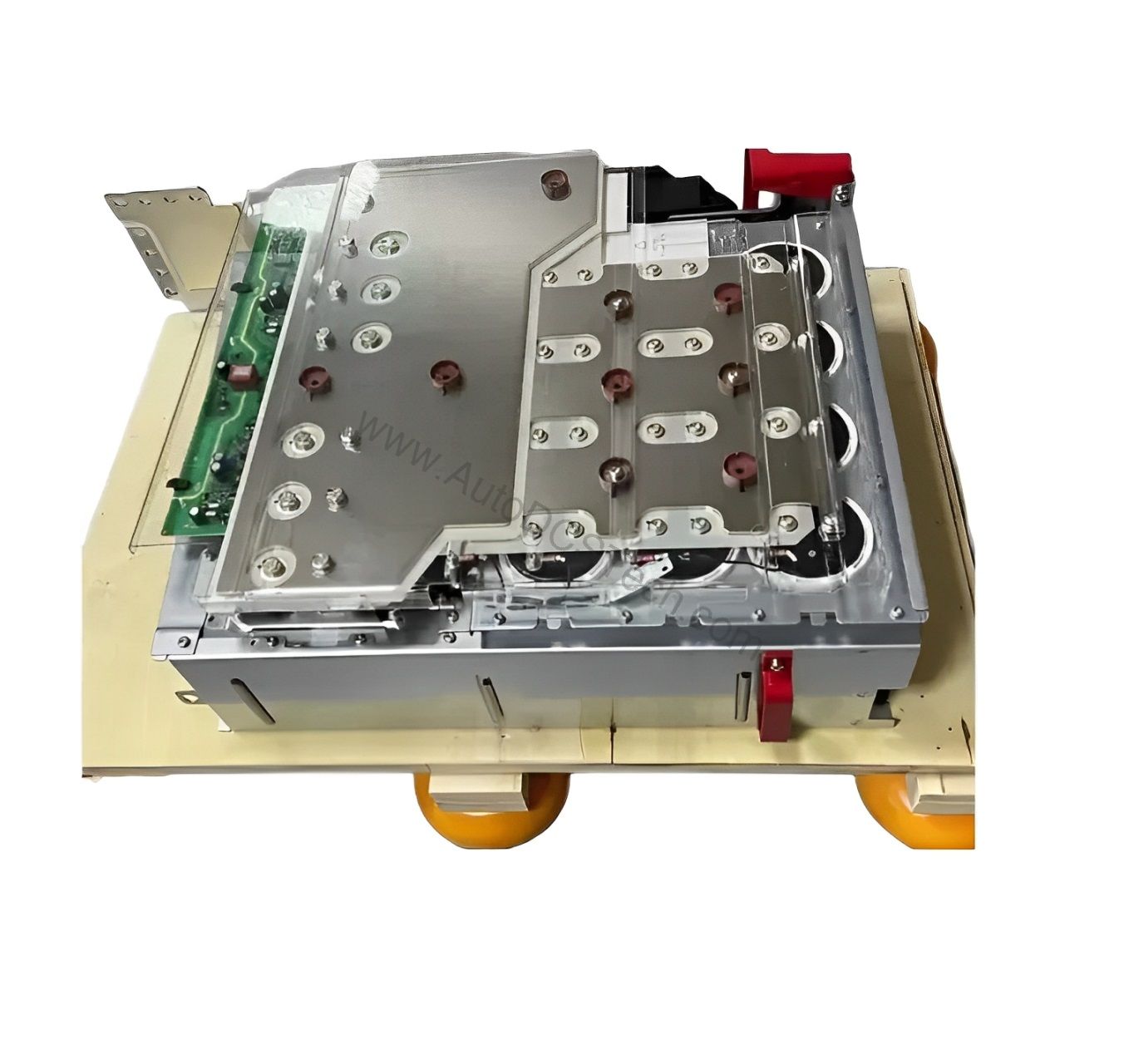

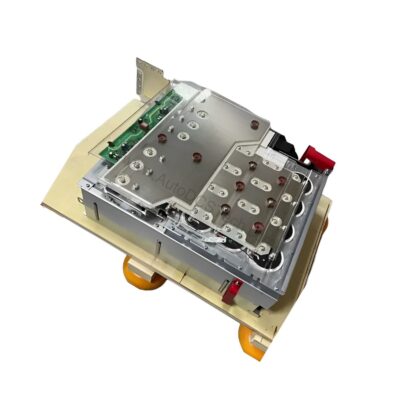

6SL3352-1AG35-8BA1 500-690V 575A Power Block

Introduction to the 6SL3352-1AG35-8BA1

When a power module fails in a high-voltage drive system, downtime translates directly into lost production. The 6SL3352-1AG35-8BA1 from Siemens provides a reliable replacement solution for SINAMICS AC drives operating in the 500-690V range. This power block handles the V and W phases, restoring your drive's performance without replacing the entire unit.

Engineered for industrial environments, this component features painted modules and nickel-plated busbars for enhanced corrosion resistance. With a robust design and a net weight of 88 kg, it is built to withstand demanding operating conditions.

Key Features and Technical Specifications

The 6SL3352-1AG35-8BA1 is a two-phase power block designed for three-phase AC systems. Below are the critical specifications extracted from the official datasheet:

• Input Voltage: 500-690V AC, three-phase
• Output Current: 575A
• Frequency: 50/60 Hz
• Phase Configuration: V and W phases
• Construction: Painted modules with nickel-plated busbars
• Net Weight: 88 kg
• Country of Origin: Germany

These specifications ensure compatibility with SINAMICS power modules that require a high-current, high-voltage replacement block. The nickel-plated busbars provide electrical conductivity and reduce maintenance needs over time.

Applications and Use Cases

This power block is suitable for a wide range of industrial applications that use SINAMICS AC drives, including conveyors, pumps, fans, and compressors. In a typical scenario, a manufacturing plant experiencing drive faults can replace the faulty power block with the 6SL3352-1AG35-8BA1 to restore normal operation quickly.

For example, in a steel mill where a 690V drive controls a rolling mill, a failed power block can halt production. Replacing it with this Siemens component minimizes downtime and avoids the cost of a full drive replacement. Similarly, in mining operations, the robust construction of this power block withstands harsh conditions, ensuring long-term reliability.

Installation and Setup

Proper installation is critical for the safe and efficient operation of the 6SL3352-1AG35-8BA1. Before beginning, ensure that all power is disconnected and locked out. The power block should be mounted according to the SINAMICS drive's original layout, with careful attention to the V and W phase connections.

Verify that the busbars are clean and properly torqued to the manufacturer's specifications. After installation, perform a visual inspection to confirm that all connections are secure and that no foreign objects are present. Finally, follow the drive's startup procedure to test the new power block under load.

Maintenance and Reliability

Regular maintenance of the 6SL3352-1AG35-8BA1 is essential to maximize its service life. Inspect the power block periodically for signs of overheating, such as discoloration or a burning smell. Check the busbars for corrosion or loose connections, and tighten them as needed.

Because this unit uses nickel-plated busbars, it offers improved resistance to environmental factors compared to uncoated copper. Nevertheless, keep the surrounding area clean and free of dust and moisture. Following the manufacturer's maintenance schedule will help prevent unexpected failures and extend the life of your drive system.

Compatibility and Integration

The 6SL3352-1AG35-8BA1 is designed for use with SINAMICS power modules that operate at 500-690V AC. It is a direct replacement for the V and W phase power blocks in compatible drives. Before ordering, verify that your drive model is supported by checking the original part number and the drive's documentation.

This power block is not a standalone drive; it must be integrated into an existing SINAMICS system. Ensure that the control unit and other components are in good working condition to achieve optimal performance.

Common Issues and Troubleshooting

One common issue with power blocks is overheating due to poor ventilation or excessive ambient temperature. If the drive trips on overtemperature, inspect the cooling fans and ensure that airflow is not obstructed. Another issue is loose busbar connections, which can cause arcing and voltage drops. Regularly check and tighten all electrical connections.

If the drive reports a phase loss fault, verify that the V and W phase outputs from the 6SL3352-1AG35-8BA1 are correctly wired. Use a multimeter to check for continuity and proper voltage levels. If problems persist, consult the SINAMICS troubleshooting guide or contact AutoDCSTech for technical support.

Product Support and Availability

The 6SL3352-1AG35-8BA1 is available from AutoDCSTech, a trusted supplier of industrial automation parts. With a standard delivery time of one day, this power block can be shipped quickly to minimize your downtime. Contact AutoDCSTech for pricing and availability.
