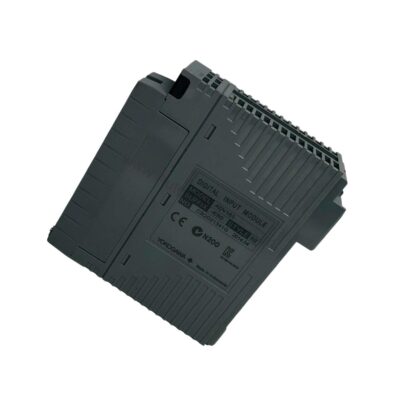

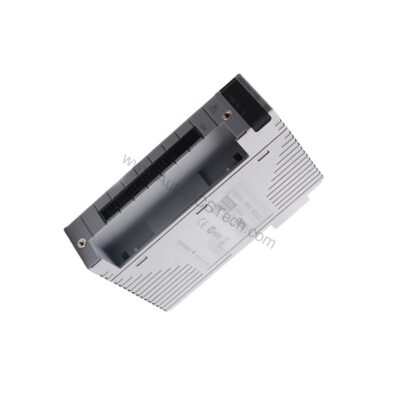

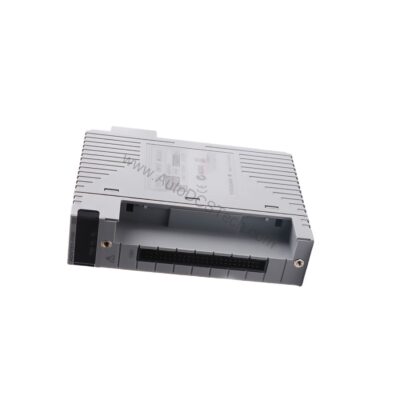

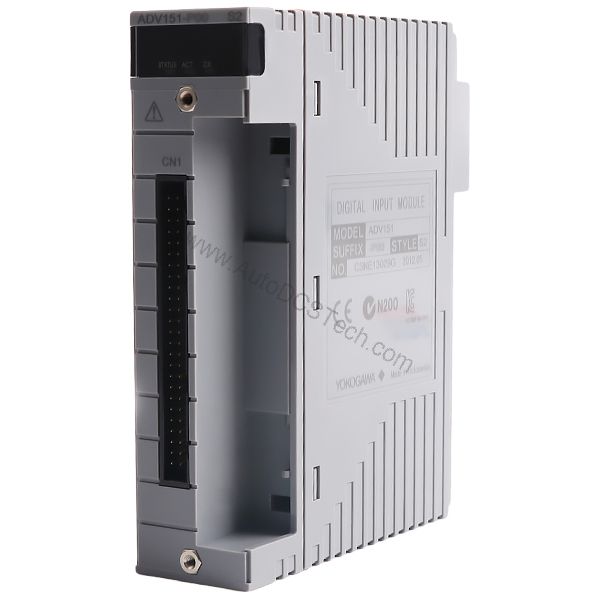

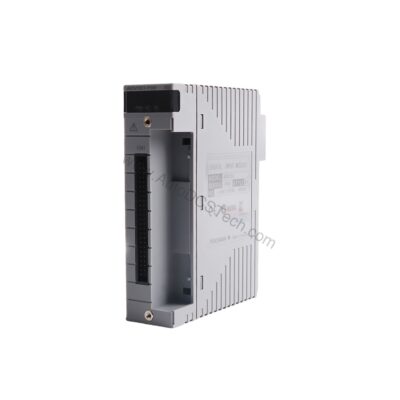

ADV151-P50/D5A00: Digital Input Module
The ADV151-P50/D5A00 is the Digital Input Module covered on this page. The attribute that decides whether it fits the existing installation without modification is Approx. 0.3 kg.
This configuration's digital input module is the attribute that drives the replacement decision. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. digital input module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching Approx. 0.3 kg against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Brand | Yokogawa |
| Part Number | ADV151-P50/D5A00 |
| Product Type | Digital Input Module |
| Number of Input Channels | 32 |
| Rated Input Voltage | 24 V DC (sink/source) |
| Input ON Voltage | 18 to 26.4 V DC |
| Input OFF Voltage | 5.0 V DC or less |
| Input Current (at rated voltage) | 4.1 mA ±20% per channel |
| Maximum Allowable Input Voltage | 30.0 V DC |
| Input Response Time | 8 ms or less (status input) |
| Weight | Approx. 0.3 kg |
Availability & Condition at AutoDCSTech
| Part Number | ADV151-P50/D5A00 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Japan |
