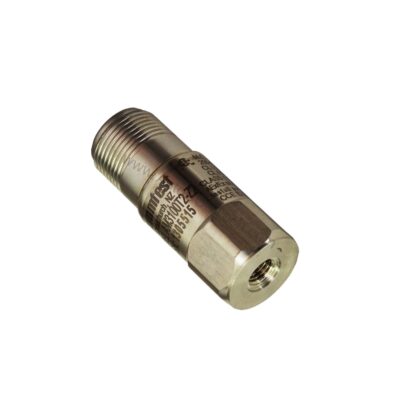

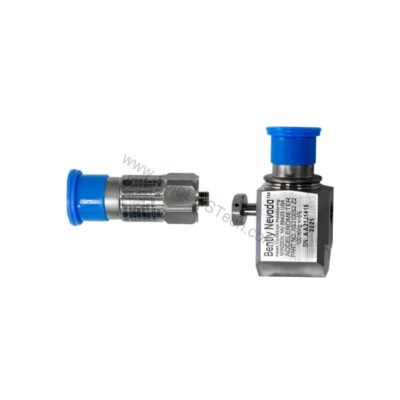

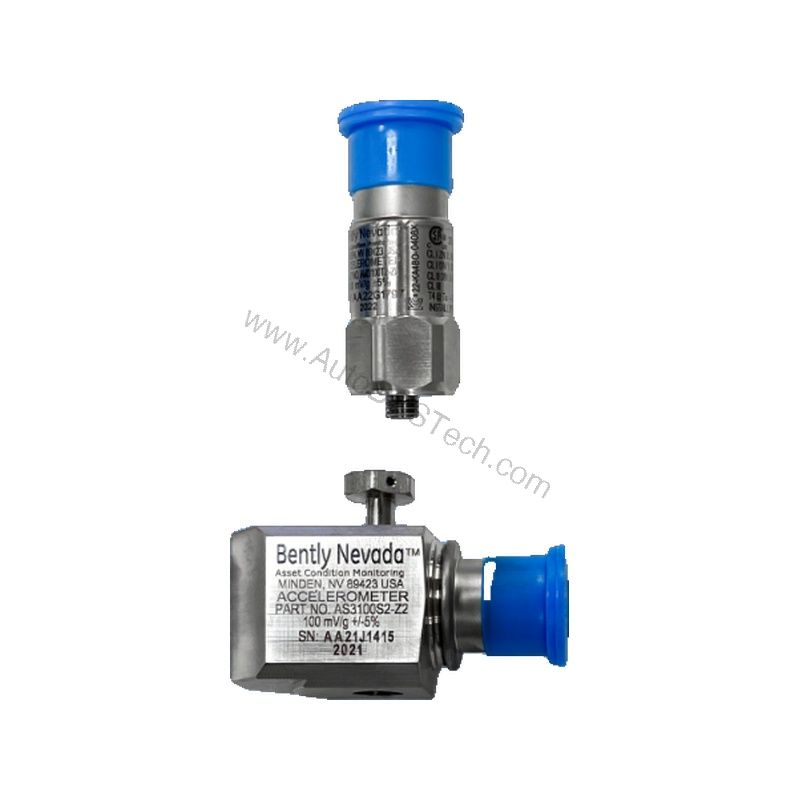

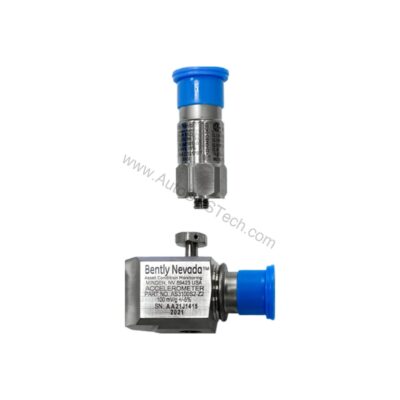

AS3100S2-Z0: 100 mV/g Seismic Accelerometer
The AS3100S2-Z0 is the 100 mV/g Seismic Accelerometer covered on this page. The attribute that decides whether it fits the existing installation without modification is 100 mV/g ±5% at 25°C.
On this unit 100 mv/g seismic accelerometer is the figure that decides fit and function. In a machine protection or condition-monitoring installation 100 mv/g seismic accelerometer is the attribute that decides whether the sensor reaches the target and reads it on the correct gap. A probe or transducer specified to the wrong case length, thread or sensitivity either cannot reach the measured surface or returns vibration values that do not line up with the rest of the train. Confirming 100 mV/g ±5% at 25°C against the existing mount is therefore the first check before a replacement, not an afterthought.
| Feature | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Brand | Bently Nevada |
| Part Number | AS3100S2-Z0 |
| Sensitivity | 100 mV/g ±5% at 25°C |
| Acceleration Range | 80 g peak |
| Frequency Response (±10%) | 1.0-5,000 Hz |
| Frequency Response (±3 dB) | 0.7-10,000 Hz |
| Resonant Frequency | 22 kHz |
| Voltage Source | 18-30 Vdc |
| Current Regulating Diode | 2-10 mA |
| Temperature Range | -50°C to 120°C |
| Vibration Limit | 500 g peak |
| Shock Limit | 5,000 g peak |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
Availability & Condition at AutoDCSTech
| Part Number | AS3100S2-Z0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
